User’s Guide
D0220LD-48-4002F
VFD-
RoHS Compliant
(Vacuum Fluorescent Display Module)
For product support, contact
Newhaven Display International
2511 Technology Drive, #101
Elgin, IL 60124
Tel: (847) 844-8795
Fax: (847) 844-8796
February 28, 2008
Newhaven Display International
October 31, 2006
Vacuum Fluorescent Display
Specification
PART NUMBER:
D0220LD-48-4002F
FEATURES:
2 Row x 20 Digits, 5x7 Dot Matrix with Decimal, Comma, Carrot - P.O.S
APPLICATION:
Character Display (Dot
Matrix)
RATINGS:
Below
Panel Length
Panel Height
Panel Thickness
Lead Pitch
Lead Out
Character Height
Character Width
P.L.
P.H.
P.T.
L.P.
-
C.H.
C.W.
225.0
48.3
11.5
2.54
SIL
11.2
6.1
mm
mm
mm
mm

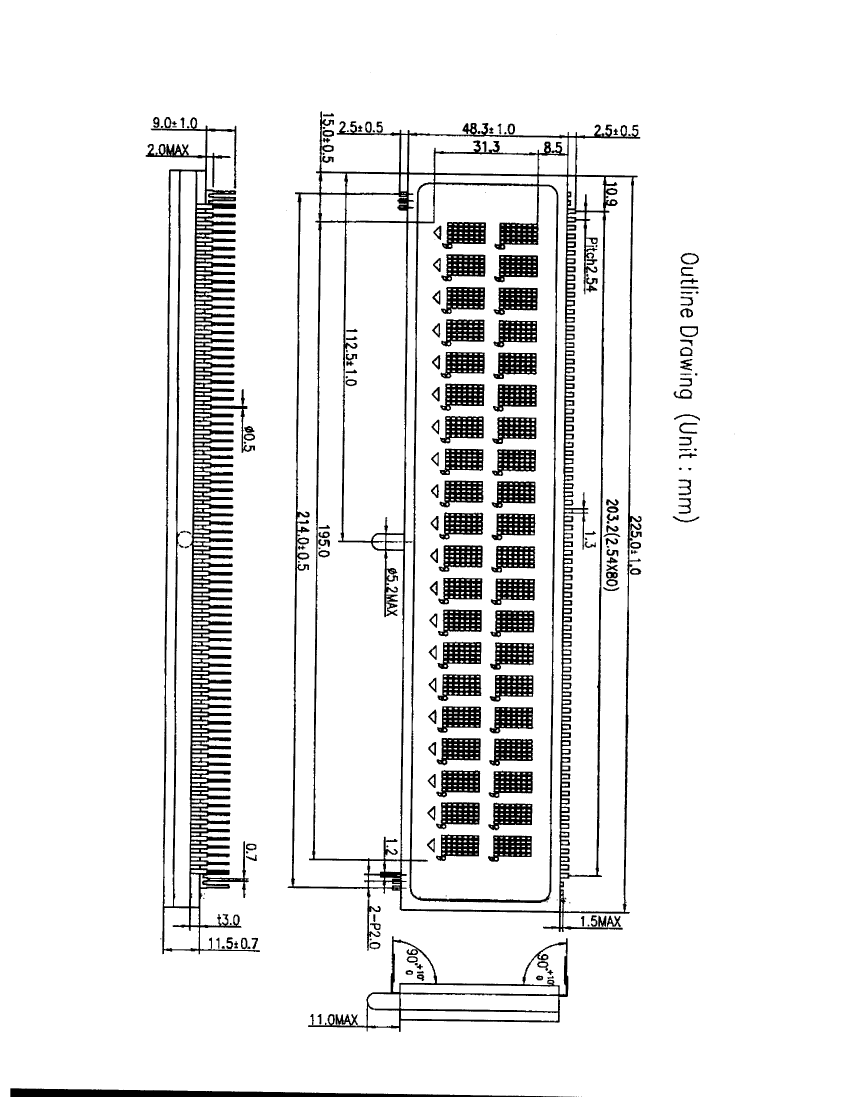

Outer Dimensions
Leads
Character Size
mm
mm
Item
Filament Voltage
Peak Grid Voltage
Peak Anode Voltage
-
Duty
Cycle
Pulse Width
Operating Temperature
Storage Temperature
Color of Illumination
Symbol
Ef
ec
eb
-
Du
tp
Topr
Tstg
Min.
7.6
-
-
-
-
-
-40
-55
Recommended
8.4
45.0
45.0
-
1/ 50
80
-
-
Green
Max.
9.2
54.0
54.0
-
-
-
+ 85
+ 85
Unit
Vac
Vp-p
Vp-p
-
-
uS
C
C
-1-
