HLMP-1421-F00A2 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> HLMP-1421-F00A2

HLMP-1421-F00A2: DescriptionStandard LEDs - Through Hole GaP Yellow; CategoryLED optoelectronic/LED photoelectric; File Size183KB，9 Pages; ManufacturerBroadcom; Environmental Compliance

Download Datasheet Parametric Compare View All

HLMP-1421-F00A2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HLMP-1421-F00A2	-	-	View	Buy Now

HLMP-1421-F00A2 Overview

Standard LEDs - Through Hole GaP Yellow

HLMP-1421-F00A2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Broadcom
package instruction	PLASTIC PACKAGE-2
Reach Compliance Code	compliant
ECCN code	EAR99
color	YELLOW
color@wavelength	Yellow
Configuration	SINGLE
Maximum forward current	0.02 A
Maximum forward voltage	2.4 V
JESD-609 code	e3
Lens type	TINTED NONDIFFUSED
Nominal luminous intensity	15.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4.445 mm
method of packing	BULK
peak wavelength	583 nm
Maximum reverse voltage	5 V
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal surface	Matte Tin (Sn)
Terminal pitch	2.54 mm
perspective	45 deg
Base Number Matches	1

Preview

Download Datasheet

View All

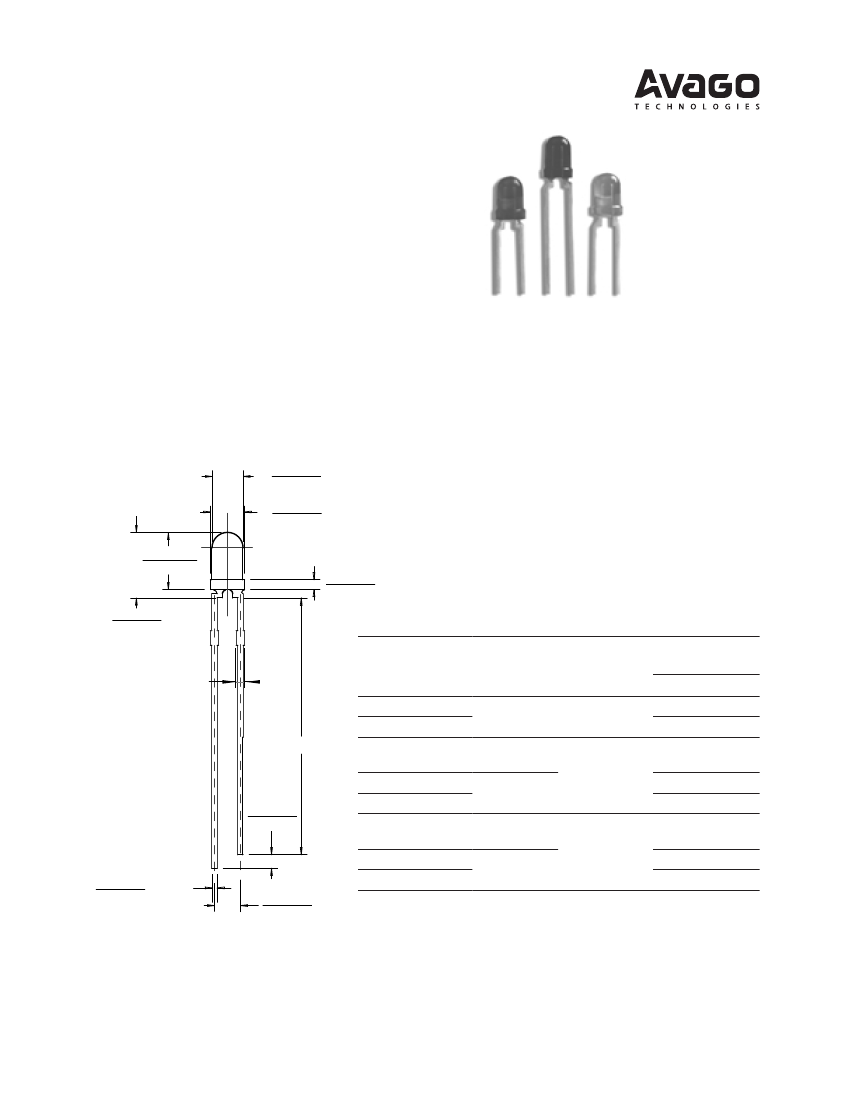

HLMP-132x Series, HLMP-142x Series,

HLMP-152x Series

T-1 (3 mm) High Intensity LED Lamps

Data Sheet

Description

This family of T-1 lamps is specially designed for applica-

tions requiring higher on-axis intensity than is achiev-

able with a standard lamp. The light generated is focused

to a narrow beam to achieve this effect.

Features

•

High intensity

•

Choice of 3 bright colors

High Efficiency Red

Yellow

High Performance Green

•

Popular T-1 diameter package

•

Selected minimum intensities

•

Narrow viewing angle

•

General purpose leads

•

Reliable and rugged

•

Available on tape and reel

•

For more information, please refer to Tape and Reel

Option data sheet

Package Dimensions

3.17 (.125)

2.67 (.105)

3.43 (.135)

2.92 (.115)

4.70 (.185)

4.19 (.165)

1.14 (.045)

0.51 (.020)

6.35 (.250)

5.58 (.220)

Selection Guide

Package

Description

Tinted,

Non-diffused

Microtinted,

Non-diffused

Tinted,

Non-diffused

Microtinted,

Non-diffused

Tinted,

Non-diffused

Luminous Intensity

Iv (mcd) @ 10 mA

Color

High Efficiency

Red

0.65 (0.026) max.

Part Number

HLMP-1321

HLMP-1321-G00xx

24.1(.95) min.

Min.

8.6

9.2

Max.

–

HLMP-1420

HLMP-1421

Yellow

9.2

6.7

1.52 (.060)

1.02 (.040)

HLMP-1421-F00xx

HLMP-1520

HLMP-1521

Green

6.7

(0.022) 0.55 SQ. TYP.

(0.016) 0.40

HLMP-1521-E00xx

2.79 (.110)

2.29 (.090)

Notes:

1. All dimensions are in millimeters (inches).

2. An epoxy meniscus may extend about 1 mm (0.40") down the leads.

3. For PCB hole recommendations, see the Precautions section.

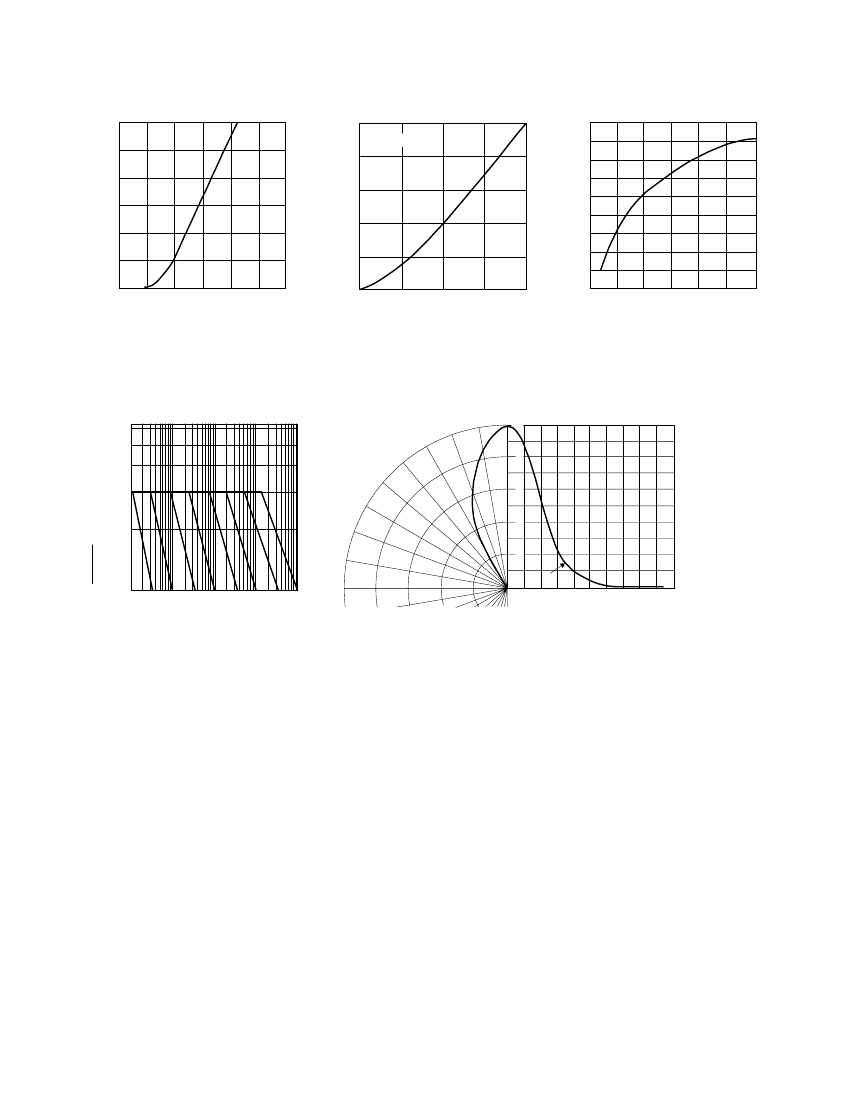

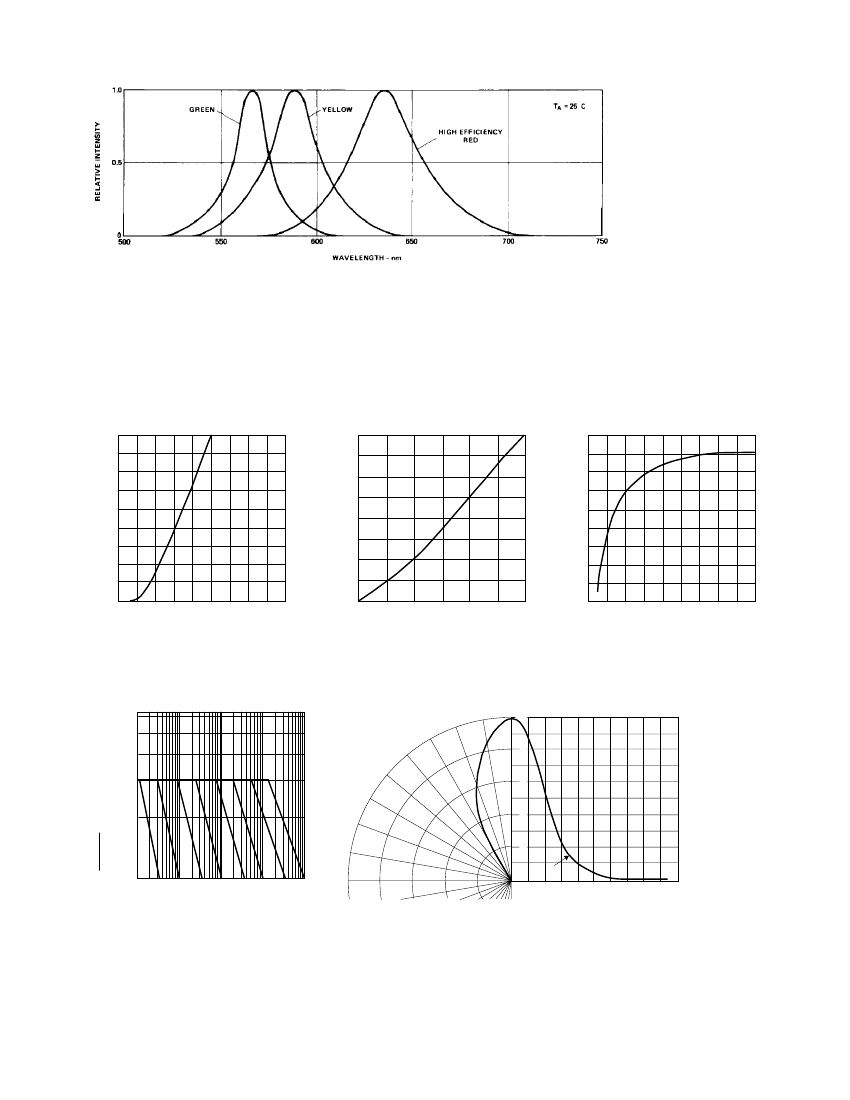

HLMP-1421-F00A2 Related Products

	HLMP-1421-F00A2	HLMP-1420	HLMP-1521-E00A2
Description	Standard LEDs - Through Hole GaP Yellow	Trimmer Resistors - Through Hole 10Kohms 10mm Rnd Top adj	Standard LEDs - Through Hole GaP Green
Is it Rohs certified?	conform to	conform to	conform to
package instruction	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
color	YELLOW	YELLOW	HIGH PERFORMANCE GREEN
color@wavelength	Yellow	Yellow	Green
Configuration	SINGLE	SINGLE	SINGLE
Maximum forward current	0.02 A	0.02 A	0.03 A
Maximum forward voltage	2.4 V	3 V	2.7 V
JESD-609 code	e3	e3	e3
Lens type	TINTED NONDIFFUSED	MICROTINTED NONDIFFUSED	TINTED NONDIFFUSED
Nominal luminous intensity	15.0 mcd	15.0 mcd	22.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-20 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	4.445 mm	4.445 mm	4.445 mm
method of packing	BULK	BULK	BULK
peak wavelength	583 nm	583 nm	565 nm
shape	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm
surface mount	NO	NO	NO
T code	T-1	T-1	T-1
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
perspective	45 deg	45 deg	45 deg
Base Number Matches	1	1	1
Maker	Broadcom	Broadcom	-
Maximum reverse voltage	5 V	-	5 V
