568-0701-414F datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 568-0701-414F

Preview

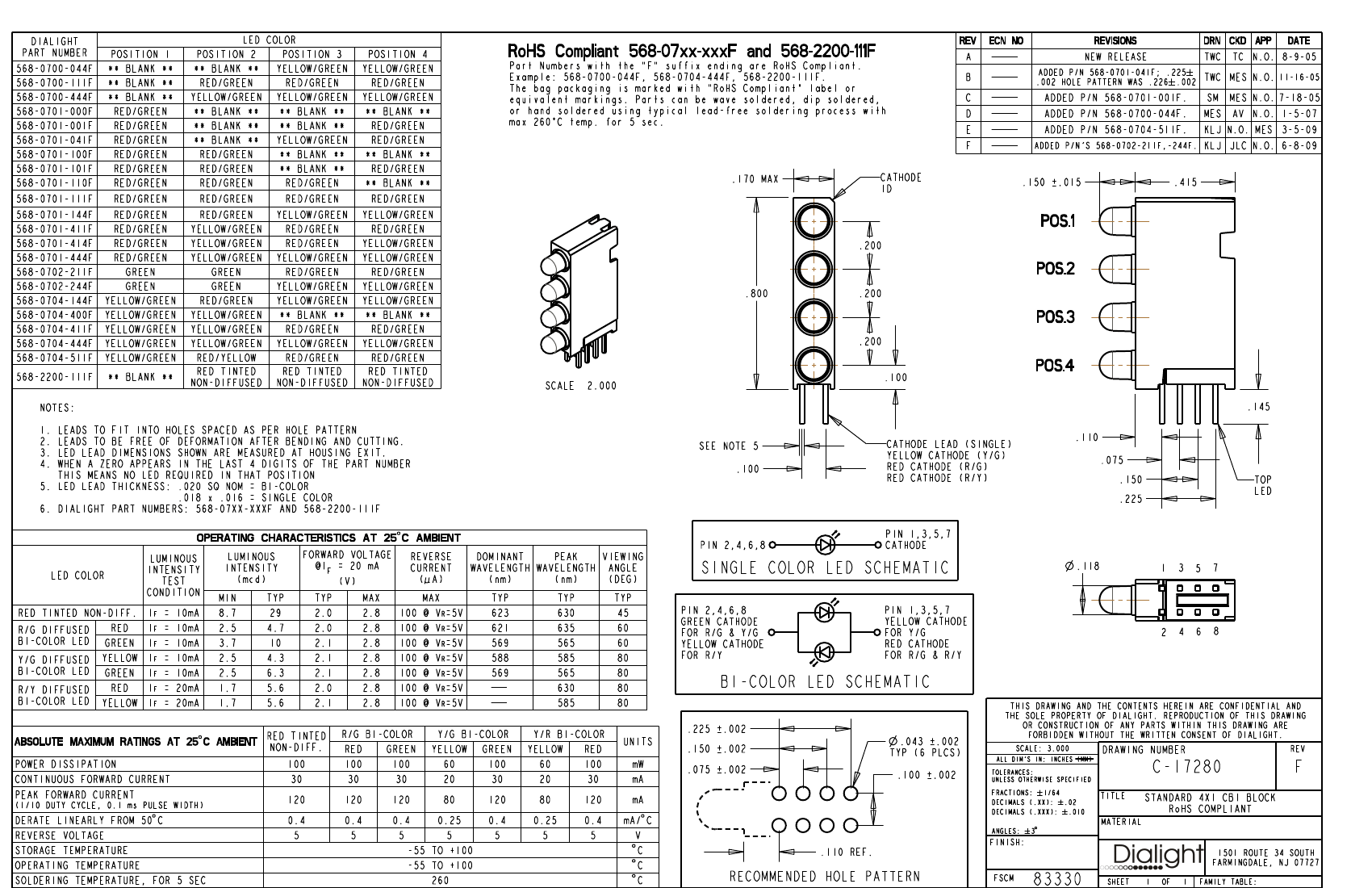

568-0701-414F: DescriptionLED Circuit Board Indicators 3mm CBI; CategoryLED optoelectronic/LED photoelectric; File Size154KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

568-0701-414F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	568-0701-414F	-	-	View	Buy Now

568-0701-414F Overview

LED Circuit Board Indicators 3mm CBI

568-0701-414F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIALIGHT
package instruction	ROHS COMPLIANT PACKAGE-8
Reach Compliance Code	compliant
color	RED/YELLOW/GREEN
Configuration	SEPARATE, 4 ELEMENTS
Maximum forward current	0.02 A
Maximum forward voltage	2.6 V
JESD-609 code	e4
Lens type	DIFFUSED
Nominal luminous intensity	8.7 mcd
Installation features	THROUGH HOLE MOUNT
Number of functions	4
Number of LEDs in the array	2
Number of terminals	8
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	DUAL COLOR LED ARRAY
total height	20.32 mm
peak wavelength	630/585/565 nm
Maximum reverse voltage	5 V
shape	CYLINDRICAL
size	3 mm
surface mount	NO
T code	T-1
Terminal surface	Copper/Nickel/Silver (Cu/Ni/Ag)
Terminal pitch	1.91 mm
perspective	80 deg
Base Number Matches	1

Preview

Download Datasheet

View All

568-0701-414F Related Products

	568-0701-414F	568-0701-101F	568-2200-111F	568-0701-444F	568-0701-110F	568-0701-144F	568-0701-100F	568-0701-000F	568-0704-411F
Description	LED Circuit Board Indicators 3mm CBI	LED Circuit Board Indicators 3mm CBI	LED Circuit Board Indicators 3mm CBI	Zener Diodes Zener Diode	LED Circuit Board Indicators 3mm CBI	LED Circuit Board Indicators 3mm CBI	LED Circuit Board Indicators CBI 3MM QUAD BKLIT	LED Circuit Board Indicators 3mm CBI
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT PACKAGE-8	ROHS COMPLIANT PACKAGE-8	ROHS COMPLIANT PACKAGE-8	ROHS COMPLIANT PACKAGE-8	ROHS COMPLIANT PACKAGE-8	ROHS COMPLIANT PACKAGE-8	ROHS COMPLIANT PACKAGE-8	ROHS COMPLIANT PACKAGE-8	ROHS COMPLIANT PACKAGE-8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
color	RED/YELLOW/GREEN	RED/GREEN	RED	RED/YELLOW/GREEN	RED/GREEN	RED/YELLOW/GREEN	RED/GREEN	RED/GREEN	RED/YELLOW/GREEN
Configuration	SEPARATE, 4 ELEMENTS	SEPARATE, 4 ELEMENTS	SEPARATE, 4 ELEMENTS	SEPARATE, 4 ELEMENTS	SEPARATE, 4 ELEMENTS	SEPARATE, 4 ELEMENTS	SEPARATE, 4 ELEMENTS	SEPARATE, 4 ELEMENTS	SEPARATE, 4 ELEMENTS
Maximum forward current	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Maximum forward voltage	2.6 V	2.6 V	2.6 V	2.6 V	2.6 V	2.6 V	2.6 V	2.6 V	2.6 V
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4
Lens type	DIFFUSED	DIFFUSED	NONDIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of functions	4	4	1	4	4	4	4	4	4
Number of LEDs in the array	2	2	1	2	2	2	2	2	2
Number of terminals	8	8	8	8	8	8	8	8	8
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	DUAL COLOR LED ARRAY	DUAL COLOR LED ARRAY	SINGLE COLOR LED	DUAL COLOR LED ARRAY	DUAL COLOR LED ARRAY	DUAL COLOR LED ARRAY	DUAL COLOR LED ARRAY	DUAL COLOR LED ARRAY	DUAL COLOR LED ARRAY
total height	20.32 mm	20.32 mm	20.32 mm	20.32 mm	20.32 mm	20.32 mm	20.32 mm	20.32 mm	20.32 mm
Maximum reverse voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
shape	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
size	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1	T-1	T-1	T-1	T-1	T-1
Terminal surface	Copper/Nickel/Silver (Cu/Ni/Ag)	Copper/Nickel/Silver (Cu/Ni/Ag)	Copper/Nickel/Silver (Cu/Ni/Ag)	Copper/Nickel/Silver (Cu/Ni/Ag)	Copper/Nickel/Silver (Cu/Ni/Ag)	Copper/Nickel/Silver (Cu/Ni/Ag)	Copper/Nickel/Silver (Cu/Ni/Ag)	Copper/Nickel/Silver (Cu/Ni/Ag)	Copper/Nickel/Silver (Cu/Ni/Ag)
Terminal pitch	1.91 mm	1.91 mm	1.91 mm	1.91 mm	1.91 mm	1.91 mm	1.91 mm	1.91 mm	1.91 mm
Base Number Matches	1	1	1	1	1	1	1	1	1
Maker	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT	-	DIALIGHT	DIALIGHT
Nominal luminous intensity	8.7 mcd	5.6/8.7 mcd	-	8.7 mcd	5.6/8.7 mcd	8.7 mcd	5.6/8.7 mcd	5.6/8.7 mcd	8.7 mcd
peak wavelength	630/585/565 nm	630/565 nm	-	630/585/565 nm	630/565 nm	630/585/565 nm	630/565 nm	630/565 nm	630/585/565 nm
perspective	80 deg	200 deg	-	80 deg	200 deg	80 deg	200 deg	200 deg	80 deg
