QS SERIES
Snap-in Panel Mount LED Indicators
Features and Specifications

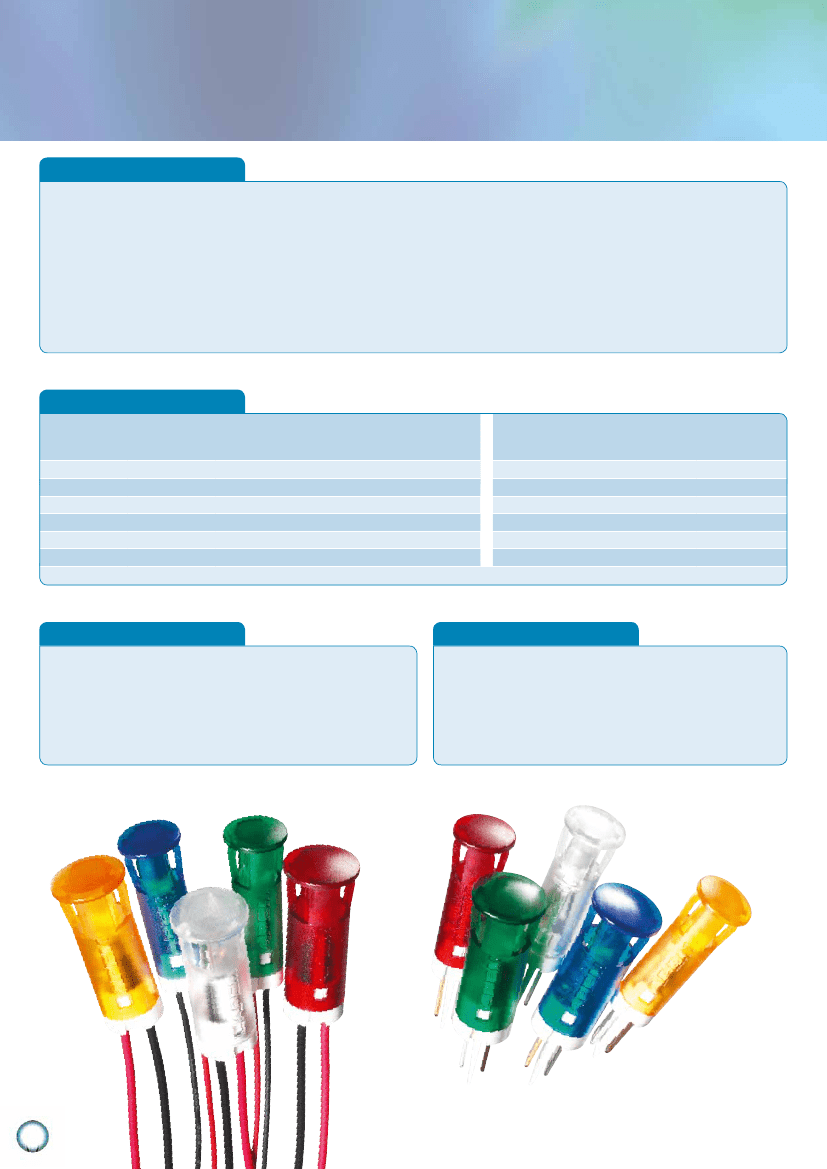

FEATURES
•
•
•
•
•
•
•
•
•

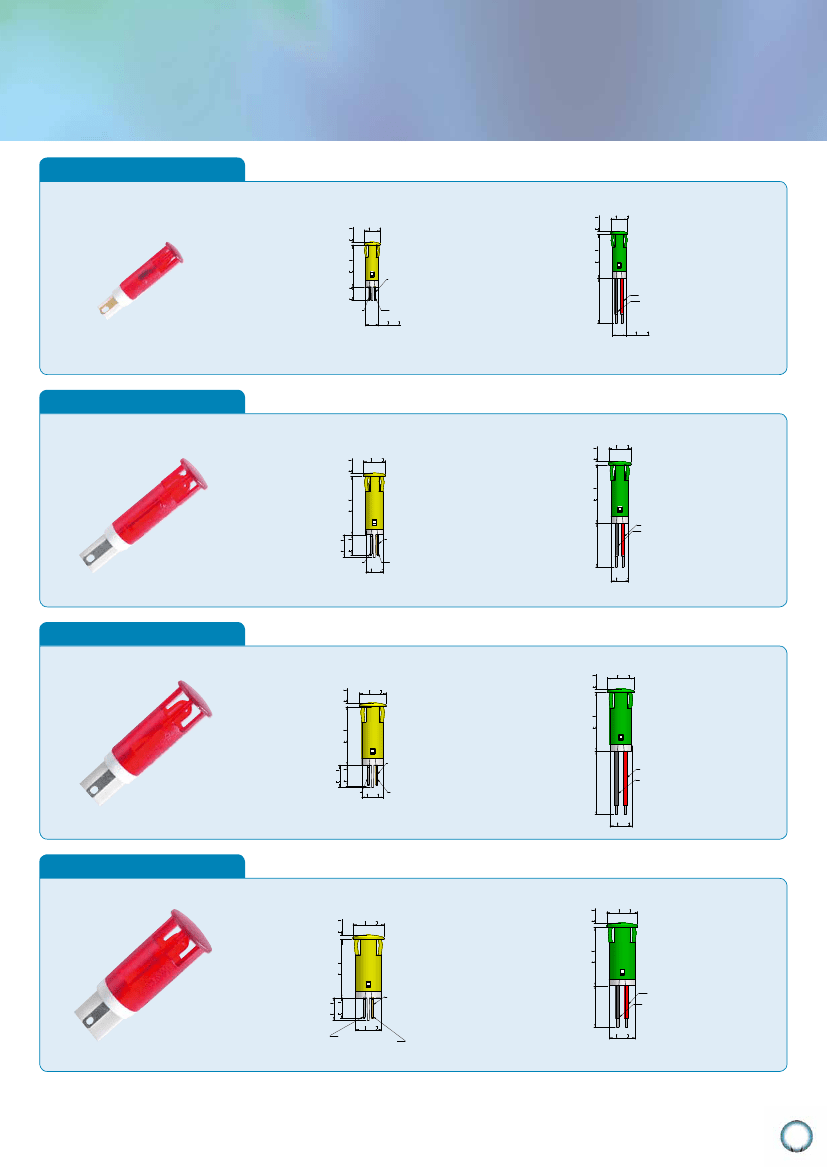

6mm, 8mm, 10mm and 12mmØ cut-out sizes
Front panel snap-in mounting requires no additional hardware
Coloured diffused flat lenses
Available colours: Red, Green, Yellow, Blue, Orange, White (clear)
Voltage range: 2VDC – 220VAC
Terminations: solder lug/faston, 6mm (2.0 x 0.5mm), 8mm, 10mm, 12mm (2.8 x 0.8mm) or wires (200mm standard length)
Standard intensity diffused LEDs or high brightness LEDs for daylight viewing
Bi-colour LED option
UL496 recognised component
OPTICAL SPECIFICATIOnS
Colour
Intensity
Std LED (mcd)
Forward
Voltage (V)
Intensity
High Brightness
(mcd)
Forward
Voltage (V)
Voltage
(min to max)
Operating
Voltage
(typical all types)
Operating
Current
Red
Green
Yellow
Blue
Orange
White (clear)
25
20
20
800
30
1200
2.0
2.2
2.1
3.3
2.0
3.3
6000
1200
380
1600
4100
2500
2.2
3.3
2.0
3.3
2.2
3.3
2VDC
(no resistor)
1.8 to 2.5VDC
20mA*
12VDC
10.8 to 13.2VDC
20mA
24VDC
21.6 to 26.4VDC
20mA
28VDC
25.2 to 30.8VDC
20mA
110VAC
99 to 110VAC
6mA
220VAC
207 to 253VAC
3mA
*Customer to supply resistor for desired operating current
TECHnICAL CHARACTERISTICS
•
•
•
•
•
•
Max reverse voltage: 5V
Viewing angle: 30° (standard LED), 45º (high brightness LED)
Life expectancy: 100,000 hours
Operating temperature range: -30° to +85°C
Storage temperature: -40° to +100°C
Panel thickness (preferable): 0.8mm(0.031") – 1.6mm(0.062")
MATERIALS
•
•
•
•
•
Lens: Polycarbonate (UL94V-0)
Body moulding: Polycarbonate (UL94V-0)
Solder lug/faston terminals: Gold (flash)/Silver (flash), Brass
Wires: 6mm, 8mm = 24AWG, 10mm, 12mm = 22AWG
All wires PVC (UL1061)
www.apem.com
1
QS SERIES
Snap-in Panel Mount LED Indicators
Order Overview
QS
SERIES
QS
8
MOUnTInG
HOLE
6 = 6mmØ
8 = 8mmØ
10 = 10mmØ
12 = 12mmØ
3
TERMInaLS
1 = Solder lug/
faston
3 = Wires
XX
TYPE OF
ILLUMInaTIOn
XX = Fixed Light
YY = Bi-colour
R
LED COLOUR
R = Red
G = Green
Y = Yellow
B = Blue
O = Orange
W = White (clear)
220
VOLTaGE
02 = 2VDC
12 = 12VDC
24 = 24VDC
28 = 28VDC
110 = 110VAC
220 = 220VAC
TECHnICAL CHARACTERISTICS
• Gold faston terminal denotes Anode (+), silver terminal denotes Cathode (-)
• Standard wire length is 200mm, red wire denotes Anode (+),
black wire denotes Cathode (-). For other wires lengths consult APEM
(6mm and 8mm use 24AWG, 10mm and 12mm use 22AWG)
• For LED’s with alternative voltages consult APEM
• Bi-colour LEDs, by connecting the gold faston (+) one colour is produced,
by reversing the supply voltage another colour is produced – Bi-colours are
available up to 28VDC. [AC products not available]
• Take care if soldering to the faston terminals
• All 110VAC and 220VAC LED indicators will be supplied with
high brightness LEDs
• For resistorless versions (02) please pay attention to the forward voltage
• Flashing LEDs are available as a special option
HR = High Brightness Red
HG = High Brightness Green
HY = High Brightness Yellow
HB = High Brightness Blue
HO = High Brightness Orange
HW= High Brightness White
RG = Red/Green
