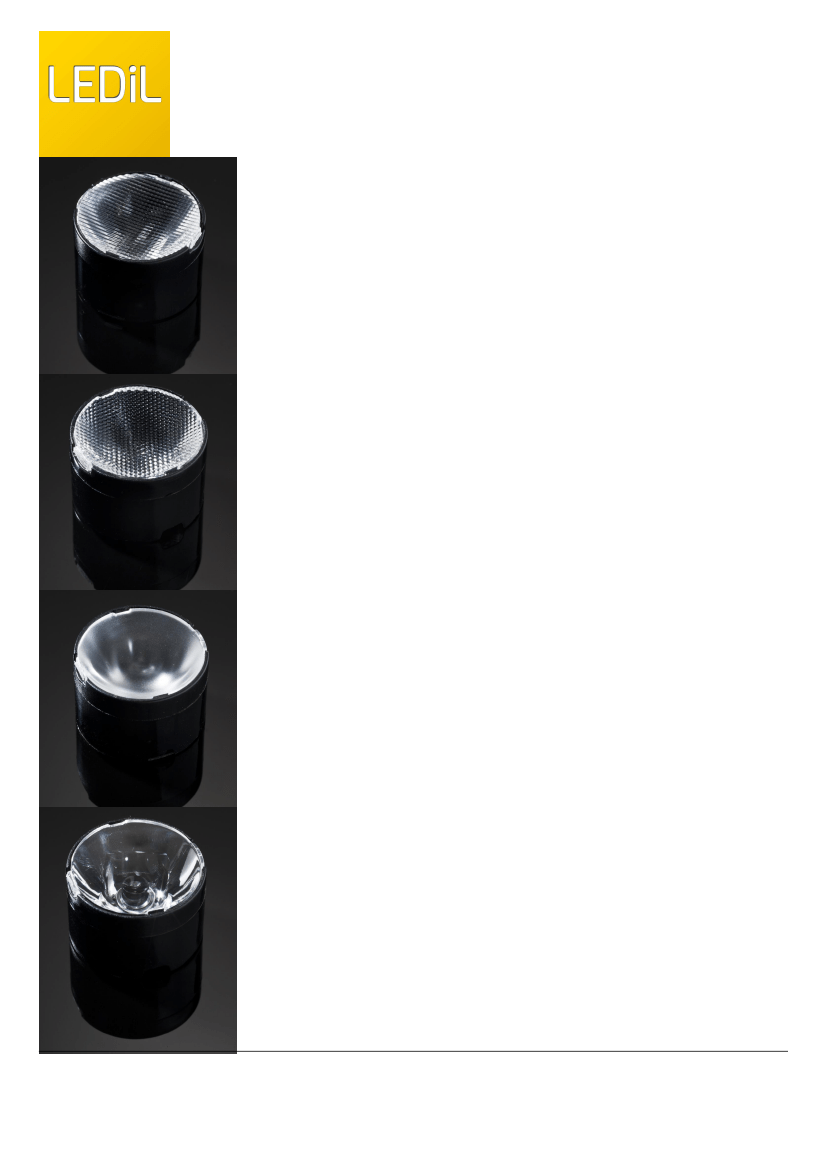

PRODUCT DATASHEET
Leila series
last update 26/6/2013

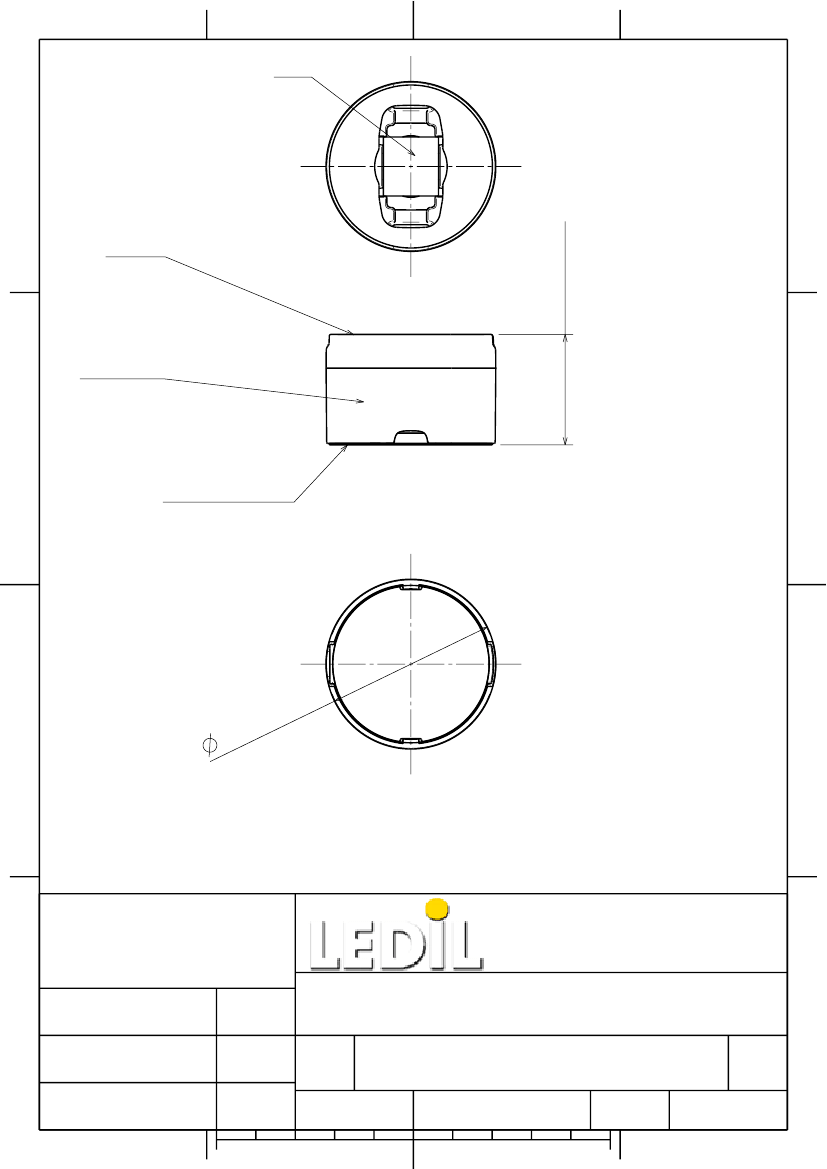

Product number
Family
Type
LED
Color
Diameter
Height
Style
Optic Material
Holder Material
Fastening
Status
Product number
Family
Type
LED
Color
Diameter
Height
Style
Optic Material
Holder Material
Fastening
Status
Product number
Family
Type
LED
Color
Diameter
Height
Style
Optic Material
Holder Material
Fastening
Status

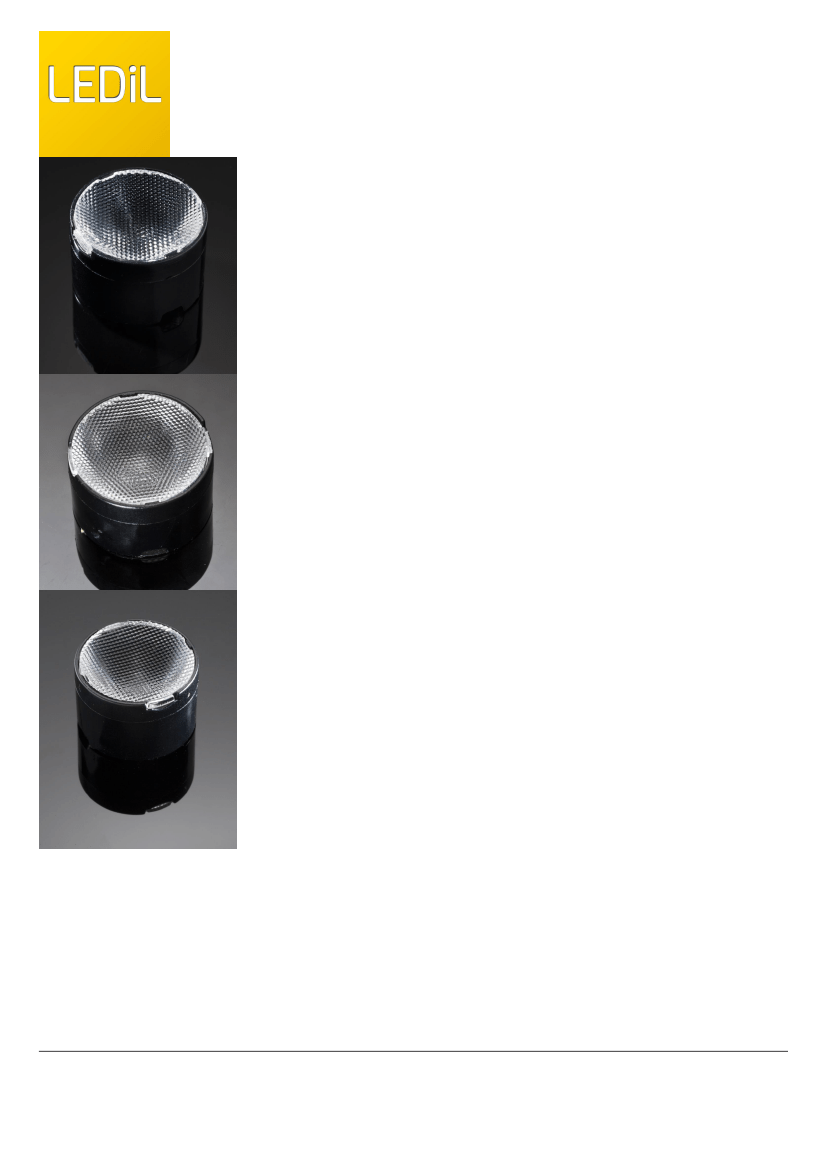

FA10614_LM1-M
Leila
Assembly
MC-E
Black
21.6 mm
14.04 mm
Round
PMMA
-
["tape"]
Production ready
FA11894_LM1-W
Leila
Assembly
MC-E
Black
21.6 mm
14.04 mm
Round
-
-
["tape"]
Production ready
FA10615_LM1-REC
Leila
Assembly
MC-E
Black
21.6 mm
14.04 mm
Round
-
-
["tape"]
Production ready
FWHM
Efficiency
cd/lm
Gerber File
38+24 degrees
86 %
-
Available
FWHM
Efficiency
cd/lm
Gerber File
28 degrees
-
-
Available
FWHM
Efficiency
cd/lm
Gerber File
24 degrees
88 %
-
Available

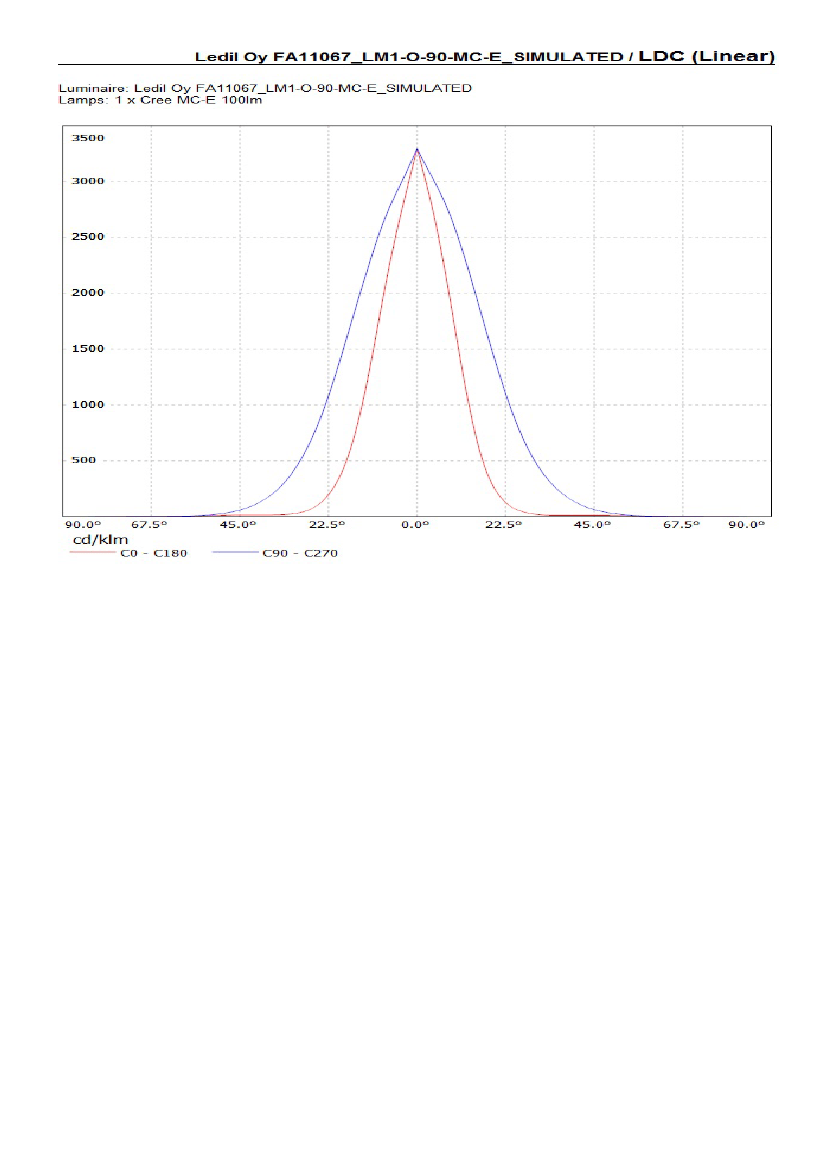

NOTE: The typical divergence will be changed by different color, chip size and chip position
tolerance. The typical total divergence is the full angle measured where the luminous intensity
is half of the peak value.
December 5th 2017 12:51 Copyright Ledil Oy - Subject to change without prior notice - Page 2/3
Ledil Oy
Salorankatu 10
24240 SALO
Finland
http://www.ledil.com
email: ledil@ledil.com
FAX: +358-2-733 8001
PRODUCT DATASHEET
Leila series
last update 26/6/2013
GENERAL INFORMATION
- Product series especially designed & optimized for MC-E series of LEDs.
- Special care taken to make light distribution as uniform as possible.
- Lens material optical grade PMMA with high UV and temperature resistance. Allows use of high current and
temperature conditions.
Please find more information about used material from below:
http://ledil.fi/sites/default/files/Documents/Technical/Material/PMMA%208N%20UL94_Yellow%20Card.pdf
http://ledil.fi/sites/default/files/Documents/Technical/Material/PMMA%208N%20PLEXIGLAS-Datasheet.pdf
