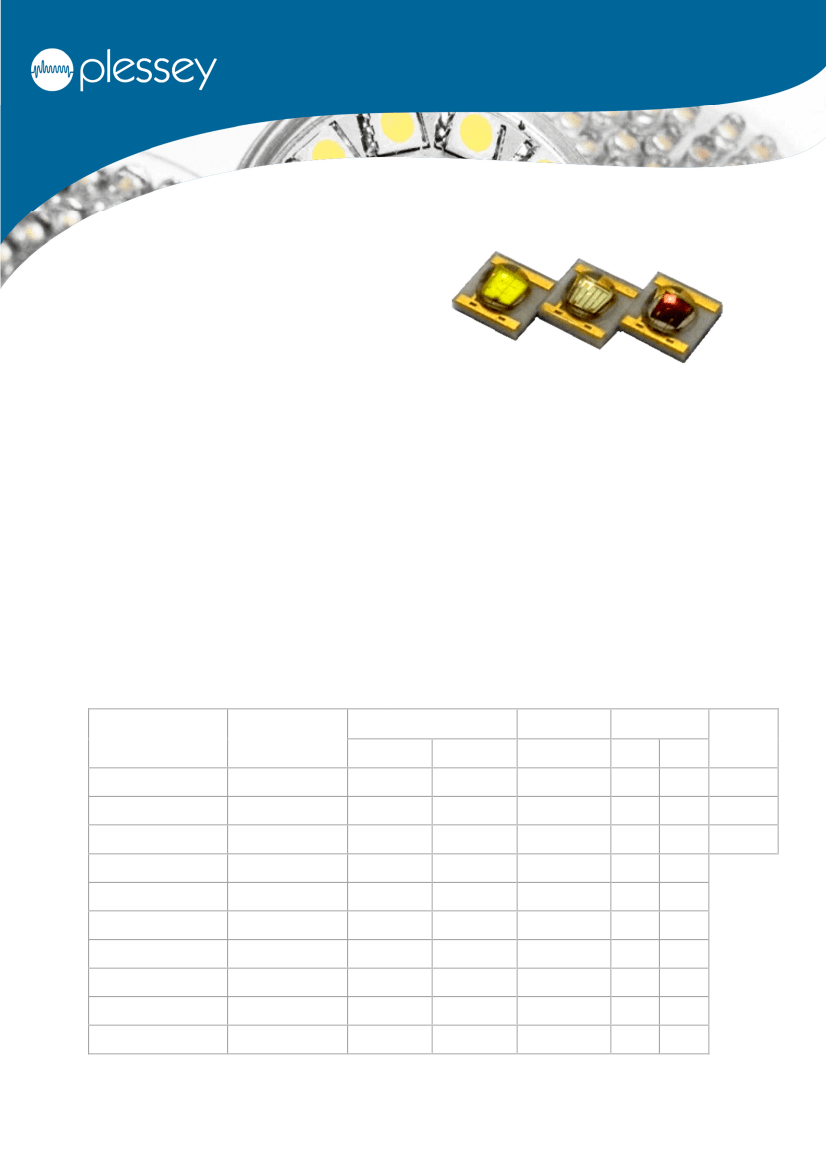

ALPS series LED
Product Datasheet
Description
The Plessey ALPS series is a full colour range of high power, high efficacy LED’s in
lensed 3535 packages. The domed lens and low thermal resistance packaging ensure
high optical output, cool running and optimum reliability. Three lens options are available
for each colour type. The ALPS series LED’s are supplied in quantities of 1k per reel
maximum.
Features
•
•
•
•
•
•
Industry standard 3535 footprint
High optical output
Full colour range
High reliability ceramic packaging
Domed silicone lens
55-135deg lens options
Applications
•
•
•
•
•
•
•
General Lighting
Residential Lighting
Commercial Lighting
Street Lighting
Torches
Signage
Displays
Output
@ 350mA
139 lm
130 lm
107 lm
280mW
56.8 lm
56.8 lm
87.4 lm
80.6 lm
30.6 lm
520mW
min
2.8
2.8
2.8
2.0
2.0
2.0
2.8
2.8
2.8
2.8
V
F
max
3.6
3.6
3.6
3.0
3.0
3.0
3.6
3.6
3.6
3.6
typ 70
typ 75
min 80
CRI
CCT /
λ
D
/
λ
P*
Part No.
PLW3535Ax-C
PLW3535Ax-N
PLW3535Ax-W
PLR3535Ax-S
PLR3535Ax
PLA3535Ax
PLG3535Ax
PLC3535Ax
PLB3535Ax-R
PLB3535Ax-L
Colour
Cool White
Neutral White
Warm White
Super Red
Red
Amber
Green
Cyan
Blue
Royal Blue
min
4750K
3700K
2600K
650nm
620nm
580nm
520nm
500nm
460nm
440nm
*
max
10000K
4750K
3700K
670nm
635nm
600nm
535nm
520nm
475nm
460nm
*
Datasheet No 293198 Issue 3
1 of 22
20/04/2016
ALPS Series
| Product Datasheet
Absolute Maximum Ratings – White, Blue, Royal Blue, Green, Cyan
T
j
= +25
o
C unless otherwise stated
Parameter
DC Forward Current
Reverse Voltage
Storage Temperature
Junction Temperature
Symbol
I
F
V
R
T
stg
T
J
Min
-
-
-40
-40
Max
1000
5
125
150
Unit
mA
V
o
C
C
o
Absolute Maximum Ratings – Amber, Red, Super Red
T
j
= +25
o
C unless otherwise stated
Parameter
DC Forward Current
Reverse Voltage
Storage Temperature
Junction Temperature
Symbol
I
F
V
R
T
stg
T
J
Min
-
-
-40
-40
Max
700
5
125
125
Unit
mA
V
o
C
C
o
Primary Electro-optical Characteristics
I
F
= 350mA & T
J
= 25
o
C unless otherwise stated
CCT /
λ
D
/
λ
P*
Part No.
PLW3535Ax-C
PLW3535Ax-N
PLW3535Ax-W
PLR3535Ax-S
PLR3535Ax
PLA3535Ax
PLG3535Ax
PLC3535Ax
PLB3535Ax-R
PLB3535Ax-L
min
4750K
3700K
2600K
650nm
620nm
580nm
520nm
500nm
460nm
440nm
*
max
10000K
4750K
3700K
670nm
635nm
600nm
535nm
520nm
475nm
460nm
*
Output @ 350mA
min
107 lm
100 lm
87.4 lm
240mW
45.7 lm
45.7 lm
67.2 lm
62 lm
18 lm
400mW
max
148 lm
139 lm
114 lm
320mW
62 lm
62 lm
87.4 lm
80.6 lm
30.6 lm
600mW
@700mA
typ
250 lm
235 lm
190 lm
600mW
114 lm
114 lm
135 lm
125 lm
50 lm
1020mW
min
2.8
2.8
2.8
2.0
2.0
2.0
2.8
2.8
2.8
2.8
V
F
max
3.6
3.6
3.6
3.0
3.0
3.0
3.6
3.6
3.6
3.6
Datasheet No 293198 Issue 3
Page 2 of
22
20/04/2016
ALPS Series
| Product Datasheet
Further Electro-Optical Characteristics
I
F
= 350mA & T
J
= 25
o
C unless otherwise stated
Parameter
V
F
Temperature Coefficient
Symbol
∆V
F
/
∆T
J
Colours
White, Green, Cyan, Blue,
Royal Blue
Super Red, Red, Amber
Thermal Resistance
R
th j-mb
White, Green, Cyan, Blue,
Royal Blue
Super Red, Red, Amber
Value
-2 to -4
-1 to -2
8
10
Unit
mV/
o
C
mV/
o
C
K/W
K/W
Lens Options
Wide Angle version
Mid Angle version
Narrow Angle version
2Θ
1/2
Name
PLW3535AA-C
PLW3535AA-N
PLW3535AA-W
PLR3535AA-S
PLR3535AA
PLA3535AA
PLG3535AA
PLC3535AA
PLB3535AA-L
PLB3535AA-R
(deg)
130
130
130
125
125
125
130
130
130
130
Name
PLW3535AB-C
PLW3535AB-N
PLW3535AB-W
PLR3535AB-S
PLR3535AB
PLA3535AB
PLG3535AB
PLC3535AB
PLB3535AB-L
PLB3535AB-R
125 – 135 deg
85 – 90 deg
55 – 65 deg
2Θ
1/2
(deg)
90
90
90
85
85
85
90
90
90
90
Name
PLW3535AC-C
PLW3535AC-N
PLW3535AC-W
PLR3535AC-S
PLR3535AC
PLA3535AC
PLG3535AC
PLC3535AC
PLB3535AC-L
PLB3535AC-R
2Θ
1/2
(deg)
65
65
65
55
55
55
65
65
65
65
Recommended Operating Conditions
In typical applications, for optimum LED performance
Parameter
Operating Ambient Temperature
Symbol
T
opr
Minimum
-40
Maximum
+85
Unit
o
C
Datasheet No 293198 Issue 3
Page 3 of
22
20/04/2016
ALPS Series
| Product Datasheet
Ordering Information
Name
PLW3535Ax-C
PLW3535Ax-N
PLW3535Ax-W
PLR3535Ax-S
PLR3535Ax
PLA3535Ax
PLG3535Ax
PLC3535Ax
PLB3535Ax-R
PLB3535Ax-L
Luminous
Intensity
Bins
2C to 7C
1C to 6C
8B to 3C
1M to 3M
1B to 4B
1B to 4B
5B to 8B
4B to 7B
1A to 3A
5M to 1N
Wide Angle
Order Code
PLW3535AAC000
PLW3535AAN000
PLW3535AAW000
PLR3535AAS000
PLR3535AA000
PLA3535AA000
PLG3535AA000
PLC3535AA000
PLB3535AAR000
PLB3535AAL000
Mid Angle
Order Code
PLW3535ABC000
PLW3535ABN000
PLW3535ABW000
PLR3535ABS000
PLR3535AB000
PLA3535AB000
PLG3535AB000
PLC3535AB000
PLB3535ABR000
PLB3535ABL000
Narrow Angle
Order Code
PLW3535ACC000
PLW3535ACN000
PLW3535ACW000
PLR3535ACS000
PLR3535AC000
PLA3535AC000
PLG3535AC000
PLC3535AC000
PLB3535ACR000
PLB3535ACL000
Radiant Flux Groups
I
F
= 350mA, T
amb
= +25
o
C, unless otherwise stated
Luminous Flux
Group
1A
2A
3A
1B
2B
3B
4B
5B
6B
7B
8B
9B
1C
2C
3C
4C
5C
6C
7C
[1]
Φv
(lm)
min
18.0
23.5
30.6
45.7
51.7
56.8
62.0
67.2
73.9
80.6
87.4
93.9
100
107
114
122
130
139
148
Radiant Power (mW)
Group
max
23.5
30.6
35.2
51.7
56.8
62.0
67.2
73.9
80.6
87.4
93.9
100
107
114
122
130
139
148
156
[1]
[1]
min
1M
2M
3M
4M
5M
6M
7M
8M
9M
1N
240
280
320
360
400
440
480
520
560
600
max
280
320
360
400
440
480
520
560
600
650
Tolerance ±10%
Datasheet No 293198 Issue 3
Page 4 of
22
20/04/2016
ALPS Series
| Product Datasheet
Forward Voltage Bin Groups
I
F
= 350mA, T
amb
= +25
o
C, unless otherwise stated
Group
V1
V2
V3
V4
V5
V6
V7
V8
[1]
V
F
[1]
(V)
Min.
2.0
2.2
2.4
2.6
2.8
3.0
3.2
3.4
Max.
2.2
2.4
2.6
2.8
3.0
3.2
3.4
3.6
Tolerance ±0.2V
Wavelength Binning
Colour
Super Red
Abbreviation.
SR1
RE1
Red
RE2
RE3
AM1
Amber
AM2
AM3
GR1
Green
GR2
GR3
CY1
Cyan
CY2
CY3
CY4
BL1
Blue
BL2
BL3
RB1
Royal Blue
RB2
RB3
RB4
[1]
Min.
655
620
625
630
585
590
595
520
525
530
500
505
510
515
460
465
470
440
445
450
455
Max.
665
625
630
635
590
595
600
525
530
535
505
510
515
520
465
470
475
445
450
455
460
Tolerance ±1nm
Datasheet No 293198 Issue 3
Page 5 of
22
20/04/2016
