2.7x3.4mm SURFACE MOUNT LED LAMP
AA2734SRSGC
SUPER BRIGHT RED
SUPER BRIGHT GREEN
Features
l
2.7mm
l
BOTH
l
SUITABLE
CHIPS CAN BE CONTROLLED SEPARATELY.
FOR ALL SMT ASSEMBLY AND SOLDER
ON TAPE AND REEL.
X 3.4mm SMT LED, 1.5mm HEIGHT ONLY.
Description
Diode.
The Super Bright Red source color devices are made
with Gallium Aluminum Arsenide Red Light Emitting
The Super Bright Green source color devices are
Diode.
l
AVAILABLE
l
IDEAL
l
PACKAGE:
PROCESS.
FOR BACKLIGHTING.
made with Gallium Phosphide Green Light Emitting
1000PCS / REEL.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: DSAD1241
APPROVED : J. Lu
REV NO: V.1
CHECKED :Allen Liu
DATE: MAR/28/2003
DRAWN: D.H.FANG
PAGE: 1 OF 4
Selection Guide
P ar t N o .
AA2734SRSGC
Dic e
SUPER BRIGHT RED (GaAlAs)
L en s Ty p e
WATER C LEAR
Mi n .
36
7
Iv (m c d )
@ 20 m A
Ty p .
150
30
V i ew i n g
An g le
2θ1/2
120°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
SUPER BRIGHT GREEN (GaP)
Electrical / Optical Characteristics at T
A
=25°C
°
Sy m b o l
λ
p e a k
λ
D
∆λ
1/2
C
V
F
I
R
P ar am et er
Peak Wavelength
D omi nate Wavelength
Super Bri ght Red
Super Bri ght Green
D ev i c e
Ty p .
660
565
20
30
Max .
Un its
nm
nm
nm
pF
V
uA
Tes t C o n d i t i o n s
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Spectral Li ne Half-wi dth Super Bri ght Red
Super Bri ght Green
C apaci tance
Super Bri ght Red
Super Bri ght Green
Super Bri ght Red
Super Bri ght Green
640
568
45
15
Forward Voltage
Reverse C urrent
Super Bri ght Red
Super Bri ght Green
All
1.85
2.2
2.5
2.5
10
°
Absolute Maximum Ratings at T
A
=25°C
P ar am et er
Power di ssi pati on
S u p er B r i g h t R ed
100
155
30
Su p er B r i g h t Gr een
105
140
25
Un its
mW
mA
V
mA
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Operati ng/Storage Temperature
Reverse Voltage
Peak Forward C urrent [1]
D C Forward C urrent
-40
°
C To +85
°
C
5
SPEC NO: DSAD1241
APPROVED : J. Lu
REV NO: V.1
CHECKED :Allen Liu
DATE: MAR/28/2003
DRAWN: D.H.FANG
PAGE: 2 OF 4

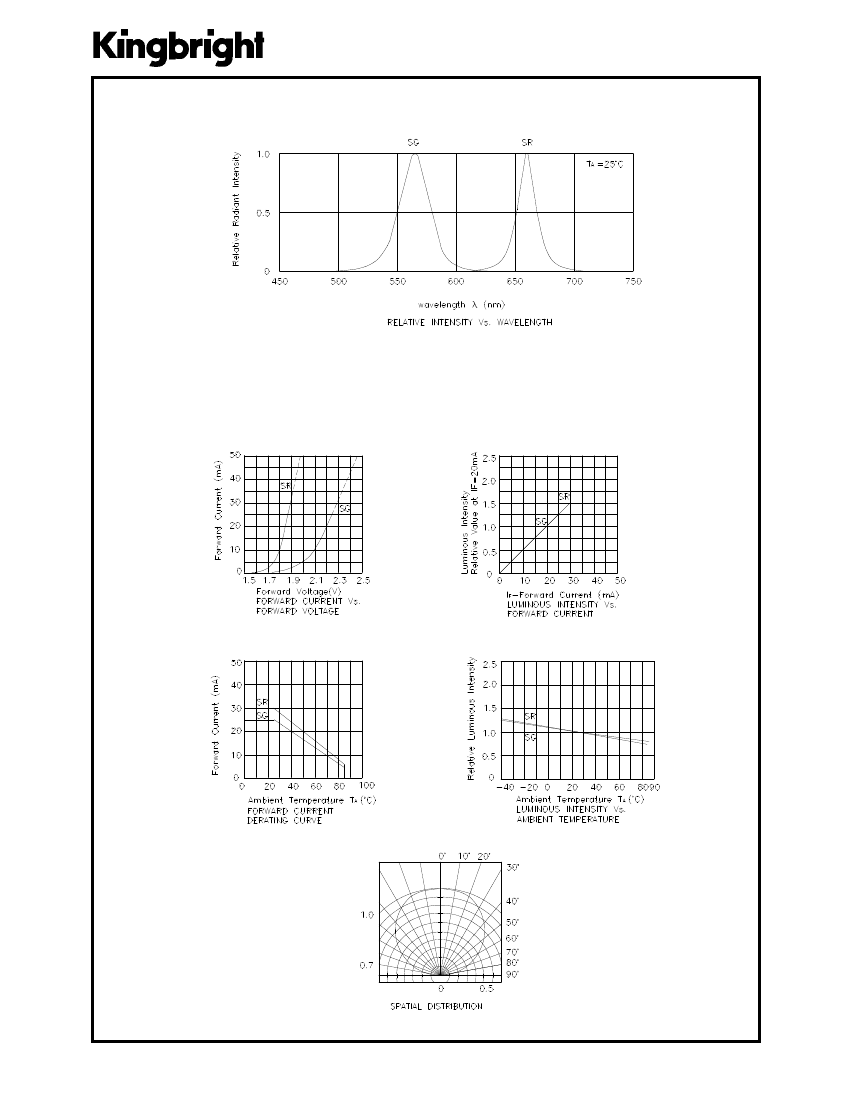

Super Bright Red / Super Bright Green
AA2734SRSGC
SPEC NO: DSAD1241
APPROVED : J. Lu
REV NO: V.1
CHECKED :Allen Liu
DATE: MAR/28/2003
DRAWN: D.H.FANG
PAGE: 3 OF 4
AA2734SRSGC

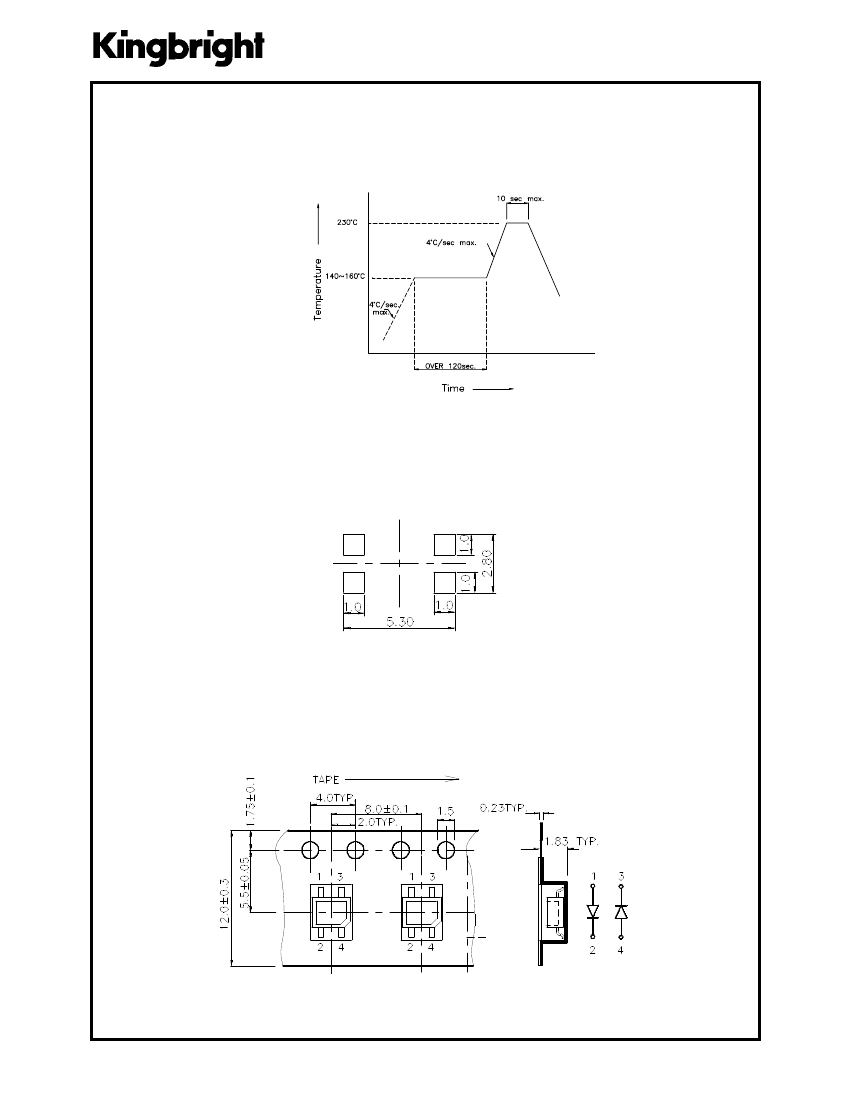

SMT Reflow Soldering Instruction
Number of reflow process shall be less than 2 times and cooling
process to normal temperature is required between first and
second soldering process.
Recommended Soldering Pattern
(Units : mm)
Tape Specifications
(Units : mm)
SPEC NO: DSAD1241
APPROVED : J. Lu
REV NO: V.1
CHECKED :Allen Liu
DATE: MAR/28/2003
DRAWN: D.H.FANG
PAGE: 4 OF 4
