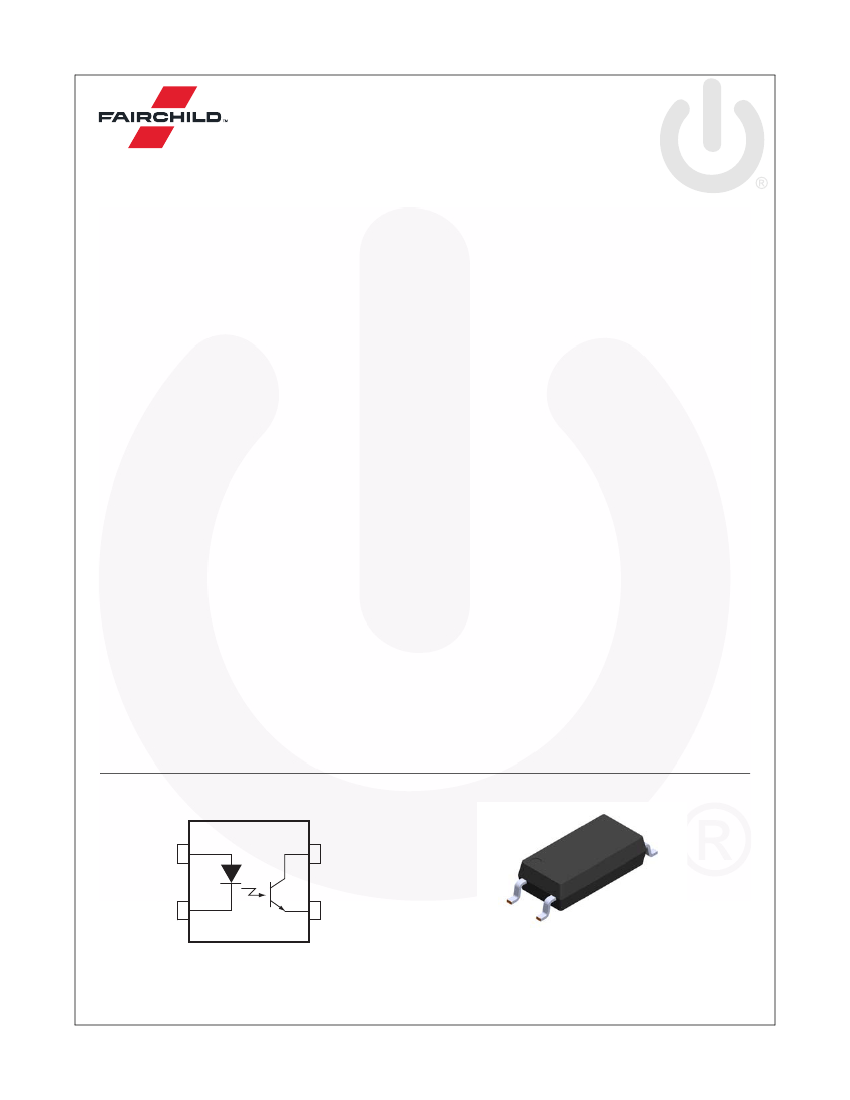

FODM100x Series Single Channel, DC Sensing Input, Phototransistor Optocoupler In Stretched Body SOP 4-Pin
April 2016
FODM100x Series
Single Channel, DC Sensing Input, Phototransistor
Optocoupler In Stretched Body SOP 4-Pin
Features
•
≥
8 mm Creepage and Clearance Distance, and
≥
0.4
mm Insulation Distance to Achieve Reliable and High
Voltage Insulation
• Safety and Regulatory Approvals
• UL1577, 5,000 VAC
RMS
for 1 min.
• DIN_EN/IEC60747-5-5, 890 V_Peak Working Voltage
(pending approval)
• High Breakdown Collector to Emitter Voltage,
BV
CEO
= 70 V minimum
• Extended Industrial Temperate Range, -40 to 110°C
• Current Transfer Ratio at I
F
= 5 mA, V
CE
= 5 V,
T
A
= 25ºC
• FODM1007: 80 to 160%
• FODM1008: 130 to 260%
• FODM1009: 200 to 400%
Description
The FODM100x Series, single channel, DC sensing
input, optocoupler consists of one gallium arsenide
(GaAs) infrared light emitting diode optically coupled to
one phototransistor, in a stretched body SOP 4-pin
package. The input-output isolation voltage, V
ISO
, is
rated at 5,000 VAC
RMS
.
Applications
• Primarily suited for DC-DC Converters
• For ground loop isolation, signal to noise isolation
• Communications – adapters, chargers
• Consumer – appliances, set top boxes
• Industrial – power supplies, motor control, program-
