CLD-DS74 Rev 8A
Product family data sheet
Cree
®
XLamp
®

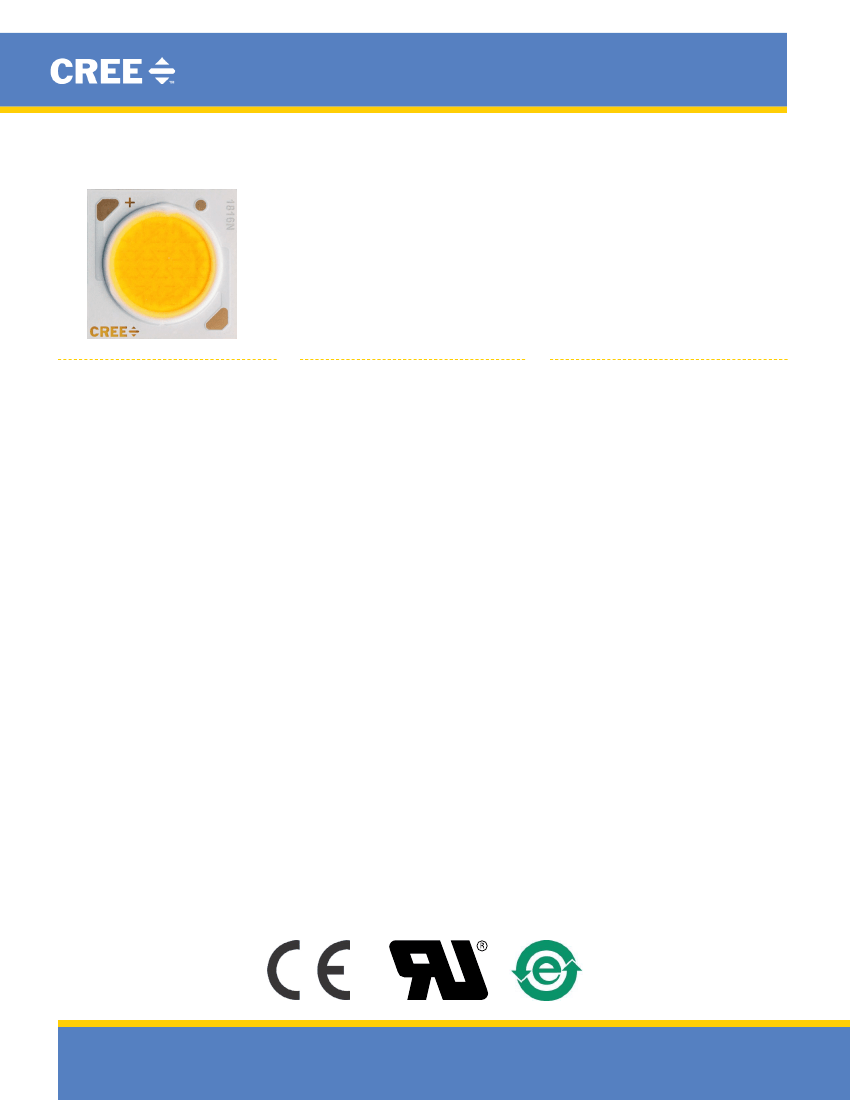

CXA1816 LED
ProDuCt DEsCriPtion
The
XLamp
®
CXA1816
LeD
array
expands Cree’s family of high‑flux,
multi‑die arrays in a smaller, easy‑to‑use
platform. With XLamp LED lighting‑class
reliability,
the
CXA1816’s
small,
uniform emitting surface enables both
directional and non‑directional lighting
applications including lamp retrofit and
luminaire designs. Available in 2‑step,
3‑step and 4‑step color consistency,
and featuring a 12‑mm optical source,
the CXA1816 brings new levels of flux
and efficacy to this form factor.
The
CX Family LED Design Guide
provides basic information on the
requirements to use the CXA1816 LED
successfully in luminaire designs.
fEAturEs
•
Available in 4‑step, 3‑step and 2‑step
EasyWhite
®
bins at 2700 K, 3000 K,
3500 K, 4000 K & 5000 K CCT and
4‑step EasyWhite bins at 5700 K &
6500 K CCT
•
Available in ANSI white bins at
4000 K, 5000 K, 5700 K & 6500 K
CCT
•
•
•
•
•
•
•
•
•
•
Available in 70‑, 80‑, 90‑ and
93‑minimum CRI options
Forward voltage option: 36‑V class
85 °C binning and characterization
Maximum drive current: 900 mA
115° viewing angle, uniform
chromaticity profile
Top‑side solder connections
Thermocouple attach point
NEMA SSL‑3 2011 standard flux bins
RoHS and REACh compliant
UL
®
recognized component
(E349212)
tAbLE of ContEnts
Characteristics ............................................2
Operating Limits ..........................................2
Flux Characteristics, EasyWhite
®
Order
Codes and Bins
...........................................3
Flux Characteristics, ANSI White Order
Codes and Bins
...........................................6
Relative Spectral Power Distribution .........7
Electrical Characteristics ............................7
Relative Luminous Flux ...............................8
Typical Spatial Distribution.........................9
Performance Groups ‑ Brightness .............9
Performance Groups ‑ Chromaticity ....... 10
Cree EasyWhite
®
Bins Plotted on the
1931 CIE Color Space ..............................
13
Cree ANSI White Bins Plotted on the
1931 CIE Color Space ..............................
13
Bin and Order Code Formats ...................
14
Mechanical Dimensions ..........................
14
Thermal Design
........................................
15
Notes ........................................................
16
Packaging .................................................
17
WWW.CREE.Com/XLAmp
Copyright © 2013-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
, XLamp
®
and
EasyWhite
®
are registered trademarks and the Cree logo is a trademark of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
XLamp
®
CXa1816 LED
ChArACtEristiCs
Characteristics
Viewing angle (FWHM)
ESD withstand voltage (HBM per Mil‑Std‑883D)
DC forward current
Reverse current
Forward voltage (450 mA, 85 °C)
Forward voltage (450 mA, 25 °C)
unit
degrees
v
mA
mA
v
v
36.2
42
Minimum
typical
115
8000
900*
0.1
Maximum
*
Refer to the Operating Limits section.
oPErAting LiMits
The maximum current rating of the CXA1816 depends on the case temperature (Tc) when the LED has reached thermal equilibrium under
steady‑state operation. The graph shown below assumes that the system design employs good thermal management (thermal interface
material and heat sink) and may vary when poor thermal management is employed. Please refer to the Mechanical Dimensions section
on page 14 for the location of the Tc measurement point.
Another important factor in good thermal management is the temperature of the Light Emitting Surface (LES). Cree recommends a
maximum LES temperature of 135 °C to ensure optimal LED lifetime. Please refer to the Thermal Design section on page 15 for more
information on LES temperature measurement.
CXA1816
1000
900
800
700
600
If (mA)
500
400
300
200
100
0
0
25
50
75
100
125
150
Case Temperature (°C)
Copyright © 2013-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
, XLamp
®
and EasyWhite
®
are registered trademarks and the Cree logo is a
trademark of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
2
XLamp
®
CXa1816 LED
fLuX ChArACtEristiCs, EAsyWhitE
®
orDEr CoDEs AnD bins (i
f
= 450 mA,
t
J
= 85 °C)
The following table provides order codes for XLamp CXA1816 LEDs. For a complete description of the order code nomenclature, please
see the Bin and Order Code Formats section (page 14).
Cri
Min
typ
Minimum Luminous flux
group
P2
70
75
P4
Q2
6500 K
P2
80
---
P4
Q2
P4
70
75
Q2
Q4
5700 K
P2
80
---
P4
Q2
P4
70
75
Q2
Q4
P2
5000 K
80
---
P4
Q2
M4
90
95
N2
N4
1830
1965
2100
1965
2100
2260
1830
1965
2100
1485
1590
1710
2028
2177
2327
2177
2327
2542
2028
2177
2327
1645
1762
1895
50H
50H
50H
CXA1816‑0000‑
000N00P450H
CXA1816‑0000‑
000N00Q250H
CXA1816‑0000‑
000N00Q450H
CXA1816‑0000‑
000N0HP250H
CXA1816‑0000‑
000N0HP450H
CXA1816‑0000‑
000N0HQ250H
CXA1816‑0000‑
000N0UM450H
CXA1816‑0000‑
000N0UN250H
CXA1816‑0000‑
000N0UN450H
50G
50G
CXA1816‑0000‑
000N0HP450G
CXA1816‑0000‑
000N0HQ250G
CXA1816‑0000‑
000N0UM450G
CXA1816‑0000‑
000N0UN250G
CXA1816‑0000‑
000N0UN450G
50F
50F
50F
57F
1830
1965
2100
1965
2100
2260
2028
2177
2327
2177
2327
2542
57F
65F
Flux (lm)
@ 85 °C
1830
1965
2100
Flux (lm)
@ 25 °C*
2028
2177
2327
65F
group
2-step
order Code
group
3-step
order Code
group
4-Step
order Code
CXA1816‑0000‑
000N00P265F
CXA1816‑0000‑
000N00P465F
CXA1816‑0000‑
000N00Q265F
CXA1816‑0000‑
000N0HP265F
CXA1816‑0000‑
000N0HP465F
CXA1816‑0000‑
000N0HQ265F
CXA1816‑0000‑
000N00P457F
CXA1816‑0000‑
000N00Q257F
CXA1816‑0000‑
000N00Q457F
CXA1816‑0000‑
000N0HP257F
CXA1816‑0000‑
000N0HP457F
CXA1816‑0000‑
000N0HQ257F
CXA1816‑0000‑
000N00P450F
CXA1816‑0000‑
000N00Q250F
CXA1816‑0000‑
000N00Q450F
CXA1816‑0000‑
000N0HP250F
CXA1816‑0000‑
000N0HP450F
CXA1816‑0000‑
000N0HQ250F
CXA1816‑0000‑
000N0UM450F
CXA1816‑0000‑
000N0UN250F
CXA1816‑0000‑
000N0UN450F
nominal
CCt
Notes
•
Cree maintains a tolerance of ±7% on flux and power measurements, ±0.005 on chromaticity (CCx, CCy) measurements and a tolerance of ±2 on CRI
measurements. See the Measurements section (page 16).
•
Cree XLamp CXA1304 LED order codes specify only a minimum flux bin and not a maximum. Cree may ship reels in flux bins higher than the minimum
specified by the order code without advance notice. Shipments will always adhere to the chromaticity bin restrictions specified by the order code.
*
Flux values @ 25 °C are calculated and for reference only.
Copyright © 2013-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
, XLamp
®
and EasyWhite
®
are registered trademarks and the Cree logo is a
trademark of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
3
XLamp
®
CXa1816 LED
fLuX ChArACtEristiCs, EAsyWhitE
®
orDEr CoDEs AnD bins (i
f
= 450 mA,
t
J
= 85 °C) - Continued
nominal
CCt
Cri
Min
typ
Minimum Luminous flux
group
P2
70
75
P4
Q2
N4
4000 K
80
---
P2
P4
M2
90
95
M4
N2
N4
80
---
P2
P4
3500 K
K4
93
95
M2
M4
N4
80
---
P2
P4
3000 K
K4
93
95
M2
M4
1290
1380
1485
1437
1537
1645
30H
1290
1380
1485
1710
1830
1965
1437
1537
1645
1895
2028
2177
30H
35H
Flux (lm)
@ 85 °C
1830
1965
2100
1710
1830
1965
1380
1485
1590
1710
1830
1965
Flux (lm)
@ 25 °C*
2028
2177
2327
1895
2028
2177
1537
1645
1762
1895
2028
2177
35H
40H
40H
40H
group
2-step
order Code
CXA1816‑0000‑
000N00P240H
CXA1816‑0000‑
000N00P440H
CXA1816‑0000‑
000N00Q240H
CXA1816‑0000‑
000N0HN440H
CXA1816‑0000‑
000N0HP240H
CXA1816‑0000‑
000N0HP440H
CXA1816‑0000‑
000N0UM240H
CXA1816‑0000‑
000N0UM440H
CXA1816‑0000‑
000N0UN240H
CXA1816‑0000‑
000N00N435H
CXA1816‑0000‑
000N00P235H
CXA1816‑0000‑
000N00P435H
CXA1816‑0000‑
000N0YK435H
CXA1816‑0000‑
000N0YM235H
CXA1816‑0000‑
000N0YM435H
CXA1816‑0000‑
000N00N430H
CXA1816‑0000‑
000N00P230H
CXA1816‑0000‑
000N00P430H
CXA1816‑0000‑
000N0YK430H
CXA1816‑0000‑
000N0YM230H
CXA1816‑0000‑
000N0YM430H
30G
CXA1816‑0000‑
000N0YM230G
CXA1816‑0000‑
000N0YM430G
30F
30G
CXA1816‑0000‑
000N00P230G
CXA1816‑0000‑
000N00P430G
30F
35G
CXA1816‑0000‑
000N0YM235G
CXA1816‑0000‑
000N0YM435G
35F
35G
CXA1816‑0000‑
000N00P235G
CXA1816‑0000‑
000N00P435G
35F
40G
40G
CXA1816‑0000‑
000N0HP240G
CXA1816‑0000‑
000N0HP440G
CXA1816‑0000‑
000N0UM240G
CXA1816‑0000‑
000N0UM440G
CXA1816‑0000‑
000N0UN240G
40F
40F
40F
group
3-step
order Code
group
4-Step
order Code
CXA1816‑0000‑
000N00P240F
CXA1816‑0000‑
000N00P440F
CXA1816‑0000‑
000N00Q240F
CXA1816‑0000‑
000N0HN440F
CXA1816‑0000‑
000N0HP240F
CXA1816‑0000‑
000N0HP440F
CXA1816‑0000‑
000N0UM240F
CXA1816‑0000‑
000N0UM440F
CXA1816‑0000‑
000N0UN240F
CXA1816‑0000‑
000N00N435F
CXA1816‑0000‑
000N00P235F
CXA1816‑0000‑
000N00P435F
CXA1816‑0000‑
000N0YK435F
CXA1816‑0000‑
000N0YM235F
CXA1816‑0000‑
000N0YM435F
CXA1816‑0000‑
000N00N430F
CXA1816‑0000‑
000N00P230F
CXA1816‑0000‑
000N00P430F
CXA1816‑0000‑
000N0YK430F
CXA1816‑0000‑
000N0YM230F
CXA1816‑0000‑
000N0YM430F
Notes
•
Cree maintains a tolerance of ±7% on flux and power measurements, ±0.005 on chromaticity (CCx, CCy) measurements and a tolerance of ±2 on CRI
measurements. See the Measurements section (page 16).
•
Cree XLamp CXA1304 LED order codes specify only a minimum flux bin and not a maximum. Cree may ship reels in flux bins higher than the minimum
specified by the order code without advance notice. Shipments will always adhere to the chromaticity bin restrictions specified by the order code.
*
Flux values @ 25 °C are calculated and for reference only.
Copyright © 2013-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
, XLamp
®
and EasyWhite
®
are registered trademarks and the Cree logo is a
trademark of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
4
XLamp
®
CXa1816 LED
fLuX ChArACtEristiCs, EAsyWhitE
®
orDEr CoDEs AnD bins (i
f
= 450 mA,
t
J
= 85 °C) - Continued
nominal
CCt
Cri
Min
typ
Minimum Luminous flux
group
N2
80
---
N4
P2
2700 K
K2
93
95
K4
M2
1200
1290
1380
1337
1437
1537
27H
Flux (lm)
@ 85 °C
1590
1710
1830
Flux (lm)
@ 25 °C*
1762
1895
2028
27H
group
2-step
order Code
CXA1816‑0000‑
000N00N227H
CXA1816‑0000‑
000N00N427H
CXA1816‑0000‑
000N00P227H
CXA1816‑0000‑
000N0YK227H
CXA1816‑0000‑
000N0YK427H
CXA1816‑0000‑
000N0YM227H
27G
CXA1816‑0000‑
000N0YK427G
CXA1816‑0000‑
000N0YM227G
27F
27G
CXA1816‑0000‑
000N00N427G
CXA1816‑0000‑
000N00P227G
27F
group
3-step
order Code
group
4-Step
order Code
CXA1816‑0000‑
000N00N227F
CXA1816‑0000‑
000N00N427F
CXA1816‑0000‑
000N00P227F
CXA1816‑0000‑
000N0YK227F
CXA1816‑0000‑
000N0YK427F
CXA1816‑0000‑
000N0YM227F
Notes
•
Cree maintains a tolerance of ±7% on flux and power measurements, ±0.005 on chromaticity (CCx, CCy) measurements and a tolerance of ±2 on CRI
measurements. See the Measurements section (page 16).
•
Cree XLamp CXA1304 LED order codes specify only a minimum flux bin and not a maximum. Cree may ship reels in flux bins higher than the minimum
specified by the order code without advance notice. Shipments will always adhere to the chromaticity bin restrictions specified by the order code.
*
Flux values @ 25 °C are calculated and for reference only.
Copyright © 2013-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
, XLamp
®
and EasyWhite
®
are registered trademarks and the Cree logo is a
trademark of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
5
京公网安备 11010802033920号
EEWORLD
