H-175C-2: DescriptionLED Mounting Hardware LED Holder, Right Angle, 5mm LED, Single Level, 0.120in. Center Line, Interlocking, 2 Lead, Molded Nylon, Black; CategoryLED optoelectronic/LED; File Size41KB，1 Pages; ManufacturerBivar

Download Datasheet Parametric Compare View All

H-175C-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	H-175C-2	-	-	View	Buy Now

H-175C-2 Overview

LED Mounting Hardware LED Holder, Right Angle, 5mm LED, Single Level, 0.120in. Center Line, Interlocking, 2 Lead, Molded Nylon, Black

H-175C-2 Parametric

Parameter Name	Attribute value
Product Category	LED Mounting Hardware
Manufacturer	Bivar
Packaging	Bag

Preview

Download Datasheet

View All

REV.

DESCRIPTION

DATE

APPROVED

0.350 [8.9mm]

DIA

0.100 [2.5mm]

0.030 [0.8mm] SQ.

TYP.

0.190 [4.8mm]

0.130 [3.3mm]

D

E

F

G

H

Engineering Update w / PPA Version Added

Engineering Update w / -2 Version Added

Updated Part No. Table

Obsolete H-17XC-1 Holder

Removed Material Code

04/18/05

08/16/05

04/11/06

09/27/07

05/28/16

M. C.

J. C.

0.240 [6.1mm]

0.120 [3.0mm]

0.050 [1.3mm]

Holder Faces

0.200 [5.1mm]

Ø.032+.003

-.002

TYP.

0.254 [6.5mm] Holder Pitch

0.100 [2.5mm] LED Lead

Recommended Mounting Holes

PART NO.

DIA

H-175C SERIES

H-175C

H-175C-2

H-176C SERIES

H-176C

H-176C-2

H-177C SERIES

H-177C

H-177C-2

H-178C SERIES

H-178C

H-178C-2

.197 [5.0mm]

.206 [5.2mm]+/-0.002"

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

0.250 [6.4mm]

H-175C

H-176C

H-177C

H-178C

®

.X

.XX

.XXX

± .1

± .01

± .005

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

2. MATERIAL: NYLON 6/6, 94V-0, BLACK.

1. GENERAL SPECIFICATIONS: BIVAR MOLDED COMPONENT SPECIFICATION BV00-E101.

DESIGNED:

DATE:

TITLE:

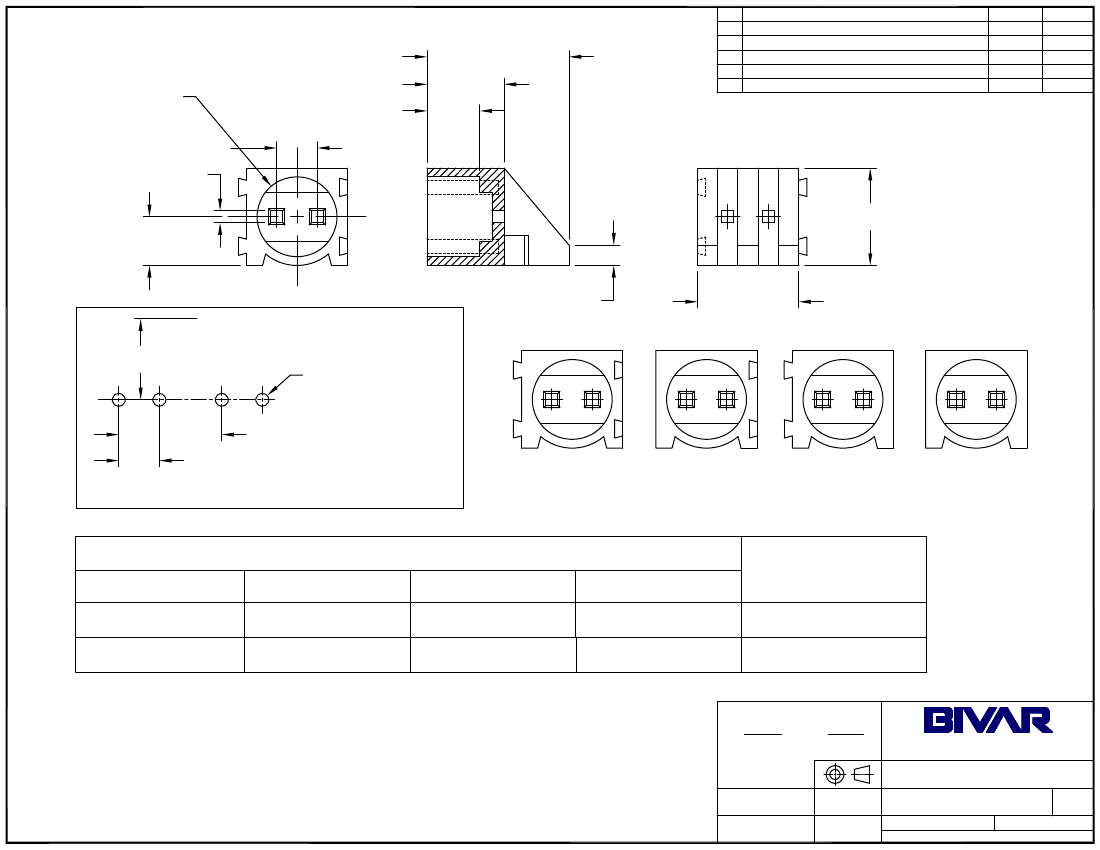

T-1¾ (5mm) LED HOLDER

INTERLOCKING VARIABLE DIAMETER

REVISION:

PART NO:

D. Green

CHECKED:

04/18/03

DATE:

H-17XC-X

H

M. Chen

04/18/03

CAGE CODE : 32559

SHEET #

1

OF

1

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.

H-175C-2 Related Products

	H-175C-2	H-176C-2	H-175C	H-177C	H-176C
Description	LED Mounting Hardware LED Holder, Right Angle, 5mm LED, Single Level, 0.120in. Center Line, Interlocking, 2 Lead, Molded Nylon, Black	LED Mounting Hardware LED Holder, Right Angle, 5mm LED, Single Level, 0.120in. Center Line, Interlocking, 2 Lead, Molded Nylon, Black	Board Mount Humidity Sensors Humid u0026 Temp Sensor	LED Mounting Hardware LED Holder 5mm Single Level Black	LED Mounting Hardware LED Holder 5mm Single Level Black
Product Category	LED Mounting Hardware	-	LED Mounting Hardware	LED Mounting Hardware	LED Mounting Hardware
Manufacturer	Bivar	-	Bivar	Bivar	Bivar
Packaging	Bag	-	Bulk	Bulk	Bulk
RoHS	-	-	Details	Details	Details
Factory Pack Quantity	-	-	1000	1000	1000

Recommended Resources

Semiconductor transistor undervoltage indication circuit

Nickel-cadmium battery charging method and usage precautions circuit 02gif

window discriminator circuit

lkHz low distortion oscillator circuit

Bistable single-sided trigger circuit

Flashlight control model motor circuit
