2.0x1.25mm SMD CHIP LED LAMP
Part Number: APT2012SECK/J4-PRV
Super Bright Orange
Features
2.0mm x1.25mm SMT LED,0.75mm thickness.
Low power consumption.
Wide viewing angle.
Ideal for backlight and indicator.
Various colors and lens types available.
Package : 2000pcs / reel.
Moisture sensitivity level : level 3.
RoHS compliant.
Description
The Orange source color devices are made with AlGaInP
Light Emitting Diode.

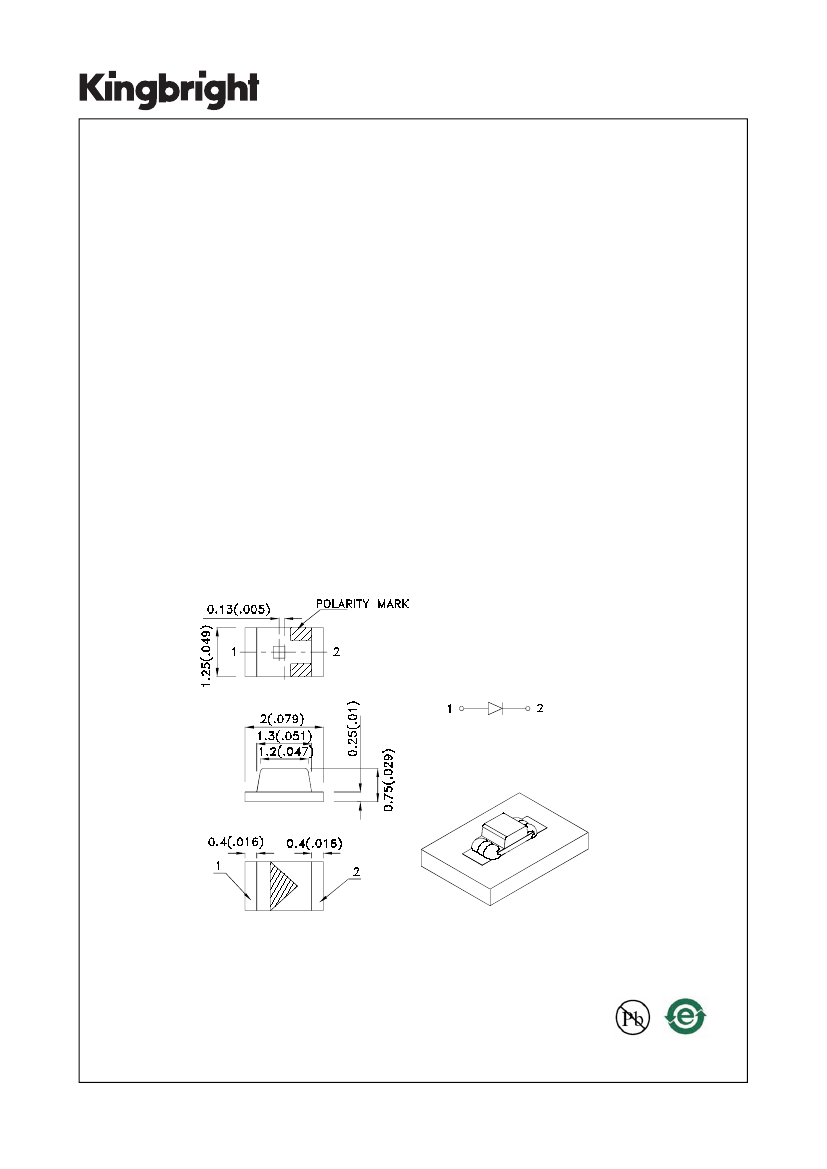

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.1(0.004") unless otherwise noted.
3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
4. The device has a single mounting surface. The device must be mounted according to the specifications.
SPEC NO: DSAN0529
APPROVED: WYNEC
REV NO: V.1A
CHECKED: Allen Liu
DATE: JUN/17/2013
DRAWN: Q.M.Chen
PAGE: 1 OF 5
ERP: 1203013852
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
APT2012SECK/J4-PRV
Super Bright Orange (AlGaInP)
Water Clear
1300
*300
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity/ luminous Flux: +/-15%.
* Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Viewing
Angle [1]
2θ1/2
120
°
Typ.
2000
*550
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Super Bright Orange
Super Bright Orange
Super Bright Orange
Super Bright Orange
Super Bright Orange
Super Bright Orange
Typ.
611
605
17
27
2.2
2.8
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3. Wavelength value is traceable to the CIE127-2007 compliant national standards.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating Temperature
Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Super Bright Orange
84
30
150
5
-40°C To +85°C
-40°C To +85°C
Units
mW
mA
mA
V
SPEC NO: DSAN0529
APPROVED: WYNEC
REV NO: V.1A
CHECKED: Allen Liu
DATE: JUN/17/2013
DRAWN: Q.M.Chen
PAGE: 2 OF 5
ERP: 1203013852

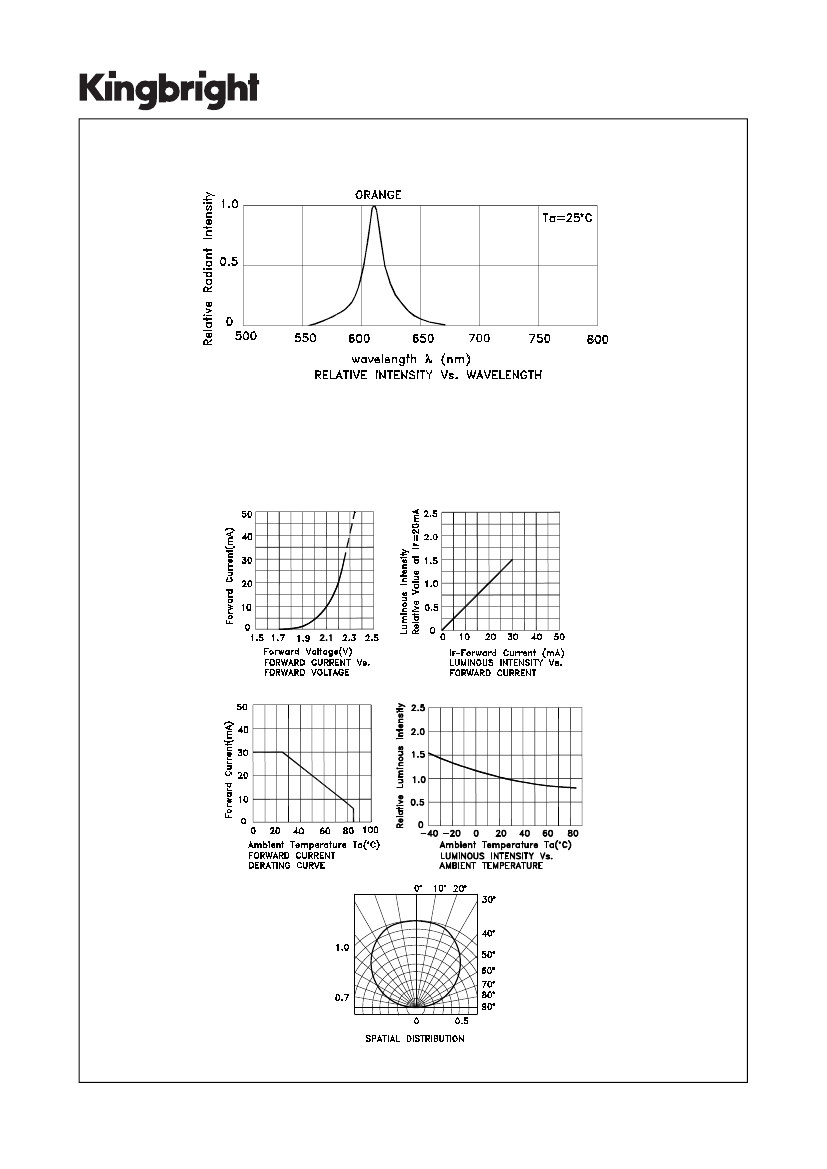

Super Bright Orange
APT2012SECK/J4-PRV
SPEC NO: DSAN0529
APPROVED: WYNEC
REV NO: V.1A
CHECKED: Allen Liu
DATE: JUN/17/2013
DRAWN: Q.M.Chen
PAGE: 3 OF 5
ERP: 1203013852
APT2012SECK/J4-PRV
Reflow soldering is recommended and the soldering profile is shown below.
Other soldering methods are not recommended as they might cause damage to the product.
Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.1)

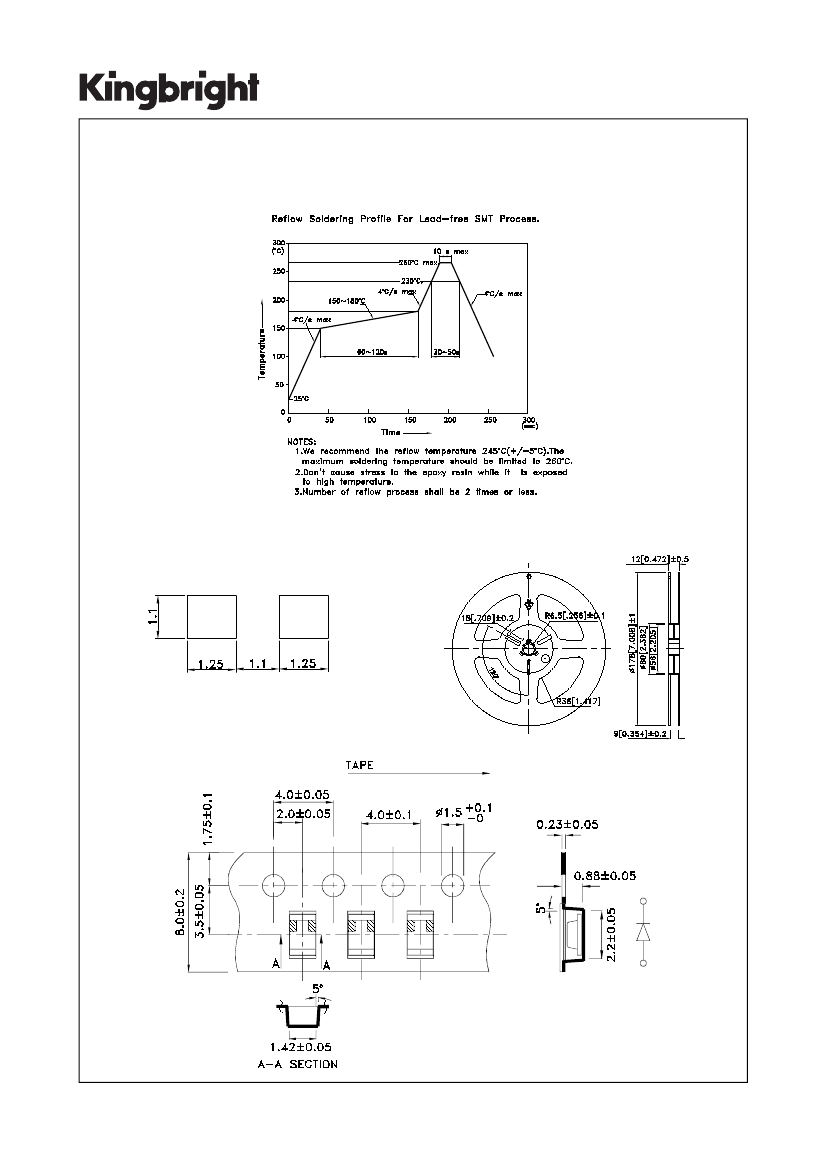

Reel Dimension
Tape Dimensions
(Units : mm)
SPEC NO: DSAN0529
APPROVED: WYNEC
REV NO: V.1A
CHECKED: Allen Liu
DATE: JUN/17/2013
DRAWN: Q.M.Chen
PAGE: 4 OF 5
ERP: 1203013852

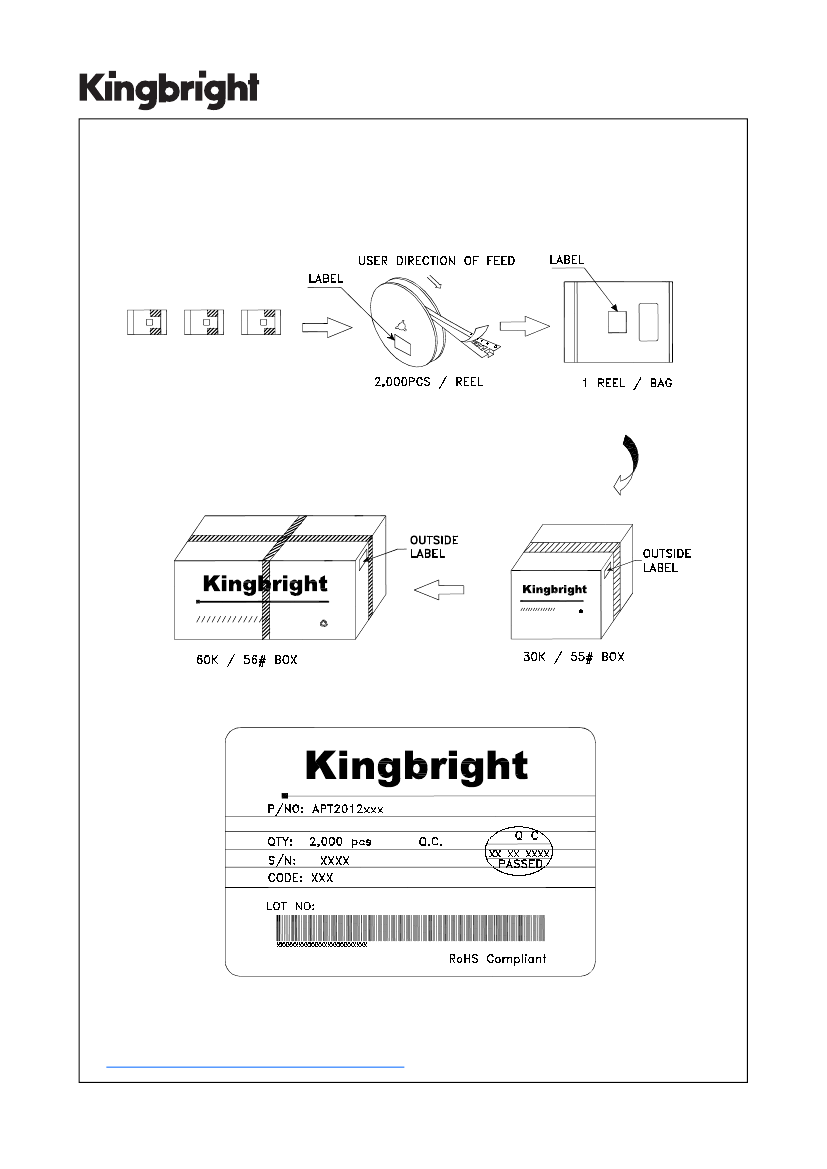

PACKING & LABEL SPECIFICATIONS
APT2012SECK/J4-PRV
All design applications should refer to Kingbright application notes available at
http://www.KingbrightUSA.com/ApplicationNotes
SPEC NO: DSAN0529
APPROVED: WYNEC
REV NO: V.1A
CHECKED: Allen Liu
DATE: JUN/17/2013
DRAWN: Q.M.Chen
PAGE: 5 OF 5
ERP: 1203013852
