Part Number

Search

12667

Description
Board Mount Pressure Sensors SSOP INTEG 3V W/PORT
CategoryLED optoelectronic/LED
File Size86KB,1 Pages
ManufacturerCarclo Technical Plastics
Download Datasheet Parametric View All

12667 Online Shopping

Suppliers Part Number Price MOQ In stock
12667 - - View Buy Now

12667 Overview

Board Mount Pressure Sensors SSOP INTEG 3V W/PORT

12667 Parametric

Parameter NameAttribute value
Product CategoryLED Lighting Lenses
ManufacturerCarclo Technical Plastics
RoHSDetails
TypeStrip Optic
For Use WithCree XM-L, XP-E, LF 6030, Lumileds Luxeon Rebel, Nichia 757, Seoul STW5630
Diameter-
Viewing Angle9 deg to 24 deg
ColorClear
Height18.7 mm
Length600 mm
Operating Temperature Range-
ShapeRectangular
Factory Pack Quantity1
Termination Style-
Width28 mm
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
REV.
A
DATE
12/07/12
D.C.N.
NUMBER
DESCRIPTION
FIRST ISSUE
CHECKED BY APPROVED BY
DATE
DATE
MH
24/08/12
BB
24/08/12
1
B

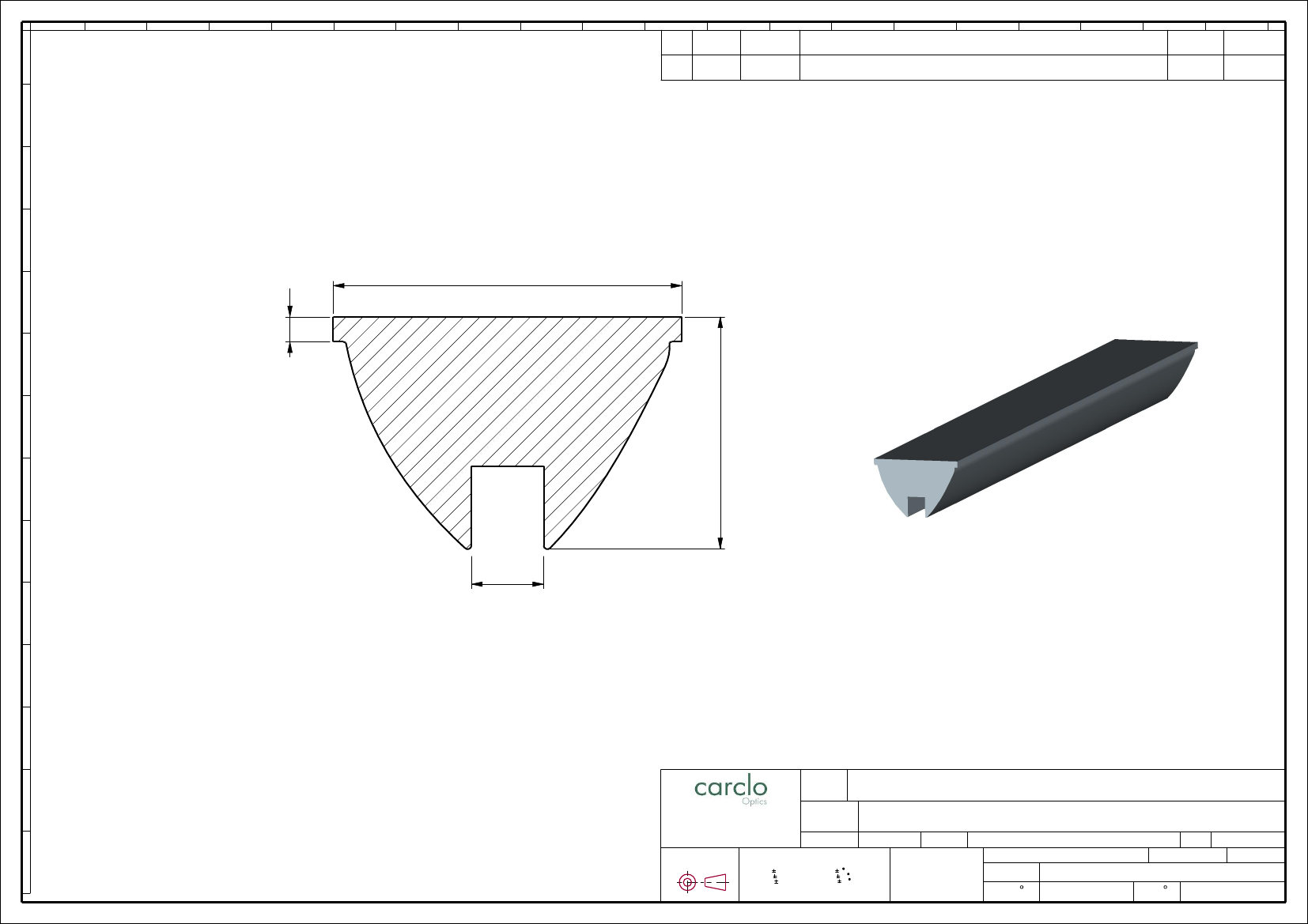

CUSTOMER DRAWING
C
D
SCALE 4,000
28,0±0,2
2
E
F
H
(18,7)
G
SCALE 1,000
I
5,8
L
M
N
Sheet 2 of 3
Title
O
EXTRUDED OPTIC 10 DEG
CARCLO
ADC
Material
CARCLO technical plastics
CONFIDENTIAL:
UNAUTHORISED COPYING,
DISCUSSION & DISTRIBUTION
PROHIBITED
PMMA
P
NOTES:
1. MATERIAL PMMA
2. SIMPLIFIED GEOMETRY SHOWN.
NOT SUITABLE FOR OPTICAL RAYTRACING
CARCLO OPTICS
103 BUCKINGHAM AVE, SLOUGH
SL1 4PF, ENGLAND
TEL: +44 1753 575011 FAX: +44 1753 811359
email: sales@carclo-optics.com
THIRD ANGLE
PROJECTION
0
0.0
0.00
Customer
Drawn by
PMMA
DIMENSIONS IN mm
Scale
Format Size
AS SPEC.
A3
GENERAL TOLERANCES UNLESS
OTHERWISE STATED
LINEAR
ANGULAR
0.25
0.1
0.05
0
0.0
0.00
1
0.5
0.1
CAD File
103-12667-70162-OPTIC-C1-R2
Drw. N
70162
Part N
12667
