SWDM591SP001611 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> SWDM591SP001611

SWDM591SP001611: DescriptionFiber Optic Switches 980/1550 Fused SMF WDM 1x2 PremGrade 1m; CategoryLED optoelectronic/LED; File Size196KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

SWDM591SP001611 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SWDM591SP001611	-	-	View	Buy Now

SWDM591SP001611 Overview

Fiber Optic Switches 980/1550 Fused SMF WDM 1x2 PremGrade 1m

SWDM591SP001611 Parametric

Parameter Name	Attribute value
Product Category	Fiber Optic Switches
Manufacturer	Molex
RoHS	Details
Product	Fiber Optic Multiplexer
Connector Type	No Connector
Fiber Type	Single Mode
Operational Type	Non-Latching
Wavelength	1550 nm/980 nm
Operating Supply Voltage	-
Insertion Loss	0.1 dB
Switching Time	-
Pd - Power Dissipation	500 mW (1/2 W)
Minimum Operating Temperature	- 10 C
Maximum Operating Temperature	+ 70 C
Length	54 mm
Width	3 mm
Height	-
Factory Pack Quantity	20

Preview

Download Datasheet

View All

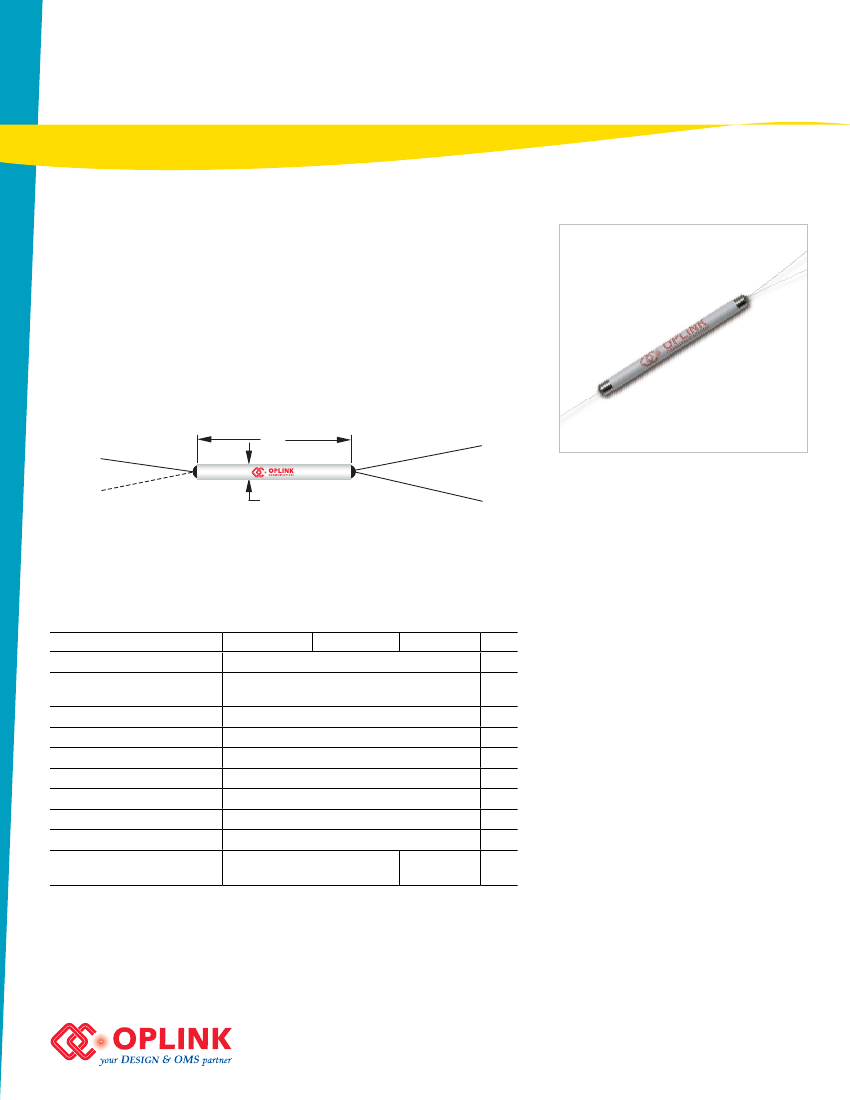

Fused Single-Mode WDM

(980/1550nm)

SWDM59 Series

Product Description

Oplink’s 980/1550nm fused single-mode wavelength division multiplexers are

manufactured using the proven fused biconical taper technology and Oplink’s

stringent quality procedures. With low insertion loss and flat passband, this

device is ideal for combining pump (980nm) and signal light at 1550nm in opti-

cal fiber amplifiers.

Oplink can provide customized designs to meet specialized feature applica-

tions. Also, Oplink offers modular assemblies that integrate other components

to form a full function module or subsystem.

Port 1 In

Port 2 Signal

Port 4 (terminated for

1x2 configuration)

Port 3 Pump

Features

Performance Specificationns

SWDM59 Series

Premium

Grade A

Grade B

Unit



Ultra Low Insertion Loss



Ultra High Isolation



Low Polarization Sensitivity



High Directivity

°C

(ø)3.0 x (L)54

(ø)3.0 x (L)60

Applications

Operating Wavelength

Insertion Loss

Isolation

Polarization Dependent Loss

Directivity

Maximum Power Handling

Operating Temperature

Storage Temperature

Fiber Type

Package Dimensions

(970 - 990nm / 1535 - 1565nm)

970 - 990nm / 1535 - 1565nm

< 0.1

< 0.2

> 20

< 0.1

> 55

500

- 10 to + 70

- 40 to + 85

HI1060 FLEX & HI980

P1: 250µm bare fiber

P2: 900µm loose tube

< 0.3



High Stable & Reliable



Bidirectional



Telecommunications



CATV



Subscriber Loop



Local Area Networks



Fiberoptic Sensors

Note:

* Values are referenced without connector loss.

** The mechanical tolerance should be +/-0.2 mm on all package dimensions unless otherwise custom speci-

fied.

S0168 - R01. 20100630
