PS2502-4-A Overview

Diodes - General Purpose, Power, Switching 100V Io/200mA BULK

PS2502-4-A Parametric

Parameter Name	Attribute value
Product Category	Transistor Output Optocouplers
Manufacturer	CEL
RoHS	Details
Package / Case	DIP-16
Output Type	Photodarlington
Number of Channels	4 Channel
If - Forward Current	80 mA
Maximum Collector Emitter Voltage	40 V
Maximum Collector Current	160 mA
Isolation Voltage	5000 Vrms
Maximum Collector Emitter Saturation Voltage	1 V
Vf - Forward Voltage	1.4 V
Vr - Reverse Voltage	6 V
Pd - Power Dissipation	160 mW
Maximum Operating Temperature	+ 100 C
Minimum Operating Temperature	- 55 C
Packaging	Tube
Current Transfer Ratio	2000 %
Fall Time	100 us
Mounting Style	Through Hole
Rise Time	100 us
Factory Pack Quantity	20

Preview

Download Datasheet

View All

PHOTOCOUPLER

PS2502-1,-4,PS2502L-1,-4

HIGH ISOLATION VOLTAGE

DARLINGTON TRANSISTOR TYPE

MULTI PHOTOCOUPLER SERIES

DESCRIPTION

The PS2502-1, -4 and PS2502L-1, -4 are optically coupled isolators containing a GaAs light emitting diode and an

NPN silicon darlington connected phototransistor.

The PS2502-1, -4 are in a plastic DIP (Dual In-line Package) and the PS2502L-1, -4 are lead bending type (Gull-

wing) for surface mount.

−NEPOC

Series−

FEATURES

• High isolation voltage (BV = 5 000 Vr.m.s.)

• High current transfer ratio (CTR = 2 000% TYP.)

• High-speed switching (t

, t

= 100

s TYP.)

<R>

• Ordering number of tape product: PS2502L-1-F3: 2 000 pcs/reel

• Safety standards

• UL approved: No. E72422

PIN CONNECTION

(Top View)

PS2502-1, PS2502L-1

1. Anode

2. Cathode

3. Emitter

4. Collector

APPLICATIONS

• Power supply

• Telephone/FAX

• FA/OA equipment

• Programmable logic controller

2 3 4 5 6 7 8

1, 3, 5, 7. Anode

2, 4, 6, 8. Cathode

9, 11, 13, 15. Emitter

10, 12, 14, 16. Collector

PS2502-4, PS2502L-4

16 15 14 13 12 11 10 9

Document No. PN10226EJ04V0DS (4th edition)

Date Published September 2009 NS

The mark <R> shows major revised points.

The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.

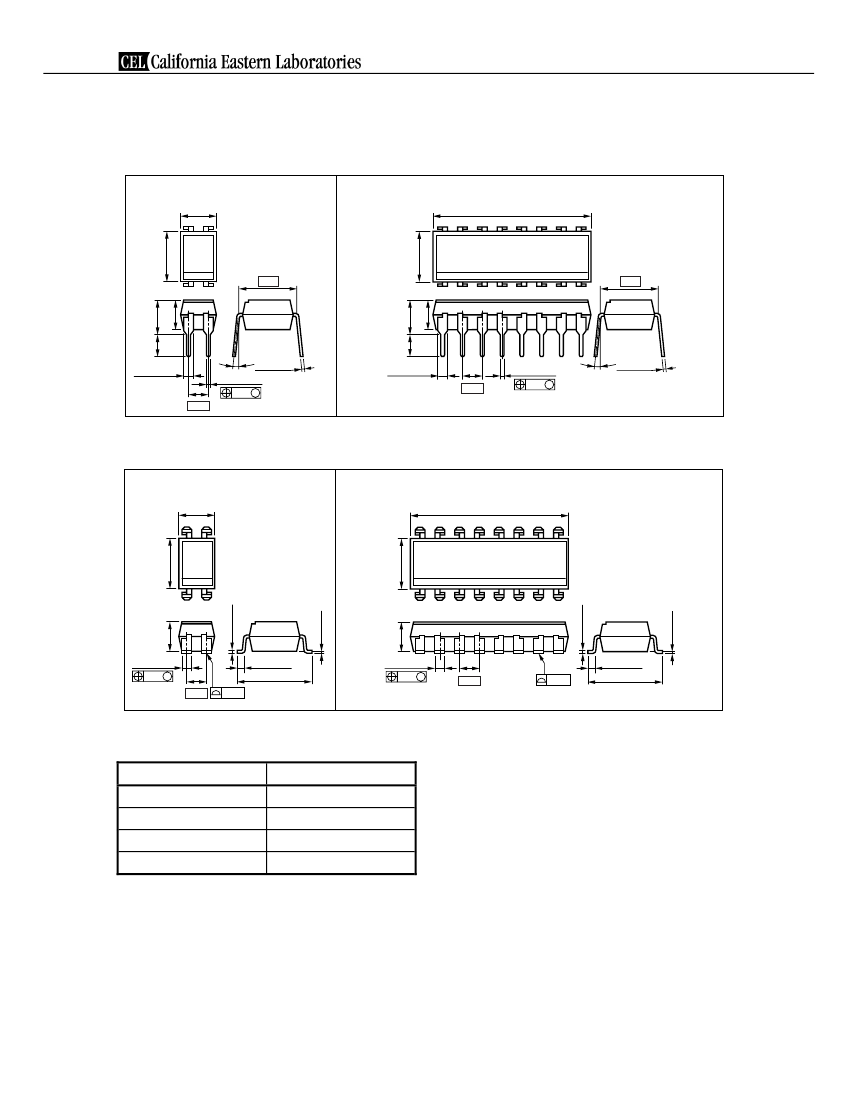

PS2502-4-A Related Products

	PS2502-4-A	PS2502-1-L-A	PS2502L-1-A	PS2502-1-A	PS2502L-1-F3-A
Description	Diodes - General Purpose, Power, Switching 100V Io/200mA BULK	Transistor Output Optocouplers Hi-Iso Darling 1-Ch		Transistor Output Optocouplers Hi-Iso Darling 4-Ch
Product Category	Transistor Output Optocouplers	Transistor Output Optocouplers	Transistor Output Optocouplers	Transistor Output Optocouplers	Transistor Output Optocouplers
Manufacturer	CEL	CEL	CEL	CEL	CEL
RoHS	Details	Details	Details	Details	Details
Output Type	Photodarlington	Photodarlington	Photodarlington	Photodarlington	Photodarlington
Number of Channels	4 Channel	1 Channel	1 Channel	1 Channel	1 Channel
Isolation Voltage	5000 Vrms	5000 Vrms	5000 Vrms	5000 Vrms	5000 Vrms
Factory Pack Quantity	20	100	100	100	2000
Package / Case	DIP-16	-	SMD-DIP-4	DIP-4	-
If - Forward Current	80 mA	80 mA	80 mA	80 mA	-
Maximum Collector Emitter Voltage	40 V	40 V	40 V	40 V	-
Maximum Collector Current	160 mA	200 mA	200 mA	200 mA	-
Maximum Collector Emitter Saturation Voltage	1 V	1 V	1 V	1 V	-
Vf - Forward Voltage	1.4 V	1.4 V	1.4 V	1.4 V	-
Vr - Reverse Voltage	6 V	6 V	6 V	6 V	-
Pd - Power Dissipation	160 mW	200 mW	200 mW	200 mW	-
Maximum Operating Temperature	+ 100 C	+ 100 C	+ 100 C	+ 100 C	-
Minimum Operating Temperature	- 55 C	- 55 C	- 55 C	- 55 C	-
Packaging	Tube	Tube	Tube	Tube	Reel
Current Transfer Ratio	2000 %	-	2000 %	2000 %	-
Fall Time	100 us	-	100 us	100 us	-
Rise Time	100 us	-	100 us	100 us	-
