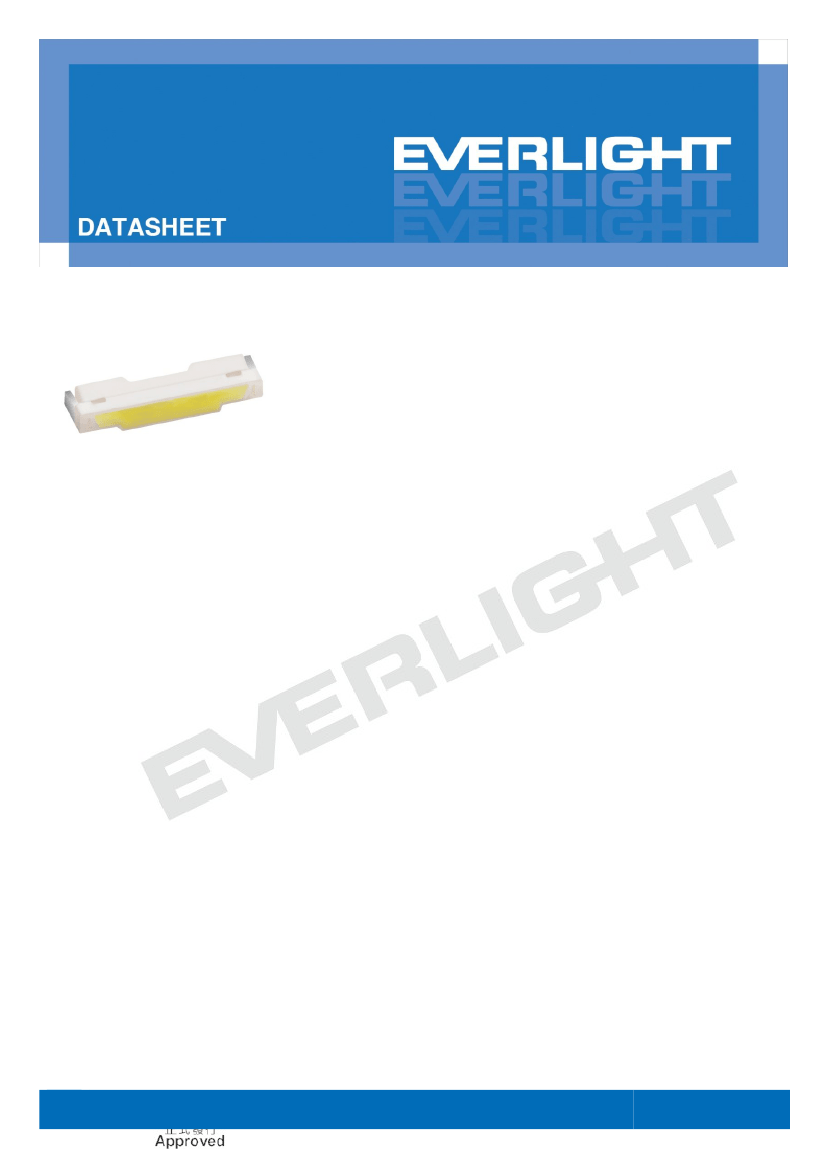

SMD
Side View LEDs
EAPL3810A12
Features
․Side
view white LED.
․White
SMT package.
․Lead
frame package with individual 2 pins.
․Wide
viewing angle
․Soldering
methods: IR reflow soldering
․Pb-free
․ESD
protection.
․The
product itself will remain within RoHS compliant version.
․Compliance
with EU REACH.
․Compliance
Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).
Description
Due to the package design, 3806 has wide viewing angle, low power consumption and white LEDs are devices which are
materialized by combing blue chips and special phosphor. This feature makes the LED ideal for light guide application.
Applications
․LCD
back light.
․Mobile
phones.
․Indicators.
․Illuminations.
․Switch
lights.
1
Revision
Copyright ©
:1
LifecyclePhase:
2010, Everlight All Rights Reserved. Release Date :03.Oct.2014. Issue No: V1
Release
Issue No: DSE-0012145
Date:2014-10-06 17:09:11.0
www.everlight.com
Expired Period: Forever
DATASHEET
SMD
Side View LEDs
EAPL3810A12
Device Selection Guide
Chip
Materials
InGaN
Emitted Color
Pure White
Resin Color
Water Clear
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current (Duty 1/10 @10ms)
Power Dissipation
Operating Temperature
Storage Temperature
Soldering Temperature
Electrostatic Discharge(HBM)*1
Symbol
V
R
I
F
I
FP
P
d
T
opr
T
stg
T
sol
ESD
Rating
5
30
60
110
-40 ~ +85
-40 ~ +90
Unit
V
mA
mA
mW
℃
℃
Reflow Soldering : 260
℃
for 10 sec.
Hand Soldering : 350
℃
for 3 sec.
2KV, Test/Result: 0/50.
Test Times: 3Time.
Notes: *1The products are sensitive to static electricity and must be carefully taken when handling products.
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Flux
Forward Voltage
Viewing Angle
Symbol
Φ
V
F
2θ
1/2
Min.
7.25
2.95
-----
Typ.
-----
-----
120
Max.
8.00
3.45
-----
Unit
lm
volt
deg
Condition
I
F
=20mA
I
F
=20mA
I
F
=20mA
Notes:
1. Tolerance of Luminous Flux: ±7%.
2. Tolerance of Forward Voltage: ±0.05V.
Bin Range of Luminous Flux
Bin Code
72
75
77
Min.
7.25
7.50
7.75
Max.
7.50
7.75
8.00
lm
I
F
=20mA
Unit
Condition
Notes: Tolerance of Luminous Flux: ±7%
2
Revision
Copyright ©
:1
LifecyclePhase:
2010, Everlight All Rights Reserved. Release Date : 03.Oct.2014. Issue No: V1
Release
Issue No: DSE-0012145
Date:2014-10-06 17:09:11.0
www.everlight.com
Expired Period: Forever
DATASHEET
SMD
Side View LEDs
EAPL3810A12
Bin Range of Forward Voltage
Bin Code
6-1
6-2
7-1
7-2
Min.
2.95
3.05
3.15
3.25
Max.
3.05
3.15
3.25
3.35
3.45
volt
I
F
=20mA
Unit
Condition
8-1
3.35
Note: Tolerance of Forward Voltage: ±0.05V
Bin Range of Chromaticity Coordinate
Bin Code
CIE_x
0.2760
NA0-3-1
0.2720
0.2770
0.2805
0.2800
NA0-3-3
0.2760
0.2805
0.2840
0.2850
NA0-4-1
0.2820
0.2865
0.2893
0.2880
NA0-4-3
0.2850
0.2893
0.2920
CIE_y
0.2530
0.2580
0.2650
0.2600
0.2480
0.2530
0.2600
0.2550
0.2670
0.2720
0.2795
0.2743
0.2620
0.2670
0.2743
0.2690
NA0-4-4
NA0-4-2
NA0-3-4
NA0-3-2
Bin Code
CIE_x
0.2805
0.2770
0.2820
0.2850
0.2840
0.2805
0.2850
0.2880
0.2893
0.2865
0.2910
0.2935
0.2920
0.2893
0.2935
0.2960
CIE_y
0.2600
0.2650
0.2720
0.2670
0.2550
0.2600
0.2670
0.2620
0.2743
0.2795
0.2870
0.2815
0.2690
0.2743
0.2815
0.2760
Notes:Tolerance of Chromaticity Coordinates : ±0.01
3
Revision
Copyright ©
:1
LifecyclePhase:
2010, Everlight All Rights Reserved. Release Date : 03.Oct.2014. Issue No: V1
Release
Issue No: DSE-0012145
Date:2014-10-06 17:09:11.0
www.everlight.com
Expired Period: Forever
DATASHEET
SMD
Side View LEDs
EAPL3810A12

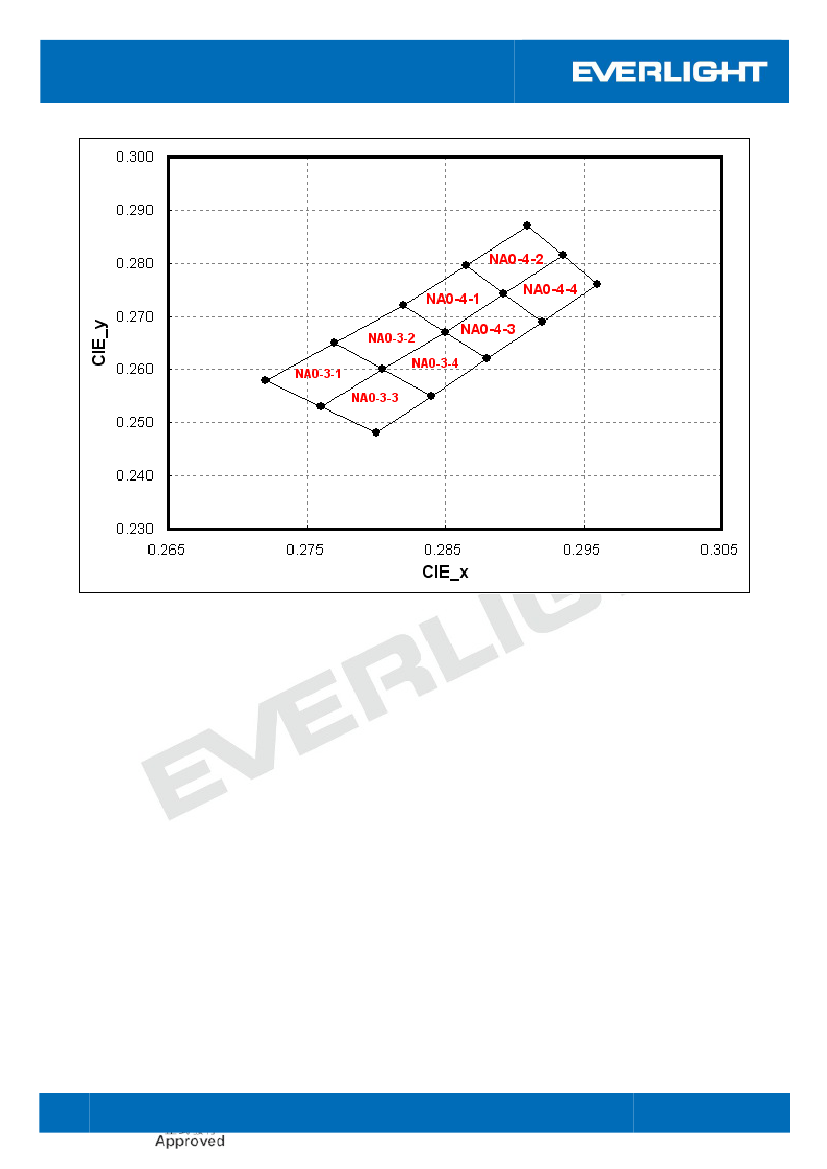

The C.I.E. 1931 Chromaticity Diagram
4
Revision
Copyright ©
:1
LifecyclePhase:
2010, Everlight All Rights Reserved. Release Date : 03.Oct.2014. Issue No: V1
Release
Issue No: DSE-0012145
Date:2014-10-06 17:09:11.0
www.everlight.com
Expired Period: Forever
DATASHEET
SMD
Side View LEDs
EAPL3810A12

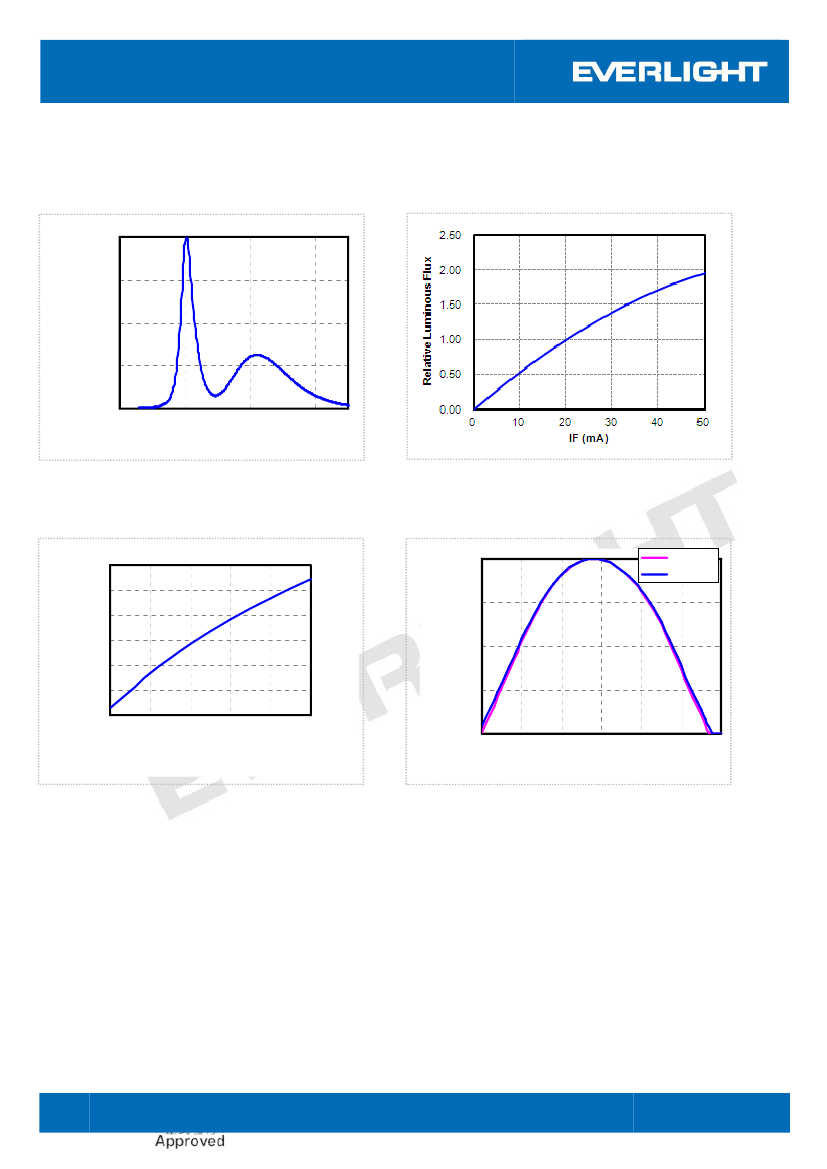

Typical Electro-Optical Characteristics Curves
1. Spectrum Distribution
(T
S
=25℃, I
F
=20mA)
100%
2. Relative Luminous Flux vs. Forward Current
(T
S
=25℃)
Relative Intensity
75%
50%
25%
0%
350
450
550
Wavelength (nm )
650
3. Relative Forward Voltage vs. Forward Current
(T
S
=25℃)
3.80
3.60
Forward Voltage
3.40
3.20
3.00
2.80
2.60
0
10
20
30
40
50
IF (m A)
4. Radiation Diagram
(T
S
=25℃, I
F
=20mA)
1.00
Relative Luminous Intensity
0 Degree
90 Degree
0.75
0.50
0.25
0.00
-90
-60
-30
0
30
View Angle (Degree)
60
90
5
Revision
Copyright ©
:1
LifecyclePhase:
2010, Everlight All Rights Reserved. Release Date : 03.Oct.2014. Issue No: V1
Release
Issue No: DSE-0012145
Date:2014-10-06 17:09:11.0
www.everlight.com
Expired Period: Forever
