556-1508-304F datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 556-1508-304F

Preview

556-1508-304F: DescriptionLED Panel Mount Indicators Flat Red 37.5VDC 20mA 2300fL; CategoryLED optoelectronic/LED photoelectric; File Size119KB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

556-1508-304F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	556-1508-304F	-	-	View	Buy Now

556-1508-304F Overview

LED Panel Mount Indicators Flat Red 37.5VDC 20mA 2300fL

556-1508-304F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIALIGHT
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
Other features	UL RECOGNIZED
color	RED
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED DISPLAY CLUSTER
Base Number Matches	1

Preview

Download Datasheet

View All

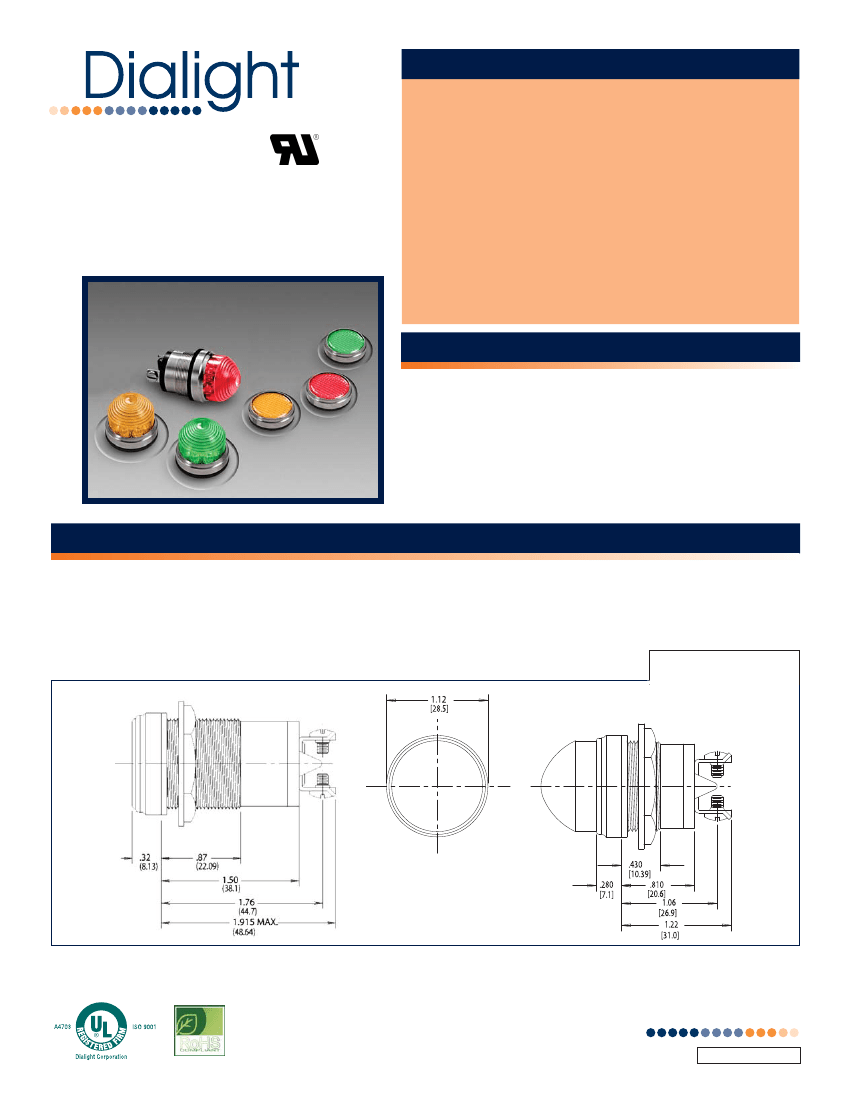

FEATURES / BENEFITS

p

Daylight viewable

556 Series

High Intensity LED Panel Mount

Indicators for 1” Mounting Hole

for 37.5, 72 and 125 VDC

Watertight - NEMA4X IP66

p

Safety standards - UL and NEMA

p

Tamperproof / Designed for high durability

p

Long life, lasting up to 100k hours

p

Uniform illumination - multi-LED construction

p

Lens options:

- Low profile flat

- Wide angle domed

APPLICATIONS

The 556 Series LED Panel Mount Indicators incorporate both InGaN

and AlInGaP technologies to offer higher intensities. This is a highly

durable package, designed to withstand outdoor applications

susceptible to rain, dust and sunlight.

• Instrument panels

• Lane control

• Safety applications

• Display lighting

• Vending, gaming

• Transportation - rail, bus, airline

... and many more!

SPECIFICATIONS

p

Available in red, yellow and green

p

Voltage range of 37.5, 72 and 125 VDC

p

Watertight seal from front of panel meets NEMA 4X IP66

Maximum Mounting Torque - 40 in./lb.

p

Housing material: Nickel plated brass

p

Lens material: Polycarbonate 94 - VO

FLAT LENS

p

UL recognized - File #E156890

Front mounting in 1” clearance hole

Operating temperature: -30

o

C to +85

o

C

Storage temperature: -40

o

C to +100

o

C

Dimensions in inches [mm]

All measurements are typical

Polarity marking indicated on housing

near positive supply terminal

DOMED LENS

Max. panel thickness:

Flat .600”

Dome .187”

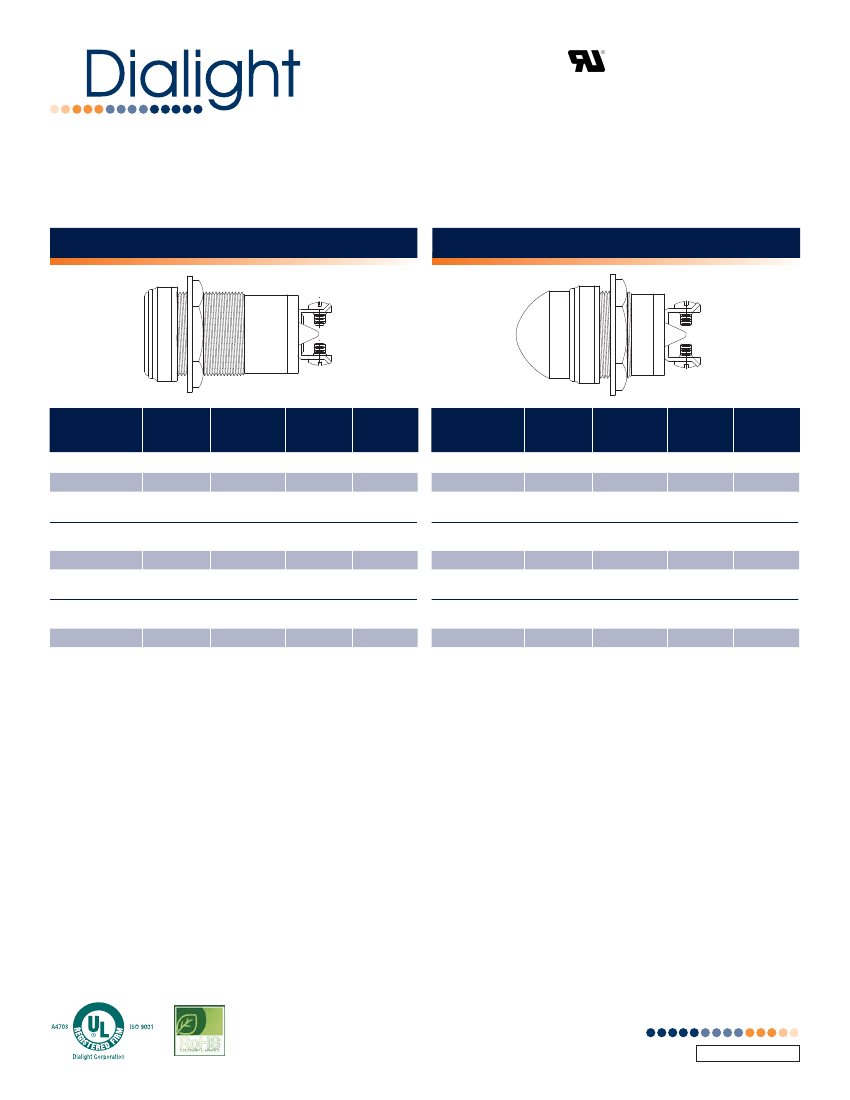

Please see back of page for part numbers and additional specifications.

Dialight reserves the right to make changes at any time

in order to supply the best product possible.

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

MDEL556X002_D
