Indicators
Introduction
This range of panel mounting
LED indicators
consists of many different
bezel styles,
types of
LED’s and colours. The range has developed to
meet the different needs of panel design including
IP66 and IP67 environmentally sealed versions
for
use where a front panel seal is needed.

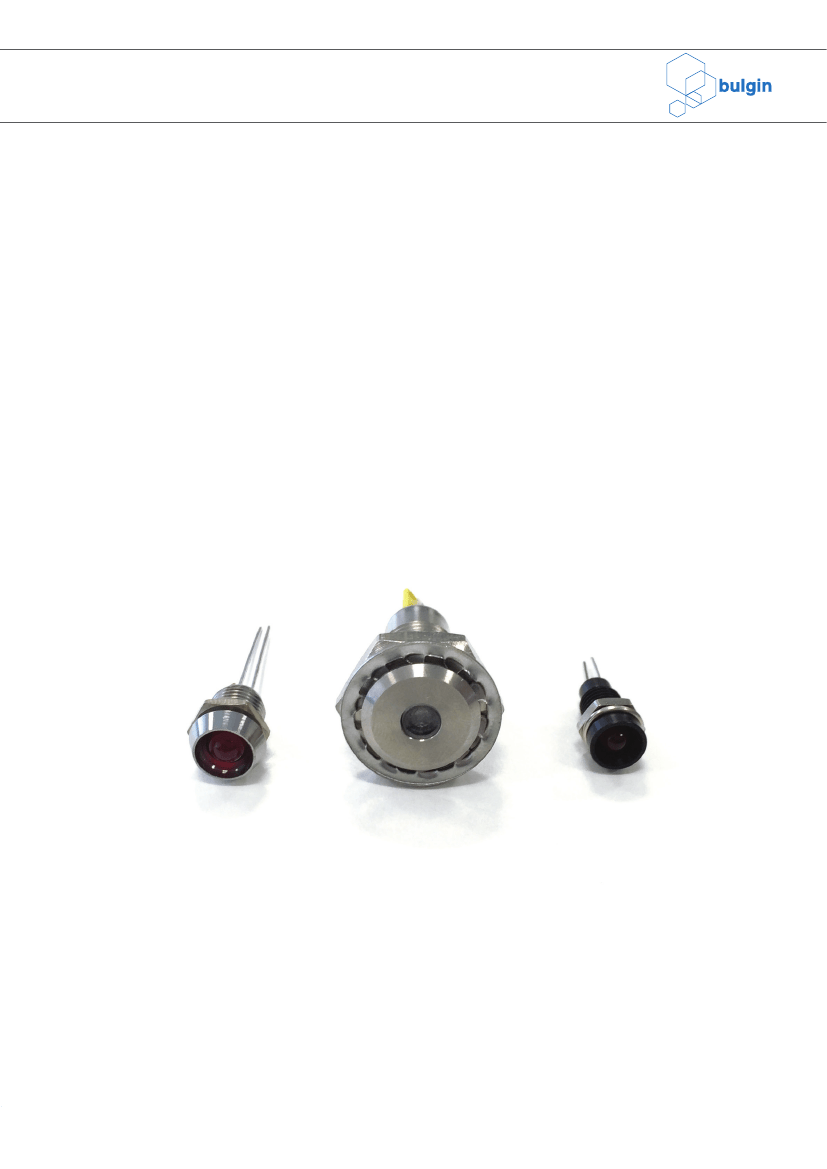

The vandal resistant LED indicators are designed to complement the
vandal resistant switches (see the Switch Section), they have similar
profiles with stainless steel bodies, sealing to IP66 & 68 and are built to
withstand harsh environments.
Vandal Resistant LED
LED Bezel
Indicator Lights
Low Voltage Lampholders
LED Lampholders
Indicator Lights IP67
317-318
319-323
324-330
331-332
333-334
335
Indicators 316

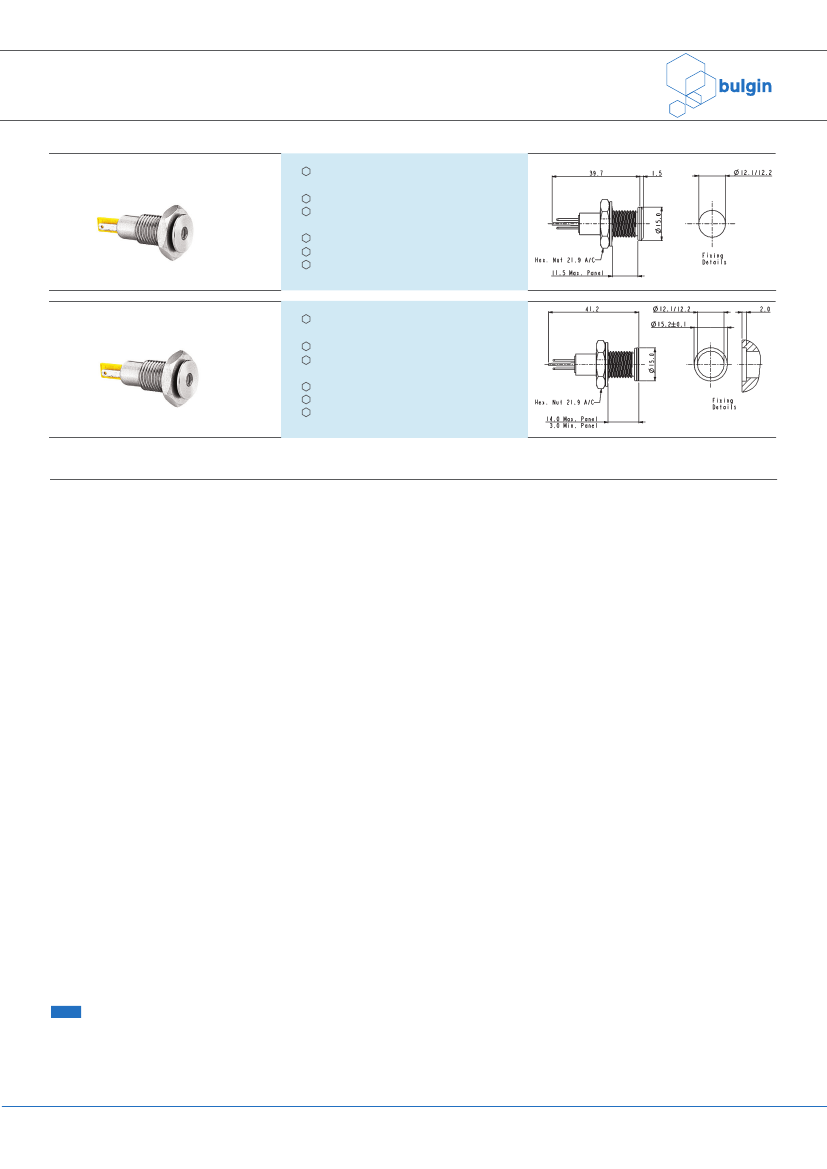

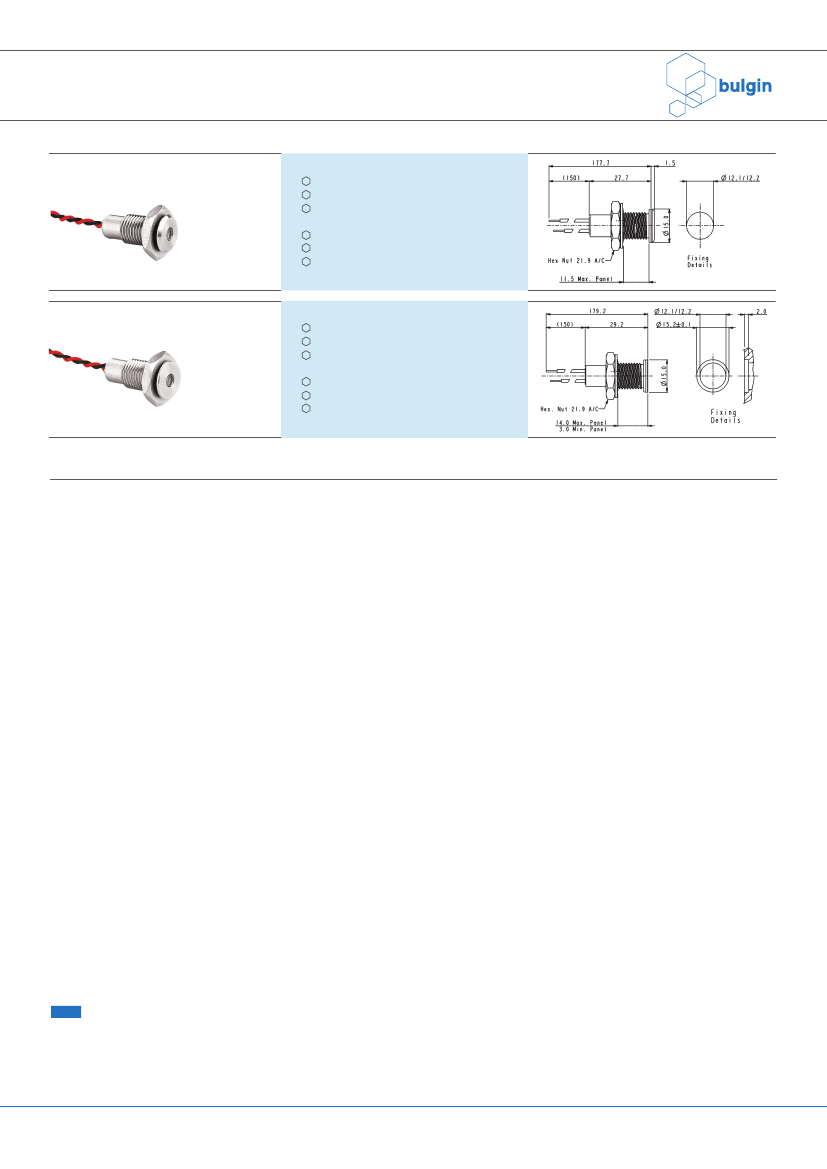

Vandal Resistant LED Indicators
Proud of Panel Profile
Indicators
DX0505
Flush Panel Profile
Solder Tag/2.8mm Tag
Termination
Sealed to IP67
Red, Green, Yellow or Blue
LED Options
Wide Viewing Angle
Shock and Vibration Resistant
Stainless Steel body
DX0506
Specifications
Terminations:
Forward Voltage:
Cont. Forward Current:
(max)
Power Dissipation:
Reverse Current:
(@Vr = 5V)
DX0505/Col/Voltage
Solder Tag/2.8mm Tag
Termination
Sealed to IP67
Red, Green, Yellow or Blue
LED Options
Wide Viewing Angle
Shock and Vibration Resistant
Stainless Steel body
DX0506/Col/Voltage
Solder Tab/2.8mm Tab
Red 1.85V, Green 2.2V, Yellow 2.0V,
Blue 3.8V
Red 30mA, Green 25mA,
Yellow 30mA, Blue 25mA
Red 100mW, Green 105mW,
Yellow 125mW, Blue 120mW
Red 10μA max., Green 10μA max.,
Yellow 10μA max., Blue 50μA max.
Red 2000mcd, Green 100mcd,
Yellow 400mcd, Blue 1600mcd (typ)
–40ºC to +80ºC
–40ºC to +85ºC
Protection Classification IP67 to
EN60529:1992+A2:2013
Stainless Steel
Polycarbonate UL94V-0
Nitrile
Silicone
0.5Nm - 0.9Nm (4.4lbf.in. - 8.0lbf.in.)
M12 x 1.25-6g
/RD (Red), /GN (Green), /YL (Yellow)
/BL (Blue), with colour coded
insulator
/12 (12V d.c.), /24 (24V d.c.) or
/00 (no ballast resistor)
Compliant
Solder Tab/2.8mm Tab
Red 1.85V, Green 2.2V, Yellow 2.0V,
Blue 3.8V
Red 30mA, Green 25mA,
Yellow 30mA, Blue 25mA
Red 100mW, Green 105mW,
Yellow 125mW, Blue 120mW
Red 10μA max., Green 10μA max.,
Yellow 10μA max., Blue 50μA max.
LED Luminous Intensity: Red 2000mcd, Green 100mcd,
Yellow 400mcd, Blue 1600mcd (typ)
Operating Temp. Range: –40ºC to +80ºC
Storage Temperature:
Sealing (Front of panel):
Materials
Body:
Lens:
O Ring (external):
(internal):
Tightening Torque
Thread Size:
LED Colours:
–40ºC to +85ºC
Protection Classification IP67 to
EN60529:1992+A2:2013
Stainless Steel
Polycarbonate UL94V-0
Nitrile
Silicone
0.5Nm - 0.9Nm (4.4lbf.in. - 8.0lbf.in.)
M12 x 1.25-6g
/RD (Red), /GN (Green), /YL (Yellow)
/BL (Blue), with colour coded
insulator
/12 (12V d.c.), /24 (24V d.c.) or
/00 (no ballast resistor)
Compliant
LED Voltage:
RoHS
317 Indicators
Vandal Resistant LED Indicators
Proud of Panel Profile
Flying Lead Termination
Sealed to IP67
Red, Green, Yellow or Blue
LED Options
Wide Viewing Angle
Shock and Vibration Resistant
Stainless Steel body
DX0507
Flush Panel Profile
Flying Lead Termination
Sealed to IP67
Red, Green, Yellow or Blue
LED Options
Wide Viewing Angle
Shock and Vibration Resistant
Stainless Steel body
DX0508
Specifications
Terminations:
Forward Voltage:
Cont. Forward Current:
(max)
Power Dissipation:
Reverse Current:
(@Vr = 5V)
DX0507/Col/Voltage
Flying Leads
Red 1.85V, Green 2.2V, Yellow 2.0V,
Blue 3.8V
Red 30mA, Green 25mA,
Yellow 30mA, Blue 25mA
Red 100mW, Green 105mW,
Yellow 125mW, Blue 120mW
Red 10μA max., Green 10μA max.,
Yellow 10μA max., Blue 50μA max.
DX0508/Col/Voltage
Flying Leads
Red 1.85V, Green 2.2V, Yellow 2.0V,
Blue 3.8V
Red 30mA, Green 25mA,
Yellow 30mA, Blue 25mA
Red 100mW, Green 105mW,
Yellow 125mW, Blue 120mW
Red 10μA max., Green 10μA max.,
Yellow 10μA max., Blue 50μA max.
Red 2000mcd, Green 100mcd,
Yellow 400mcd, Blue 1600mcd (typ)
–40ºC to +80ºC
–40ºC to +85ºC
Protection Classification IP67 to
EN60529:1992+A2:2013
Stainless Steel
Polycarbonate UL94V-0
Nitrile
Silicone
0.5Nm - 0.9Nm (4.4lbf.in. - 8.0lbf.in.)
M12 x 1.25-6g
/RD (Red), /GN (Green), /YL (Yellow)
/BL (Blue), with colour coded
insulator
/12 (12V d.c.), /24 (24V d.c.) or
/00 (no ballast resistor)
Compliant
Indicators
LED Luminous Intensity: Red 2000mcd, Green 100mcd,
Yellow 400mcd, Blue 1600mcd (typ)
Operating Temp. Range: –40ºC to +80ºC
Storage Temperature:
Sealing (Front of panel):
Materials
Body:
Lens:
O Ring (external):
(internal):
Tightening Torque
Thread Size:
LED Colours:
–40ºC to +85ºC
Protection Classification IP67 to
EN60529:1992+A2:2013
Stainless Steel
Polycarbonate UL94V-0
Nitrile
Silicone
0.5Nm - 0.9Nm (4.4lbf.in. - 8.0lbf.in.)
M12 x 1.25-6g
/RD (Red), /GN (Green), /YL (Yellow)
/BL (Blue), with colour coded
insulator
/12 (12V d.c.), /24 (24V d.c.) or
/00 (no ballast resistor)
Compliant
LED Voltage:
RoHS
Indicators 318

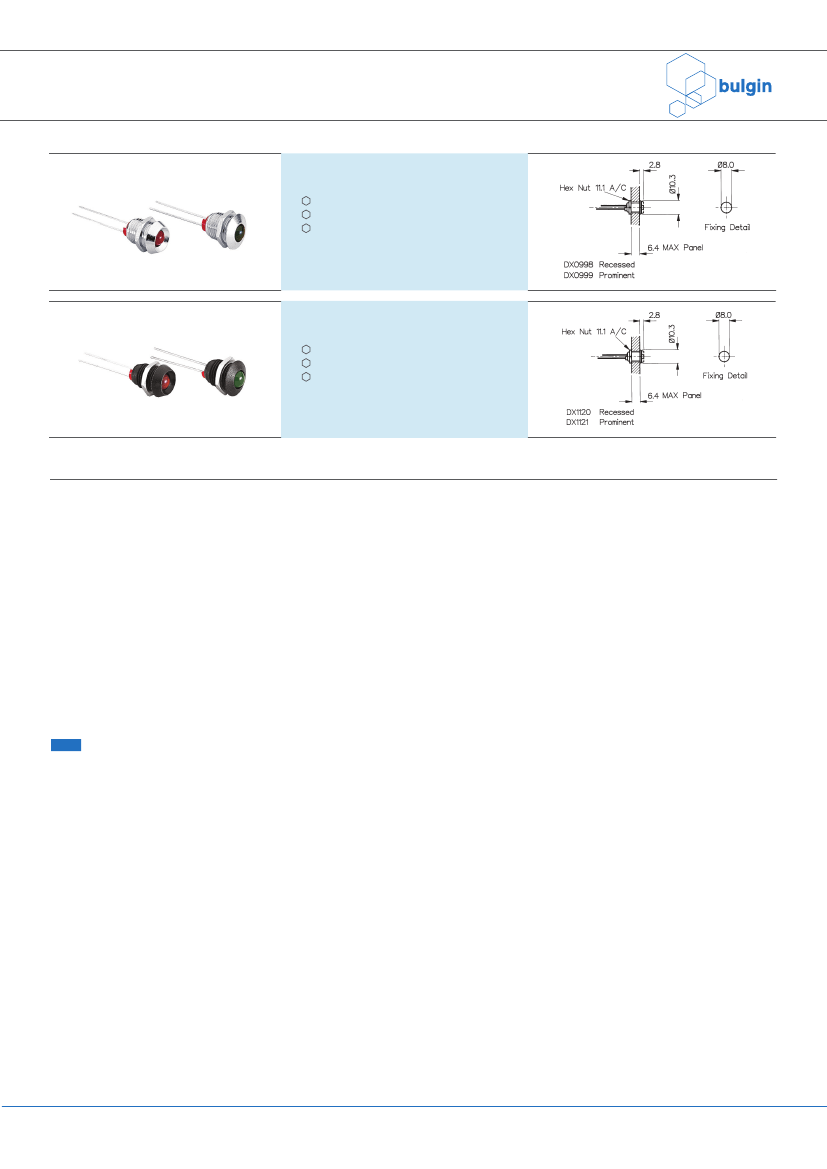

5mm LED Indicators
Chrome Plated Brass Bezel
Chrome Plated Brass Bezel
Prominent or Recessed Style
Choice of LED Types and
Colours
DX0998
Nylon Bezel
Glass Filled Nylon Bezel
Prominent or Recessed Style
Choice of LED Types and
Colours
DX1120
Specifications
Bezel Material:
Style:
DX1121
DX0998, DX0999/Colour/Options
Brass, Chrome Plated
Recessed (DX0998)
Prominent (DX0999)
DX1120, DX1121/Colour/Options
Glass Filled Nylon
Recessed (DX1120)
Prominent (DX1121)
Dependent on LED used
Dependent on LED used
/RD (Red), /GN (Green), /YL (Yellow),
/BL (Blue), /TR (Tri Colour),
/D1 (Dual Colour - Red/Green),
/D2 (Dual Colour - Red/Amber),
/D3 (Dual Colour - Green/Amber)
/02 (Flashing, Green or Red only)
0.312” x 32TPI
Compliant
DX0999
Indicators
Operating Temp. Range: Dependent on LED used
Storage Temperature:
LED Colours:
Dependent on LED used
/RD (Red), /GN (Green), /YL (Yellow),
/BL (Blue), /TR (Tri Colour),
/D1 (Dual Colour - Red/Green),
/D2 (Dual Colour - Red/Amber),
/D3 (Dual Colour - Green/Amber)
/02 (Flashing, Green or Red only)
0.312” x 32TPI
Compliant
LED Options:
Thread Size:
RoHS
See Page 212 for LED options and specifications*
319 Indicators

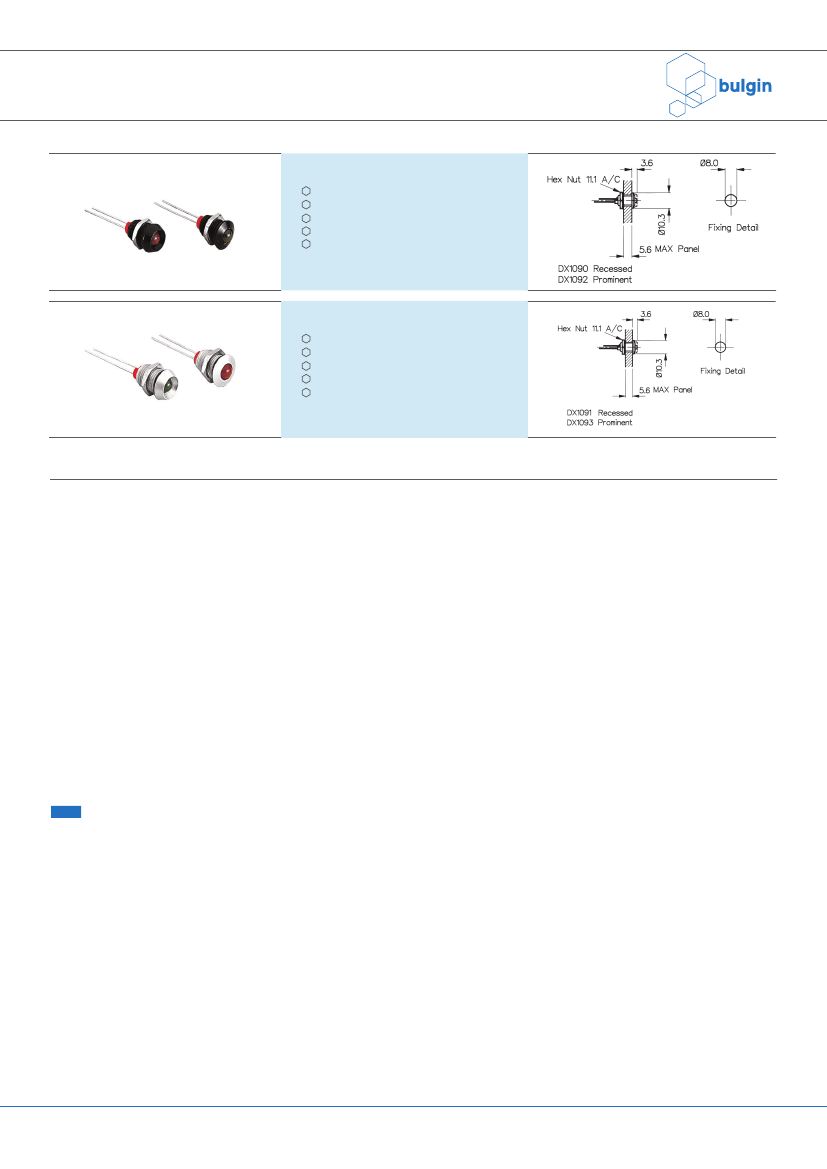

5mm LED Indicators
Aluminium Bezel - IP66 Sealed
Aluminium Bezel, Black
Anodised Finish
IP66 Front Panel Sealed
Prominent or Recessed Style
Choice of LED Types and
Colours
DX1090
Aluminium Bezel - IP66 Sealed
Aluminium Bezel, Clear
Anodised Finish
IP66 Front Panel Sealed
Prominent or Recessed Style
Choice of LED Types and
Colours
DX1091
Specifications
Materials:
Style:
DX1093
DX1090, DX1092/Colour/Options
Aluminium - Black
Recessed (DX1090)
Prominent (DX1092)
DX1091, DX1093/Colour/Options
Aluminium - Clear
Recessed (DX1091)
Prominent (DX1093)
Dependent on LED used
Dependent on LED used
Protection Classification IP66 to
EN60529:1992+A2:2013
0.056Nm (8ozf.in.) min
260ºC for 5 seconds max.
/RD (Red), /GN (Green), /YL (Yellow),
/BL (Blue), /TR (Tri Colour),
/D1 (Dual Colour - Red/Green),
/D2 (Dual Colour - Red/Amber),
/D3 (Dual Colour - Green/Amber)
0.312” x 32TPI
Compliant
DX1092
Indicators
Operating Temp. Range: Dependent on LED used
Storage Temperature:
Sealing (Front of panel):
Tightening Torque:
Lead Solder Time:
LED Colours:
Dependent on LED used
Protection Classification IP66 to
EN60529:1992+A2:2013
0.056Nm (8ozf.in.) min
260ºC for 5 seconds max.
/RD (Red), /GN (Green), /YL (Yellow),
/BL (Blue), /TR (Tri Colour),
/D1 (Dual Colour - Red/Green),
/D2 (Dual Colour - Red/Amber),
/D3 (Dual Colour - Green/Amber)
0.312” x 32TPI
Compliant
Thread Size:
RoHS
See Page 212 for LED options and specifications
Indicators 320
