Product data sheet
Characteristics

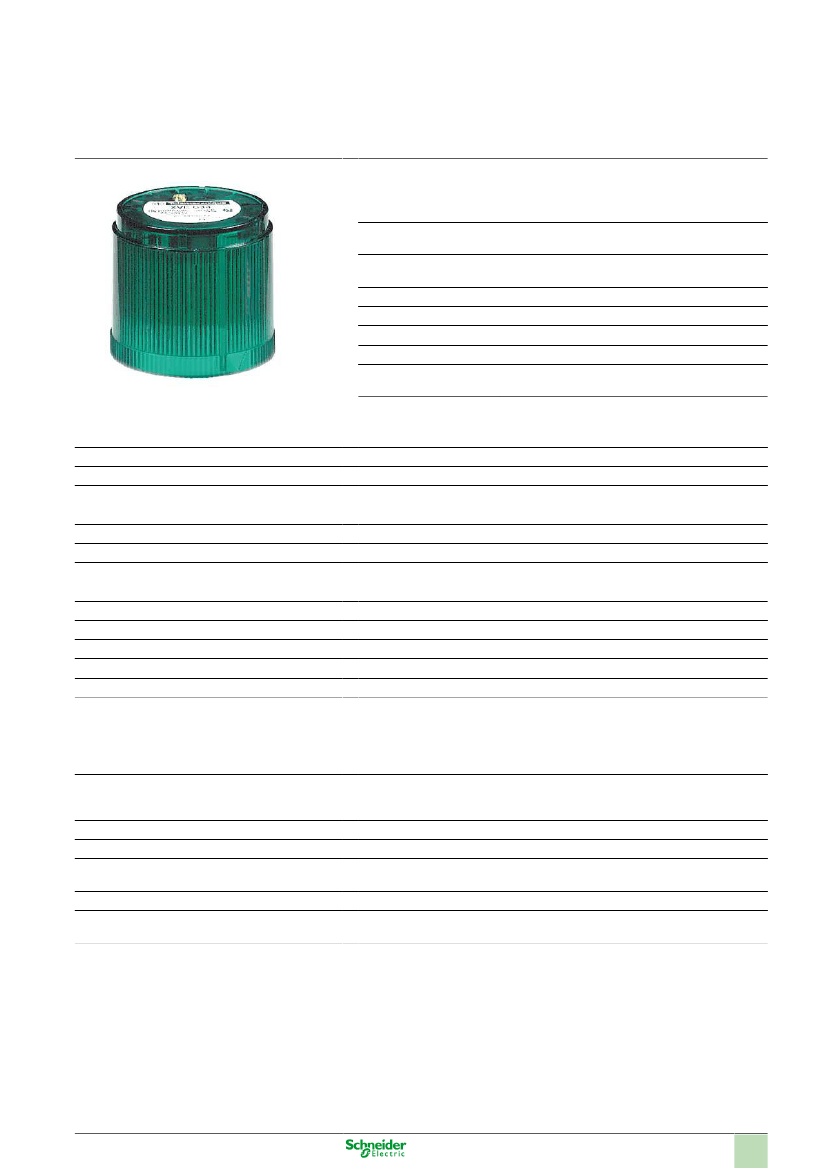

XVEC33
Ø 70 mm illuminated unit - steady - green - up
to IP42 - <= 240 V
Main
Range of product
Product or component
type
Beacon or indicator
bank unit type
Signalling type
Component name
Light source
Bulb type
[Us] rated supply volt-
age
Harmony XVE Optimum
Indicator bank
Illuminated unit
Steady
XVE
Green bulb not included
Incandescent with BA 15d base
<= 240 V AC/DC
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Complementary
Mounting diameter
Assembly style
Power dissipation in W
Connections - terminals
Marking
[Ui] rated insulation voltage
Nominal voltage limit
[Uimp] rated impulse withstand voltage
Luminance
CAD overall width
CAD overall height
CAD overall depth
Product weight
70 mm
Customer assembly
<= 5 W
Screw clamp terminals: <= 1 x 1.5 mm² with cable end
CE
250 V conforming to IEC 60947-1
0.85...1.1 Un conforming to IEC 60947-5-1
4 kV conforming to IEC 60947-1
640 cd/m²
70 mm
52 mm
70 mm
0.072 kg
Environment
Standards
Product certifications
EN/IEC 60947-1
EN/IEC 60947-5-1
CCC
CSA
UL
-40...70 °C
-25...55 °C
Class I plastic tube mounting conforming to IEC 61140
Class I aluminium tube mounting conforming to IEC 61140
TC
IP42 in vertical position conforming to IEC 60529
IP40 in any position except vertical position conforming to IEC 60529
Ambient air temperature for storage
Ambient air temperature for operation
Class of protection against electric shock
Protective treatment
IP degree of protection
Dec 6, 2017
1
Product data sheet
Dimensions Drawings
XVEC33
Indicator Bank
Dimensions
Below drawing shows the minimum configuration of the product. Select the number of stages according to the product characteristics in order
to get b dimension.
(1)
(2)
(3)
(4)
Cover (supplied with base unit XVEC21/C21P)
Illuminated or audible unit
Base unit XVEC21/C21P, to be ordered separately
Fixing base, to be ordered separately
b in mm
111
163
215
267
319
b in in.
4.37
6.42
8.46
10.51
12.56
Number of units (ref. 2)
1 unit
2 units
3 units
4 units
5 units
