SMD LOW POWER LED
67-21/XK2C-BXXXXXXXXX/2T
Features
‧P-LCC-2
package
‧Top
view LED
‧Wide
viewing angle : 120°
‧High
Luminous intensity
‧High
Efficacy
‧Pb-free
‧RoHS-compliant
Description
The Everlight 67-21 package has high efficacy, high CRI, low power consumption, wide viewing angle and a compact
form factor. These features make this package an ideal LED for all lighting application.
Applications
‧General
lighting
‧Decorative
and Entertainment Lighting
‧Indicators
‧Illumination
‧Switch
lights
1
Copyright © 2010, Everlight All Rights Reserved. Release Date : 30-Mar.-2011. Issue No: v3
Device No: DSE-0003513
www.everlight.com
DATASHEET
SMD Low Power LED
67-21/XK2C-BXXXXXXXXX/2T

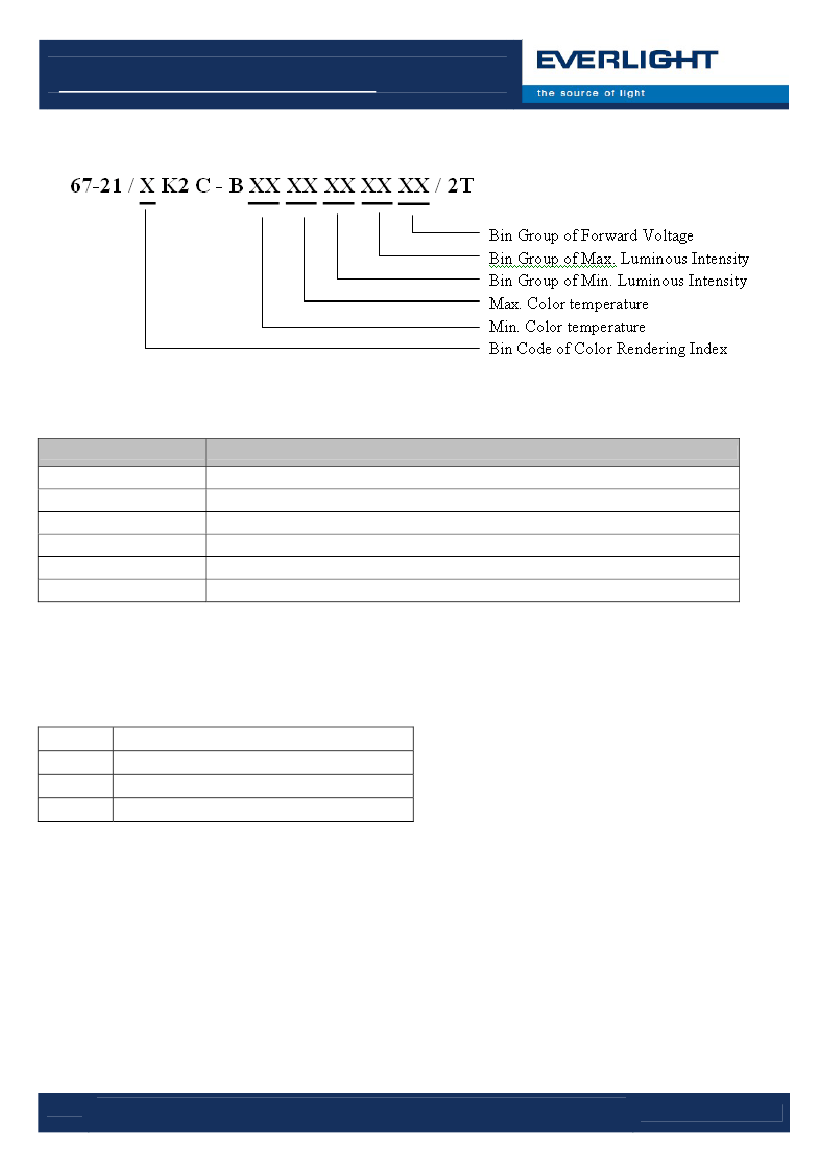

Product Number Explanation
Notes
Table of Color Rendering Index
Symbol
M
N
L
Q
K
H
Notes:
1. Tolerance of Color Rendering Index: ±2
Description
CRI(min) : 60
CRI(min) : 65
CRI(min) : 70
CRI(min) : 75
CRI(min) : 80
CRI(min) : 90
Example:
67-21/QK2C-B45562C4CB2/2T
CRI
CCT
IV
VF
Min=75
4500K~5650K
2000mcd~2400mcd
2.9V~3.6V
2
Copyright © 2010, Everlight All Rights Reserved. Release Date : 30-Mar.-2011. Issue No: v3
Device No: DSE-0003513
www.everlight.com
DATASHEET
SMD Low Power LED
67-21/XK2C-BXXXXXXXXX/2T
Mass Production list
Product
67-21/LK2C-B56704C6CB2/2T
67-21/LK2C-B50634C6CB2/2T
67-21/LK2C-B45564C6CB2/2T
67-21/LK2C-B38454C6CB2/2T
67-21/LK2C-B28322C4CB2/2T
67-21/QK2C-B56702C4CB2/2T
67-21/QK2C-B50632C4CB2/2T
67-21/QK2C-B45562C4CB2/2T
67-21/QK2C-B38452C4CB2/2T
67-21/QK2C-B28322C4CB2/2T
CRI
min.
70
70
70
70
70
75
75
75
75
75
CCT(K)
5650K~7000K
5000K~6300K
4500K~5650K
3800K~4500K
2850K~3250K
5650K~7000K
5000K~6300K
4500K~5650K
3800K~4500K
2850K~3250K
IV(mcd)
Min
2200
2200
2200
2200
2000
2000
2000
2000
2000
2000
IV(mcd)
Max
2600
2600
2600
2600
2400
2400
2400
2400
2400
2400
Φ(lm)
Typ.
7.40
7.40
7.40
7.40
6.80
6.80
6.80
6.80
6.80
6.80
3
Copyright © 2010, Everlight All Rights Reserved. Release Date : 30-Mar.-2011. Issue No: v3
Device No: DSE-0003513
www.everlight.com
DATASHEET
SMD Low Power LED
67-21/XK2C-BXXXXXXXXX/2T
Device Selection Guide
Chip
Materials
Emitted Color
Resin Color
Water Clear
InGaN
Cool White
Warm White
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
Electrostatic Discharge
Thermal Resistance
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
V
R
I
F
I
FP
Pd
ESD
Rthj-L
T
opr
Tstg
T
sol
Rating
5
30
100
110
1000
200
-40 ~ +110
-40 ~ +110
Unit
V
mA
mA
mW
℃
K/W
℃
℃
Reflow Soldering : 260
℃
for 10 sec.
Hand Soldering : 350
℃
for 3 sec.
4
Copyright © 2010, Everlight All Rights Reserved. Release Date : 30-Mar.-2011. Issue No: v3
Device No: DSE-0003513
www.everlight.com
DATASHEET
SMD Low Power LED
67-21/XK2C-BXXXXXXXXX/2T
Electro-Optical Characteristics (Ta=25℃)
Parameter
Viewing Angle
Reverse Current
Symbol
2θ
1/2
I
R
Min.
-----
-----
Typ.
120
-----
Max.
-----
50
Unit
deg
μA
Condition
I
F
=20mA
V
R
=5V
Bin Range of Luminous Intensity
Bin Code
4B
6B
8B
AC
2C
4C
6C
8C
Note:
Tolerance of Luminous Intensity: ±11%
Min.
1200
1400
1600
1800
2000
2200
2400
2600
Max.
1400
1600
1800
2000
2200
2400
2600
2800
Unit
Condition
mcd
I
F
=20mA
Bin Range of Forward Voltage
Group
Bin Code
34
35
36
37
38
39
40
41
42
43
Min.
2.7
2.8
2.9
3.0
3.1
3.2
3.3
3.4
3.5
3.6
Max.
2.8
2.9
3.0
3.1
3.2
3.3
3.4
3.5
3.6
3.7
Unit
Condition
G
B2
v
I
F
=20mA
Note:
Tolerance of Forward Voltage: ±0.05V
5
Copyright © 2010, Everlight All Rights Reserved. Release Date : 30-Mar.-2011. Issue No: v3
Device No: DSE-0003513
www.everlight.com
