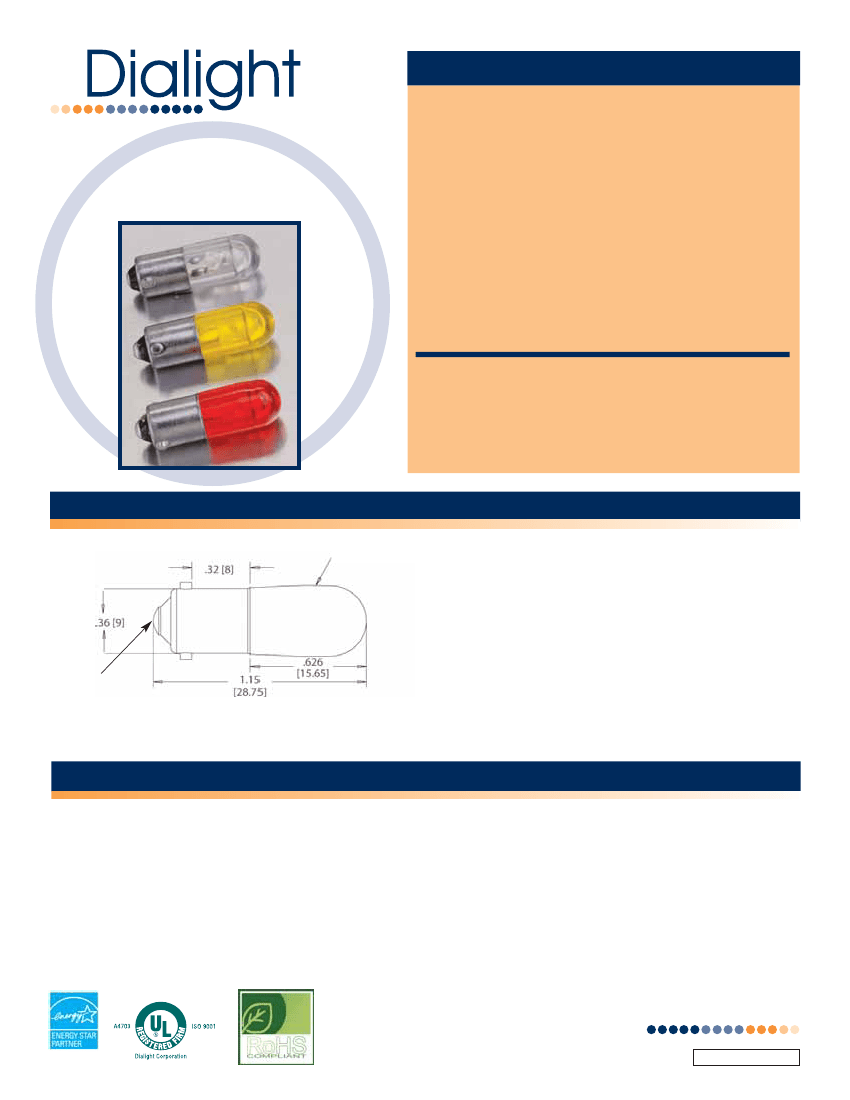

FEATURES / BENEFITS
RoHS Compliant
586 Series
Single Chip BASED LED
T 3 1/4 MINIATURE BAYONET (BA9s)
High brightness with low current draw - uses up to 90%
less energy than incandescent
Long life - up to 100K hours
True non-polarized configurations available
No heat generated
Mounts directly into industry-standard socket
Resistant to shock and vibration
AlInGaP and InGaN technology
Super bright single chip design
Colors include red, green, yellow, blue and white
Dialight's line of based LED lamps is designed to directly
replace many popular subminiature and miniature incandescent
lamps. The benefits of LED technology over incandescent are
significant: They offer long life, are shock resistant, withstand
vibration and provide energy conservation.
SPECIFICATIONS
Operating Voltages: 6, 14, and 28 VDC
Tinted Color Lens
Polarized and non-polarized available
Operating temperature: -30
o
C
to +
85
o
C
Storage temperature: -40
o
C
to +
100
o
C
Replaces incandescent lamp numbers: 44,
47, 313, 755,1815, 1819, 1847, 1850, 1866,
1889, 1891, 1892, 1893 and 1895*
Center Contact
(+) Plus for
Polarized Versions
Measurements are typical
Dimensions are inches [mm]
*
See Dialight’s Incandescent lamp/based LED
cross reference for a complete listing.
CONSIDERATIONS
Since lens caps act as filters for the light emitted from the based LED, it is important to match the emitting color of the
LED. If not matched properly, the overall light output may be substantially reduced. Dialight recommends using transparent lenses,
which will optimize the light output.
If you are unfamiliar with the the polarity of the circuit, Dialight recommends using a non-polarized version.
Although these lamps can be operated at a lower voltage, which will increase the life, the intensity will be reduced.
Operation of the based LED at a higher voltage should not exceed 10% above the recommended voltage.
Dialight does not recommend that based LED lamps be used in neon sockets.
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEL586E001_F
T 3 1/4 MINIATURE BAYONET (BA9s) POLARIZED
PART NUMBER
586-2401-101F
586-2402-101F
586-2403-101F
586-2405-101F
586-2406-101F
586-2401-103F
586-2402-103F
586-2403-103F
586-2405-103F
586-2406-103F
586-2401-105F
586-2402-105F
586-2403-105F
586-2405-105F
586-2406-105F
COLOR
Red
Green
Yellow
Blue
White
Red
Green
Yellow
Blue
White
Red
Green
Yellow
Blue
White
PEAK
WAVELENGTH
(nm)
630
525
592
470
*
630
525
592
470
*
630
525
592
470
*
VOLTAGE
(VDC)
6
6
6
6
6
14
14
14
14
14
28
28
28
28
28
CURRENT
TYP.-(mA)
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
INTENSITY
TYP.-(mcd)
1050
1650
1275
487
825
1050
1650
1275
487
825
1050
1650
1275
487
825
*Color Coordinates: x = 0.330, y = 0.365
RoHS
COMPLIANT
T 3 1/4 MINIATURE BAYONET (BA9s) NON-POLARIZED
PART NUMBER
586-2401-201F
586-2402-201F
586-2403-201F
586-2405-201F
586-2406-201F
586-2401-203F
586-2402-203F
586-2403-203F
586-2405-203F
586-2406-203F
586-2401-205F
586-2402-205F
586-2403-205F
586-2405-205F
586-2406-205F
COLOR
Red
Green
Yellow
Blue
White
Red
Green
Yellow
Blue
White
Red
Green
Yellow
Blue
White
PEAK
WAVELENGTH
(nm)
630
525
592
470
*
630
525
592
470
*
630
525
592
470
*
VOLTAGE
(VDC)
6
6
6
6
6
14
14
14
14
14
28
28
28
28
28
CURRENT
TYP.-(mA)
15
15
15
15
15
15
15
15
15
15
7.5
7.5
7.5
7.5
7.5
INTENSITY
TYP.-(mcd)
RoHS
COMPLIANT
1050
1650
1275
487
825
1050
1650
1275
487
825
525
825
637
243
412
*Color Coordinates: x = 0.330, y = 0.365
Based LE Ds
SELECTION
With the technological advancements in Light Emitting Diodes (LEDs) brightness can now rival the incandescent lamp when used
in similar packages. These advancements have created a new type of product called the based LED - an LED with the functionality
of an incandescent bulb.
The following styles are currently available in red, green, yellow, blue and white:
T 1 3/4 Midget Flange
T 1 3/4 Bi-Pin
T 1 3/4 Wedge (T5)
T 3 1/4 Miniature Bayonet (BA9s)
T 3 1/4 Miniature Screw (E10)
T 3 1/4 Wedge (T10)
T 2 Telephone Slide
15mm SC Bayonet (BA15s)
Dialight’s line of based LEDs continues to grow. Please visit our website for more information.
www.dialight.com
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEL586E001_F
