Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
1
RoHS
Preliminary
Specification
Acrich2 - Candle
8.7W
SMJC-2V08W2P4
SSC
Drawn
Approval
Customer
Approval
Rev. 02
Nov. 2012
www.acrich.com
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
2

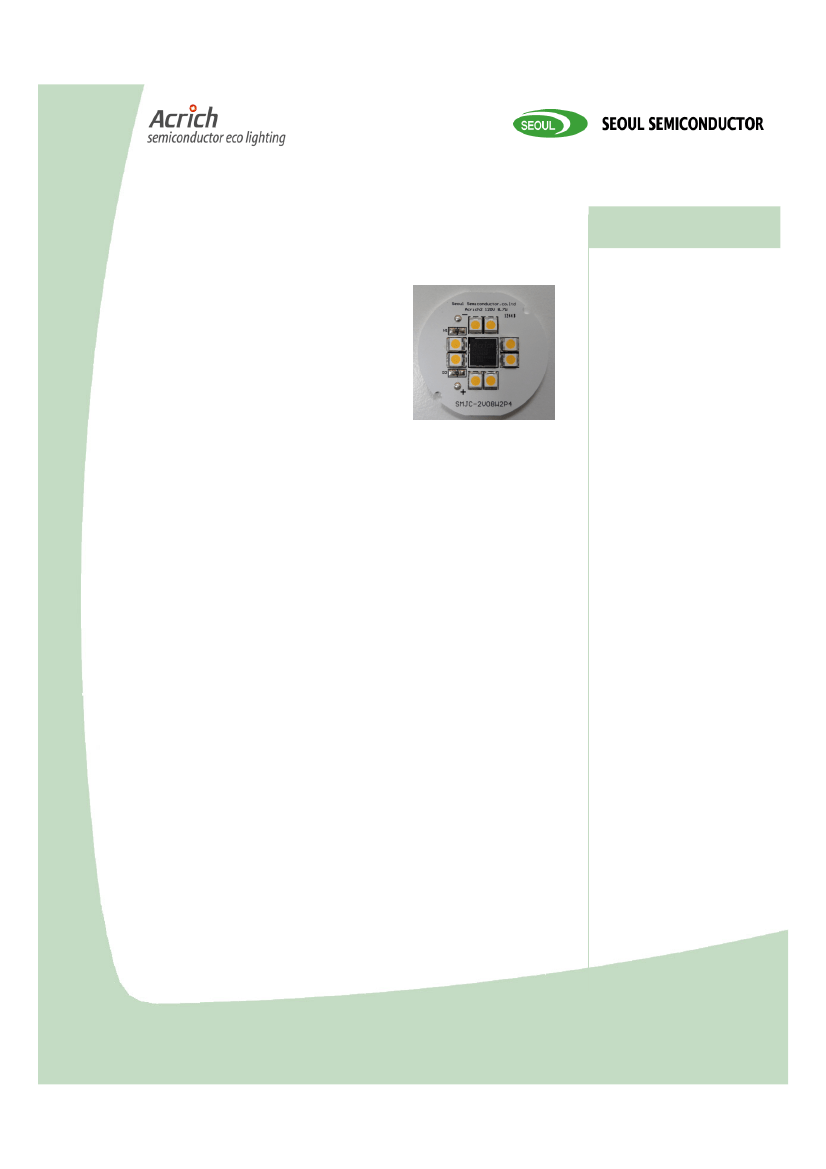

Acrich2 - 8.7W Candle
Acrich2
Features
•
Connect using a AIC
directly to AC power
•
High Power Efficiency
• High Power Factor
• Low THD
•
Long Life Time
•
Simplest BOM
•
Miniaturization
• Lead Free product
• RoHS compliant
Description
The Acrich 2 series, which are designed for AC drive(or
operation), do not need the standard converter essential for a
conventional general lighting product.
The modules also have a high power factor which can contribute
to high energy savings in many lighting applications.
Since there is no need for a converter, the Acrich 2 series life-
time can be estimated
closer to the LED because it is not as dependent on the other
electronics in the system.
It also allows for better utilization of space without the converter.
Applications
• Candle light
• Pendant
Rev. 02
Nov. 2012
www.acrich.com
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
3
[ Contents ]
1.
2.
3.
4.
5.
6.
7.
8.
9.
Characteristics of 8.7W
Candle
Outline dimensions
Color spectrum
Power characteristics
Color & Binning
Circuit Drawing
Usage precautions
Handling of silicone resin for LEDs
Handling with regards to static electricity
10. Storage before use
11. Guidelines for Acrich module work
Rev. 02
Nov. 2012
www.acrich.com
Correlated Color
Temperature
[4]
CRI
Operating Voltage
[5]
Power Dissipation
Operating Frequency
Power Factor
View Angle
2
1-1-2.
Electro-Optical
characteristics of SMJC-2V08W2P4 – 3000K
Parameter
Luminous Flux
[2]
Symbol
V
[3]
Correlated Color
Temperature
[4]
CRI
Operating Voltage
[5]
Power Dissipation
Operating Frequency
Power Factor
View Angle
2
4
Θ
Θ
Ф
Ф
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
1. Characteristics of 8.7W Candle
1-1-1.
Electro-Optical
characteristics of SMJC-2V08W2P4 – 2700K
Parameter
Luminous Flux
[2]
Symbol
V
[3]
Value
Min
530
Typ
570
2700
80
-
120
8.7
50 / 60
Over 0.97
120
-
Max
Unit
lm
K
-
V[RMS]
W
Hz
-
deg.
CCT
R
a
v
opt
P
D
Freq
PF
1/2
Value
Min
540
Typ
580
3000
80
-
120
8.7
50 / 60
Over 0.97
120
-
Max
Unit
lm
K
-
V[RMS]
W
Hz
-
deg.
CCT
R
a
v
opt
P
D
Freq
PF
1/2
Rev. 02
Nov. 2012
www.acrich.com
5
℃
Ф
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
1-2 Absolute Maximum Ratings of 8.7W Candle
Parameter
Max. Voltage
Power Dissipation
Operating Temperature
Storage Temperature
ESD Sensitivity
Symbol
v
opt
P
d
T
opr
T
stg
-
Value
140
11.5
-30 ~ 85
-40 ~ 100
±
4,000V HBM
Unit
V[RMS]
W
ºC
ºC
-
* Notes :
[1] At 120V RMS, Ta=25ºC
[2] Acrich 2 series maintain the tolerance of 10% on flux and power measurements.
[3]
V
is the total luminous flux output measured with an integrated sphere.
[4] Correlated Color Temperature is derived from the CIE 1931 Chromaticity diagram.
[5] Operating Voltage doesn't indicate the maximum voltage which customers use but
means tolerable voltage according to each country’s voltage variation rate.
It is recommended that the solder pad temperature should be below 70 .
Rev. 02
Nov. 2012
www.acrich.com
