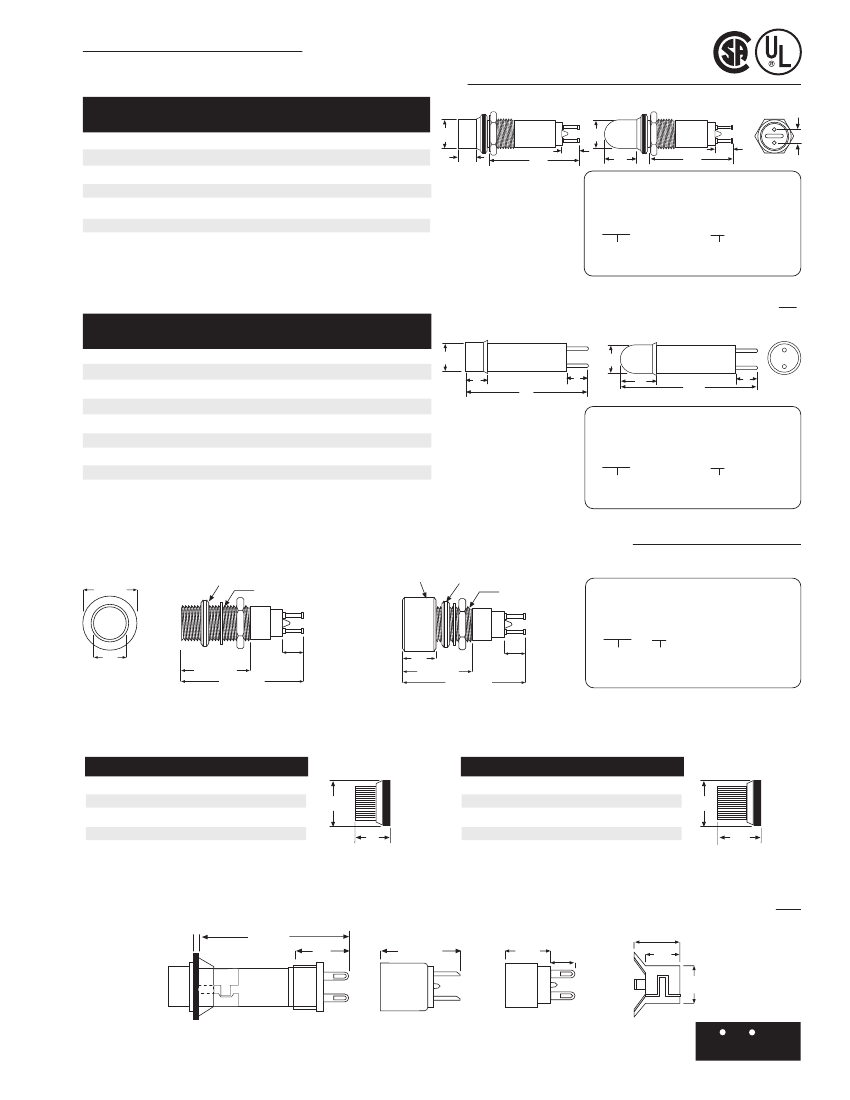

NEON PANEL MOUNT INDICATORS
249 SERIES FOR 3/8" MOUNTING HOLE
Fig. 1
Fig. 2
7.11
[.28]
4.76
[.19]
4.76
[.19]
SERIES
PART NUMBER
*
COLOR
RED
AMBER
CLEAR
RED
AMBER
CLEAR
VOLTAGE
105–125 AC-DC
105–125 AC-DC
105–125 AC-DC
110–125 AC-DC
110–125 AC-DC
110–125 AC-DC
mA OHMS FIG
0.7
0.7
0.7
1.9
1.9
1.9
100K
100K
100K
22K
22K
22K
1
1
1
1
1
1
249-7841-1431-574
249-7841-1433-574
249-7841-1437-574
249-7866-1431-514
249-7866-1433-514
249-7866-1437-514
7.11
[.28]
4.06
[.16]
9.92
[.39]
32.54
[1.28]
MAX
4.76
[.19]
37.34
[1.47]
MAX
*
PART NUMBER ORDERING CODE
249 – 7841 – xx3x – 574
249 – 7866 – xx3x – 514
Series
Lens Shape:
14 – Fig 1 = Cylindrical
09 – Fig 2 = Stovepipe
Material & Finish: Housing - Black Anodized
Aluminum. Cap - High Impact Plastic
507 SERIES CARTRIDGES FOR HOLDERS & CLIPS • 25,000 LIFE HOURS
SERIES
PART NUMBER
*
COLOR
RED
AMBER
WHITE
CLEAR
RED
AMBER
WHITE
CLEAR
VOLTAGE
105–125 AC-DC
105–125 AC-DC
105–125 AC-DC
105–125 AC-DC
110–125 AC-DC
110–125 AC-DC
110–125 AC-DC
110–125 AC-DC
mA OHMS
0.3
0.3
0.3
0.3
1.2
1.2
1.2
1.2
100K
100K
100K
100K
47K
47K
47K
47K
FIG
3
3
3
3
3
3
3
3
7.11
[.28]
6.73
[.27]
Fig. 3
7.11
[.28]
5.17
[.20]
32.13
[1.27]
MAX
Fig. 4
507-4537-1431-640
507-4537-1433-640
507-4537-1435-640
507-4537-1437-640
507-4538-1431-630
507-4538-1433-630
507-4538-1435-630
507-4538-1437-630
11.51
[.45]
36.91
[1.45]
MAX
5.17
[.20]
*
PART NUMBER ORDERING CODE
507 – 4537 – xx3x – 640
507 – 4538 – xx3x – 630
Series
Lens Shape:
14 – Fig 3 = Cylindrical
09 – Fig 4 = Stovepipe
Material & Finish: Housing - Clear Anodized
Aluminum. Cap - High Impact Plastic
250 & 508 SERIES HOLDERS FOR 3/8" MOUNTING HOLE
HOLDER WITHOUT COLLAR
*
13.1
[.515]
FLANGE NUT
3/8 - 32 NF THD
HOLDER WITH COLLAR
*
COLLAR
FLANGE
3/8 - 32 NF THD
*
PART NUMBER ORDERING CODE
250 – xx45 – 14 – 504
508 – xx45 – 504
Series
Terminal Type:
87 = Turret Terminals
74 = Solder Blade (Not Shown)
75 = Solder Cups (Not Shown)
7.90
[.310]
15.90 [.625]
32.54 [1.28]
MAX
5.00
[.197]
7.10
[.280]
15.90
[.625]
35.72 [1.406] MAX
5.00
[.197]
250-8745-14-504
508-8745-504
250 Series Caps for use with 507
cylindrical cartridges. (Fig. 3)
CAP PART NO.
COLOR
250-3531-500
250-3533-500
250-3535-500
250-3537-500
RED
AMBER
WHITE
CLEAR
FIG
5
5
5
5
13.10
[.52]
Fig. 5
250 Series Caps for use with 507
stovepipe cartridges. (Fig. 4)
CAP PART NO.
COLOR
250-1631-500
250-1633-500
250-1635-500
250-1637-500
RED
AMBER
WHITE
CLEAR
FIG
6
6
6
6
13.10
[.52]
Fig. 6
12.25
[.50]
MAX
18.26
[.72]
MAX]
Material & Finish: Holders – Black Anodized Aluminum,
Cap – Polycarbonate Fig. 5, High Impact Plastic Fig. 6, Cartridge – Clear Anodized Aluminum
515 SERIES CONNECTORS & SPEED CLIPS FOR 9/32" MOUNTING HOLE
CARTRIDGE WITH SPEED CLIP & CONNECTOR
1.59 [.06]
PANEL
30.02 [1.19]
15.88
[.625]
CONNECTOR
515-0012
15.88 [.625]
MAX
CONNECTOR
515-0074
13.89
[.547]
MAX
4.76
[.188]
SPEED CLIP 515-0051
9.14
[.360]
6.86
[.270]
7.49
[.295]
Green and Blue Lens Caps Not Available for Neon Indicators
Dimensions in mm [inches]
15
Dialight
Dialight Corporation • 1501 State Route 34 • Farmingdale, NJ 07727 • TEL: (732) 919-3119 • FAX: (732) 751-5778 • www.dialight.com
