M0116SD 161SDBR1 S
Vacuum Fluorescent Display Module
RoHS Compliant
Newhaven Display International, Inc.
2511 Technology Drive, Suite 101
Elgin IL, 60124
Ph: 847 844 8795
Fax: 847 844 8796
www.newhavendisplay.com
nhtech@newhavendisplay.com
nhsales@newhavendisplay.com
1.SCOPE
This specification applies to VFD module M0116SD-161SDBR1-S.
2.FEATURES
2.1.Construction: Single board display module consists of 16 character (1*16) VFD,
VFD controller, DC/DC converter and all necessary control circuitry.
2.2. This module can be controlled by the host with three control signals, SEL, SLK,
SDATA.
2.3. Since a DC/DC converter is used. Power source (5Vdc) is required to operate
the module.
2.4. Characters are provided with a 5*7 dot matrix.
2.5. This module has 200 characters in Build-in character generator. The user definable
fonts(UDF) can be programable up to 8 characters.
3. PRODUCT SPECIFICATIONS
3.1.Outer Dimensions
of PCB
Parameter
Width
Height
Thickness
3.2. Specifications of Display Panel
Parameter
Display Size (W*H)
Number of Digit
Character Size (W*H)
Color of illumination
3.3. Environment Condition
Parameter
Operating Temperature
Storage Temperature
Humidity (Operating)
Humidity (Non-operating)
Vibration (10 ~ 55 Hz)
Shock
Min
-40
-50
20
0
-
-
Max
+85
+95
80
90
10
100
Unit
℃
℃
%
%
G
G
Specification
61.8*5.1
16 Digits
2.55 * 5.1
Green
Unit
mm
mm
Specification
100(mm)
28 (mm)
1.6 (mm)
3.4. Absolute Maximum Ratings
Parameter
Supply Voltage
Input Signal Voltage
Symbol
VCC
VI
Min
0
0
Tye
5.0
-
Max
7.0
5.5
Unit
VDC
VDC

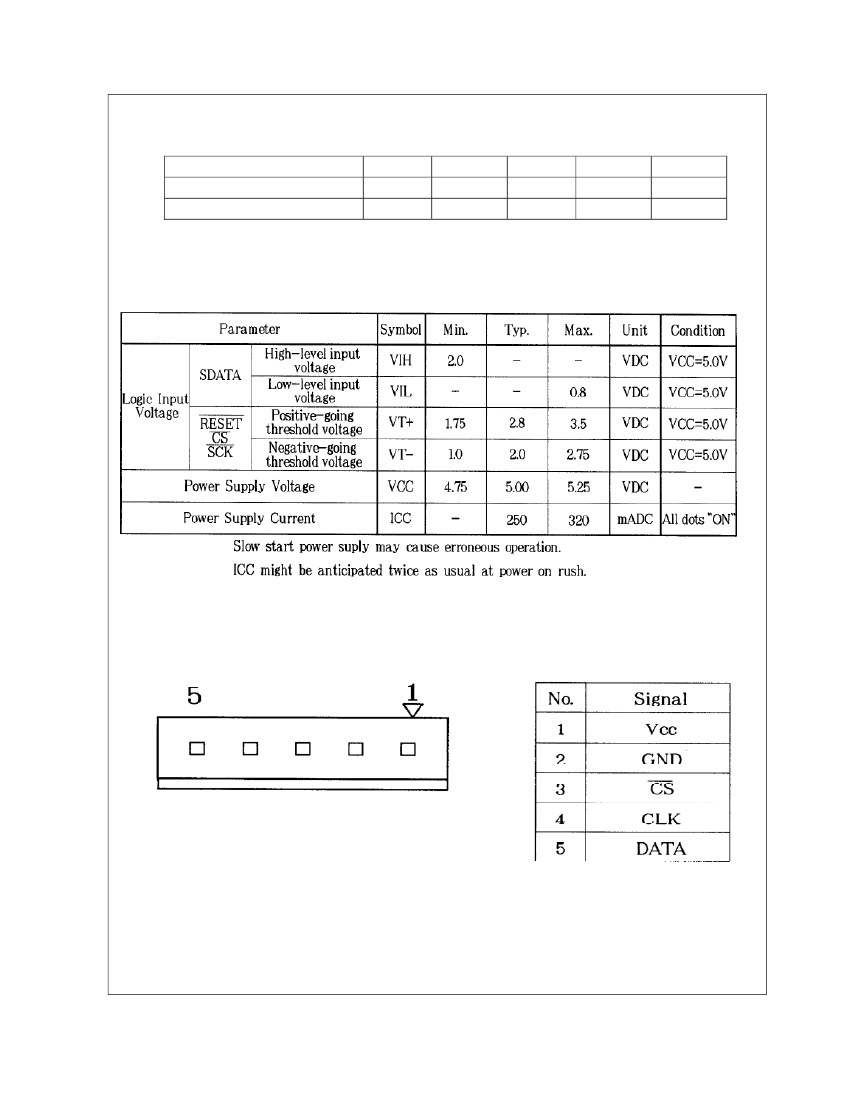

3.5. Recommend Operating Conditions(Ta=–10 ~ 70°C unless otherwise noted)
3.6. Pin assignment
Fig-3. Connector Description

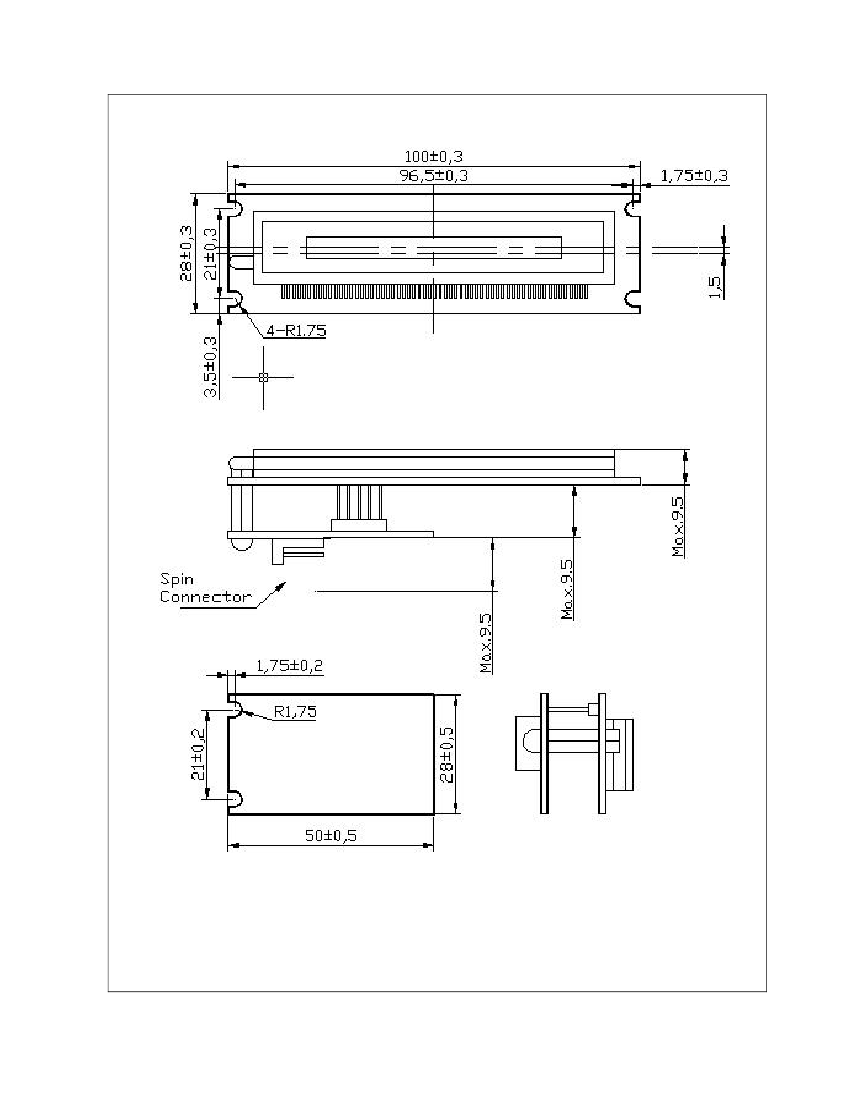

3.7. Outer Dimensions (Front panel, Structure outline)
Fig-5. Outer Dimensions (Structure outline)
