FOD8320 — High Noise Immunity, 2.5A Output Current, Gate Drive Optocoupler in Optoplanar
®
Wide Body SOP 5-Pin
September 2014
FOD8320
High Noise Immunity, 2.5A Output Current, Gate Drive
Optocoupler in Optoplanar
®
Wide Body SOP 5-Pin
Features
■
Fairchild’s Optoplanar
®
Packaging Technology
Description

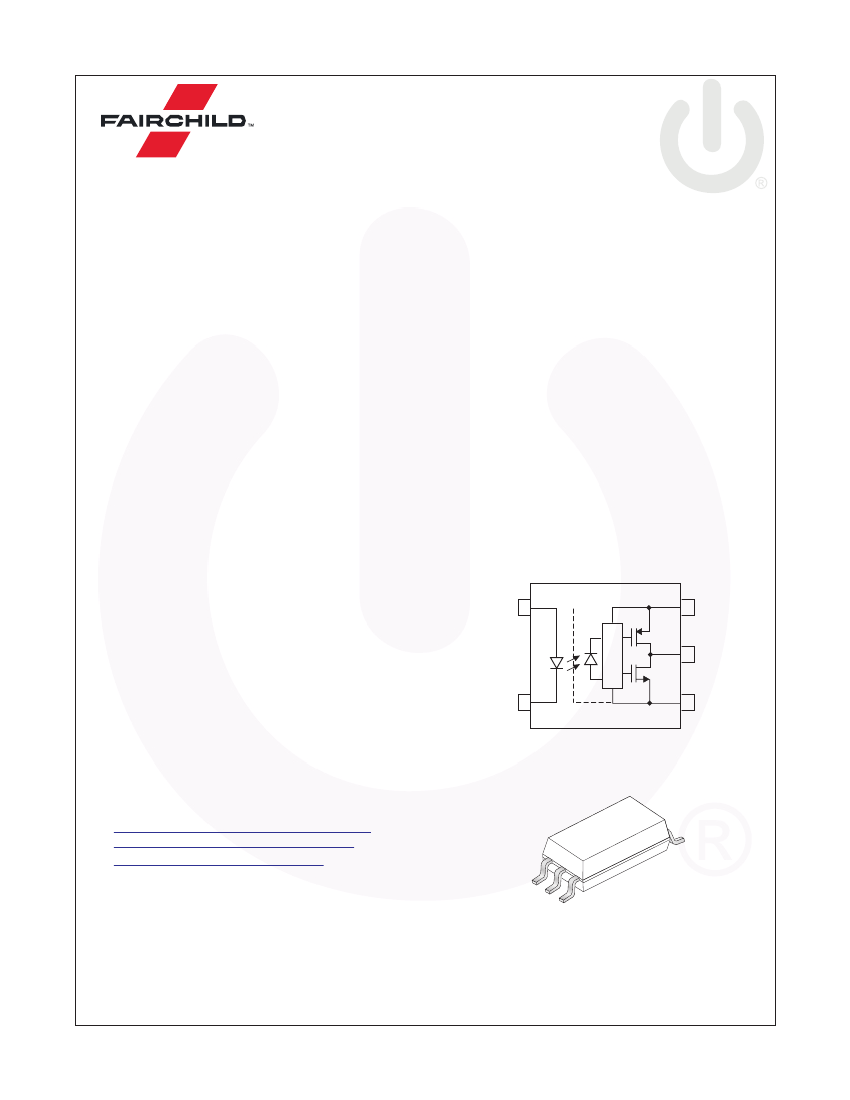

The FOD8320 is a 2.5 A output current gate drive
optocoupler, capable of driving medium-power IGBT/
MOSFETs. It is ideally suited for fast-switching driving of
power IGBT and MOSFET used in motor-control inverter
applications and high-performance power systems.
The FOD8320 utilizes Fairchild’s Optoplanar
®
coplanar
packaging technology and optimized IC design to
achieve reliable high-insulation voltage and high-noise
immunity.
It consists of an Aluminum Gallium Arsenide (AlGaAs)
Light-Emitting Diode (LED) optically coupled to an
integrated circuit with a high-speed driver for push-pull

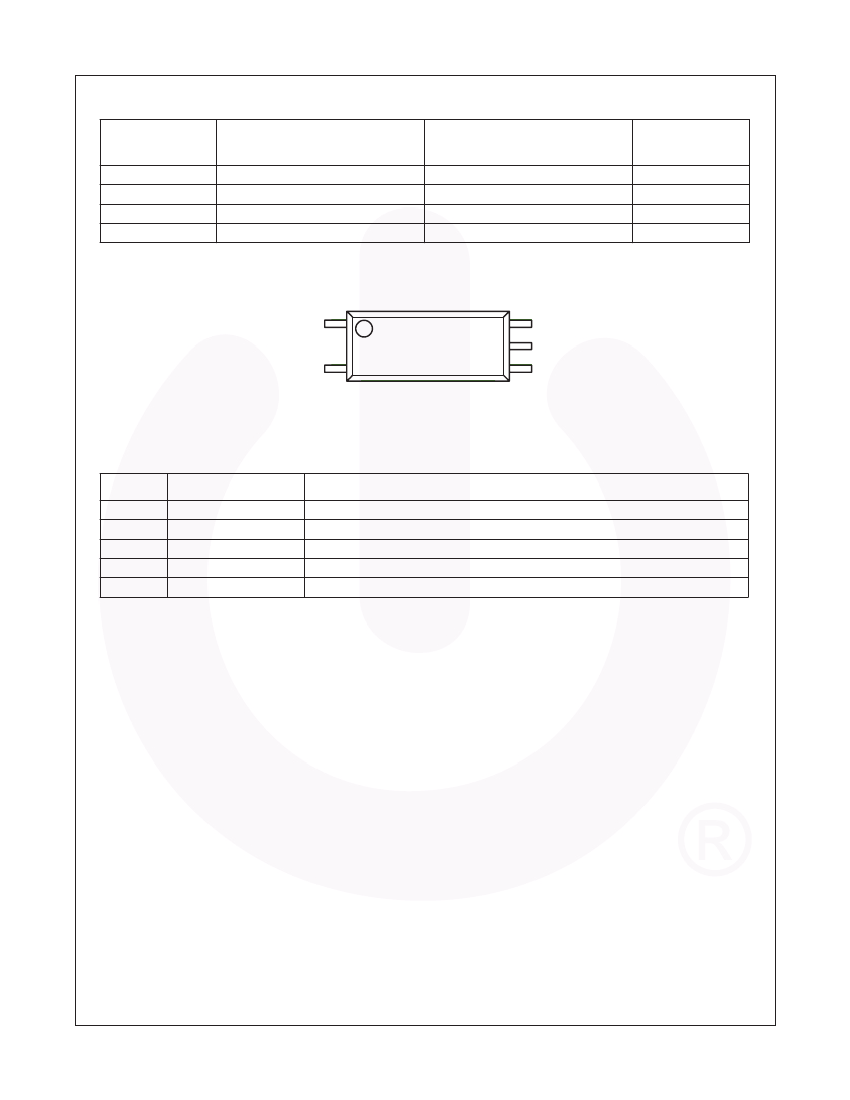

MOSFET output stage. The device is housed in a wide
body, 5-pin, small-outline, plastic package.
■
■
■
■
■
■
■
Provides Reliable and High-Voltage Insulation with
Greater than 10 mm Creepage and Clearance
Distance, and 0.5 mm Internal Insulation Distance
While Still Offering a Compact Footprint
2.5 A Output Current Driving Capability for Medium-
Power IGBT/MOSFET
– P-Channel MOSFETs at Output Stage Enables
Output Voltage Swing Close to Supply Rail
35 kV/µs Minimum Common Mode Rejection
Wide Supply Voltage Range: 15 V to 30 V
Fast Switching Speed Over Full Operating
Temperature Range:
– 400 ns Maximum Propagation Delay
– 100 ns Maximum Pulse Width Distortion
Under-Voltage Lockout (UVLO) with Hysteresis
Extended Industrial Temperate Range: -40°C to 100°C
