EL3012M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> EL3012M

EL3012M: DescriptionTriac u0026 SCR Output Optocouplers 250PBV 5000Vrms -55 to +100 Op Temp; CategoryLED optoelectronic/LED photoelectric; File Size272KB，13 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

EL3012M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EL3012M	-	-	View	Buy Now

EL3012M Overview

Triac u0026 SCR Output Optocouplers 250PBV 5000Vrms -55 to +100 Op Temp

EL3012M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EVERLIGHT
package instruction	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-6
Reach Compliance Code	compliant
Other features	UL RECOGNIZED
Configuration	SINGLE
Maximum forward current	0.06 A
Nominal input trigger current	5 mA
Maximum insulation voltage	5000 V
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRIAC OUTPUT OPTOCOUPLER
Minimum off-state peak voltage	250 V
Base Number Matches	1

Preview

Download Datasheet

View All

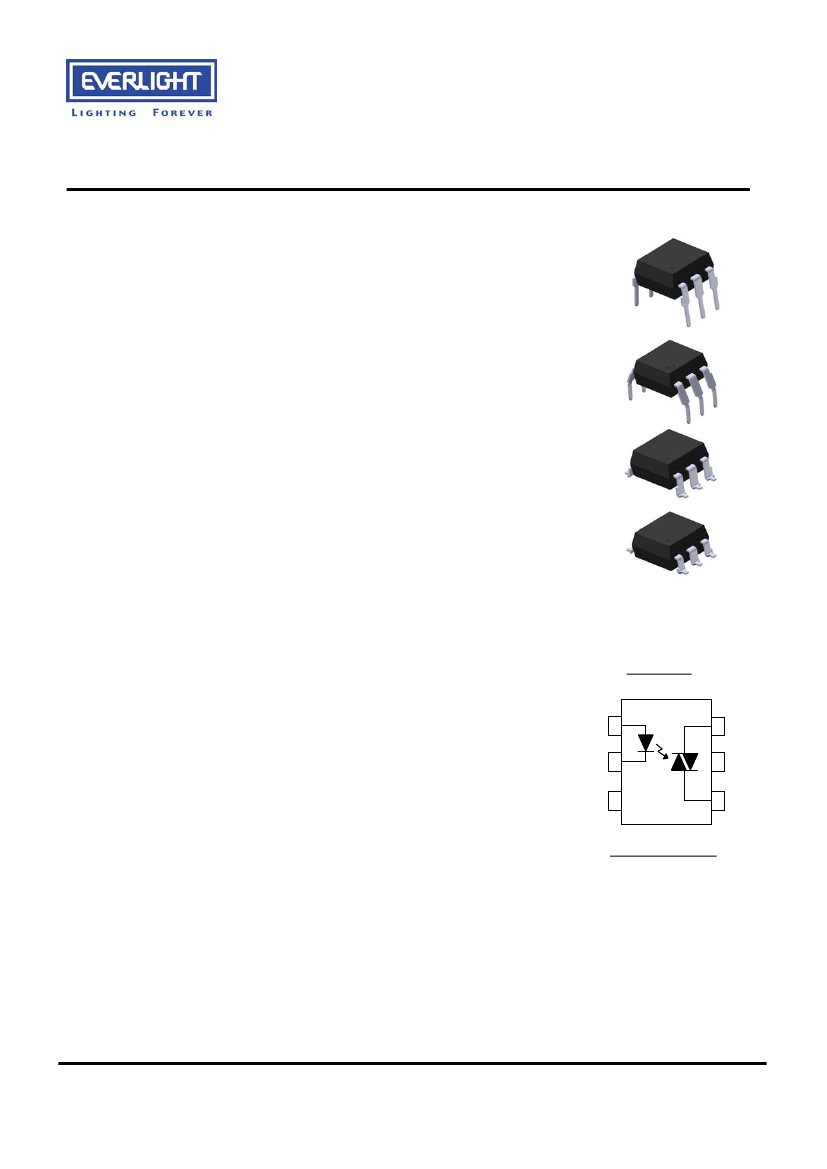

6 PIN DIP RANDOM-PHASE TRIAC DRIVER

PHOTOCOUPLER

Features:

•

Peak breakdown voltage

- 250V: EL301X

- 400V: EL302X

- 600V: EL305X

•

High isolation voltage between input

and output (Viso=5000 V rms )

•

Compact dual-in-line package

•

Pb free and RoHS compliant.

•

UL approved (No. E214129)

•

VDE approved (No.132249)

•

SEMKO approved

•

NEMKO approved

•

DEMKO approved

•

FIMKO approved

•

CSA approved

EL301X Series

EL302X Series

EL305X Series

Description

The EL301X, EL302X and EL305X series of devices each consist

of a GaAs infrared emitting diode optically coupled to a monolithic

silicon random phase photo Triac.

They are designed for interfacing between electronic controls and

power triacs to control resistive and inductive loads for 115 to 240

VAC operations.

Schematic

Applications

Solenoid/valve controls

Lamp ballasts

Static AC power switch

Interfacing microprocessors to 115 to 240Vac peripherals

Incandescent lamp dimmers

Temperature controls

Motor controls

Pin Configuration

1. Anode

2. Cathode

3. No Connection

4. Terminal

5. Substrate

(do not connect)

6. Terminal

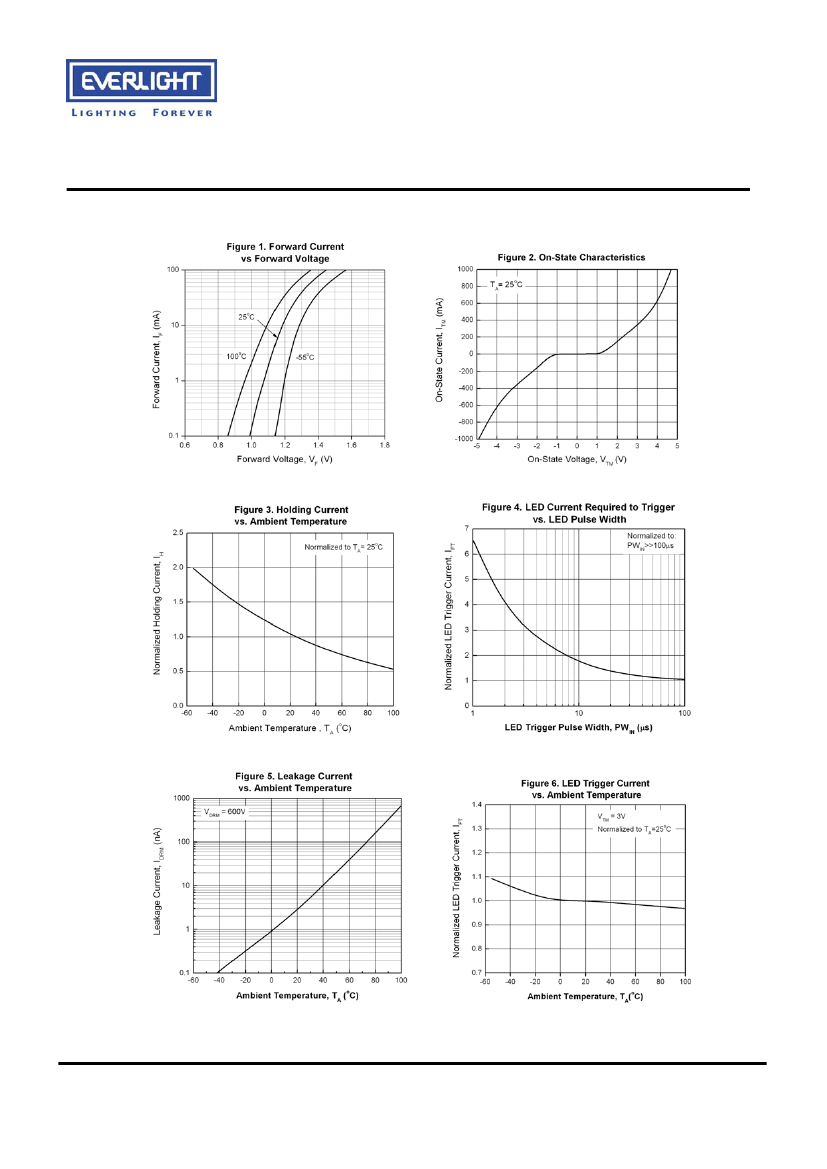

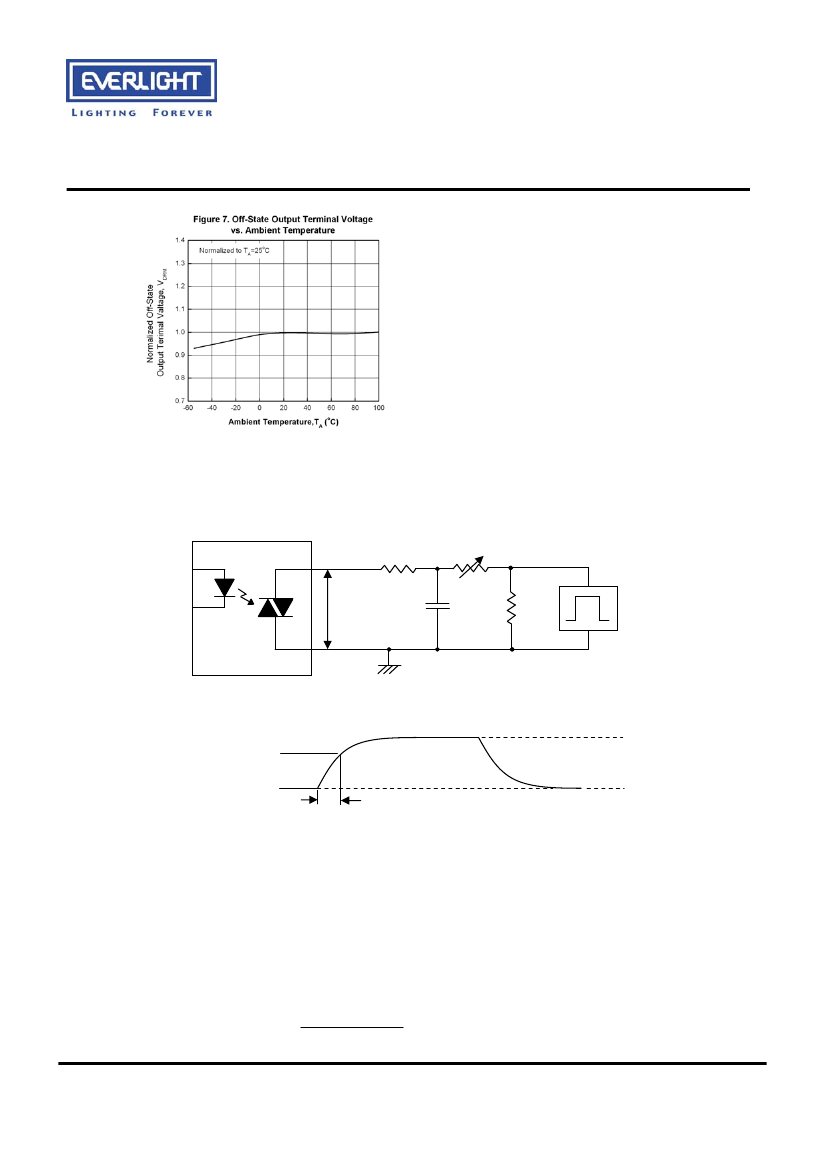

Everlight Electronics Co., Ltd.

Document No：DPC-717-052

Rev. 2

http://www.everlight.com

August 14, 2008
