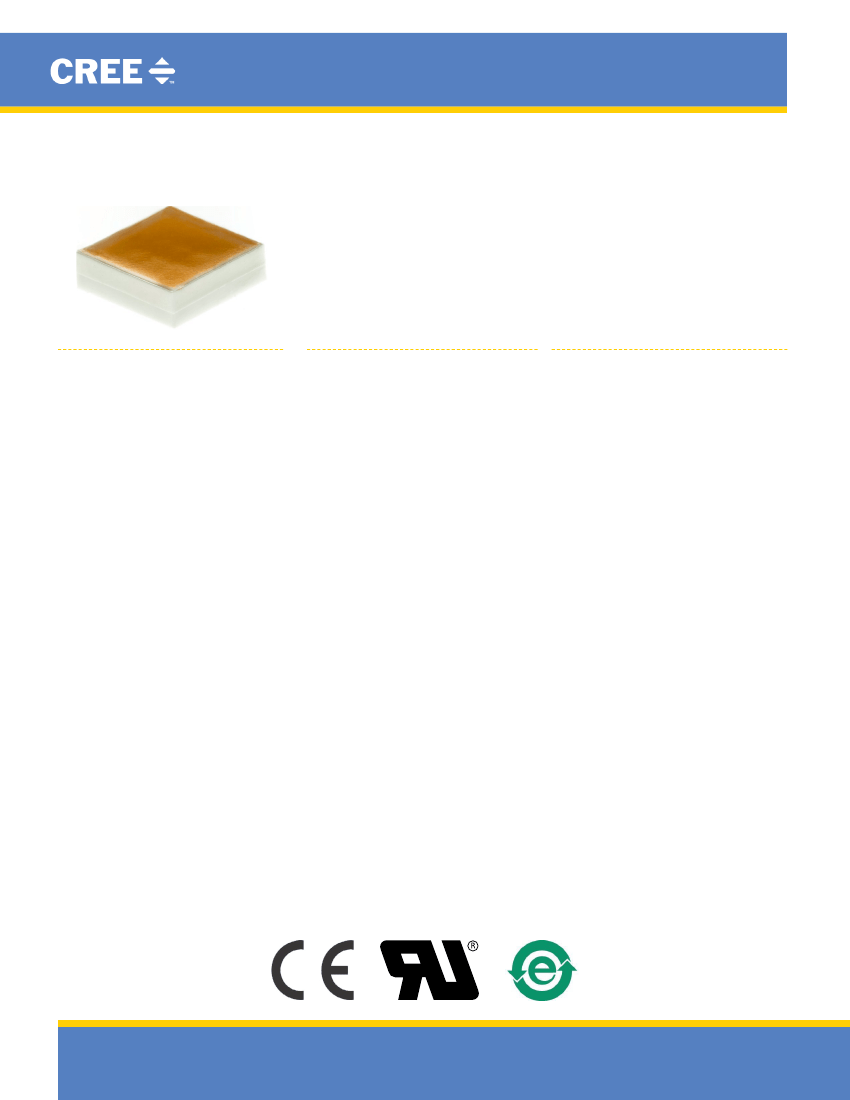

CLD-DS113 Rev 1K
Product family data sheet
Cree
®
XLamp
®
MHD-G LEDs
ProDuCt DEsCriPtion
The XLamp
®
MHD-G LeD is a new
generation of high-power LeD that
delivers a more effective way to achieve
low-cost systems than mid-power (MP)
LeDs. Built using Cree’s high-reliability
ceramic-package technology, the XLamp
MHD-G LeD is able to operate at higher
temperatures than MP LeDs with no
reduction in rated lifetime, enabling
an impressive 60% reduction in heat
sink size and cost. Using many times
fewer LeDs than MP LeDs to achieve
the same performance, the XLamp
MHD-G LeD is optimized to simplify
LeD system designs for directional and
semi-directional applications.
FEAturEs
•
Flexible 18-v or 36-v options
• Maximum drive current: 1000 mA
(18 V), 500 mA (36 V)
• Viewing angle: 115°
• Available in 70‑CRI, 80‑CRI and 90‑CRI
options
• Unlimited floor life at ≤ 30 ºC/85% RH
• Reflow solderable ‑ JEDEC
J‑STD‑020C
•
electrically neutral thermal path
• RoHS and REACh compliant
•
UL
®
recognized component (E349212)
tAbLE oF ContEnts
Characteristics ..........................................
2
Flux Characteristics, easyWhite
®
Order
Codes and Bins ......................................... 3
Relative Spectral Power Distribution .......
5
Relative Flux vs. Junction Temperature
...
5
electrical Characteristics .......................... 6
Relative Flux vs. Current ...........................
7
Relative Chromaticity vs. Current............. 8
Relative Chromaticity vs. Temperature ....
9
Typical Spatial Distribution.......................
9
Thermal Design ....................................... 10
Performance Groups – Luminous Flux.. 11
Performance Groups – Chromaticity..... 11
Cree’s Standard White Chromaticity
Regions Plotted on the 1931 CIE Curve
.
12
Bin and Order Code Formats .................. 13
Reflow Soldering Characteristics
........... 14
Notes .......................................................
15
Mechanical Dimensions .........................
17
Electrical Configuration
..........................
19
Tape and Reel ..........................................
20
Packaging ................................................
21
WWW.CREE.Com/XLAmp
Copyright © 2015-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
, XLamp
®
and
EasyWhite
®
are registered trademarks and the Cree logo is a trademark of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
XLamp
®
mHD-G LED
CHArACtEristiCs
MHD‑G 18‑V/36‑V LEDs are tested and binned in production in the 36‑V configuration. See the Mechanical Dimensions section on page
17 for pad layout options.
Characteristics
Thermal resistance, junction to solder point
viewing angle (FWHM)
Temperature coefficient of voltage (18 V)*
Temperature coefficient of voltage (36 V)
eSD withstand voltage (HBM per Mil-Std-883D)
DC forward current (18 V)*
DC forward current (36 V)
Reverse current (18 V, 36 V)*
Forward voltage (18 V, @ 700 mA, 85 °C)*
Forward voltage (36 V, @ 350 mA, 85 °C)
LeD junction temperature
unit
°C/W
degrees
mV/°C
mV/°C
v
mA
mA
mA
v
v
°C
18.2
36.4
Minimum
typical
2.6
115
‑8.5
‑17
8000
1000
500
-0.1
20
40
150
Maximum
* Data for the 18‑V configuration is calculated and for reference only.
Copyright © 2015-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
, XLamp
®
and EasyWhite
®
are registered trademarks and the Cree logo is a
trademark of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
2
XLamp
®
mHD-G LED
FLuX CHArACtEristiCs, EAsyWHitE
®
orDEr CoDEs AnD bins
The following table provides order codes for XLamp MHD-G LeDs. For a complete description of the order code nomenclature, please see
the Bin and Order Code Formats section (page 13).
Test condition: T
J
= 85 °C, 36 V, I
F
= 350 mA
Reference condition: T
J
= 85 °C, 18 V, I
F
= 700 mA
nominal
CCt
Cri
Min
Minimum Luminous Flux
Group
M2
70
6500 K
M4
N2
M2
80
M4
M2
5700 K
70
M4
N2
M2
70
M4
N2
5000 K
80
M4
K2
90
K4
1290
1457
1485
1200
1678
1356
50G
M2
1485
1380
1485
1590
1380
1485
1590
1380
1678
1559
1678
1796
1559
1678
1796
1559
50G
MHDGWT-0000-
000N0HM250G
MHDGWT-0000-
000N0HM450G
MHDGWT-0000-
000N0UK250G
MHDGWT-0000-
000N0UK450G
50E
57E
Flux (lm)
@ 85 °C
1380
1485
1590
1380
Flux (lm)
@ 25 °C*
1559
1678
1796
1559
65E
65E
Group
2-step
order Code
Group
3-step
order Code
Group
5-step
order Code
MHDGWT-0000-
000N0BM265E
MHDGWT-0000-
000N0BM465E
MHDGWT-0000-
000N0BN265E
MHDGWT-0000-
000N0HM265E
MHDGWT-0000-
000N0HM465E
MHDGWT-0000-
000N0BM257E
MHDGWT-0000-
000N0BM457E
MHDGWT-0000-
000N0BN257E
MHDGWT-0000-
000N0BM250E
MHDGWT-0000-
000N0BM450E
MHDGWT-0000-
000N0BN250E
MHDGWT-0000-
000N0HM250E
MHDGWT-0000-
000N0HM450E
50E
Notes
• Cree maintains a tolerance of ±7% on flux and power measurements, ±0.005 on chromaticity (CCx, CCy) measurements and a
tolerance of ±2 on CRI measurements. See the Measurements section (page 19).
• Cree XLamp MHD‑E LED order codes specify only a minimum flux bin and not a maximum. Cree may ship reels in flux bins higher than
the minimum specified by the order code without advance notice. Shipments will always adhere to the chromaticity bin restrictions
specified by the order code.
* Flux values @ 25 °C are calculated and for reference only.
Copyright © 2015-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
, XLamp
®
and EasyWhite
®
are registered trademarks and the Cree logo is a
trademark of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
3
XLamp
®
mHD-G LED
FLuX CHArACtEristiCs, EAsyWHitE
®
orDEr CoDEs AnD bins - ContinuED
nominal
CCt
Cri
Min
Minimum Luminous Flux
Group
M2
70
M4
K4
4000 K
80
M2
K2
90
K4
K2
80
3500 K
K4
M2
J4
90
K2
K2
80
3000 K
K4
M2
J4
90
K2
K2
80
K4
2700 K
J2
90
J4
1120
1265
1040
1175
27H
1290
1457
1200
1200
1356
1356
27H
1200
1200
1290
1380
1120
1356
1356
1457
1559
1265
30H
30H
1290
1200
1290
1380
1120
1457
1356
1457
1559
1265
35H
35H
1380
1200
1559
1356
40H
1485
1290
1678
1457
40H
MHDGWT-0000-
000N0HK440H
MHDGWT-0000-
000N0HM240H
MHDGWT-0000-
000N0UK240H
MHDGWT-0000-
000N0UK440H
MHDGWT-0000-
000N0HK235H
MHDGWT-0000-
000N0HK435H
MHDGWT-0000-
000N0HM235H
MHDGWT-0000-
000N0UJ435H
MHDGWT-0000-
000N0UK235H
MHDGWT-0000-
000N0HK230H
MHDGWT-0000-
000N0HK430H
MHDGWT-0000-
000N0HM230H
MHDGWT-0000-
000N0UJ430H
MHDGWT-0000-
000N0UK230H
MHDGWT-0000-
000N0HK227H
MHDGWT-0000-
000N0HK427H
MHDGWT-0000-
000N0UJ227H
MHDGWT-0000-
000N0UJ427H
30G
35G
MHDGWT-0000-
000N0HK440G
MHDGWT-0000-
000N0HM240G
MHDGWT-0000-
000N0UK240G
MHDGWT-0000-
000N0UK440G
MHDGWT-0000-
000N0HK235G
MHDGWT-0000-
000N0HK435G
MHDGWT-0000-
000N0HM235G
MHDGWT-0000-
000N0UJ435G
MHDGWT-0000-
000N0UK235G
MHDGWT-0000-
000N0HK230G
MHDGWT-0000-
000N0HK430G
MHDGWT-0000-
000N0HM230G
MHDGWT-0000-
000N0UJ430G
MHDGWT-0000-
000N0UK230G
MHDGWT-0000-
000N0HK227G
MHDGWT-0000-
000N0HK427G
MHDGWT-0000-
000N0UJ227G
MHDGWT-0000-
000N0UJ427G
Flux (lm)
@ 85 °C
1380
Flux (lm)
@ 25 °C*
1559
40e
Group
2-step
order Code
Group
3-step
order Code
Group
5-step
order Code
MHDGWT-0000-
000N0BM240E
MHDGWT-0000-
000N0BM440e
40G
40G
35G
30G
27G
27G
Notes
• Cree maintains a tolerance of ±7% on flux and power measurements, ±0.005 on chromaticity (CCx, CCy) measurements and a
tolerance of ±2 on CRI measurements. See the Measurements section (page 19).
• Cree XLamp MHD‑E LED order codes specify only a minimum flux bin and not a maximum. Cree may ship reels in flux bins higher than
the minimum specified by the order code without advance notice. Shipments will always adhere to the chromaticity bin restrictions
specified by the order code.
* Flux values @ 25 °C are calculated and for reference only.
Copyright © 2015-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
, XLamp
®
and EasyWhite
®
are registered trademarks and the Cree logo is a
trademark of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
4
XLamp
®
mHD-G LED

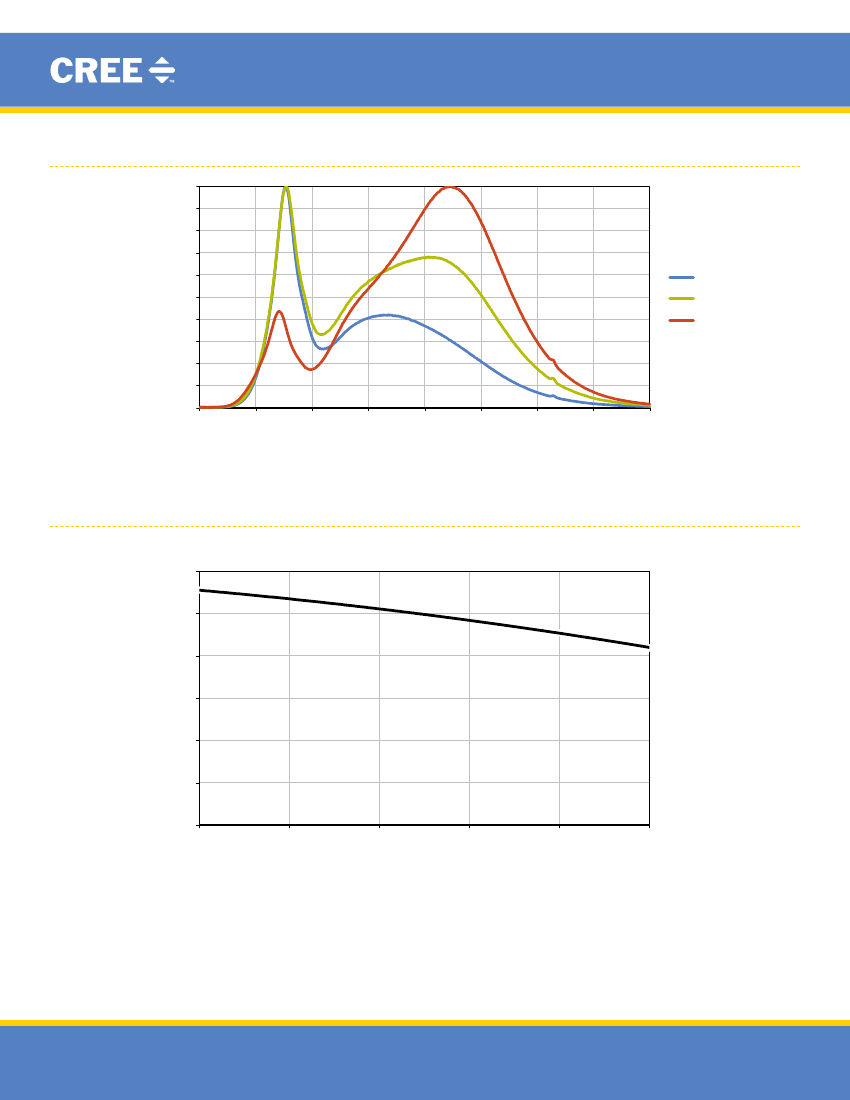

Relative Spectral Power Distribution
rELAtivE sPECtrAL PoWEr Distribution
100%
90%
80%
Relative Spectral Power
70%
60%
50%
40%
30%
20%
10%
0%
380
430
480
530
580
630
680
730
780
6500 K, 80 CRI
5000 K, 80 CRI
3000 K, 80 CRI
Wavelength (nm)
Relative Flux Output vs. Junction Temperature
rELAtivE FLuX vs. JunCtion tEMPErAturE
Test condition: 18 V (for reference), I
f
= 700 mA; 36 V, I
F
= 350 mA
120%
100%
Relative Luminous Flux
80%
60%
40%
20%
0%
25
50
75
100
125
150
Junction Temperature (ºC)
Copyright © 2015-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
, XLamp
®
and EasyWhite
®
are registered trademarks and the Cree logo is a
trademark of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
5
