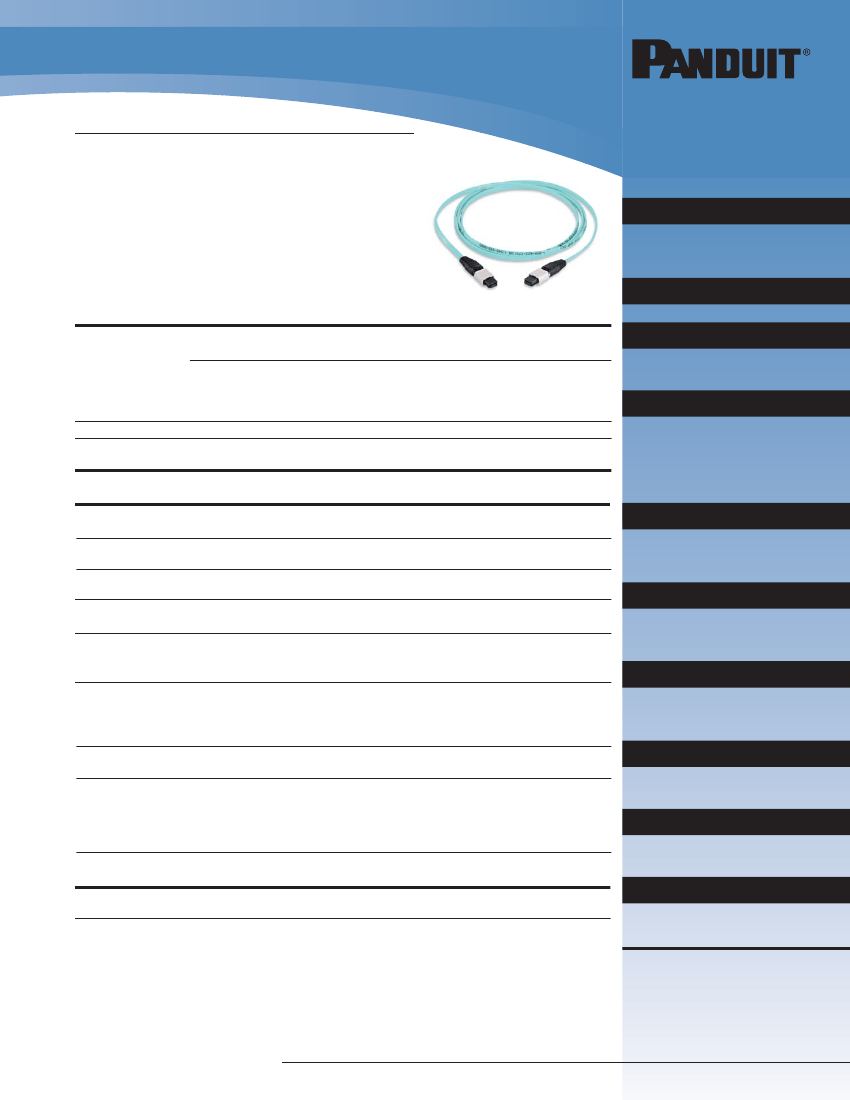

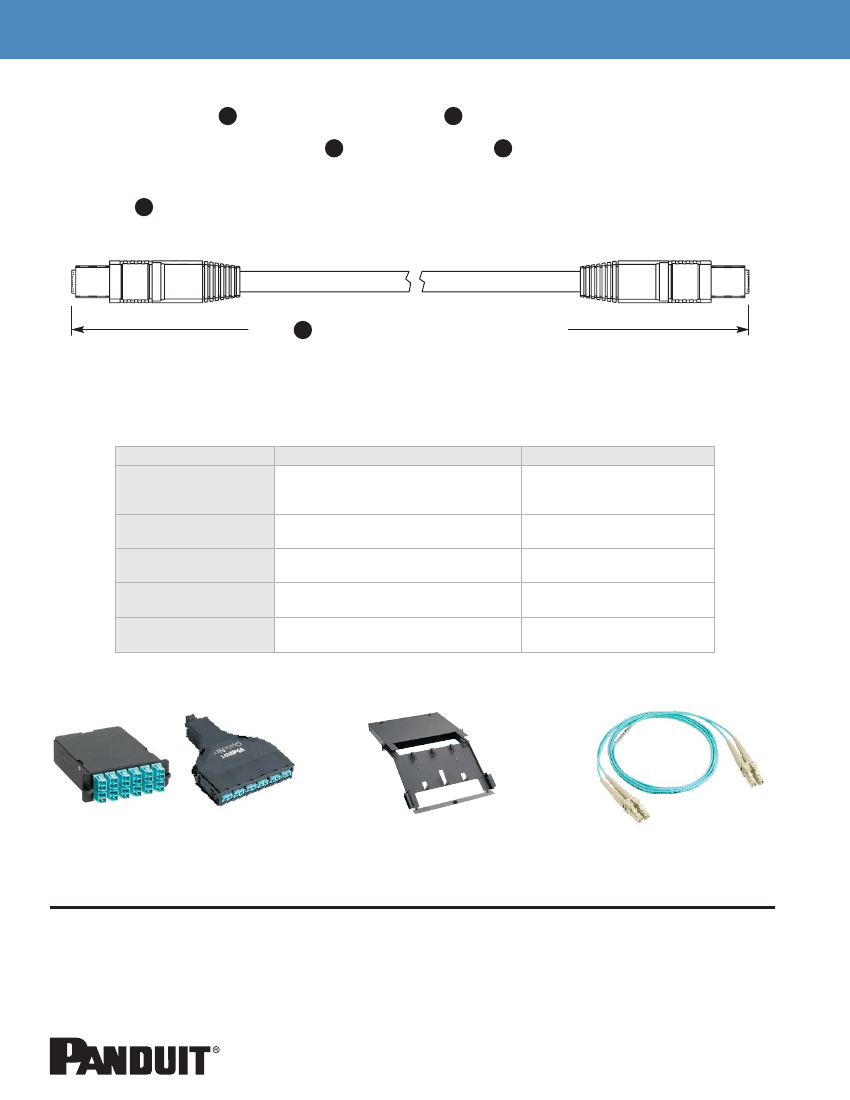

QuickNet

™

MTP* Interconnect Cable Assemblies –

Plenum (OFNP) Rated

SPECIFICATION SHEET

specifications

RoHS compliant MTP* interconnect cable assemblies shall

include one factory-terminated female MTP* 12-fiber connector

on each end of laser optimized OM3 fiber and OM4 fiber or

OM1, OM2 or OS1 fiber. Jacketed cable is compliant with NFPA

262 (OFNP) flame rating. MTP* interconnect cable assemblies

shall meet or exceed the requirements of TIA/EIA-568-B.3.

The MTP* 12-fiber connector shall exceed the requirements

of TIA/EIA-455-21A for 500 mating cycles. The MTP* connector

finishing process shall deliver uniform fiber height, low insertion

loss and excellent return loss performance across the

12-fiber interface.

QuickNet

™

Plenum (OFNP) Multimode

MTP* Interconnect Cable Assemblies

OM4

OM3

OM2

OM1

–

10Gig

™

50/125μm:

10Gig

™

50/125μm:

62.5/125μm:

FZ12D5-5M*

FX12D5-5M

‡

F512D5-5M

‡

F612D5-5M

‡

technical information

Standards

requirements:

MTP* connector exceeds TIA/EIA-455-21A: 1000 mating cycles

(multimode) and 500 mating cycles (singlemode)

Compliant with: TIA/EIA-568-B.3 and ISO/IEC 11801

IEC-61754-7 (International)

TIA-604-5 (FOCIS-5)

NFPA 262 (OFNP) flame rating

Insertion loss:

Return loss:

Per mated pair: 0.50dB typical; 0.75dB max. (multimode and singlemode)

20dB min. (multimode); 26dB min. (10Gig

™

multimode);

55dB min. (singlemode)

QuickNet

™

Plenum (OFNP) Singlemode

MTP* Interconnect Cable Assemblies

OS1 – 9/125μm:

F912D5-5M

‡

QuickNet

™

Optimized 10Gig

™

50/125μm

OM3 Pre-Terminated MTP* Cassettes

6 LC to MTP* (12-fiber):

FCXO-12-10Y

12 LC to 2 MTP* (24-fiber):

FCXO-24-10Y

6 SC to MTP* (12-fiber):

FCXO-12-3Y

QuickNet

™

10Gig

™

50/125μm OM3 and

OM4 Pre-Terminated MTP* Cassettes

6 LC to MTP* (12-fiber):

12 LC to 2 MTP* (24-fiber):

6 SC to MTP* (12-fiber):

6 LC to MTP* (12-fiber):

12 LC to 2 MTP* (24-fiber):

12 SC to MTP* (12-fiber):

6 SC to MTP* (12-fiber):

FCZ-12-10Y

FCZ-24-10Y

FCZ-12-3Y

FCX-12-10Y

FCX-24-10Y

FCX-12-3SY

FCX-12-3Y

key features and benefits

High-density

12-fiber ribbon cable

Plenum rated jacket

MTP* 12-fiber connector

FOCIS-5 compliant

and backward compatible

MTP* mechanical design

Enables an easy and well organized high-density installation

with design flexibility and lower installation costs

Meets NFPA 262 (OFNP) flame rating for standard

compliant safety

Easily connects network segments to reduce deployment

time, improve reliability, and make maintenance easier

Assures performance with existing compliant MPO devices

for cost effective integration

Precision plug yields lower average insertion loss for

improved optical performance

Interface design improvements assure durability and reliability

Proprietary polishing

process

Unique MTP* connector termination enhancements deliver

uniform fiber height across the 12-fiber interface

Helps optimize connector to connector mating resulting in low

insertion loss and excellent return loss performance

Variety of fiber cable

configurations

Certified 10 GbE performance

Supports 10 GbE, multimode, and singlemode applications for

design flexibility

10Gig

™

MTP* Interconnect Cable Assemblies are tested per

IEEE 802.3ae 10 GbE to support network transmission speeds

up to 10 Gb/s for link lengths up to 300m for OM3 and up to

500 meters for OM4 at 850nm to assure high performance

and reliability

Establishes a performance reference to streamline maintenance

and troubleshooting

QuickNet

™

50/125μm OM2

Pre-Terminated MTP* Cassettes

6 LC to MTP* (12-fiber):

12 LC to 2 MTP* (24-fiber):

12 SC to MTP* (12-fiber):

6 SC to MTP* (12-fiber):

FC5-12-10Y

FC5-24-10Y

FC5-12-3SY

FC5-12-3Y

QuickNet

™

62.5/125μm OM1

Pre-Terminated MTP* Cassettes

6 LC to MTP* (12-fiber):

12 LC to 2 MTP* (24-fiber):

12 SC to MTP* (12-fiber):

6 SC to MTP* (12-fiber):

FC6-12-10Y

FC6-24-10Y

FC6-12-3SY

FC6-12-3Y

QuickNet

™

9/125μm OS1

Pre-Terminated MTP* Cassettes

6 LC to MTP* (12-fiber):

12 LC to 2 MTP* (24-fiber):

12 SC to MTP* (12-fiber):

6 SC to MTP* (12-fiber):

FC9-12-10Y

FC9-24-10Y

FC9-12-3SY

FC9-12-3Y

Opticom

QuickNet

™

Rack Mount

Fiber Cassette Enclosures

1 RU enclosure:

2 RU enclosure:

4 RU enclosure:

Opti-Core

Riser (OFNR)

Fiber Optic Patch Cords

Duplex LC to LC:

Simplex SC to SC:

Duplex SC to SC:

Opti-Core

Plenum (OFNP)

Fiber Optic Patch Cords

Duplex LC to LC:

Simplex SC to SC:

Duplex SC to SC:

F^PE10-10M

‡

F^PS3-3M

‡

F^PD3-3M

‡

F^E10-10M

‡

F^S3-3M

‡

F^D3-3M

‡

FCE1U

FCE2U

FCE4U

Test data supplied with each

cable assembly

applications

The QuickNet

™

MTP* Interconnect Cable Assembly

is a component of the QuickNet

™

Fiber Optic

Cabling System. Pre-terminated 12-fiber MTP*

interconnect cable assemblies are used in

high-density network applications to interconnect

pre-terminated cassettes in main distribution,

horizontal distribution, and equipment distribution

areas. The QuickNet

™

System meets the demands

*MTP is a registered trademark of US Conec Ltd.

of Gigabit Ethernet, 10 Gigabit Ethernet, and high

speed Fibre Channel systems while maintaining

compatibility with Ethernet, Fast Ethernet, FDDI

and ATM. The high-density modular design fits into

Opticom

QuickNet

™

Rack Mount Fiber Cassette

Enclosures to ensure efficient use of space and

rapid network deployment.

www.panduit.com

^Substitute for fiber type: Z (OM4 – 10Gig

™

50/125μm), X (OM3 – 10Gig

™

50/125μm),

5 (OM2 – 50/125μm), 6 (OM1 – 62.5/125μm)

and 9 (OS1 – 9/125μm).

‡Substitute for length in meters: 1m – 10m,

or 15m – 30m in increments of 5m. Contact

Customer Service for other available lengths

or male MTPs*.
