FODM3062, FODM3063, FODM3082, FODM3083 — 4-Pin Full Pitch Mini-Flat Package Zero-Cross Triac Driver Output Optocouplers
September 2010
FODM3062, FODM3063, FODM3082, FODM3083
4-Pin Full Pitch Mini-Flat Package Zero-Cross
Triac Driver Output Optocouplers
Features
■
dv/dt of 600V/µs guaranteed
■
Compact 4-pin surface mount package
■
■
■
■
Description
The FODM306X and FODM308X series consist of an
infrared emitting diode optically coupled to a monolithic
silicon detector performing the function of a zero voltage
crossing bilateral triac driver, and is housed in a compact
4-pin mini-flat package. The lead pitch is 2.54mm. They
are designed for use with a triac in the interface of logic
systems to equipment powered from 115/240 VAC lines,
such as solid state relays, industrial controls, motors,
solenoids and consumer appliances.
(2.4mm maximum standoff height)
Zero voltage crossing
Peak blocking voltage: 600V (FODM306X)
800V (FODM308X)
Available in tape and reel quantities of 2500
C-UL, UL and VDE certifications pending
Applications
■
Solenoid/valve controls
■
Lighting controls
■
Static power switches
■
AC motor drives
■
Temperature controls
■
E.M. contactors
■
AC motor starters
■
Solid state relays

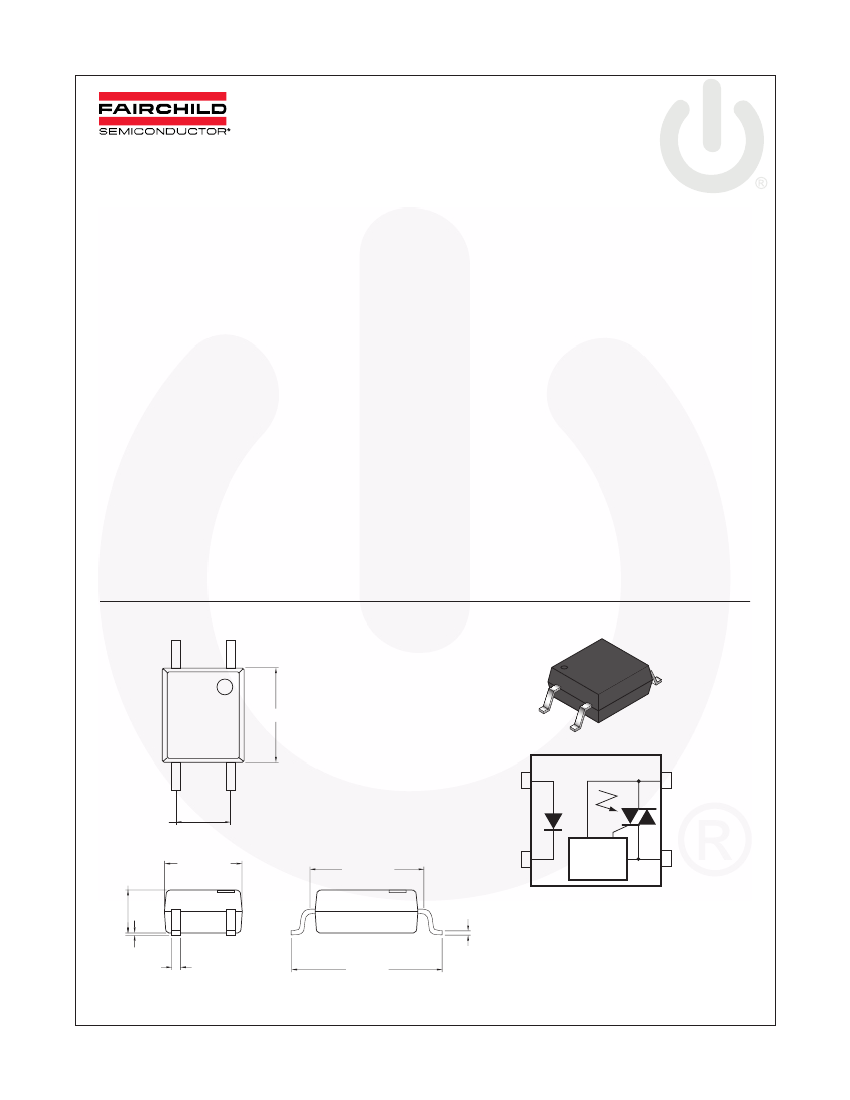

Package Dimensions
4.40
±0.20
ANODE 1
4 MAIN TERM.
2.54
±0.25
3.60
±0.30
2.00
±0.20
CATHODE 2
ZERO
CROSSING
CIRCUIT
3 MAIN TERM.
5.30
±0.30
0.20
±0.05
0.10
±0.10
0.40
±0.10
7.00
+0.2
–0.7
Note:
All dimensions are in millimeters.
©2006 Fairchild Semiconductor Corporation
FODM3062, FODM3063, FODM3082, FODM3083 Rev. 1.0.9
www.fairchildsemi.com
FODM3062, FODM3063, FODM3082, FODM3083 — 4-Pin Full Pitch Mini-Flat Package Zero-Cross Triac Driver Output Optocouplers
Absolute Maximum Ratings
(T
A
= 25°C unless otherwise specified)
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be
operable above the recommended operating conditions and stressing the parts to these levels is not recommended.
In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability.
The absolute maximum ratings are stress ratings only.
Symbol
TOTAL PACKAGE
T
STG
T
OPR
EMITTER
I
F (avg)
I
F (pk)
V
R
P
D
DETECTOR
I
T(RMS)
V
DRM
P
D
On-State RMS Current
Continuous Forward Current
Storage Temperature
Operating Temperature
Parameter
Rating
-55 to +150
-40 to +100
Units
°C
°C
60
1
6
100
mA
A
V
mW
Peak Forward Current (1µs pulse, 300pps.)
Reverse Input Voltage
Power Dissipation (No derating required over operating temp. range)
70
FODM3062/FODM3063
FODM3082/FODM3083
600
800
300
mA (RMS)
V
mW
Off-State Output Terminal Voltage
Power Dissipation (No derating required over operating temp. range)
©2006 Fairchild Semiconductor Corporation
FODM3062, FODM3063, FODM3082, FODM3083 Rev. 1.0.9
www.fairchildsemi.com
2
FODM3062, FODM3063, FODM3082, FODM3083 — 4-Pin Full Pitch Mini-Flat Package Zero-Cross Triac Driver Output Optocouplers
Electrical Characteristics
(T
A
= 25°C)
Individual Component Characteristics
Symbol
EMITTER
V
F
I
R
I
DRM1
dV/dt
Input Forward Voltage
Reverse Leakage Current
I
F
= 30mA
V
R
= 6V
Rated V
DRM
, I
F
= 0
(1)
I
F
= 0 (Figure 1)
(2)
600
1.5
100
V
µA
Parameter
Test Conditions
Min.
Typ.*
Max.
Units
DETECTOR
Peak Blocking Current,
Either Direction
Critical Rate of Rise of
Off-State Voltage
500
nA
V/µs
Transfer Characteristics
Symbol DC Characteristics
I
FT
LED Trigger Current
Test Conditions
Main Terminal
Voltage = 3V
(3)
Device
FODM3062
FODM3082
FODM3063
FODM3083
Min.
Typ.*
Max.
10
5
Units
mA
I
H
V
TM
Holding Current,
Either Direction
Peak On-State Voltage, I
F
= Rated I
FT
,
Either Direction
I
TM
= 100mA peak
All
All
300
3
µA
V
Zero Crossing Characteristics
Symbol
V
IH
Characteristics
Inhibit Voltage,
MT1-MT2 Voltage
above which device
will not trigger
Leakage in Inhibit
State
Test Conditions
I
F
= Rated I
FT
Device
All
Min.
Typ.*
Max.
20
Units
V
IDRM2
I
F
= Rated I
FT
,
Rated VDRM,
Off-State
All
2
mA
Isolation Characteristics
Characteristics
Steady State Isolation
Voltage
(4)
*All typicals at 25°C.
Notes:
1. Test voltage must be applied within dv/dt rating.
2. This is static dv/dt. See Figure 1 for test circuit. Commutating dv/dt is function of the load-driving thyristor(s) only.
3. All devices are guaranteed to trigger at an I
F
value less than or equal to max I
FT
. Therefore, recommended operating
I
F
lies between max I
FT
(10mA for FODM3062/82, 5mA for FODM3063/83) and absolute max I
F
(60 mA).
4. Steady state isolation voltage, V
ISO
, is an internal device dielectric breakdown rating. For this test, pins 1 & 2 are
common, and pins 3 & 4 are common.
Test Conditions
(1 Minute)
R.H. = 40% to 60%
Symbol
V
ISO
Device
All
Min.
3750
Typ.*
Max.
Units
VRMS
©2006 Fairchild Semiconductor Corporation
FODM3062, FODM3063, FODM3082, FODM3083 Rev. 1.0.9
www.fairchildsemi.com
3
FODM3062, FODM3063, FODM3082, FODM3083 — 4-Pin Full Pitch Mini-Flat Package Zero-Cross Triac Driver Output Optocouplers

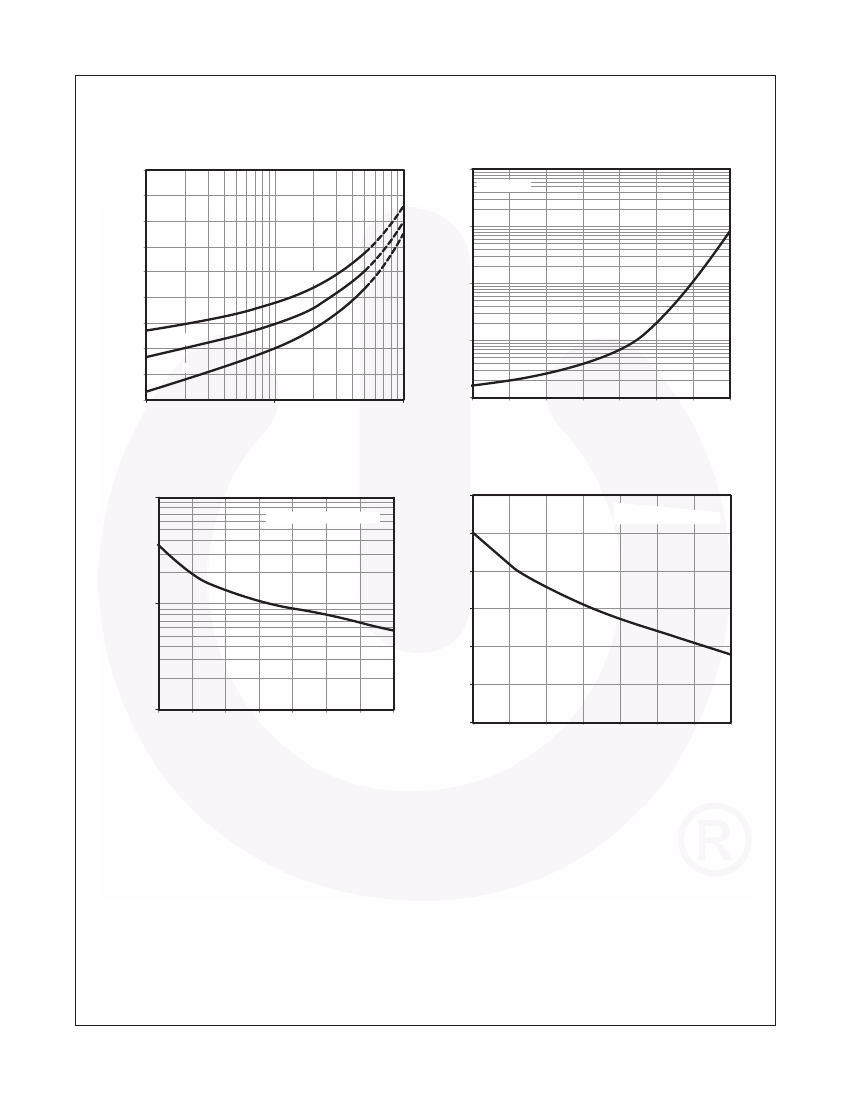

Typical Performance Curves
Fig. 1 LED Forward Voltage vs. Forward Current
1.8
1.7
IDRM - LEAKAGE CURRENT (nA)
1.6
VF - FORWARD VOLTAGE (V)
1.5
1.4
1.3
1.2
1.1
1.0
0.9
1
10
IF - FORWARD CURRENT (mA)
100
TA = 25°C
TA = 100°C
0.1
-40
1000
VDRM = 600V
Fig. 2 Leakage Current vs. Ambient Temperature
100
TA = -40°C
10
1
-20
0
20
40
60
80
100
T A - AMBIENT TEMPERATURE (°C)
Fig. 3 Holding Current vs. Ambient Temperature
10
I H - HOLDING CURRENT (NORMALIZED)
NORMALIZED TO T
A
= 25°C
I FT - TRIGGER CURRENT (NORMALIZED)
1.4
1.6
Fig. 4 Trigger Current vs. Ambient Temperature
V
TM
= 3V
NORMALIZED TO T
A
= 25°C
1.2
1.0
1.0
0.8
0.6
0.1
-40
-20
0
20
40
60
80
100
T A - AMBIENT TEMPERATURE (°C)
0.8
-40
-20
0
20
40
60
80
100
T A - AMBIENT TEMPERATURE (°C)
©2006 Fairchild Semiconductor Corporation
FODM3062, FODM3063, FODM3082, FODM3083 Rev. 1.0.9
www.fairchildsemi.com
4
FODM3062, FODM3063, FODM3082, FODM3083 — 4-Pin Full Pitch Mini-Flat Package Zero-Cross Triac Driver Output Optocouplers
Typical Performance Curves
(Continued)

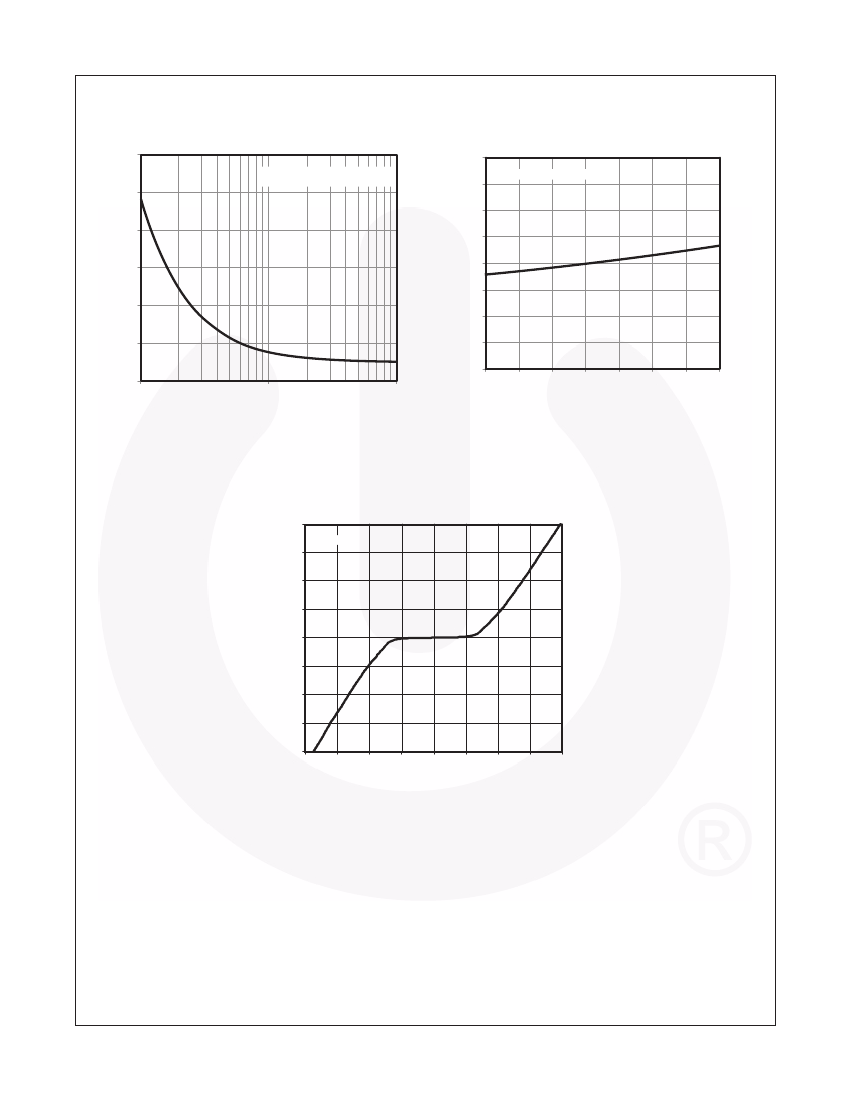

Fig. 5 LED Current Required to Trigger vs. LED Pulse Width
12
IFT - LED TRIGGER CURRENT (NORMALIZED)
T
A
=T
25°C
A
NORMALIZED TO PW
IN
>> 100µs
10
V DRM- OFF-STATE OUTPUT TERMINAL VOLTAGE
Fig. 6 Off-State Output Terminal Voltage vs. Ambient Temperature
1.4
NORMALIZED TO T = 25°C
A
1.3
1.2
(NORMALIZED)
1.1
1.0
0.9
0.8
0.7
0.6
-40
8
6
4
2
0
1
10
PW IN - LED TRIGGER PULSE WIDTH (°C)
100
-20
0
20
40
60
80
100
T A - AMBIENT TEMPERATURE (°C)
Fig. 7 On-State Characteristics
800
T
A
= 25°C
600
I
TM
- ON-STATE CURRENT (mA)
400
200
0
-200
-400
-600
-800
-4
-3
-2
-1
0
1
2
3
4
V
TM
- ON-STATE VOLTAGE (V)
©2006 Fairchild Semiconductor Corporation
FODM3062, FODM3063, FODM3082, FODM3083 Rev. 1.0.9
www.fairchildsemi.com
5
