550-0707-010F: DescriptionLED Circuit Board Indicators 5 MM CBI 5V YELLOW; CategoryLED optoelectronic/LED photoelectric; File Size100KB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric View All

550-0707-010F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	550-0707-010F	-	-	View	Buy Now

550-0707-010F Overview

LED Circuit Board Indicators 5 MM CBI 5V YELLOW

550-0707-010F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	DIALIGHT
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
Other features	HIGH RELIABILITY
color	GREEN
color@wavelength	Green
Configuration	SINGLE
Maximum forward current	0.015 A
JESD-609 code	e1
Lens type	TINTED DIFFUSED
Nominal luminous intensity	8.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	6.22 mm
method of packing	BULK
peak wavelength	565 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal pitch	2.54 mm
perspective	60 deg
Base Number Matches	1

Preview

Download Datasheet

View All

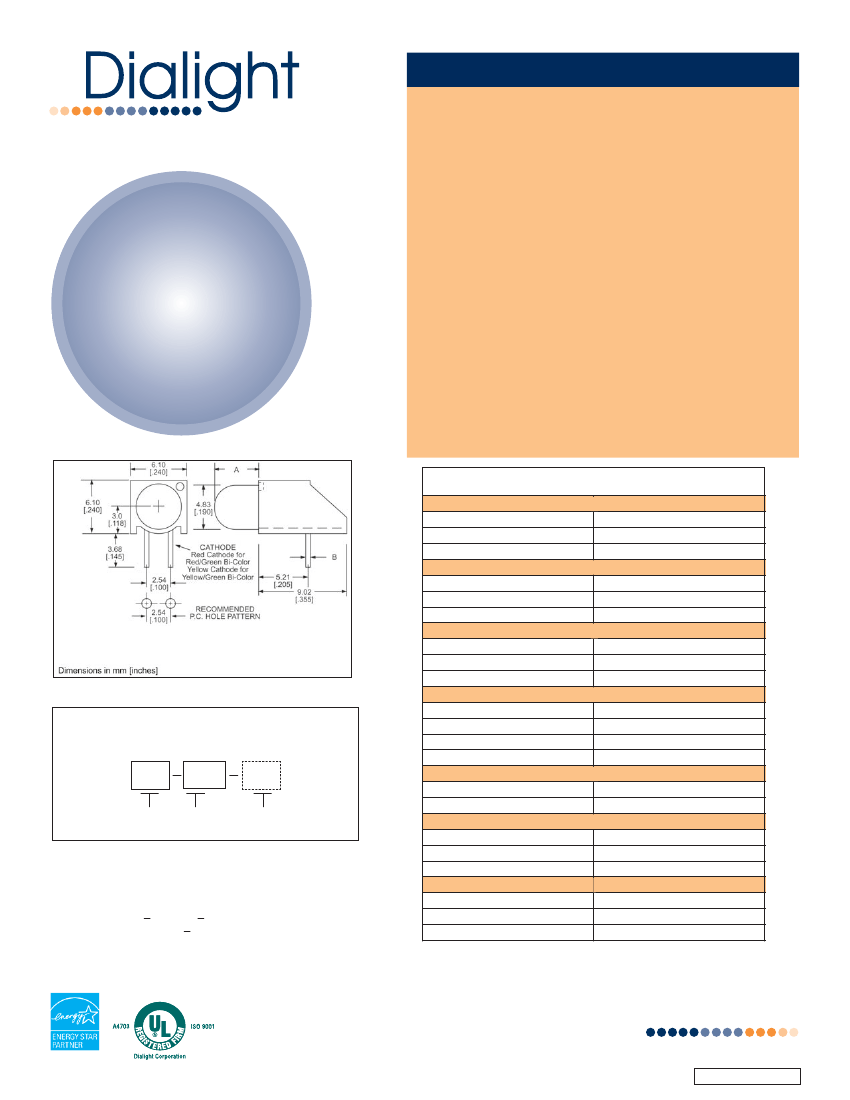

FEATURES / BENEFITS

Multiple CBIs form horizontal LED arrays on

6.35mm (0.250”) center-lines.

High contrast, UL 94 V-0 rated, black housing

Oxygen index: 32%

Polymer content: PBT, 0.206 g

Housing stand-offs facilitate PCB cleaning

Solderability per MIL-STD-202F, method 208F

LEDs are safe for direct viewing per IEC 825-1,

EN-60825-1

550 SERIES

5mm LED CBI

®

Circuit Board Indicator

Sloped Back Housing with

Standoffs

Compatible with: 550-xx07 Dual Block and

550-xx07-004 Quad Block

PART NUMBER

GENERAL PURPOSE

550-0207

550-0307

550-0407

INTEGRAL RESISTOR

550-0507

550-0707

550-0807

Dimension A: 3.43 [.135] for -0207 to -0407, 4.83 [.190] for all others

Dimension B: .635 [.025] for -0507 to -0707, .508 [.020] for all others

Hole Diameter: 1.22 [.48] for .635 [.025] leads, 1.02 [.040] for all others

COLOR

Green

Yellow

Red

Red, 5V

Green, 5V

Yellow, 5V

Red

Yellow

Green

Yellow

Red

Orange

Red/Green

Yellow/Green

Red

Green

Yellow

Red

Green

Yellow

LOW CURRENT

550-1107

550-1207

550-1307

HIGH EFFICIENCY

550-2207

550-2307

550-2407

550-2507

Standard Polarity shown in drawing: Cathode right

PART NUMBER ORDERING CODE

550

Series

xx07

LED Type

010

Reverse Polarity Option

1) Cathode Left

BI-COLOR

550-3007

550-3107

SUPER BRIGHT, DIFFUSED

550-5107

550-5207

550-5307

550-5507

550-5607

550-5707

Contact factory for information on

custom color combinations.

TOLERANCE NOTE: As noted, otherwise:

• LED Protrusion: +0.41mm [+0.016]

• CBI Housing: +0.20mm [+0.008]

To order any of the 550-xx07 part numbers with Reverse Polarity

(Cathode Left), please add -010 to the part numbers shown above.

SUPER BRIGHT, WATER CLEAR (Non-tinted, Non-diffused)

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

a Roxboro Group Company

MDEA550X001_A
