2.1x0.7 mm RIGHT ANGLE SMD CHIP LED
LAMP
APJA2107SEC
SUPER BRIGHT ORANGE
Features
2.1mmx0.7mm RIGHT ANGLE SMT LED, 1.3mm THICKNESS.
LOW POWER CONSUMPTION.
WIDE VIEWING ANGLE.
IDEAL FOR BACKLIGHT AND INDICATOR.
VARIOUS COLORS AND LENS TYPES AVAILABLE.
PACKAGE : 2000PCS / REEL.
RoHS COMPLIANT.
Description
The Super Bright Orange device is made with DH
InGaAlP (on GaAs substrate) light emitting diode chip.

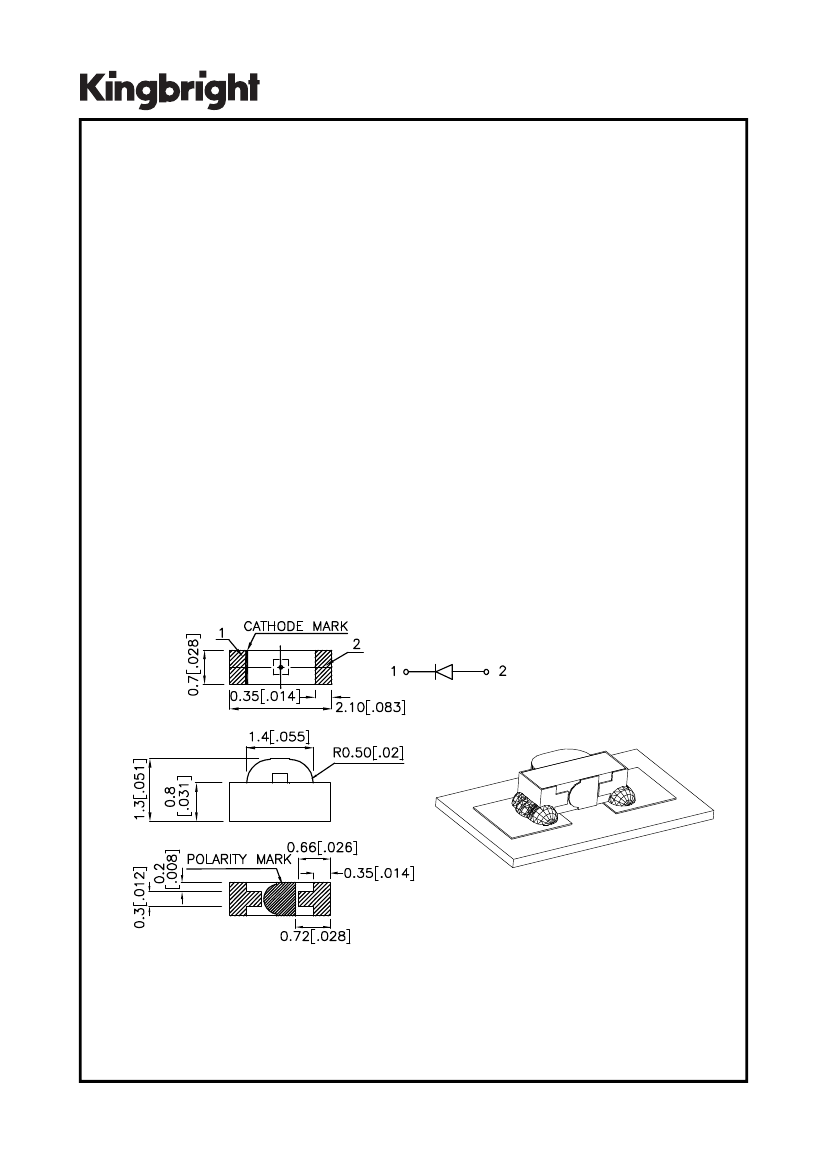

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.15(0.006")
unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO: DSAB0892
APPROVED: J. Lu
REV NO: V.5
CHECKED: Allen Liu
DATE: JUN/29/2005
DRAWN: H.Q.YUAN
PAGE: 1 OF 5
ERP:1203001529
Selection Guide
Iv (mcd)
@ 20mA
Min.
APJA2107SEC
SUPER BRIGHT ORANGE (InGaAlP)
WATER CLEAR
70
Typ.
300
Viewing
Angle
2θ1/2
θ
120
°
Part No.
Dice
Lens Type
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.

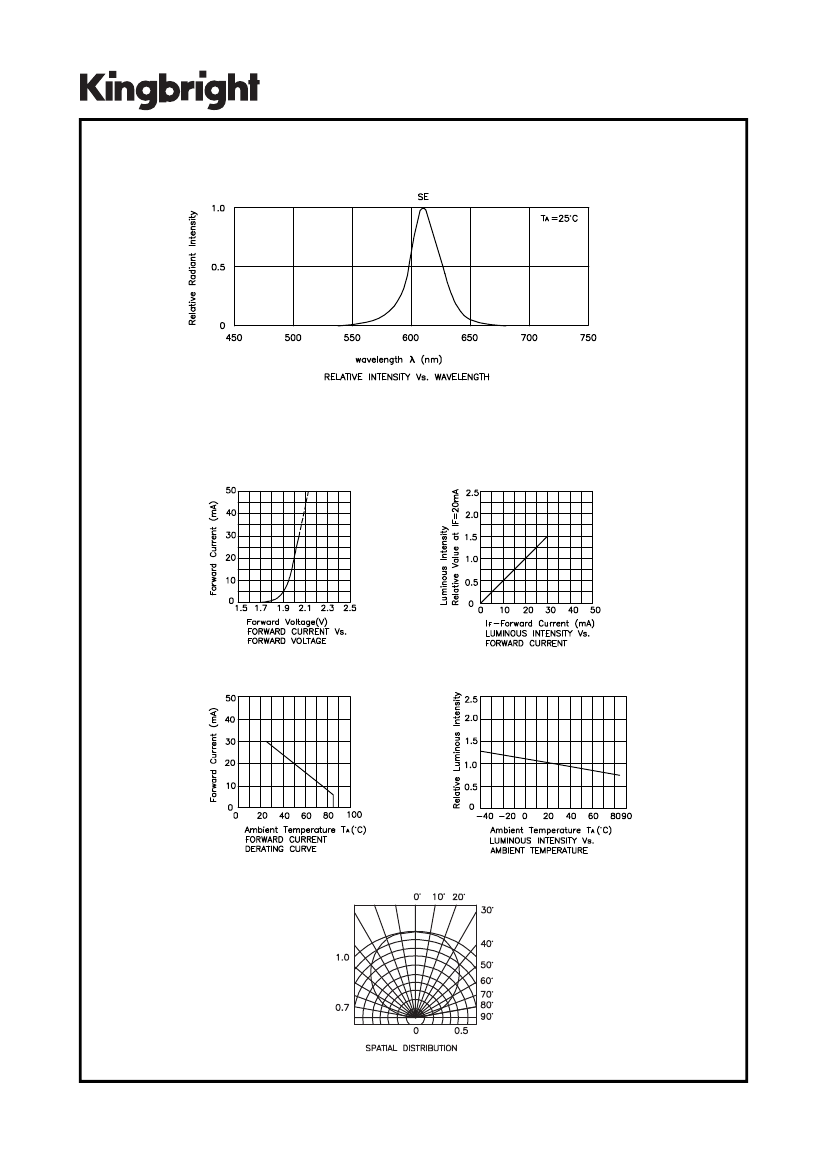

Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
∆λ1/2
C
V
F
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Super Bright Orange
Super Bright Orange
Super Bright Orange
Super Bright Orange
Super Bright Orange
Super Bright Orange
Typ.
610
601
29
30
2.0
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating / Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Super Bright Orange
75
30
195
5
-40°C To +85°C
Units
mW
mA
mA
V
SPEC NO: DSAB0892
APPROVED: J. Lu
REV NO: V.5
CHECKED: Allen Liu
DATE: JUN/29/2005
DRAWN: H.Q.YUAN
PAGE: 2 OF 5
ERP:1203001529
Super Bright Orange
APJA2107SEC
SPEC NO: DSAB0892
APPROVED: J. Lu
REV NO: V.5
CHECKED: Allen Liu
DATE: JUN/29/2005
DRAWN: H.Q.YUAN
PAGE: 3 OF 5
ERP:1203001529
APJA2107SEC

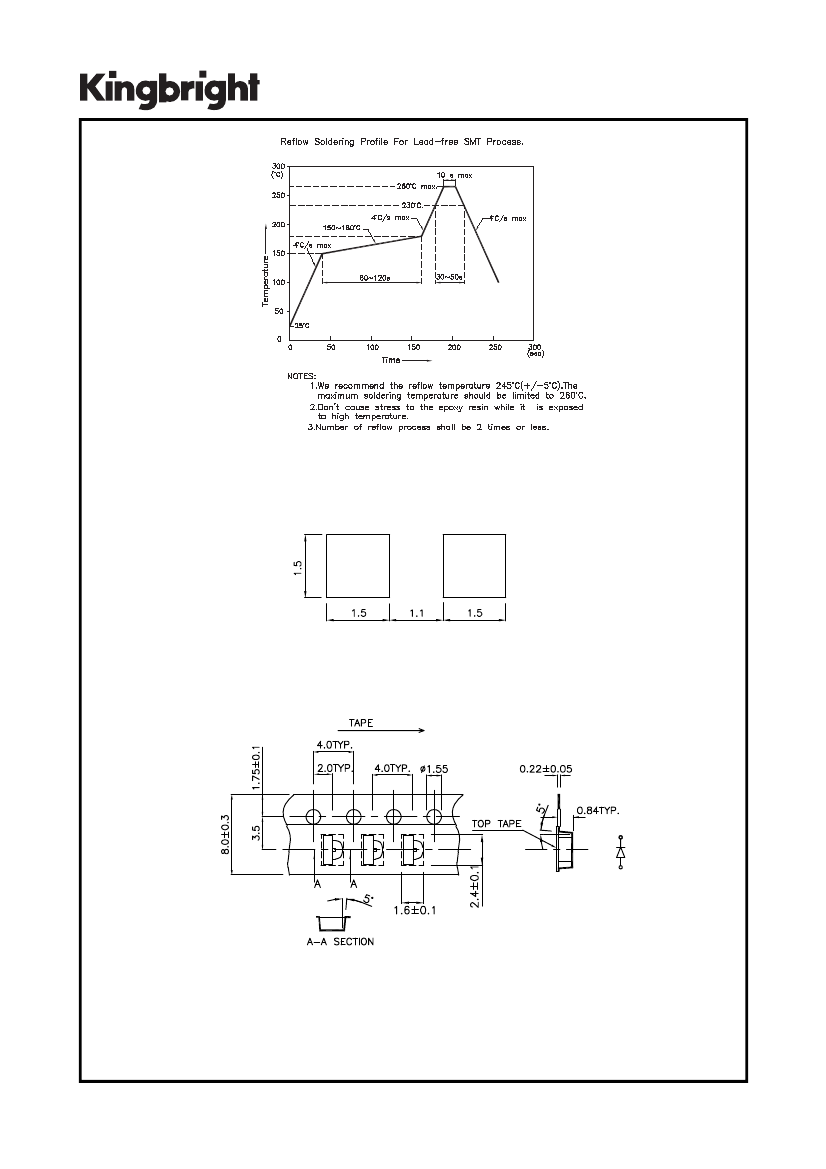

Recommended Soldering Pattern
(Units : mm)
Tape Specifications
(Units : mm)
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
SPEC NO: DSAB0892
APPROVED: J. Lu
REV NO: V.5
CHECKED: Allen Liu
DATE: JUN/29/2005
DRAWN: H.Q.YUAN
PAGE: 4 OF 5
ERP:1203001529

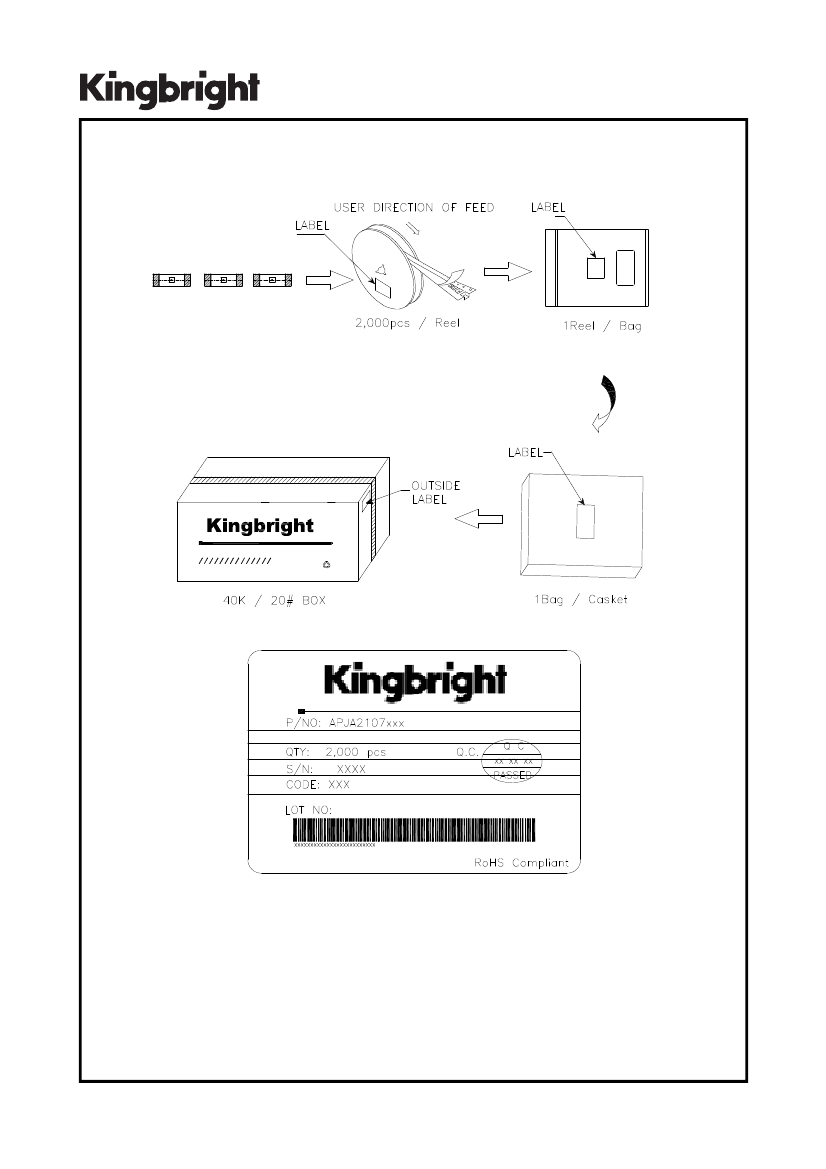

PACKING & LABEL SPECIFICATIONS
APJA2107SEC
SPEC NO: DSAB0892
APPROVED: J. Lu
REV NO: V.5
CHECKED: Allen Liu
DATE: JUN/29/2005
DRAWN: H.Q.YUAN
PAGE: 5 OF 5
ERP:1203001529
