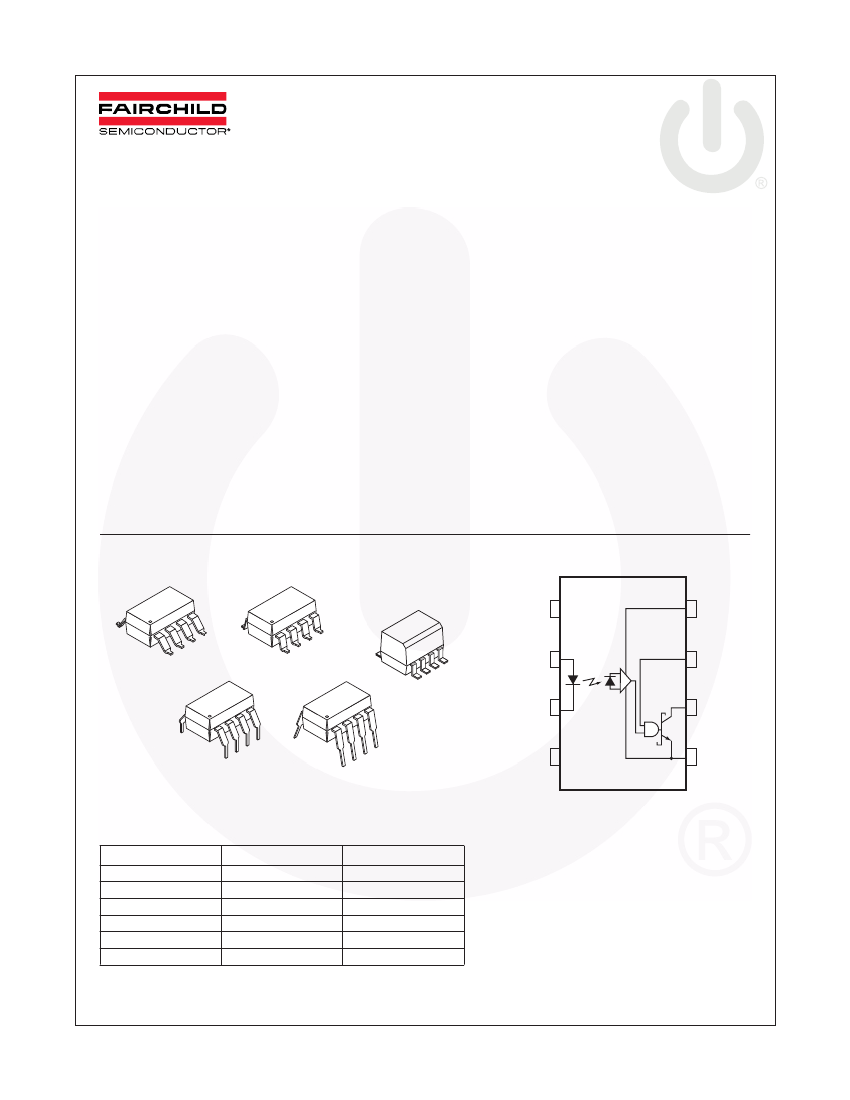

FOD060L, FOD260L — 3.3V/5V High Speed-10 MBit/s Logic Gate Optocouplers
October 2011
FOD060L, FOD260L
3.3V/5V High Speed-10 MBit/s
Logic Gate Optocouplers
Features
■
FOD060L in SO8 and FOD260L in 8-pin DIP
■
Very high speed – 10 MBit/s
■
Superior CMR — 50 kV/µs at 1,000V peak
■
Fan-out of 8 over -40°C to +85°C
■
Logic gate output
■
Strobable output
■
Wired OR-open collector
■
Safety and regulatory approvals
■
Line receiver, data transmission
■
Data multiplexing
■
Switching power supplies
■
Pulse transformer replacement
■
Computer-peripheral interface
Description
These optocouplers consist of an AlGaAS LED, optically
coupled to a very high speed integrated photo-detector
logic gate. Devices include a strobable output. This
output features an open collector, thereby permitting
wired OR outputs. The coupled parameters are
guaranteed over the temperature range of -40°C to
+85°C. A maximum input signal of 5 mA will provide a
minimum output sink current of 13 mA (fan out of 8). An
internal noise shield provides superior common mode
rejection of typically 50 kV/µs at 1,000V common mode.
– UL1577
– DIN EN/IEC 60747-5-2
Applications
■
Ground loop elimination
■
LSTTL to TTL, LSTTL or 5-volt CMOS
Package
N/C 1
8 V
CC
8
1
8
1
8
1
+ 2
V
F
_
3
6 V
O
7 V
E
8
1
8
1
N/C 4
5 GND
Truth Table (Positive Logic)
Input
On
Off
On
Off
On*
Off*
Enable
H
H
L
L
NC*
NC*
Output
L
H
H
H
L*
H*
*Devices with pin 7 not connected.
A 0.1 µF bypass capacitor must be connected between pins 5 and 8. (See Note 1)
