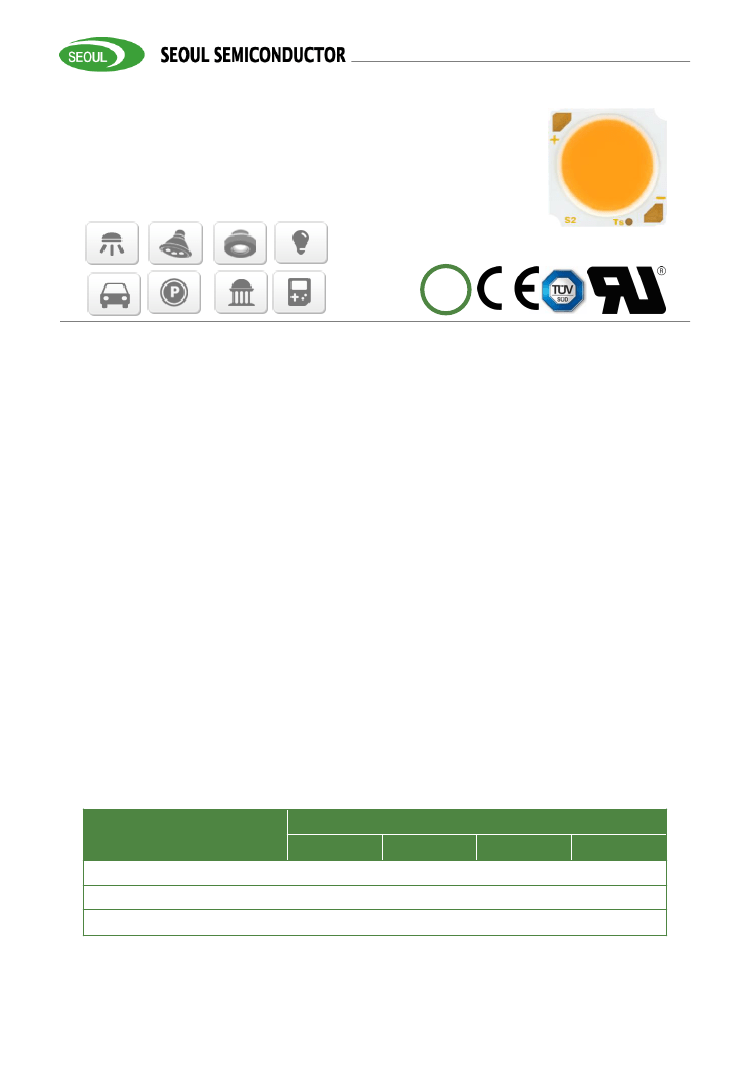

Product Data Sheet
ZC18 – Z-Power COB
Superior high Flux for High Current System
Z Power Chip on board – ZC series, ZC18
SDW03F1C, SDW83F1C
19 x 19 (㎟)
RoHS
Product Brief
Description
•
The ZC(Z-Power Chip on board) series are
High Flux and High Efficiency.
•
It is COB (Chip On Board) series designed
for easy to attach to lighting fixture directly
without reflow process.
•
ZC series' thermal management perform
exceeds other power LED solutions.
•
MacAdam 3 step, 4-step available including
ANSI.
•
Provide COB total solution available(Optic,
reflector, holder etc.)
•
The Z-Power LED is ideal light sources for
general illumination applications, custom
designed solutions, and high performance
lights.
Features and Benefits
•
•
•
•
•
•
Super high Flux output and high
Luminance
Designed for high current operation
Design flexibility
MacAdam 3-step
Lead Free product
RoHS compliant
Key Applications
•
•
•
Down Light / PAR
Architectural lighting
Decorative / Pathway lighting
Table 1. Product Selection Table
CCT
Part Number
Color
SDW03F1C
SDW83F1C
SDW83F1C
Cool White
Warm White
Warm White
Min.
4700K
Typ.
5300K
3000K
2700K
Max.
6000K
Rev1.0, July 12, 2013
1
www.seoulsemicon.com
Product Data Sheet
ZC18 – Z-Power COB
Table of Contents
Index
•
•
•
•
Product Brief
Table of Contents
Product Nomenclature (Labeling Information)
Performance Characteristics
-
-
-
-
-
•
•
Relative Spectral Distribution
Luminous Flux Characteristics
Forward Current Characteristics
Junction Temperature Characteristics
Ambient Temperature Characteristics
Color Bin Structure
Packaging Information
-
-
-
Mechanical Dimensions
Tray packaging structure
Packing (bag & box)
•
•
•
•
Handling of Silicone Resin for LEDs
Precaution For Use
Revision History
Company Information
Rev1.0, July 12, 2013
2
www.seoulsemicon.com
Product Data Sheet
ZC18 – Z-Power COB
Product Nomenclature
Table 2. Part Numbering System : X
1
X
2
X
3
X
4
X
5
X
6
X
7
X
8
Part Number Code
X
1
X
2
X
3
X
4
X
5
X
6
X
7
X
8
Series number
Lens type
PCB type
Revision number
Description
Company
Package series
Color Specification
Part Number
S
D
W0
W8
3
F
1
C
Flat
PCB
New COB type
White
CRI 80
Value
Table 3. Lot Numbering System : Y
1
Y
2
Y
3
Y
4
Y
5
Y
6
– Y
7
Y
8
Y
9
Y
10
– Y
11
Y
12
Y
13
Lot Number Code
Y
1
Y
2
Y
3
Y
4
Y
5
Y
6
Y
7
Y
8
Y
9
Y
10
Y
11
Y
12
Y
13
Description
Year
Month
Day
Mass order
Tray No.
Lot Number
Value
Rev1.0, July 12, 2013
3
www.seoulsemicon.com
Product Data Sheet
ZC18 – Z-Power COB
Performance Characteristics
Table 4. Product Selection Guide,
T
A
= 25ºC, RH30%
Viewing
Angle
(degrees)
2Θ ½
Typ.
120
120
120
Part Number
CCT (K)
[1]
Typical
Luminous Flux
[2]
Ф
V [3]
(lm)
500mA
2520
2150
2050
640mA*
3090
2640
2520
Typical Forward
Voltage (V
f
)
[4]
CRI
[5]
,
R
a
Typ.
SDW03F1C
SDW83F1C
SDW83F1C
5000
3000
2700
500mA
37
37
37
640mA*
38.5
38.5
38.5
Min.
70
80
80
Notes :
1.
2.
3.
4.
5.
Correlated Color Temperature is derived from the CIE 1931 Chromaticity diagram. Color
coordinate :
0.01,
CCT
5%
tolerance.
SSC maintains a tolerance of
±7%
on flux and power measurements.
Ф
V
is the total luminous flux output as measured with an integrating sphere.
Tolerance is
±2.5V
on forward voltage measurements.
Tolerance is
±2
on CRI measurements.
* Calculated performance values are for reference only.
Rev1.0, July 12, 2013
4
www.seoulsemicon.com
Product Data Sheet
ZC18 – Z-Power COB
Performance Characteristics
Table 5. Characteristics,
T
A
= 25ºC, RH30%
Value
Parameter
Symbol
Min.
Forward Current
Power Dissipation
Junction Temperature
[1]
Unit
Typ.
0.5
18.6
-
-
-
0.7
-
Max.
0.64
24.4
125
85
100
-
±
8
A
W
ºC
ºC
ºC
K/W
kV
I
F
P
d
T
j
T
opr
T
stg
Rθ
J-S
-
-
-
-
-40
-40
-
-
Operating Temperature
Storage Temperature
Thermal resistance (J to S)
ESD Sensitivity(HBM)
[2]
Notes :
1.
2.
3.
I
F
640mA
At thermal Resistance, J to S means junction to COB’s metal pcb bottom.
A zener diode is included to protect the product from ESD.
Rev1.0, July 12, 2013
5
www.seoulsemicon.com
