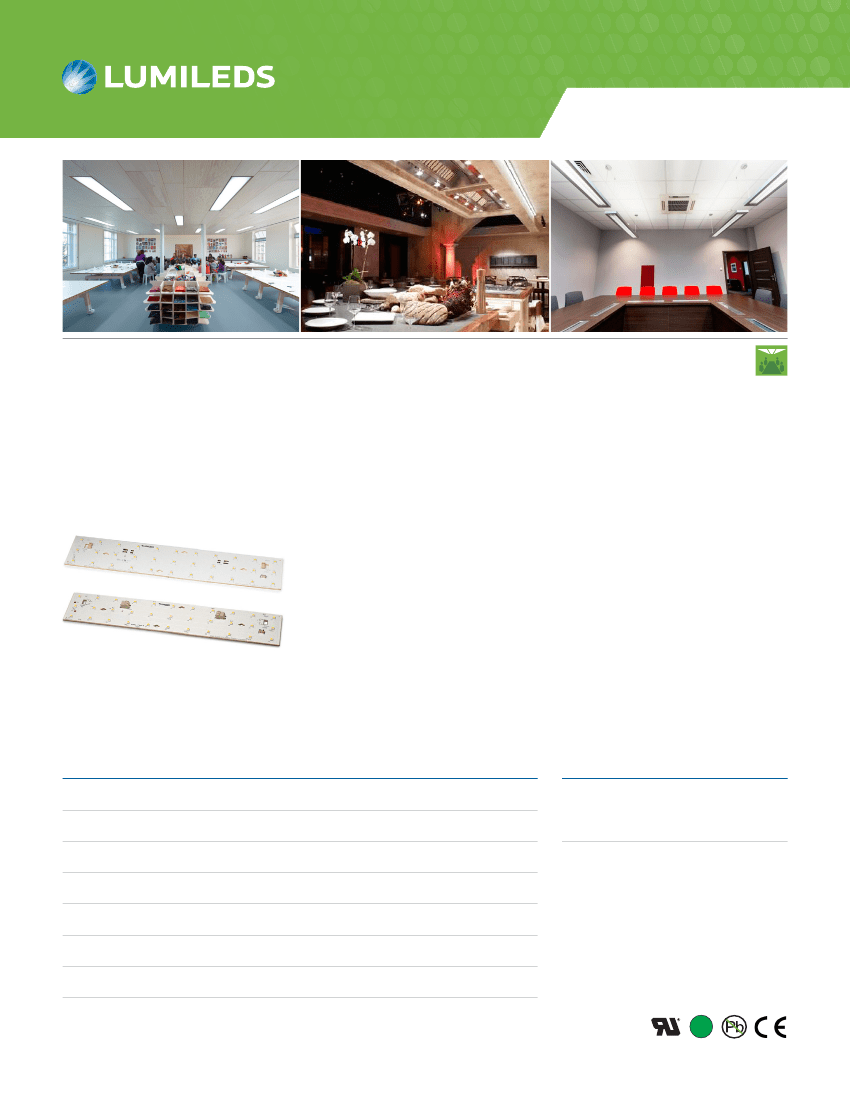

IllumInatIon
luXEon XR-3535l
Turnkey solution on a rigid substrate enabling
high-efficacy designs
LUXEON XR-3535L is a fully integrated solution optimized for lighting
applications requiring linear LED arrays mounted on a rigid and thermally
conductive substrate. The turnkey solution minimizes time to market
and simplifies supply chain by reducing optical and mechanical design
efforts. Combined with LUXEON 3535L, the integrated unit provides the
same powerful optical performance guaranteed by LUXEON LEDs.
FEatuREs and BEnEFIts
1400–1500 lumen offerings enabling efficacies of up to 152 lm/W
A full range of CCT offerings: 3000–5000K with 80CRI minimum
Complete integrated solution guarantees simplified supply chain and
faster time to market
Super CEM3 PCB rigid substrate for mechanical robustness and efficient
heat dissipation
Two electrical connector options with snap-together or pushbutton
terminal blocks
Zhaga certified mechanical design for easy mounting and assembly
UL-recognized component [E335118]
PRImaRy aPPlIcatIons
Indoor Area Lighting
–
Troffers
COMPLIANT
RoHS
LUXEON XR-3535L product performance at 300mA, T
j
=25°C
[1]
.
nomInal cct
mInImum
cRI
[2]
lumInous FluX
[3]
(lm)
mInImum
tyPIcal
tyPIcal lumInous
EFFIcacy (lm/W)
PaRt numBER
[4]
3000K
3500K
4000K
5000K
80
80
80
80
1320
1386
1419
1419
1403
1469
1502
1502
142
148
152
152
L202 - 3080033C3000x
L202 - 3580033C3000x
L202 - 4080033C3000x
L202 - 5080033C3000x
Notes:
1. Nominal current is 100mA x 3 parallel strings = 300 mA.
2. Lumileds maintains a tolerance of ±2 on CRI measurements.
3. Lumileds maintains a tolerance of ±7.5% on flux measurements.
4. “x” is an attribute used to designate connector brand/type. See Part Number Nomenclature on product datasheet.

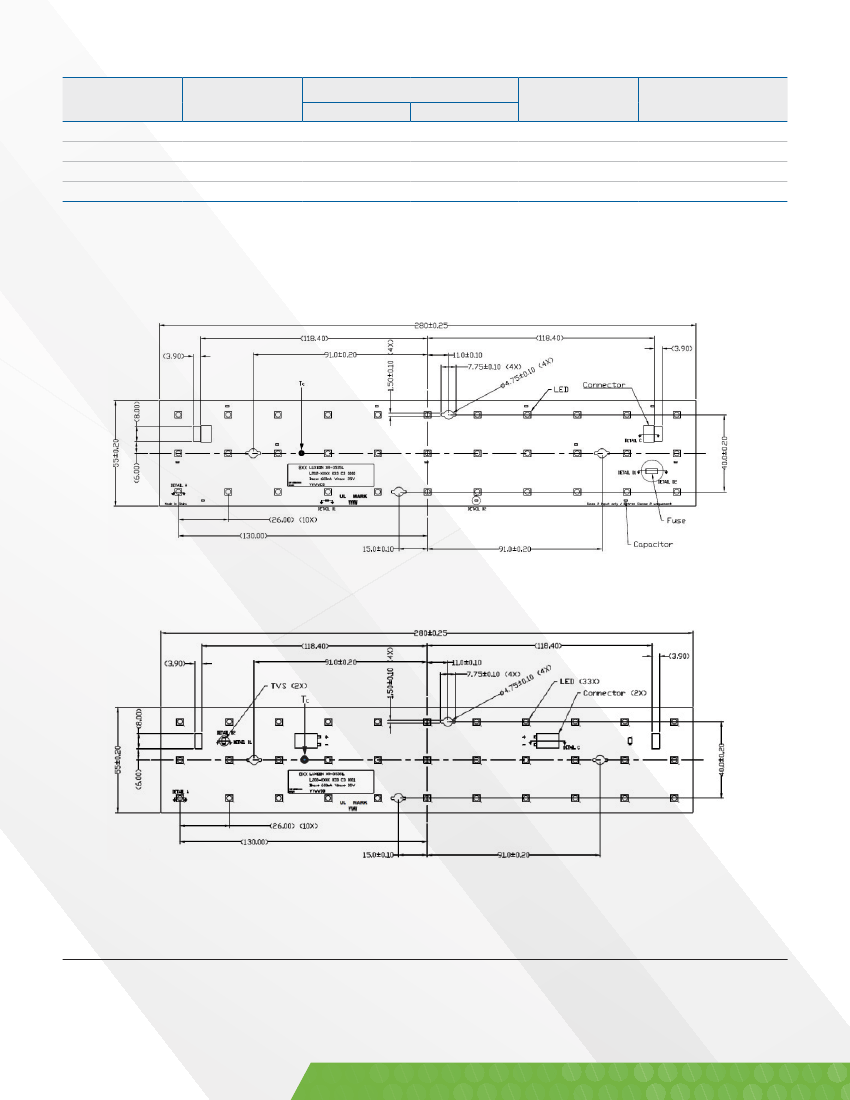

Mechanical Dimensions for L202 - xxxx033C30000 (snap-together connectors).
Mechanical Dimensions for L202 - xxxx033C30001 (pushbutton connectors).
Notes:
1. Drawings are not scale.
2. All dimensions are in millimeters.
