VSMG2000X01, VSMG2020X01
www.vishay.com
Vishay Semiconductors
High Speed Infrared Emitting Diodes, 850 nm, GaAlAs, DH

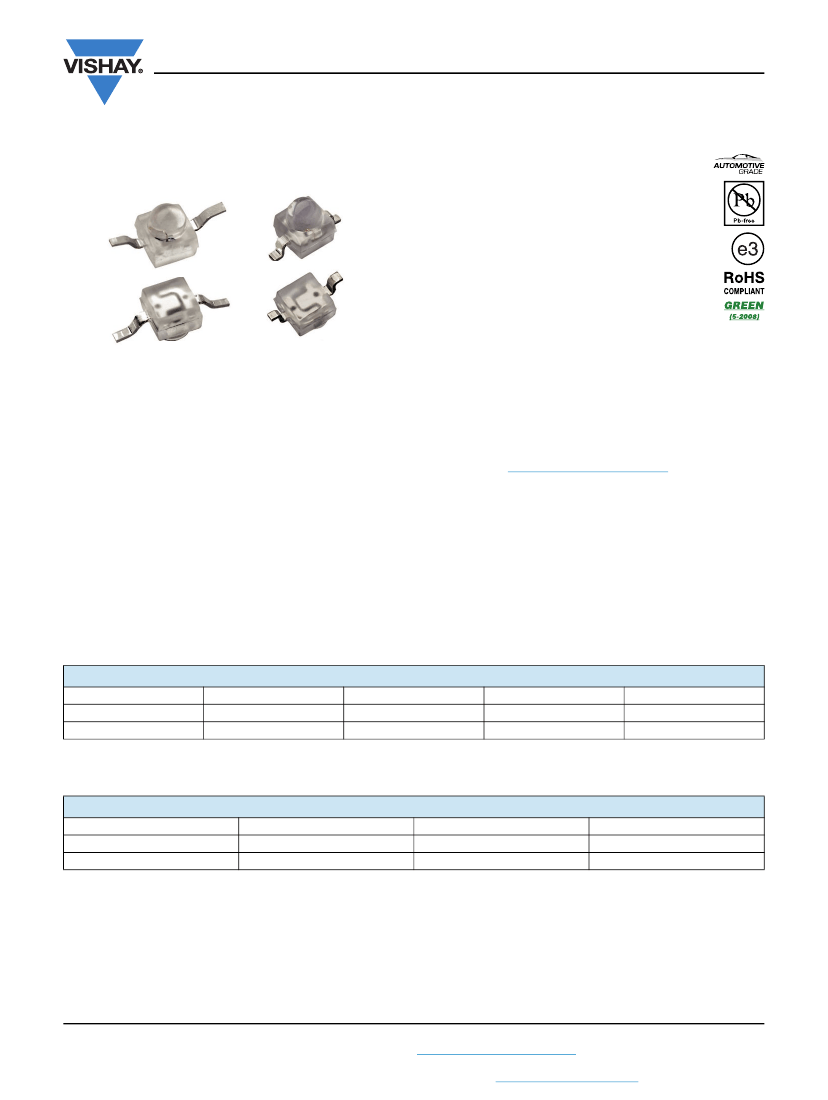

FEATURES
VSMG2000X01
VSMG2020X01
• Package type: surface mount
• Package form: GW, RGW
• Dimensions (L x W x H in mm): 2.3 x 2.3 x 2.8
• AEC-Q101 qualified
• Peak wavelength:
p
= 850 nm
• High reliability
• High radiant power
• High radiant intensity
• Angle of half intensity:
= ± 12°
21725-2
• Low forward voltage
• Suitable for high pulse current operation
• Terminal configurations: gullwing or reserve gullwing
DESCRIPTION
VSMG2000X01 series are infrared, 850 nm emitting diodes
in GaAlAs (DH) technology with high radiant power and high
speed, molded in clear, untinted plastic packages (with lens)
for surface mounting (SMD).
• Package matches with detector VEMD2000X01 series
• Floor life: 4 weeks, MSL 2a, acc. J-STD-020
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• IrDA compatible data transmission
• IR-illumination (CCTV)
• Miniature light barrier
• Photointerrupters
• Optical switch
• Shaft encoders
• IR emitter source for proximity applications
PRODUCT SUMMARY
COMPONENT
VSMG2000X01
VSMG2020X01
I
e
(mW/sr)
40
40
(deg)
± 12
± 12
p
(nm)
850
850
t
r
(ns)
20
20
Note
• Test conditions see table “Basic Characteristics“
ORDERING INFORMATION
ORDERING CODE
VSMG2000X01
VSMG2020X01
Note
• MOQ: minimum order quantity
PACKAGING
Tape and reel
Tape and reel
REMARKS
MOQ: 6000 pcs, 6000 pcs/reel
MOQ: 6000 pcs, 6000 pcs/reel
PACKAGE FORM
Reverse gullwing
Gullwing
Rev. 1.2, 23-Jan-13
Document Number: 85194
1
For technical questions, contact:
emittertechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VSMG2000X01, VSMG2020X01
www.vishay.com
Vishay Semiconductors
TEST CONDITION
SYMBOL
V
R
I
F
t
p
/T = 0.5, t
p
½
100 μs
t
p
= 100 μs
I
FM
I
FSM
P
V
T
j
T
amb
T
stg
Acc. figure 9, J-STD-020
J-STD-051, leads 7 mm,
soldered on PCB
T
sd
R
thJA
VALUE
5
100
200
1
170
100
- 40 to + 85
- 40 to + 100
260
250
UNIT
V
mA
mA
A
mW
°C
°C
°C
°C
K/W
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Reverse voltage
Forward current
Peak forward current
Surge forward current
Power dissipation
Junction temperature
Operating temperature range
Storage temperature range
Soldering temperature
Thermal resistance junction/ambient
180
120
100
80
60
P
V
- Power Dissipation (mW)
160
140
120
100
80
60
40
20
0
0
10
20 30
40
50
60
70 80
90
100
21342
R
thJA
= 250 K/W
I
F
- Forward Current (mA)
R
thJA
= 250 K/W
40
20
0
0
10
20 30 40
50 60 70 80
90 100
21341
T
amb
- Ambient Temperature (°C)
T
amb
- Ambient Temperature (°C)

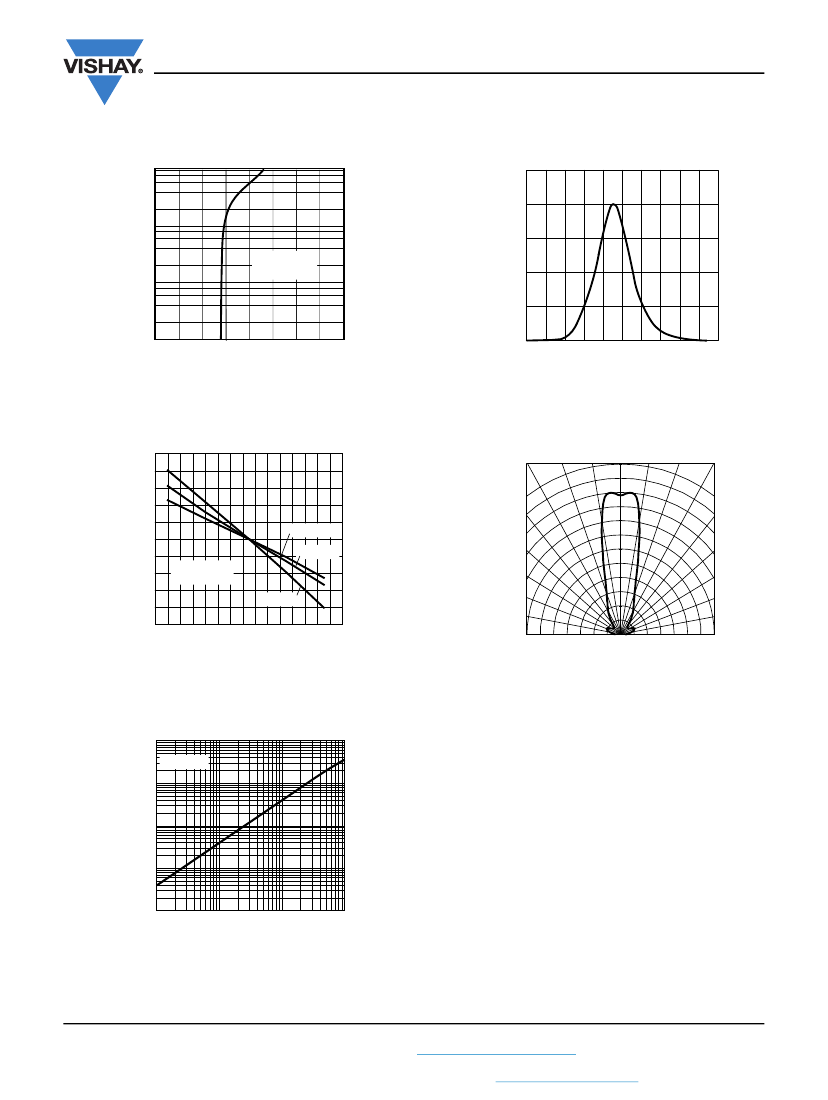

Fig. 1 - Power Dissipation Limit vs. Ambient Temperature
Fig. 2 - Forward Current Limit vs. Ambient Temperature
BASIC CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Forward voltage
Temperature coefficient of V
F
Reverse current
Junction capacitance
Radiant intensity
Radiant power
Temperature coefficient of
e
Angle of half intensity
Peak wavelength
Spectral bandwidth
Temperature coefficient of
p
Rise time
Fall time
Cut-off frequency
Virtual source diameter
I
F
= 30 mA
I
F
= 30 mA
I
F
= 30 mA
I
F
= 100 mA, 20 % to 80 %
I
F
= 100 mA, 20 % to 80 %
I
DC
= 70 mA, I
AC
= 30 mA pp
TEST CONDITION
I
F
= 100 mA, t
p
= 20 ms
I
F
= 1 A, t
p
= 100 μs
I
F
= 1 mA
I
F
= 100 mA
V
R
= 5 V
V
R
= 0 V, f = 1 MHz, E = 0 mW/cm
2
I
F
= 100 mA, t
p
= 20 ms
I
F
= 1 A, t
p
= 100 μs
I
F
= 100 mA, t
p
= 20 ms
I
F
= 100 mA
SYMBOL
V
F
V
F
TK
VF
TK
VF
I
R
C
J
I
e
I
e
e
TK
e
p
TK
p
t
r
t
f
f
c
d
830
20
125
40
350
40
- 0.35
± 12
850
35
0.25
20
20
23
1.5
870
60
MIN.
1.25
TYP.
1.45
2.3
- 1.8
- 1.1
10
MAX.
1.7
UNIT
V
V
mV/K
mV/K
μA
pF
mW/sr
mW/sr
mW
%/K
deg
nm
nm
nm/K
ns
ns
MHz
mm
Rev. 1.2, 23-Jan-13
Document Number: 85194
2
For technical questions, contact:
emittertechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VSMG2000X01, VSMG2020X01
www.vishay.com
BASIC CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
1000
Vishay Semiconductors
1.25
Φ
e, rel
- Relative Radiant Power
1.0
I
F
- Forward Current (mA)
100
0.75
0.5
0.25
0
t
p
= 100 µs
10
t
p
/T = 0.001
1
0
18873_1
1
2
3
4
16972
800
850
900
V
F
- Forward Voltage (V)
λ-
Wavelength (nm)
Fig. 3 - Forward Current vs. Forward Voltage
Fig. 6 - Relative Radiant Power vs. Wavelength
V
F, rel
- Relative Forward Voltage (%)
110
0°
10°
20°
30°
106
104
102
100
98
96
94
92
90
- 40
- 20
0
20
40
60
80
100
I
F
= 1 mA
t
p
= 20 ms
I
F
= 100 mA
I
F
= 10 mA
I
e rel
- Relative Radiant Intensity
108
40°
1.0
50°
0.9
60°
0.8
70°
0.7
0.6
0.4
0.2
0
80°
21443
T
amb
- Ambient Temperature (°C)
21550
Fig. 4 - Relative Forward Voltage vs. Ambient Temperature
Fig. 7 - Relative Radiant Intensity vs. Angular Displacement
1000
I
e
- Radiant Intensity (mW/sr)
t
p
= 100 µs
100
10
1
1
0.001
0.01
0.1
1
I
F
- Forward Current (A)
Fig. 5 - Radiant Intensity vs. Forward Current
Rev. 1.2, 23-Jan-13
Document Number: 85194
3
For technical questions, contact:
emittertechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
ϕ
- Angular Displacement
VSMG2000X01, VSMG2020X01
www.vishay.com
SOLDER PROFILE
300
250
255 °C
240 °C
217 °C
max. 260 °C
245 °C
Vishay Semiconductors
DRYPACK
Devices are packed in moisture barrier bags (MBB) to
prevent the products from moisture absorption during
transportation and storage. Each bag contains a desiccant.
Temperature (°C)
200
max. 30 s
150
max. 120 s
100
50
0
0
50
100
150
200
250
300
max. ramp up 3 °C/s max. ramp down 6 °C/s
max. 100 s
FLOOR LIFE
Floor life (time between soldering and removing from MBB)
must not exceed the time indicated on MBB label:
Floor life: 4 weeks
Conditions: T
amb
< 30 °C, RH < 60 %
Moisture sensitivity level 2a, acc. to J-STD-020.
DRYING
In case of moisture absorption devices should be baked
before soldering. Conditions see J-STD-020 or label.
Devices taped on reel dry using recommended conditions
192 h at 40 °C (+ 5 °C), RH < 5 %.
19841
Time (s)
Fig. 8 - Lead (Pb)-free Reflow Solder Profile acc. J-STD-020

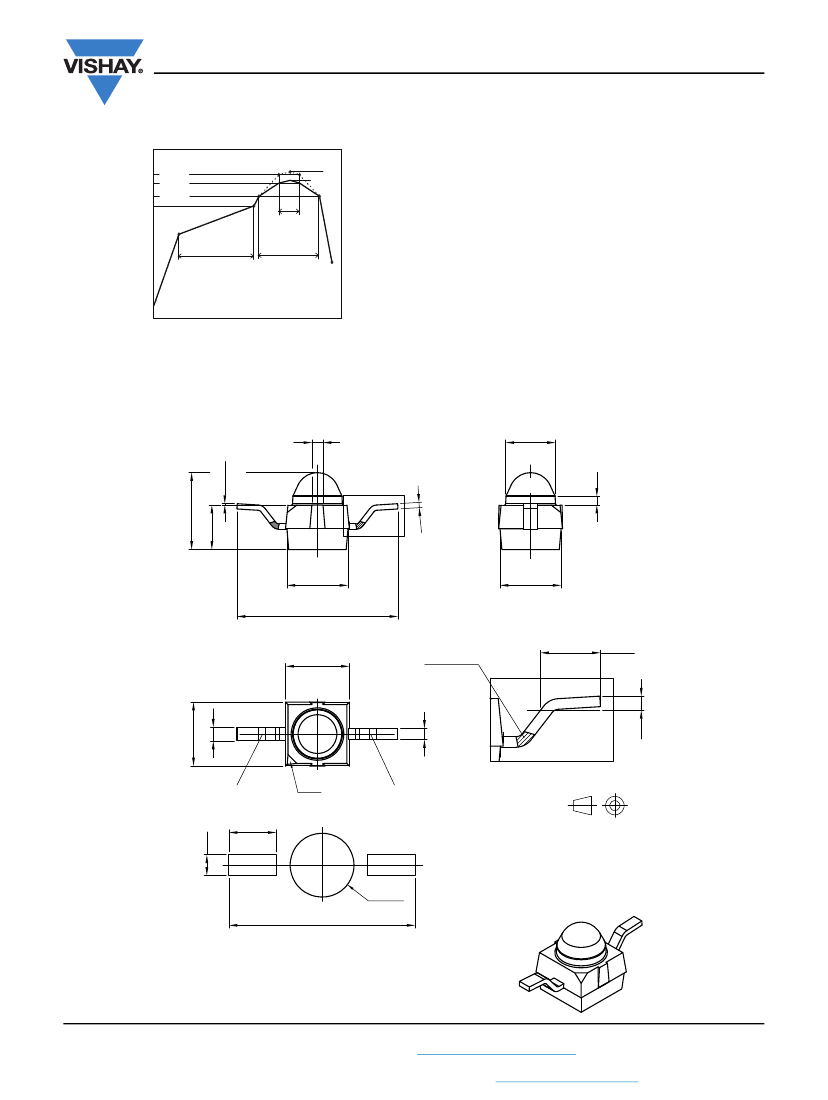

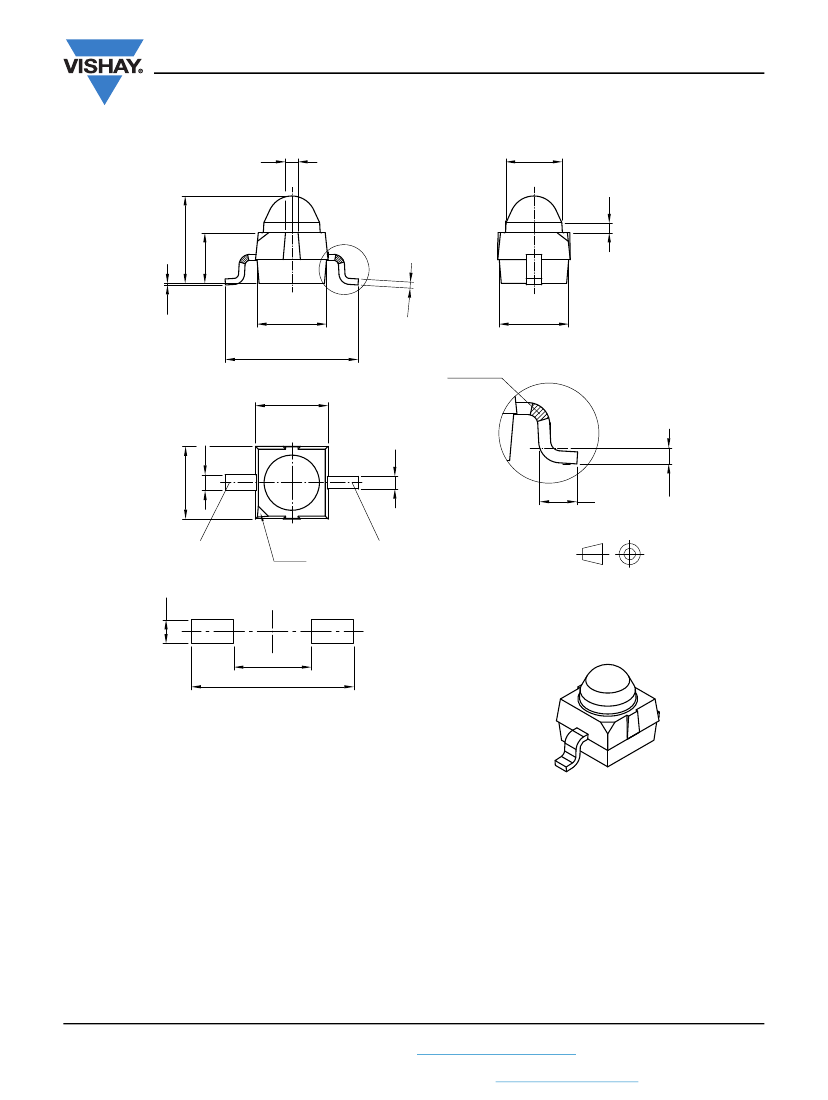

PACKAGE DIMENSIONS
in millimeters:
VSMG2000
0.4
Ø 1.8 ± 0.1
0.05 ± 0.1
Z
0.19
2.77 ± 0.2
1.6
2.2
2.2
5.8 ± 0.2
Z 20:1
1.1 ± 0.1
2.3 ± 0.2
exposed copper
0.3
2.3 ± 0.2
0.5
Cathode
Pin ID
Anode
0.4
1.7
0.75
Solder
pad proposal
acc. IPC 7351
technical drawings
according to DIN
specifications
Not indicated tolerances ± 0.1
Ø 2.3 ± 0.1
6.7
Drawing-No.: 6.544-5391.02-4
Issue: 2; 18.03.10
21517
Rev. 1.2, 23-Jan-13
Document Number: 85194
4
For technical questions, contact:
emittertechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
0.254
VSMG2000X01, VSMG2020X01
www.vishay.com
PACKAGE DIMENSIONS
in millimeters:
VSMG2020
0.4
Ø 1.8
Vishay Semiconductors
2.77 ± 0.2
X
1.6
0.05
2.2
0.19
2.2
4.2 ± 0.2
exposed copper
0.3
X 20:1
2.3 ± 0.2
0.5
2.3 ± 0.2
0.4
0.6
Cathode
Pin ID
Anode
technical drawings
according to DIN
specifications
0.75
Solder pad proposal
acc. IPC 7351
Not indicated tolerances ± 0.1
2.45
5.15
Drawing-No.: 6.544-5383.02-4
Issue: 4; 18.03.10
21488
Rev. 1.2, 23-Jan-13
Document Number: 85194
5
For technical questions, contact:
emittertechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
0.254
