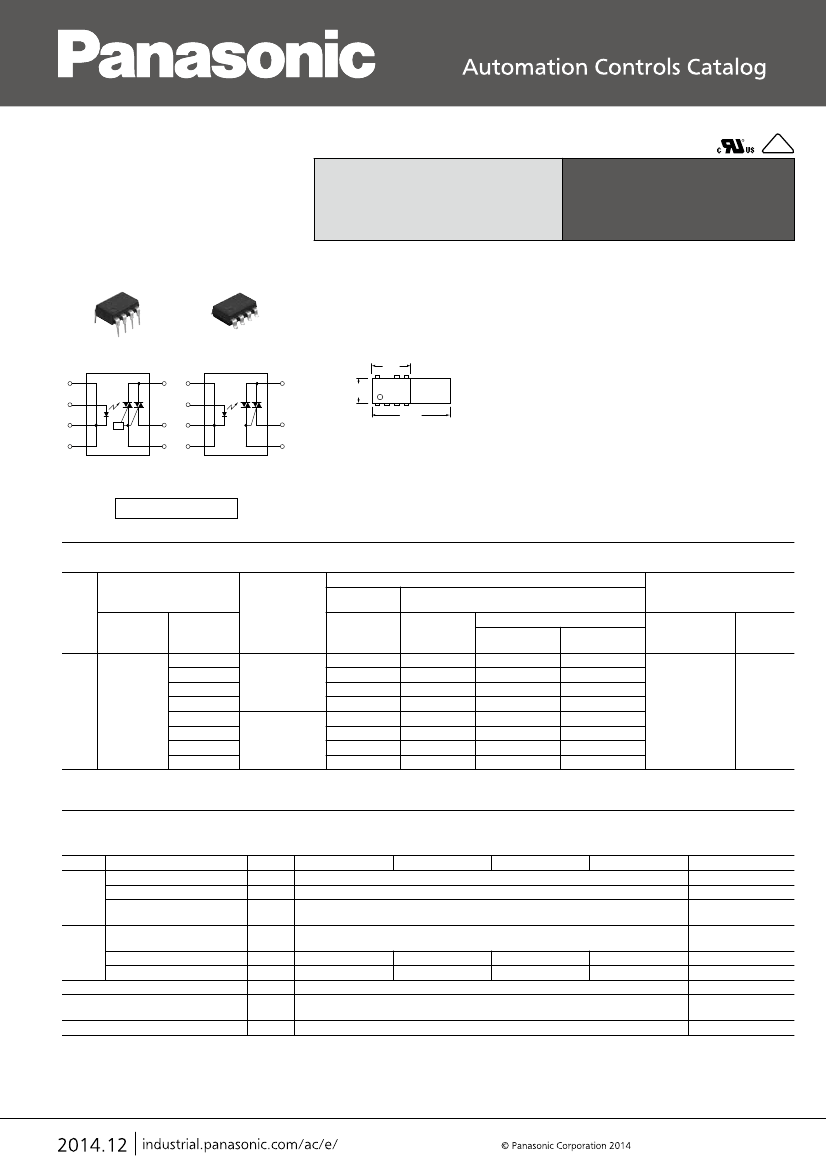

Compact DIP type SSR
Ideal for AC load control
AQ-H RELAYS
4. High dielectric strength: 5,000 V AC
(between input and output)
5. Two types available: Zero-cross type
and Random type
FEATURES
1. Supports 0.3 A, 0.6 A, 0.9 A and
1.2 A ON-state RMS currents.
2. The 1.2 A type saves space with a
DIP 8-pin package.
–
1
+
2
–
3
–
4
–
8 1
+
2
–
6 3
–
5 4
9.78
.385
8
6.4
.252
DIP8
DIP16
(mm
inch)
TYPICAL APPLICATIONS
1. Home appliances (air conditioner,
microwave oven, washing machine,
personal hygiene system, refrigerator,
fan heater, inductive heating cooker,
rice cooker and humidifier, etc.)
2. Industrial equipment
ZC
Zero-cross
circuit
6
5
19.82
.780
RoHS compliant
3. Handles both 100 and 200 V AC
loads
This relay handles both voltages in a
single product. It is not necessary for
users that use both types to manage
separate part numbers.
TYPES
Part No.
Output rating*
Type
Repetitive
peak OFF-
state voltage
ON-state RMS
current
0.3 A
0.6 A
0.9 A
1.2 A
0.3 A
0.6 A
0.9 A
1.2 A
Zero-cross
Type
Through hole
terminal
Tube packing
style
AQH0213
AQH1213
AQH2213
AQH3213
AQH0223
AQH1223
AQH2223
AQH3223
Tube packing
style
AQH0213A
AQH1213A
AQH2213A
AQH3213A
AQH0223A
AQH1223A
AQH2223A
AQH3223A
Surface-mount terminal
Tape and reel packing style
Picked from the
Picked from the
1/2/3/4-pin side
5/6/8-pin side
AQH0213AX
AQH1213AX
AQH2213AX
AQH3213AX
AQH0223AX
AQH1223AX
AQH2223AX
AQH3223AX
AQH0213AZ
AQH1213AZ
AQH2213AZ
AQH3213AZ
AQH0223AZ
AQH1223AZ
AQH2223AZ
AQH3223AZ
Packing quantity
Tube
Tape and
reel
AC
type
600 V
1 tube contains
50 pcs.
1 batch contains
500 pcs.
1,000 pcs.
Random
* Indicate the repetitive peak OFF-state voltage and ON-state RMS current: peak AC.
Note: For space reasons, the SMD terminal shape indicator “A” and the package type indicator “X” and “Z” are omitted from the seal.
RATING
1. Absolute maximum ratings
(Ambient temperature: 25°C
77°F)
Item
LED forward current
LED reverse voltage
Peak forward current
Repetitive peak OFF-state
voltage
ON-state RMS current
Symbol
I
F
V
R
I
FP
V
DRM
I
T (RMS)
I
TSM
V
iso
T
opr
T
stg
0.3 A
3A
0.6 A
6A
5,000 V AC
–30°C to +85°C
–22°F to +185°F
–40°C to +125°C
–40°F to +257°F
Non-condensing at low
temperatures
AQH0213, AQH0223 AQH1213, AQH1223 AQH2213, AQH2223 AQH3213, AQH3223
50 mA
6V
1A
600 V
0.9 A
9A
1.2 A
12 A
Remarks
Input
f = 100 Hz,
Duty Ratio = 0.1%
Output
Non-repetitive surge current
I/O isolation voltage
Operating temperature
Storage temperature
60Hz, 1 cycle
Note: “A”, “AX” and “AZ” at the end of the part numbers have been omitted.
–1–
ASCTB61E 201410-T
AQ-H
2. Characteristics
(Ambient temperature: 25°C
77°F)
Item
LED dropout voltage
Input
LED reverse current
Peak OFF-state
current
Peak ON-state
voltage
Holding current
Critical rate of rise of
OFF-state voltage
Trigger LED current
Transfer
charac-
teristics
Zero-cross voltage
Turn on time*
I/O isolation
resistance
Typical
Maximum
Typical
Maximum
Typical
Maximum
Typical
Maximum
Typical
Maximum
Minimum
Maximum
Maximum
Maximum
Minimum
Symbol
V
F
I
R
I
DRM
V
TM
I
H
dv/dt
I
FT
V
ZC
T
ON
R
iso
50 V
100
μs
50 GΩ
AQH0213, AQH1213, AQH2213, AQH3213 AQH0223, AQH1223, AQH2223, AQH3223
1.21 V
1.3 V
—
10
μA
—
100
μA
—
2.5 V
—
25 mA
200 V/μs
10 mA
—
Remarks
I
F
= 20 mA
V
R
= 6 V
I
F
= 0 mA
V
DRM
= 600 V
I
F
= 10 mA
I
TM
= Max.
Output
V
DRM
= 600 V
×1/
M
2
V
D
= 6 V
R
L
= 100
Ω
I
F
= 10 mA
I
F
= 20 mA
V
D
= 6 V
R
L
= 100
Ω
500 V DC
Notes: 1. For type of connection, see page 4.
2. “A”, “AX” and “AZ” at the end of the part numbers have been omitted.
*Turn on time
Input
90%
RECOMMENDED OPERATING CONDITIONS
Please follow the conditions below in order to ensure accurate
operation and release of the phototriac coupler.
Item
Input LED current
Symbol
I
F
Value
20
Unit
mA
Output
Ton
REFERENCE DATA
1. ON-state RMS current vs. Ambient
temperature characteristics
Allowable ambient temperature:
–30°C to +85°C
–22°F to +185°F
1.5
ON-state RMS current, A
Peak ON-state voltage, V
AQH3213, AQH3223
2. Peak ON-state voltage vs. Ambient
temperature characteristics
LED current: 10 mA; ON current: Max.
Measured portion: between terminals 6 and 8
1.6
3. Trigger LED current vs. Ambient temperature
characteristics
Load voltage: 6 V DC;
Load resistance: 100Ω
10
Trigger LED current, mA
1.2
1.4
AQH0213, AQH0223
1.2
AQH1213, AQH1223
AQH2213, AQH2223
1
AQH3213, AQH3223
0.8
8
0.9
AQH2213, AQH2223
6
0.6
AQH1213, AQH1223
4
0.3
AQH0213, AQH0223
2
0
–30 –20
0
20
40
60
80 85 100
0.6
–40 –30 –20
0
20
40
60
80 85
0
–40 –30 –20
0
20
40
60
80 85
Ambient temperature,
°C
Ambient temperature,
°C
Ambient temperature,
°C
4. LED dropout voltage vs. Ambient
temperature characteristics
LED current: 10 to 50 mA
1.5
LED dropout voltage, V
5. Turn on time vs. LED current characteristics
Load voltage: 6 V DC; Load resistance: 100Ω
Measured portion: between terminals 6 and 8
100
6. Repetitive peak OFF-state current vs. Load
voltage characteristics
Ambient temperature: 25°C
77°F;
Measured portion:
between terminals 6 and 8; LED current: 0 mA
Repetitive peak OFF-state current, A
10
–3
10
–4
10
–5
10
–6
10
–7
10
–8
10
–9
10
–10
0
20
40
60
80
100
1.3
50mA
1.2
30mA
20mA
1.1
10mA
Turn on time,
μs
1.4
80
60
40
20
1
–40 –30 –20
0
20
40
60
80 85
0
0
10
20
30
40
50
Ambient temperature,
°C
Trigger LED current, mA
Load voltage, V
–2–
ASCTB61E 201410-T
AQ-H
7. Hold current vs. Ambient temperature
characteristics
25
Zero-cross voltage, V
8. Zero-cross voltage vs. Ambient temperature
characteristics
LED current: 10 mA
50
Hold current, mA
20
40
AQH0213, AQH1213,
AQH2213, AQH3213
15
AQH1213, AQH1223
AQH2213, AQH2223
30
10
20
5
AQH0213, AQH0223
AQH3213, AQH3223
0
–40 –30 –20
0
20
40
60
80 85
10
0
–40 –30 –20
0
20
40
60
80 85
Ambient temperature,
°C
Ambient temperature,
°C

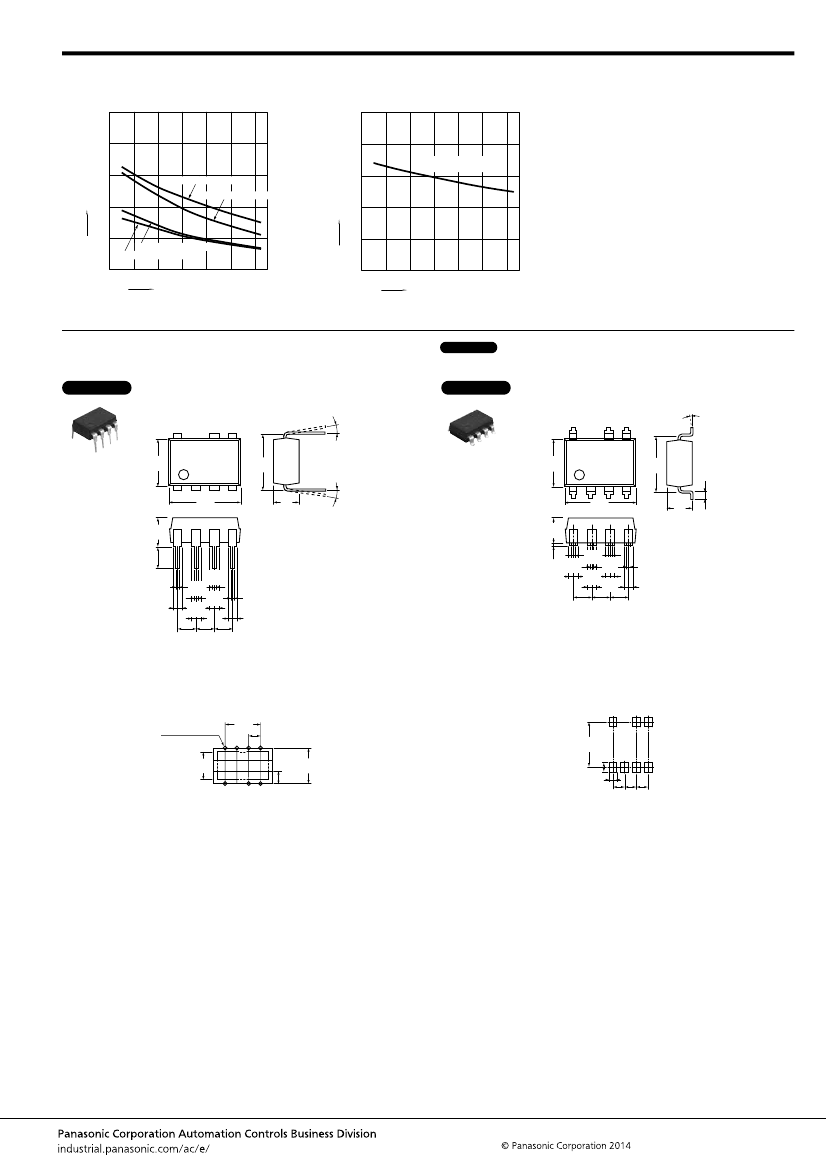

DIMENSIONS
(mm
inch)
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://industrial.panasonic.com/ac/e/
Through hole terminal type
External dimensions
CAD Data
Surface mount terminal type
External dimensions
CAD Data
MAX.10°
MAX. 10°
6.4
.252
7.62
.300
MAX. 10°
9.78
.385
3.9±0.2
.154±.008
3.0
.118
0.5
.020
1.2
.047
0.5
0.5
.020
.020
1.2
1.2
.047
.047
2.54 2.54 2.54
.100 .100 .100
3.4
.134
3.4
.134
0.2
+0.2
−0
.008
+.008
−0
0.5
0.5
.020
0.5
.020
.020
1.2
1.2
.047
1.2
.047
.047
2.54 2.54 2.54
.100 .100 .100
0.5
.020
1.2
.047
9.78
.385
3.4
.134
6.4
.252
7.62
.300
1
.039
0.5
.020
1.2
.047
Terminal thickness: 0.25
.010
General tolerance:
±0.1
±.004
Terminal thickness: 0.25
.010
General tolerance:
±0.1
±.004
PC board pattern (BOTTOM VIEW)
7-0.8 dia. hole
7-.031 dia. hole
7.62
.300
2.54
.100
7.62
2.54
.300
.100
Recommended mounting pad (TOP VIEW)
6.4
.252
8.3
.327
1.9
.075
1.5
.059
Tolerance:
±0.1
±.004
2.54 2.54 2.54
.100 .100 .100
Tolerance:
±0.1
±.004
–3–
ASCTB61E 201410-T
AQ-H
SCHEMATIC AND WIRING DIAGRAMS
Notes: E
1
: Power source at input side; I
F
: Trigger LED forward current; V
L
: Load voltage; I
L
: Load current
Schematic
–
1
+
2
–
3
–
4
–
1
+
2
–
3
–
4
8
E
1
ZC
Zero-cross
circuit
Output configuration
Load
1
2
I
F
3
4
6
5
8
I
L
Wiring diagram
Load
V
L
(AC)
I
L
Load
V
L
(AC)
6
5
1a
8
AC
1
E
1
2
I
F
3
4
6
5
Load
8
I
L
Load
V
L
(AC)
I
L
V
L
(AC)
6
5
–4–
ASCTB61E 201410-T
