CLD-DS34 Rev 8e

Product family data sheet

Cree

XLamp

XP-E High-Efficiency White LEDs

PRODUCT DESCRIPTION

XLamp

XP-E

High-Efficiency

White

(HEW) LEDs upgrade the XLamp XP-E LED

to leading performance levels for diffuse

lighting applications. The XP-E HEW is

designed to enable faster adoption of LED

light in cost-sensitive, consumer lighting

products. Compared to the standard

XLamp XP-E LED, the XP-E HEW can

reduce LED count by 50% and still deliver

the same system performance.

Cree XLamp LEDs bring high performance

and quality of light to a wide range

lighting

applications,

including

color-changing, portable

stage

and

studio,

and personal,

and

FEATURES

•

Light output and efficacy similar to

XLamp XP-G LeD

Maximum drive current: 1000 mA

Low thermal resistance: 6 °C/W

Maximum junction temperature:

150 °C

Wide viewing angle: 120°

Reflow solderable - JEDEC

J-STD-020C compatible

Electrically neutral thermal path

RoHS and REACh compliant

recognized component

(E349212)

TAbLE OF CONTENTS

Characteristics ...................................... 2

Flux Characteristics ..............................

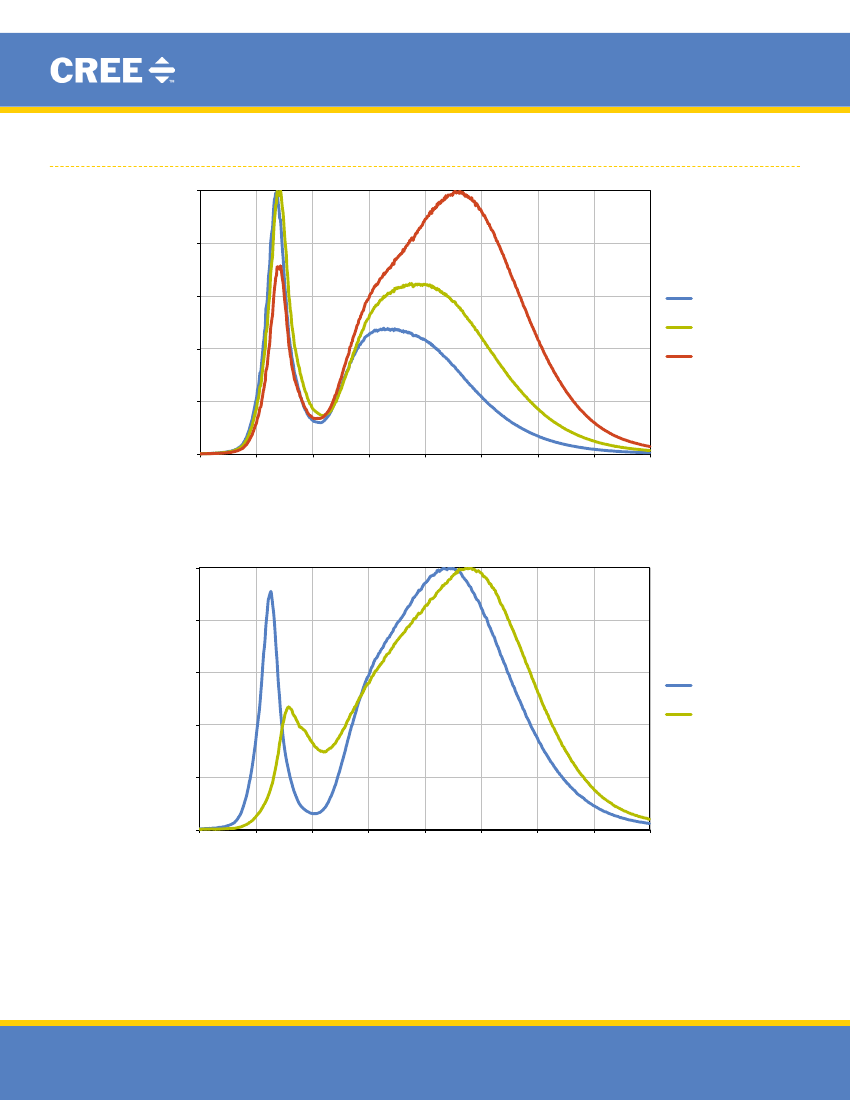

Relative Spectral Power Distribution ... 5

Relative Flux vs. Junction

Temperature .......................................... 6

Electrical Characteristics ...................... 6

Relative Flux vs. Current .......................

Relative Chromaticity vs. Current.........

Relative Chromaticity vs. Temperature

Typical Spatial Distribution...................

Thermal Design .....................................

Performance Groups - Luminous Flux .

Performance Groups - Chromaticity .. 10

Performance Groups - Forward

Voltage ................................................. 12

Cree’s Standard Chromaticity

Regions Plotted on the 1931 CIE

Curve .................................................... 13

Cree’s Standard Cool White Kits

Plotted on ANSI Standard

Chromaticity Regions ......................... 14

Cree’s Standard Warm and Neutral

White Kits Plotted on ANSI Standard

Chromaticity Regions ......................... 15

Cree’s Standard Chromaticity Kits ..... 16

Bin and Order Code Formats .............. 16

Reflow Soldering Characteristics ....... 17

outdoor, indoor-directional, transportation,

commercial

emergency-vehicle lighting.

www.CREE.Com/XLAmP

Notes ................................................... 18

Mechanical Dimensions ..................... 20

Tape and Reel ...................................... 21

Packaging ............................................ 22

and XLamp

are

registered trademarks and the Cree logo is a trademark of Cree, Inc. ENERGY STAR

is a registered trademark of the U.S. Environmental Protection

Agency. UL

and the UR logo are registered trademarks of UL LLC.

Cree, Inc.

4600 Silicon Drive

Durham, NC 27703

USA Tel: +1.919.313.5300

Recommended Resources

Driving circuit diagram

KGCA-15-0-165 thyristor charger circuit

Bistable circuit control motor forward and reverse circuit

reverse bias circuit

Integrated regulated power supply with high current output

Ultra-linear tube single-ended class A amplifier
