SML-P11x Series
PICOLED
TM
-eco
Data Sheet

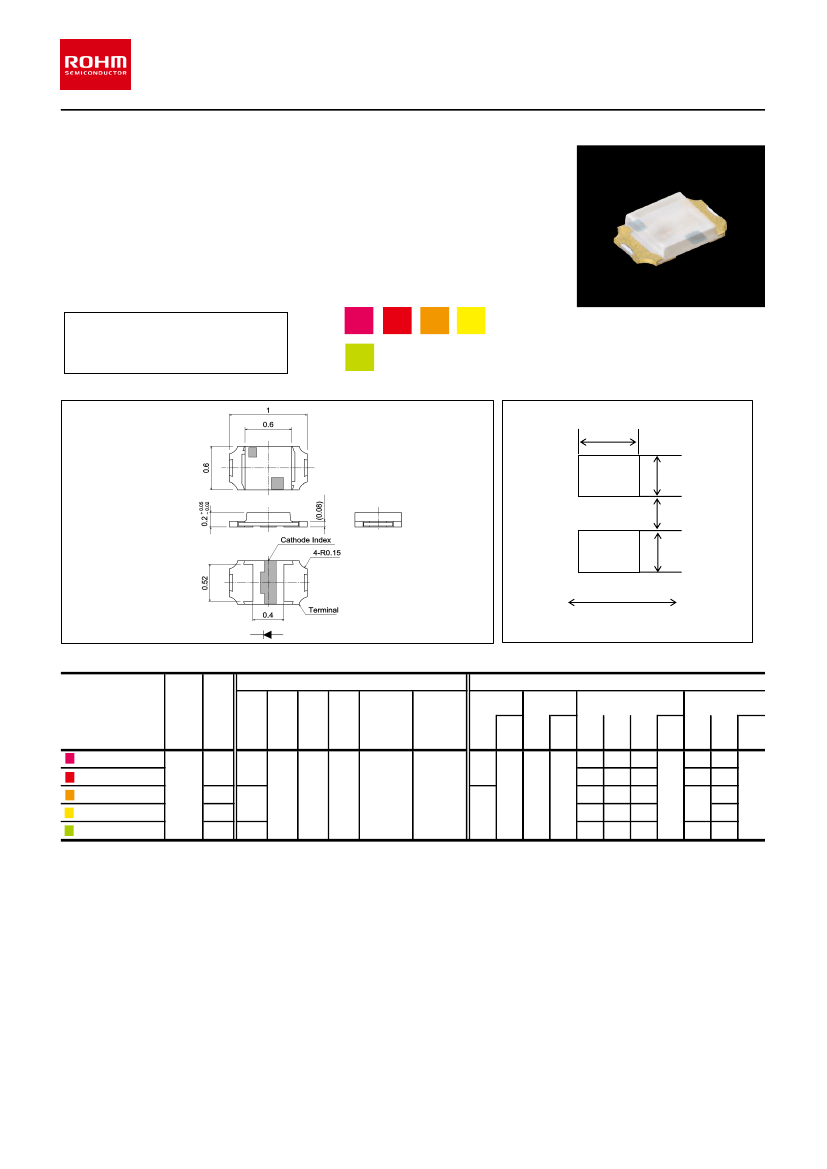

■Outline
■Features
• Ultra compact, thin size 1.0×0.6mm
• Accomplishes low power consuming application
specification assured at IF=1mA
■Size
1006 (0402)
1.0×0.6mm (t=0.2mm)
■Dimensions
Color
Type
V
M
U
D
Y
■Recommended Solder Pattern
0.6
0.5
0.4
0.5
PCB Bonding Direction
Tolerance : ±0.05
(unit : mm)
(unit : mm)
■Specifications
Absolute Maximum Ratings (Ta=25ºC)
Power
Forward
Peak Forward
Electrical and Optical Characteristics (Ta=25ºC)
Forward Voltage V
F
Reverse
Operating Temp.
Storage Temp.
Reverse Current I
R
Dominant Wavelength λ
D
Min.*
2
Luminous Intensity I
V
Part No.
Chip Structure
Emitting color
Dissipation
Current
Current
Voltage
Typ.
T
opr
(ºC)
T
stg
(ºC)
(V)
I
F
(mA)
Max.
(μA)
V
R
(V)
Typ.
Max.*
2
(nm)
(nm)
I
F
Min.
Typ.
I
F
P
D
(mW)
I
F
(mA)
I
FP
(mA)
V
R
(V)
(nm)
(mA) (mcd) (mcd) (mA)
SML-P11VT(R)
SML-P11UT(R)
SML-P11DT(R)
SML-P11YT(R)
SML-P11MT(R)
Red
AlGaInP
Orange
50
20
100*
1
1.8
5
-40½+85
-40½+100
1.9
1
10
5
622
616
626
621
605
586
569
632
626
609
591
574
1
1.6
1.0
4.0
1.0
4.0
2.5
7.3
7.6
2.1
1
52
Yellow
Yellowish green
601
583
566
54
*1 : Duty 1/10, 1kHz *2 : Measurment tolerance :±1nm
＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿
www.rohm.com
1/9
©2016 ROHM Co., Ltd. All rights reserved
2017.11 - Rev.006
[SML-P11x series]

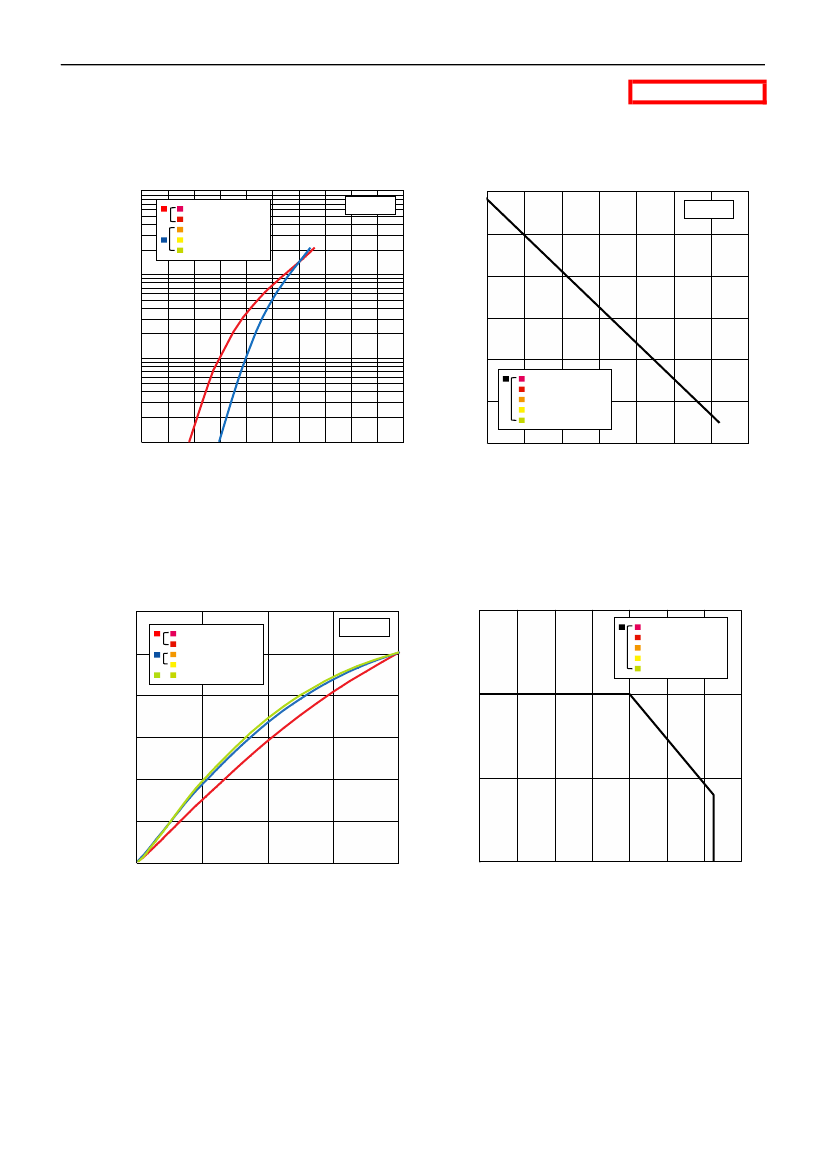

■Electrical Characteristics Curves
[Data Sheet]
Reference
Fig.2 Luminous Intensity -
Atmosphere Temperature
RELATIVE LUMINOUS INTENSITY [a.u.]
1.6
I
F
=1mA
Ta=25ºC
Fig.1 Forward Current
- Forward Voltages
100.0
FORWARD CURRENT : I
F
[mA]
SML-P11VT
SML-P11UT
SML-P11DT
SML-P11YT
SML-P11MT
1.4
10.0
1.2
1.0
1.0
0.8
SML-P11VT
SML-P11UT
SML-P11DT
SML-P11YT
SML-P11MT
0.6
0.1
1.5
2.0
2.5
0.4
- 40
-20
0
20
40
60
80
100
FORWARD VOLTAGE : V
F
[V]
ATMOSPHERE TEMPERATURE : Ta [ºC]
Fig.3 Luminous Intensity - Forward Current
1.2
30
Fig.4 Derating
MAXIMUM FORWARD CURRENT : [mA]
RELATIVE LUMINOUS INTENSITY
1.0
SML-P11VT
SML-P11UT
SML-P11DT
SML-P11YT
SML-P11MT
Ta=25ºC
SML-P11VT
SML-P11UT
SML-P11DT
SML-P11YT
SML-P11MT
0.8
20
0.6
0.4
10
0.2
0
0
5
10
15
20
0
- 40
-20
0
20
40
60
80
100
FORWARD CURRENT : I
F
[mA]
AMBIENT TEMPERATURE : Ta [ºC]
＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿
www.rohm.com
2/9
©2016 ROHM Co., Ltd. All rights reserved
2017.11 - Rev.006
[SML-P11x series]
■Viewing Angle
[Data Sheet]
Reference
SCANNING ANGLE (deg)
X
Y
SCANNING ANGLE (deg)
X’
Y’
30°
40°
50°
60°
20°
10°
0°
10°
20°
30°
40°
50°
60°
70°
80°
30°
40°
50°
20°
10°
0°
10°
20°
30°
40°
50°
60°
70°
80°
SML-P11VT
SML-P11UT
SML-P11DT
SML-P11YT
SML-P11MT
60°
70°
80°
90°
100
50
0
50
70°
80°
90°
100
50
0
50
90°
100
90°
100
RELATIVE INTENSITY (%)
RELATIVE INTENSITY (%)
＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿
www.rohm.com
3/9
©2016 ROHM Co., Ltd. All rights reserved
2017.11 - Rev.006
[SML-P11x series]
■Rank Reference of Brightness*
[Data Sheet]
*Measurement tolerance :±10%
Red(V,U)
Rank
Iv (mcd)
SML-P11VT
SML-P11UT
A
B
C
D
E
F
G
H
J
K
L
M
0.063 ½ 0.1
0.1 ½ 0.16
0.16 ½ 0.25
0.25 ½ 0.4
0.4½ 0.63
0.63 ½ 1.0
(Ta=25ºC, I
F
＝1mA)
N
16 ½ 25
P
25 ½ 40
1.0 ½ 1.6 1.6 ½ 2.5 2.5 ½ 4.0 4.0 ½ 6.3
6.3 ½ 10 10 ½ 16
Orange(D)
Rank
Iv (mcd)
SML-P11DT
A
B
C
D
E
F
G
H
J
K
L
M
0.063 ½ 0.1
0.1 ½ 0.16
0.16 ½ 0.25
0.25 ½ 0.4
0.4½ 0.63
0.63 ½ 1.0
(Ta=25ºC, I
F
＝1mA)
N
16 ½ 25
P
25 ½ 40
1.0 ½ 1.6 1.6 ½ 2.5 2.5 ½ 4.0 4.0 ½ 6.3
6.3 ½ 10 10 ½ 16
Yellow(Y)
Rank
Iv (mcd)
SML-P11YT
A
B
C
D
E
F
G
H
J
K
L
M
0.063 ½ 0.1
0.1 ½ 0.16
0.16 ½ 0.25
0.25 ½ 0.4
0.4½ 0.63
0.63 ½ 1.0
(Ta=25ºC, I
F
＝1mA)
N
16 ½ 25
P
25 ½ 40
1.0 ½ 1.6 1.6 ½ 2.5 2.5 ½ 4.0 4.0 ½ 6.3
6.3 ½ 10 10 ½ 16
Yellowish Green(M)
Rank
Iv (mcd)
SML-P11MT
A
B
C
D
E
F
G
H
J
K
L
M
0.063 ½ 0.1
0.1 ½ 0.16
0.16 ½ 0.25
0.25 ½ 0.4
0.4½ 0.63
0.63 ½ 1.0
(Ta=25ºC, I
F
＝1mA)
N
16 ½ 25
P
25 ½ 40
1.0 ½ 1.6 1.6 ½ 2.5 2.5 ½ 4.0 4.0 ½ 6.3
6.3 ½ 10 10 ½ 16
＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿
www.rohm.com
4/9
©2016 ROHM Co., Ltd. All rights reserved
2017.11 - Rev.006
[SML-P11x series]
±0 . 1
4.00
± 0. 1
[Data Sheet]
■Taping(T86)
φ1 .5
+0 . 1
0
8. 0 0
3 . 50
±0 . 0 5
1 .7 5
A
0 ½0 . 50
2 .0 0
± 0 .0 5
1 . 10
± 0. 0 5
0 .7 0
±0 . 0 5
0. 3 2
± 0. 0 5
Enlarged drawing of "A"
11 . 4
±1
A部詳 細
5 .5 0
Unit:½½
φ1 3
Note)Tolerance is within ±0.1mm unless
+1
0
0
-3
Packing quantity
5,000pcs/reel
■Part No. Construction
*"-"will be taken out for emitting color
WB/B/E series.
Pulling
Direction
Special Code will be applied for
Emitting color WB/B/E series.
φ 18 0
φ60
otherwise specified.
Chromaticity rank
(for white LED）
Rank sign
(Brightness Rank)*
S
Series name
M
L
－
P
Package Type
1
1
M
T
Resin Color
T
8
6
H
Chip type Emitting Color
Taping Specification
SML
Chip LED
P1
1.0x0.6 t=0.2mm
E1
1.6x0.8 t=0.36mm
D1
1.6x0.8 t=0.55mm
H1
M1
2.0x1.25 t=0.8mm
0
1
2
3
4
5
6
7
8
Standard Type
Low Current Type
V
U
U2
D
Y3
Y2
Red
Red
Red
Orange
Yellow
Yellow
Yellow
Yellow
T
B
Transparent Colorless
T86
T87
1
3
Cathode at sprocket hole side(the top)
W
Milkey White
Black
Anode at sprocket hole side(the top)
High Brightness type
For white LED,
csthode at sprocket hole side
01
3.0x2.0 t=1.3mm
Z1/ZN
notice）S1 series、81 seires
T86
T68
Cathode at sprocket hole side(the back)
3.5x2.8 t=1.9mm
3.4x1.25 t=1.1mm
Ultra High Brightness type
Y
W
A1
1.6x1.15 t=0.55mm
81/82
Cathode at sprocket hole side(the top)
M2
Yellowish green
K1
4.5x2.0 t=0.6mm
S1
3.2x1.6 t=1.85mm
P2
1.0x1.0 t=0.2mm
52
1.3x1.5 t=0.6mm
P34
P36
M Yellowish green
F
P
E
B
WB
*Concerning the Brightness rank.
*Please refer to the rank chart above for
luminous intensity classification.
*Part name is individual for each rank.
*When shipped as sample,the part name will
be a representative part name.
General products are free of ranks.
Please contact sales if rank appointment
is needed.
Green
Green
Green
Blue
White
Red/Green/Blue
1.0x1.0 t=0.2mm
1.5x1.0 t=0.2mm
VN
3.5x2.8 t=0.6mm
T Phototransistors
RGB
SCM
Chip LED
01
3.0x1.5 t=2.2mm
■Packing Specification
ROHM LED products are being shipped with desiccant (silica gel) included in moisture-proof bags.
Pasting the moisture sensitive label on the outer surface of the moisture-proof bags
or enclosing the humidity indication card inside the bag is available upon request.
Please contact the nearest sales office or distributer if necessary.
＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿
www.rohm.com
5/9
©2016 ROHM Co., Ltd. All rights reserved
2017.11 - Rev.006
