OPA733WD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> OPA733WD

OPA733WD: DescriptionLED Lighting Modules Rnd Spot 1W LED White Dome Lens; CategoryLED optoelectronic/LED; File Size105KB，1 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric Compare View All

OPA733WD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	OPA733WD	-	-	View	Buy Now

OPA733WD Overview

LED Lighting Modules Rnd Spot 1W LED White Dome Lens

OPA733WD Parametric

Parameter Name	Attribute value
Product Category	LED Lighting Modules
Manufacturer	TT Electronics plc
RoHS	Details
Product	LED Modules, Circular
Number of LEDs	1
Illumination Color	White (Cool White)
Wavelength/Color Temperature	6500 K
Luminous Flux/Radiant Flux	48 lm
If - Forward Current	350 mA
Vf - Forward Voltage	3.6 V
Packaging	Bulk
Color Temperature	6500 K
Diameter	38.1 mm
Height	7.62 mm
Mounting Style	SMD/SMT
Power Rating	1 W
Size	38.1 mm x 7.62 mm
Factory Pack Quantity	25
Type	LED Single Point Lighting
Viewing Angle	40 deg

Preview

Download Datasheet

View All

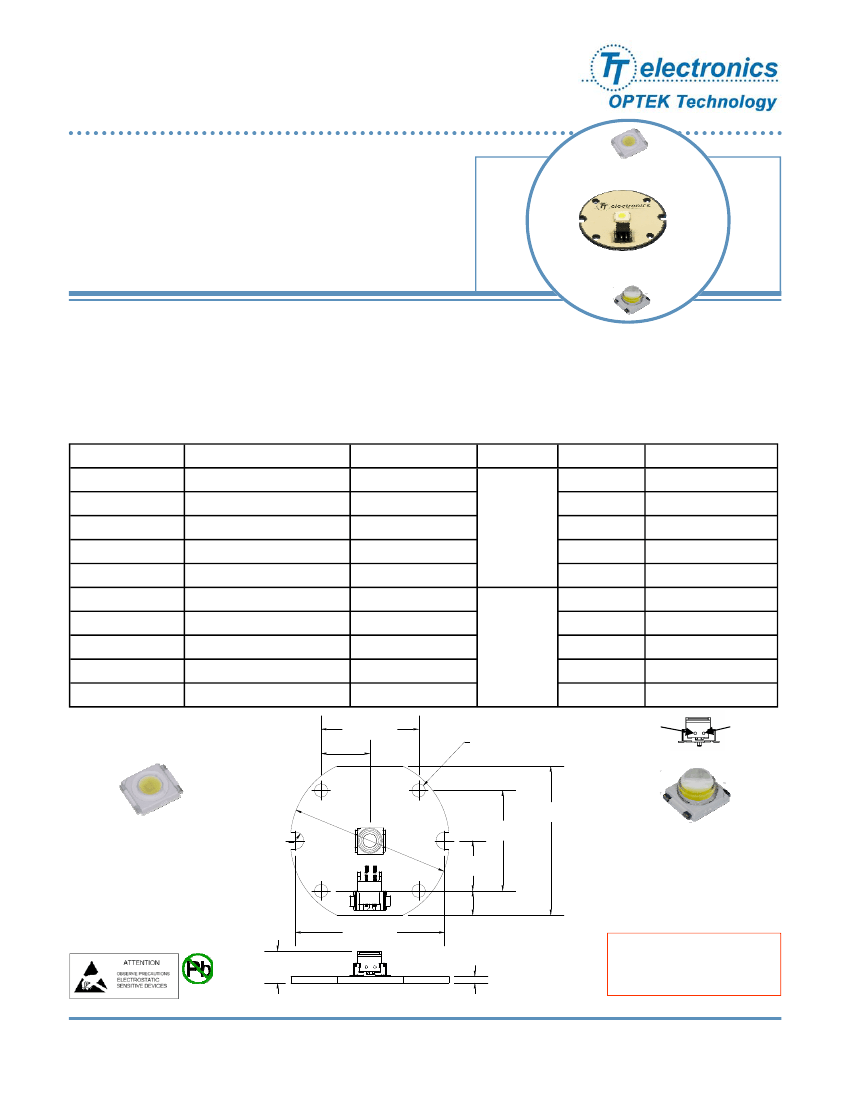

OPA733 Series

1 Watt Light Spot on

OptoTherm Linear Heat Spreader

OPA733 Series

•

1 watt LED on round substrate

Mono-color per strip (Blue, Green, Red, Yellow, White)

Two component beam angle options (120° or 40°)

Universal connector (Tyco 2-292173-2 mates with 173977-2)

RoHS Compliant

OPA733_ (120° Beam Angle)

Product Photo Here

OPA733_D (40° Beam Angle)

The

OPA733

Series are designed for areas where lighting intensity and reliability

are essential. The light beam angles of 40° and 120° are ideal for illuminating small and medium size areas while

requiring minimal space. A High Performance Heat Spreader (HPHS) is used to ensure the best heat dissipation

of any light assembly in the industry.

For custom colors and design contact your OPTEK representative.

Electrical / Optical Characteristics: T

=25°C, I

=350mA

Part Number

OPA733Y

OPA733B

OPA733G

OPA733R

OPA733W

OPA733YD

OPA733BD

OPA733GD

OPA733RD

OPA733WD

Typical Forward Voltage (V)

2.5

3.6

2.5

3.6

2.5

3.6

2.5

3.6

0.920 [23.37]

4X Ø0.125 [Ø3.18]

0.460 [11.68]

Luminous Flux (lm)

Beam Angle

Color

Yellow

Blue

Dominant Wavelength

587 nm

470 nm

530 nm

625 nm

6,500°K

587 nm

470 nm

530 nm

625 nm

6,500°K

Ground

120°

Green

Red

White

Yellow

Blue

40°

Green

Red

White

+ Voltage

Ø1.500 [Ø38.10]

1.365±0.015 [34.67±0.38]

0.920 [23.37]

OPA733_

See OVSP_BCR4 for

component specifications

2X Ø0.160 [Ø4.06]

0.460 [11.68]

OPA733_D

0.222 [5.65]

See OVSP_4CR44 for

component specifications

1.408 [35.76]

0.300 Typ. [7.62]

0.070±0.010 [1.78±0.25]

DO NOT LOOK DIRECTLY AT LED

WITH UNSHIELDED EYES OR

DAMAGE TO RETINA MAY

OCCUR.

RoHS

OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.

OPTEK Technology Inc. —

1645 Wallace Drive, Carrollton, Texas 75006

Phone: (972) 323-2200 or (800) 341-4747

FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com

Issue A.2

09/08

Page 1 of 1
