Touch Screens
Series FT
Toggles
Resistive
Touch Screens
5-Wire, 4-Wire & Digital Solutions

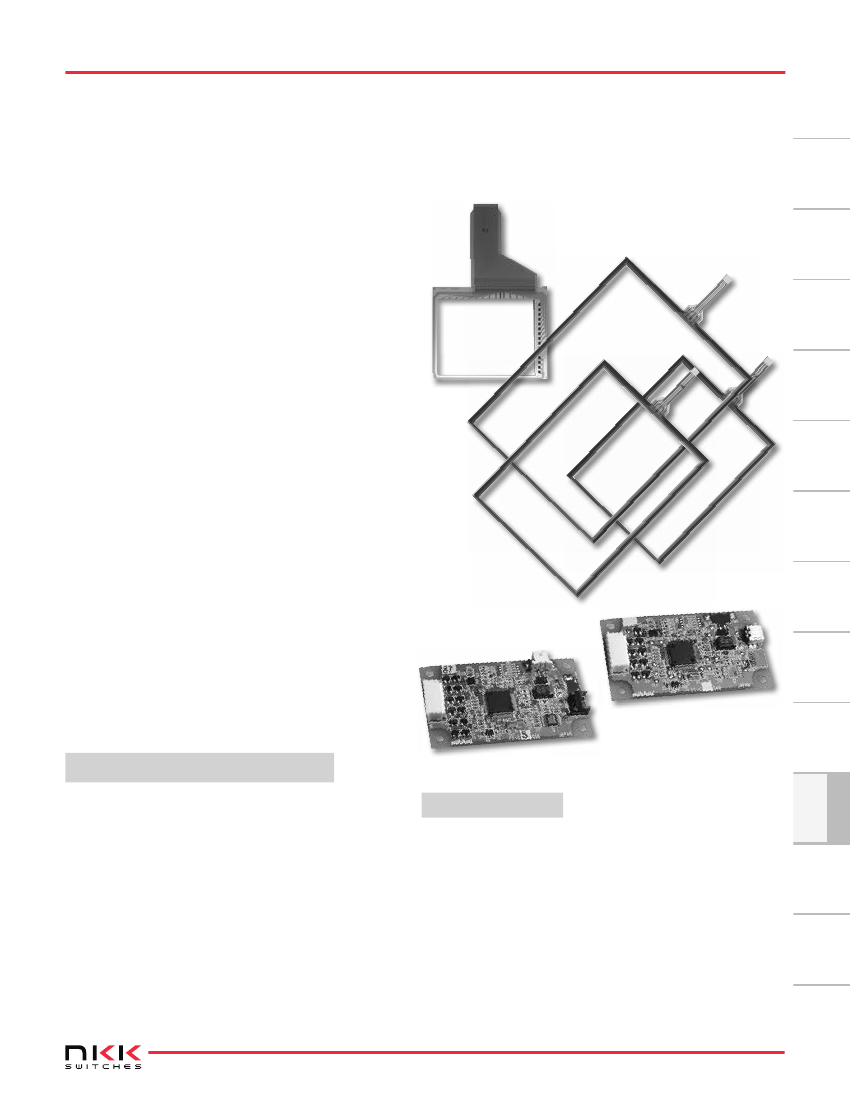

NKK’s transparent touch screens are engineered
to complement the application of choice while
offering superior durability and flexibility. With
options in multiple sizes, and choices of input
by finger, gloved finger or stylus, we maintain a
consistent focus on impeccable quality and value
added solutions with the diverse needs of our
customers at the forefront.
Whether an application requires the 5- or 4-wire
technology, the features include metal tails (analog),
contact reliability with a connector, and ANR film,
eliminating many of the typical visual artifacts. The
film surface is non-glare and hard coated for ease of
use and integrity of the surface.
Additional benefits of NKK’s 5-wire touch screens
include:
• Screens highly resistant to static electricity
and noise pollution
• Drift-free operation despite any temperature
fluctuation
• Greater touch point density translating
to more precision and reduction of false
actuations
• Quicker response time
DISTINCTIVE CHARACTERISTICS
• Wide Range of Available Sizes
• Custom Solutions a Specialty
• Digital and Analog Solutions
• Controllers Available
• Anti-Newton Ring (ANR) Technology
for Analog Touch Screens
• Design Minimizes Visual Artifacts
• RoHS Compliant
www.nkk.com
L3
Touch
Supplement
Accessories
Indicators
APPLICATIONS
• Information Kiosks
• Industrial Automation
• Banking, Exchange
Management Systems
• Broadcast
• Office Automation
• Medical Equipment
• Hand-held Devices
• Hospitality and
Restaurant
• Gaming
L
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
Pushbuttons
Rockers
Series FT
Touch Screens
Customization
Options
Parameter
Resistive Analog Touch Screen
Integrate LCD & Touchscreen
5-Wire - Screen Size Diagonal Inches
4-Wire - Screen Size Diagonal Inches
Data Entry Area mm x mm
Viewable Area mm x mm
Perimeter Dimensions mm x mm
Tail Type
Tail Pitch
Tail Pins
Tail Length
Tail Base Width
Tail Location
Tail Material
PCB standard, FPC option
1.25mm is standard
8 is standard, 4 is option
2 standard options: 65mm or 80mm
28.2mm is standard
Left side is standard, non-std options top or bottom
Carbon-coated silver is standard, option is copper-gold
1.1 and 1.8mm are standard (note: total thickness = glass thickness + 0.3mm)
Standard
Standard
80% is standard
Yes - No (no = customer will supply)
USB or RS232
Windows 7 or Windows XP
4-Wire or 5-Wire
Yes - No
Standard 10.4, 12.1, 15 (min 10.4, max 19)
Standard 5.7, 6.5, 8.4, 10.4, 12.1, 15 (min 2.5, max 19)
Same as the dimensions of the display area of the LCD
Same as the dimensions of the bezel opening of the LCD
Notes & Options
Slides
Rotaries
Keylocks
Programmable Illuminated PB
Pushbuttons
Rockers
Toggles
Glass Thickness
Hardcoat Treatment
Anti-Newton Ring Treatment
Optical Transmission Factor
Controller
Tactiles
Tilt
Communication
Operating System
L
Supplement
Accessories
Indicators
Touch
L4
www.nkk.com
Series FT
Toggles
4-Wire Touch Screens
GENERAL SPECIFICATIONS FOR 4-WIRE
4-Wire Analog Resistive Touch Screens
Rockers
Optical
Light Transmission
Film Options
Power Level
Insulation Impedance
Linearity
Chattering Time
Touch Activation Force
Available Sizes
Surface Hardness
Expected Operational Life
Operating Temperature Range
Storage Temperature Range
Relative Humidity
Analog: 80% standard
Digital: 78% standard
Anti-glare, anti-Newton ring standard
Electrical
1mA @ 5V DC (resistive load)
10MΩ minimum @ 25V DC
3% maximum (analog)
10 milliseconds maximum
Mechanical
1.4N maximum
5.7” ~ 15” standard
Durability
2H (JIS K5600)
1,000,000 operations minimum
Environmental
–10°C ~ +60°C (+14°F ~ +140°F)
–20°C ~ +70°C (–4°F ~ +158°F)
+60°C (+140°F), humidity 90%, 240 hours
Programmable Illuminated PB
Pushbuttons
Slides
Rotaries
Keylocks
Analog
FTAS00-57AS4
PART NUMBERS & DESCRIPTIONS FOR 4-WIRE
Tactiles
4-Wire Analog Touch Screens
Part Number
Screen
Size in
Inches
5.7
6.5
8.4
10.4
10.4
12.1
12.1
15.0
Key Area
Dimensions
4.54” x 3.40”
(115.2mm x 86.4mm)
5.20” x 3.90”
(132.0mm x 99.0mm)
6.73” x 5.10”
(170.9mm x 129.6mm)
8.32” x 6.24”
(211.2mm x 158.4mm)
8.35” x 6.28”
(212.2mm x 159.4mm)
9.72” x 7.30”
(246.76mm x 185.32mm)
9.69” x 7.26”
(246.0mm x 184.5mm)
12.05” x 9.06”
(306.1mm x 230.1mm)
Viewing Area
Dimensions
4.76” x 3.61”
(121.0mm x 91.6mm)
5.43” x 4.13”
(138.0mm x 105.0mm)
6.95” x 5.33”
(176.5mm x 135.4mm)
8.47” x 6.39”
(215.0mm x 162.4mm)
8.52” x 6.43”
(216.4mm x 163.4mm)
10.04” x 7.53”
(255.0mm x 191.32mm)
9.84” x 7.42”
(250.0mm x 188.5mm)
12.21” x 9.25”
(310.0mm x 235.0mm)
External
Dimensions
5.16” x 3.98”
(131.0mm x 101.0mm)
5.91” x 4.57”
(150.0mm x 116.0mm)
7.34” x 5.69”
(186.5mm x 144.4mm)
8.88” x 6.75”
(225.6mm x 171.4mm)
8.92” x 7.21”
(226.5mm x 183.0mm)
10.67” x 8.07”
(271.0mm x 205.0mm)
10.28” x 7.80”
(261.0mm x 198.0mm)
12.91” x 9.84”
(328.0mm x 250.0mm)
.083”
(2.1mm)
Panel
Thickness
.055”
(1.4mm)
* Terminal Detail
8 Pin
.049” (1.25mm) Pitch
Length
2.56” (65.0mm)
Length
2.56” (65.0mm)
Length
3.15” (80.0mm)
Length
3.15” (80.0mm)
Length
3.15” (80.0mm)
Length
3.15” (80.0mm)
Length
3.15” (80.0mm)
Length
3.15” (80.0mm)
Tilt
FTAS00-57AS4
FTAS00-65AS4
L
Touch
FTAS00-84AS4
FTAS00-104AS4
Indicators
FTAS00-104AV4
FTAS00-121A4
FTAS00-121AS4
FTAS00-150A4
Accessories
Supplement
Note: Input methods are finger or stylus.
*
4 pin available with 1.0mm or 1.25mm pitch. Contact factory for details.
L8
www.nkk.com
4-Wire Touch Screens
4-Wire with Horizontal Tail
(80.0) ±1
3.15
(70.0)
2.76
(60.0)
2.36
Pin 1
Series FT
A
B
Viewable Area
C
Active Area
(1.5) Air Vent
.059
Y
UP
(1.25) Typ (5.0)
.049
.197
D E F
(0.5)
.020
(28.2)
1.11
Reinforcement Film
(16x24)
Y
LO
G
(65.0) ±1
2.56
(55.0)
2.17
(45.0)
1.77
Pin 1
Center of Active Area
Tail Dimensions for
FTAS00-57AS4
FTAS00-65AS4
(10.0)
.394
Pin 8
Contact Side
Insulation Film
Top Electrode
(0.3) ±0.05
.012
Tail
Stiffener
Y
UP
1
8
Y
LO
Reinforcement Film
Bottom Electrode
H
Signal
Y
UP
Y
LO
X
LE
X
RI
Pins
X
RI
X
LE
1,2
3,4
5,6
7,8
4-Wire Analog Touch Screen Dimensions
Part Number
FTAS00-57AS4
FTAS00-65AS4
FTAS00-84AS4
FTAS00-104AS4
FTAS00-121AS4
FTAS00-150A4
Screen
Size in
Inches
5.7
6.5
8.4
10.4
12.1
15.0
Dim A
5.16”
(131±0.3mm)
5.91”
(150±0.3mm)
7.34”
(186.5±0.3mm)
8.88”
(225.6±0.3mm)
10.28”
(261±0.3mm)
12.91”
(328±0.3mm)
Dim B
Viewable
Area
4.76”
(121mm)
5.43”
(138mm)
6.95”
(176.5mm)
8.46”
(215mm)
9.84”
(250mm)
12.20”
(310mm)
Dim C
Active
Area
4.54”
(115.2mm)
5.20”
(132mm)
6.73”
(170.9mm)
8.31”
(211.2mm)
9.69”
(246mm)
12.05”
(306.1mm)
Dim D
3.40”
(86.4mm)
3.90”
(99mm)
5.10”
(129.6mm)
6.24”
(158.4mm)
7.26”
(184.5mm)
9.06”
(230.1mm)
Dim E
Viewable
Area
3.61”
(91.6mm)
4.13”
(105mm)
5.33”
(135.4mm)
6.39”
(162.4mm)
7.42”
(188.5mm)
9.25”
(235mm)
Dim H
.055”
(1.4mm)
.055”
(1.4mm)
.083”
(2.1mm)
.083”
(2.1mm)
.083”
(2.1mm)
.083”
(2.1mm)
4.57”
(116±0.3mm)
5.69”
(144.4±0.3mm)
6.75”
(171.4±0.3mm)
7.80”
(198±0.3mm)
9.84”
(250±0.3mm)
3.03”
(77mm)
3.73”
(94.85mm)
4.49”
(114.1mm)
5.18”
(131.6mm)
6.52”
(165.6mm)
www.nkk.com
L9
Supplement
Accessories
Indicators
3.98”
(101±0.3mm)
2.65”
(67.25mm)
Touch
Dim F
Active Area
Dim G
Center of
Active Area
L
Tilt
XLE, XRI: Top Electrode Terminal
YUP, YLO: Bottom Electrode Terminal
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
(11.25) ±0.1
.443
(0.8) Typ
.031
Pin 8
Center of Active Area
Pushbuttons
(10.0)
.394
X
LE
X
RI
Rockers
Toggles
Series FT
Toggles
4-Wire Touch Screens
4-Wire with Vertical Tail
FTAS00-104AV4
Rockers
(11.25) ±0.1
.443
(0.3) ±0.05
.012
(0.8) Typ
.031
(0.5)
.020
Pin 8
(1.25) Typ
.049
(5.0)
.197
(10.0)
.394
Pin 1
(60.0)
2.36
(70.0)
2.76
Pushbuttons
Contact Side
Stiffener
Tail
Programmable Illuminated PB
Insulation Film
(28.2)
1.11
(80.0) ±1
3.15
Reinforcement Film
(16X24)
Reinforcement Film
Top Electrode
Y
UP
(94.5)
3.72
Keylocks
X
LE
Bottom Electrode
X
RI
Rotaries
(159.4) (163.4)
6.28 6.43
(183.0) ±0.3
7.20
Center of Active Area
Slides
Y
LO
(2.1) ±0.2
.083
(1.5) Air Vent
.059
Tactiles
(114.5) Center of Active Area
4.51
(212.2) Active Area
8.35
(216.4) Viewable Area
8.52
(226.5) ±0.3
8.92
Tilt
L
8
1
Indicators
Touch
Pins
1,2
3,4
5,6
7,8
Signal
Y
UP
Y
LO
X
RI
X
LE
X
LE
Y
UP
Accessories
X
RI
Y
LO
XLE, XRI: Top Electrode Terminal
YUP, YLO: Bottom Electrode Terminal
Supplement
L10
www.nkk.com
