NHD-5.0-800480TF-ATXL#
TFT (Thin-Film-Transistor) Color Liquid Crystal Display Module
NHD-
5.0-
800480-
TF-
A-
T-
X-
L-
#
Newhaven Display
5.0” Diagonal
800xRGBx480 Pixels
Model
Built-in Driver / No Controller
White LED Backlight
TFT
MVA, Enhanced Optical Characteristics, Wide Temperature
RoHS Compliant
Newhaven Display International, Inc.
2661 Galvin Court
Elgin IL, 60124
Ph: 847-844-8795
Fax: 847-844-8796
www.newhavendisplay.com
nhtech@newhavendisplay.com
nhsales@newhavendisplay.com
Document Revision History
Revision
0
1
2
3
4
5
6
7
8
Date
3/20/2013
8/28/2013
9/16/2014
9/2/15
10/30/15
2/23/16
4/5/16
7/22/16
4/14/17
Description
Initial Release
Electrical characteristics updated
Electrical characteristics updated
Driver, Electrical, Optical characteristics updated
Backlight lifetime rating added, Datasheet Reformat
Corrected Notes on Drawing
Brightness Updated
Updated Mechanical Drawing, Electrical Characteristics
Supply Current Updated
Changed by
AK
AK
ML
AK
SB
SB
SB
TM
SB
Functions and Features
•
•
•
•
•
800xRGBx480 resolution, up to 16.7M colors
18-LED backlight
24 bit RGB interface
Enhanced Optical Characteristics
Wide Viewing Angles
[2]

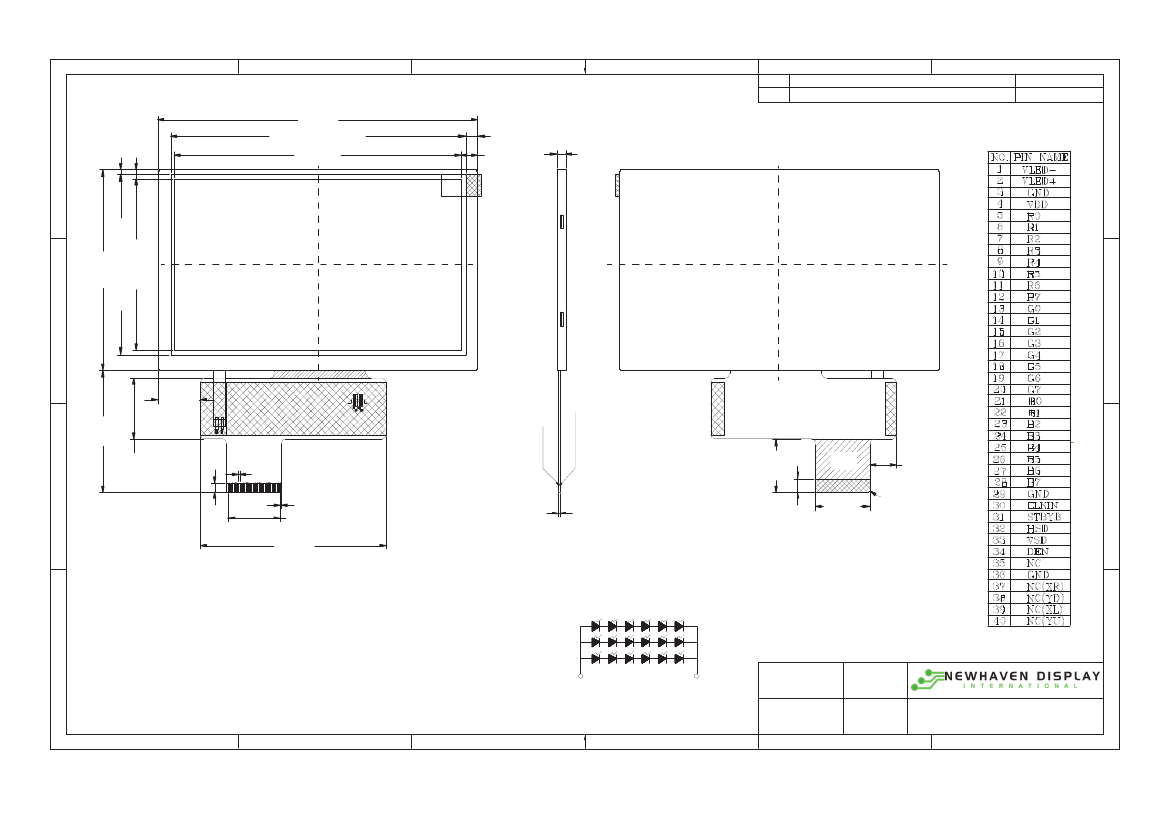

Mechanical Drawing
1
2
3
4
Rev
5
Description
120.7±0.3
111.1±0.2(Bezel Opening)
108(TFT A,A)
4.8±0.2
(6.35)
3.1±0.2
(3.36)
A
FRONT
800(RGB)*480
B
C
Notes:
1. Display size: 5.0” TFT
2. Display mode: MVA/Transmissive/Normally Black/Anti-glare
3. Power Supply Voltage: 3.3V
D
4. Driver IC: OTA7001A
5. Backlight: White LED / 19.2V (Typ) / 60mA (Typ)
6. Brightness: 500 cd/m² (Typ)
7. 3M Brightness Enhancement Film
1
2
The drawing contained herein is the exclusive property of Newhaven Display International, Inc. and shall not be copied, reproduced, and/or disclosed in any format without permission.
F
N
O
C
16.15±0.3
C OMPONE NT
AREA
23±0.2
W=0.3
1
40
0.5±0.1
3.5±0.3
P0.5*39=19.5±0.05
70.06±0.3
E
D
I
S TIFFEN ER (PI)
C on ta ct side
0.3±0.05
BACK
5.0" TFT
T
N
Newhaven Display
NHD-5.0-800480TF-ATXL#_rev14
20±0.2
S I NGLE
A REA
L
A
I
6
Date
10±0.2
1.82±0.2
67.9±0.2(Bezel Opening)
75.8±0.3
46±0.3
A
64.8(TFT A,A)
B
20.5±0.1
R0.
3
C
5±0.5
D
A+
4
K-
07/22/16
Gen. Tolerance
Date
Unit
±0.3mm
mm
Model:
NHD-5.0-800480TF-ATXL#
3
5
6
[3]
Pin Description
Pin No.
1
2
3
4
5-12
13-20
21-28
29
30
31
32
33
34
35
36
37
38
39
40
Symbol
LED-
LED+
GND
V
DD
[R0-R7]
[G0-G7]
[B0-B7]
GND
CLKIN
STBYB
HSD
VSD
DEN
NC
GND
XR
YD
XL
YU
External Connection
LED Power Supply
LED Power Supply
Power Supply
Power Supply
MPU
MPU
MPU
Power Supply
MPU
MPU
MPU
MPU
MPU
-
Power Supply
-
-
-
-
Function Description
Ground for Backlight
Backlight Power Supply (60mA @ 19.2V)
Ground
Power supply for LCD and logic (3.3V)
Red Data Signals
Green Data Signals
Blue Data Signals
Ground
Clock for input data (Rising Edge)
1: Normal Operation; 0: Standby Mode
Line synchronization signal
Frame synchronization signal
Data Enable signal
No Connect
Ground
No Connect
No Connect
No Connect
No Connect
Recommended LCD connector:
0.5mm pitch 40-Conductor FFC. Molex p/n: 54104-4031 (top contact)
Backlight connector:
on LCD connector
Mates with:
---
[4]
Electrical Characteristics
Item
Operating Temperature Range
Storage Temperature Range
Supply Voltage
Supply Current
“H” Level input
“L” Level input
“H” Level output
“L” Level output
Backlight Supply Current
Backlight Supply Voltage
Backlight Lifetime*
Symbol
T
OP
T
ST
V
DD
I
DD
V
IH
V
IL
V
OH
V
OL
I
LED
V
LED
-
Condition
Absolute Max
Absolute Max
-
V
DD
= 3.3V
-
-
-
-
-
I
LED
= 60mA
I
LED
= 60mA
T
OP
= 25°C
Min.
-20
-30
3.0
50
0.7 * V
DD
GND
V
DD
- 0.4
GND
-
17.4
20,000
Typ.
-
-
3.3
100
-
-
-
-
60
19.2
50,000
Max.
+70
+80
3.6
170
V
DD
0.3 * V
DD
V
DD
GND + 0.4
75
19.8
-
Unit
⁰C
⁰C
V
mA
V
V
V
V
mA
V
Hrs.
*Backlight lifetime is rated as Hours until
half-brightness,
under normal operating conditions. The LED of the backlight is driven by current drain; drive voltage is for
reference only. Drive voltage must be selected to ensure backlight current drain is below MAX level stated.
Optical Characteristics:
Optimal
Viewing
Angles
Contrast Ratio
Luminance
Response Time
Item
Top
Bottom
Left
Right
Symbol
ϕY+
ϕY-
θX-
θX+
CR
L
V
T
R
+ T
F
Condition
CR
≥
10
-
I
LED
= 60 mA
T
OP
= 25°C
Min.
60
60
60
60
-
400
-
Typ.
75
75
75
75
350
500
20
Max.
-
-
-
-
-
-
30
Unit
⁰
⁰
⁰
⁰
-
2
cd/m
ms
Driver Information
Built-in OTA7001A Source Driver:
http://www.newhavendisplay.com/app_notes/OTA7001A_V04.pdf
Built in OTD9960A Gate Driver:
http://www.newhavendisplay.com/app_notes/OTD9960A_V03.pdf
[5]
