Watertight Panel Mount Indicators
677 Series
On when
it counts.
Mechanical Information:
Mounting hole size:
Max panel thickness:
Mounting torque:
0.283” (7.2mm)
See part numbers
0.362 lbs/ft (5 kg/cm)
Figure 3 only - 0.217 lbs/ft (3 kg/cm)
Electrical Specifications:
Operating voltage:
Operating temperature:
Storage temperature:
6, 12 & 24 VDC (no resisitor required)
-4°F to +167°F (-20°C to +75°C)
-40°F to +212°F (-40°C to +100°C)
Solder terminals and 6” wire leads
Application
• Main power indication
• Remote power indication
• Status indication
• Maintenance and warning indication
• Instrumentation
...and many more!
Electrical connection:
Construction:
Housing:
Protruding & recessed positions;
Chrome plated brass; Polycarbonate
All values typical unless otherwise stated
Certifications & Ratings
• RoHS compliant
• NEMA 4X
• IP66
Features & Benefits
• Low power consumption - uses up to 90% less energy than
an incandescent indicator
• No heat generated
• Long life, lasting up to 100K hours
• Colors include red, green, orange, and blue
• Front panel mounting
• LED can be recessed, protrude, and internal from housing
www.dialight.com | MDEL677CR_C
1
Watertight Panel Mount Indicators

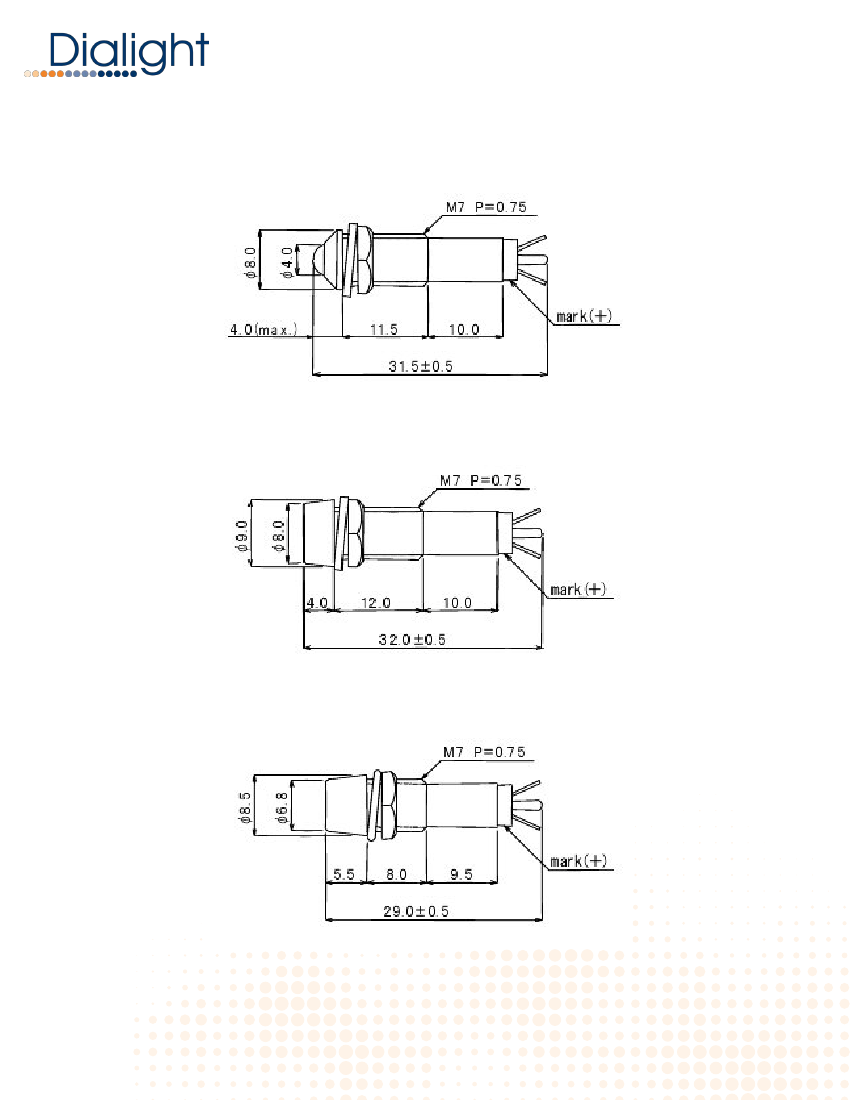

Panel Mount Indicator Dimensions
677 Series
Figure 1
Figure 2
Figure 3
Dimensions are in mm
www.dialight.com | MDEL677CR_C
2
Watertight Panel Mount Indicators
Part Number
677-1112-321F
677-1212-322F
677-1312-323F
677-1412-324F
677-1112-331F
677-1212-332F
677-1312-333F
677-1412-334F
677-1112-341F
677-1212-342F
677-1312-343F
677-1412-344F
677-2112-321F
677-2212-322F
677-2312-323F
677-2412-324F
677-2112-331F
677-2212-332F
677-2312-333F
677-2412-334F
677-2112-341F
677-2212-342F
677-2312-343F
677-2412-344F
677-3132-321F
677-3232-322F
677-3332-323F
677-3432-324F
677-3132-331F
677-3232-332F
677-3332-333F
677-3432-334F
677-3132-341F
677-3232-342F
677-3332-343F
677-3432-344F
Color
RED
GREEN
ORANGE
BLUE
RED
GREEN
ORANGE
BLUE
RED
GREEN
ORANGE
BLUE
RED
GREEN
ORANGE
BLUE
RED
GREEN
ORANGE
BLUE
RED
GREEN
ORANGE
BLUE
RED
GREEN
ORANGE
BLUE
RED
GREEN
ORANGE
BLUE
RED
GREEN
ORANGE
BLUE
Voltage (VDC)
6
6
6
6
12
12
12
12
24
24
24
24
6
6
6
6
12
12
12
12
24
24
24
24
6
6
6
6
12
12
12
12
24
24
24
24
Current
(mA)
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
Typical Intensity
(mcd)
825
4135
560
700
825
4135
560
700
825
4135
560
700
925
4135
600
730
925
4135
600
730
925
4135
600
730
1370
5500
1280
1200
1370
5500
1280
1200
1370
5500
1280
1200
LED Positions
PROTRUDING
PROTRUDING
PROTRUDING
PROTRUDING
PROTRUDING
PROTRUDING
PROTRUDING
PROTRUDING
PROTRUDING
PROTRUDING
PROTRUDING
PROTRUDING
RECESSED
RECESSED
RECESSED
RECESSED
RECESSED
RECESSED
RECESSED
RECESSED
RECESSED
RECESSED
RECESSED
RECESSED
INTERNAL
INTERNAL
INTERNAL
INTERNAL
INTERNAL
INTERNAL
INTERNAL
INTERNAL
INTERNAL
INTERNAL
INTERNAL
INTERNAL
Figure
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
0.187”
(4.75mm)
0.366”
(8.50mm)
0.265”
(6.76mm)
Panel Thickness
677 Series
*For wire leads replace the 7th digit with “5”. For example 679-1115-321F
Dialight reserves the right to make changes at any time in order to supply the best product possible. The most current version of this document will always be available at: www.dialight.com/
Assets/Brochures_And_Catalogs/Illumination/MDEL677CR.pdf.
Warranty Statement: EXCEPT FOR THE WARRANTY EXPRESSLY PROVIDED FOR [HEREIN/ABOVE/BELOW], DIALIGHT DISCLAIMS ANY AND ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND NONINFRINGEMENT.
www.dialight.com | MDEL677CR_C
MDEL677CR_C
3
