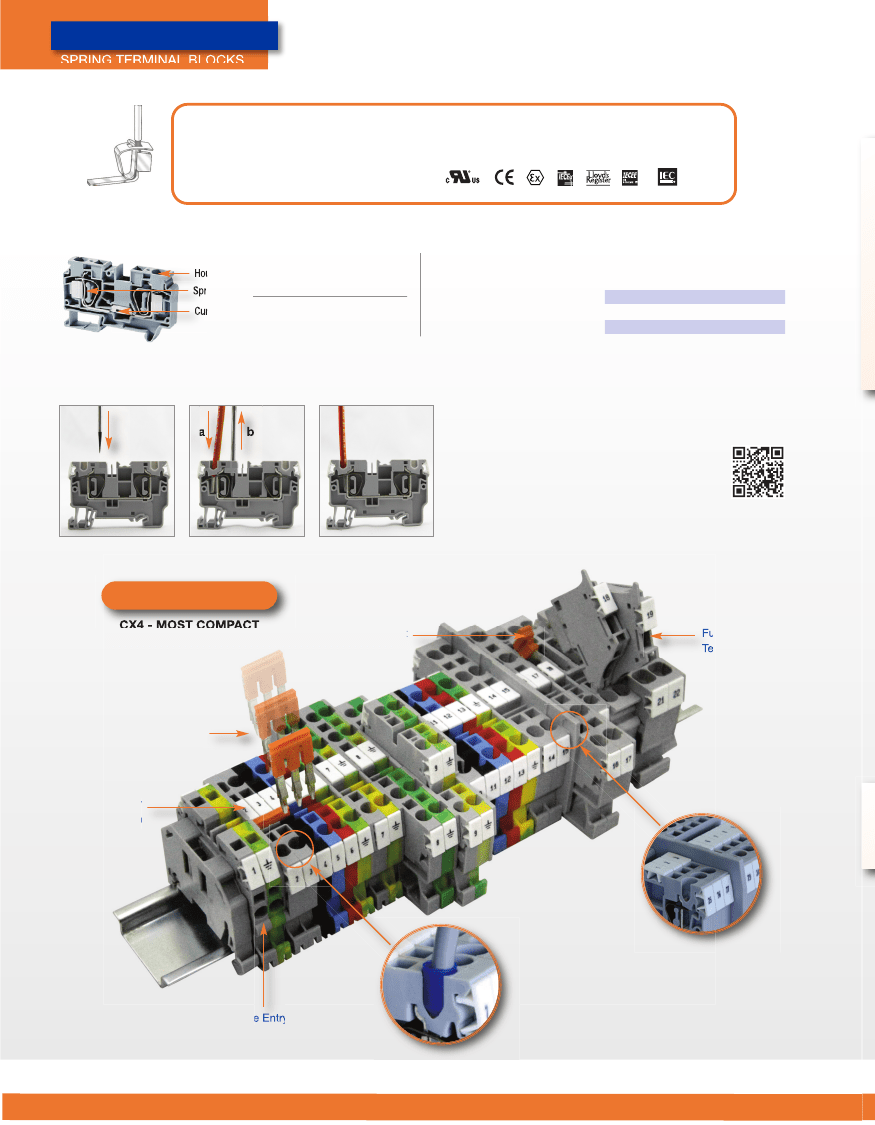

OVERVIEW
SPRING TERMINAL BLOCKS
SPRING CLAMP TECHNOLOGY
•
Easy Installation
•
Versatile and Vibration Proof
•
Reliable Gas-tight connection
•
Fail proof, safe connection
INTRODUCTION
•
NO torque requirements
•
Maintenance free
•
Terminals accept wires with/ without ferrules
E220514
60947-7-1
MATERIAL SPECIFICATIONS
Current Carrying Metal
Corrosion free material
•
Spring: Stainless Steel
•
Current Bar: copper tin
plated
Terminal Block Housing
•
Polyamide PA66 Housing
•
Self-extinguishing
•
High mechanical strength
Polyamide 66 Specifications
Upper Temperature Limit: 105°C
Lower Temperature Limit: -50°C
Flammability UL94:
V2/ V0
Volume Resistivity:
10
12
Ω
cm
Surface Resistivity:
10
10
Ω
Housing
Spring
Current Bar
INSTALLATION GUIDELINES
1
a
b
2
Secure
Connection
3
1
Insert Flat-Head Screw Driver into insertion
space to open pre-loaded spring
WATCH
2
(a) Insert Wire into opening in spring leg.
(b) Remove screwdriver.
3
The spring force presses conductor against
the current bar for a reliable/safe connection
VIDEO
CX SERIES FEATURES AND ADVANTAGES
COMPACT DESIGN
CX4 - MOST COMPACT
IN THE INDUSTRY
Knife Disconnect
Fuse
Terminal
Push-In Jumper
Technology
Large Center
Marking Area
Partition Plate
for Separation
Side Entry
Terminals
Unique Design
for easy wire entry
62
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490

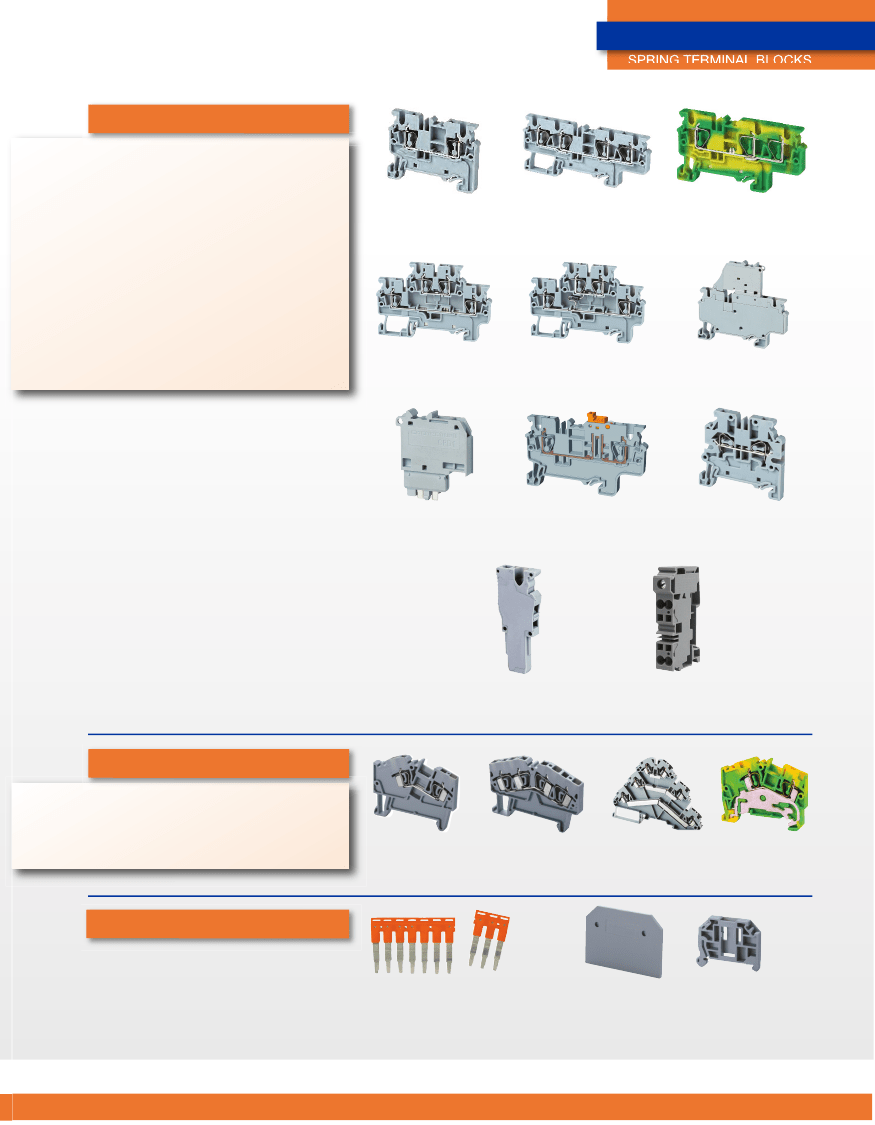

SELECTION GUIDE
OVERVIEW
SPRING TERMINAL BLOCKS
CX Series
FEATURES
•
Extremely Compact Design
•
CX4 is the most compact in the industry
•
Push-In technology jumper system
•
2, 3, 4 5, 6, 7, 8, 10 pole
•
2 independent jumper channels
•
Easy breakout of jumper pins for alternate
shorting of terminal blocks
•
Felt tip pen marking option
•
Center marking tag area
•
Unique design in plastic housing for easy
wire entry
•
Individually mountable partition plates
provide electrical and visual separation
•
Test Plugs for Test & Measurement needs
Feed-Though
Multi-Connection
Ground/Earth
page 64-65
page 66-67
page 68-70
Double Level
Electronic Component
Fuse
page 71
page 72
page 74
Component Carrier
Disconnect
Side Entry
page 75
page 76
page 77
Pluggable
Hybrid Distribution
page 78
page 79
Angular Series
FEATURES
•
•
•
•
45 wire entry for easy installation
2.5mm to 8mm terminal blocks (up to 50A)
Multi-Connection Terminals
2, 3, 4 connection ground terminals
Feed-Through
Multi-Connection
Multi-Level
Ground/Earth
page 80
page 81
page 82-83
page 84-85
Accessories
Jumpers
page 86
End Plates, Partitions,
End Stops, Test Plugs
page 87
63
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490

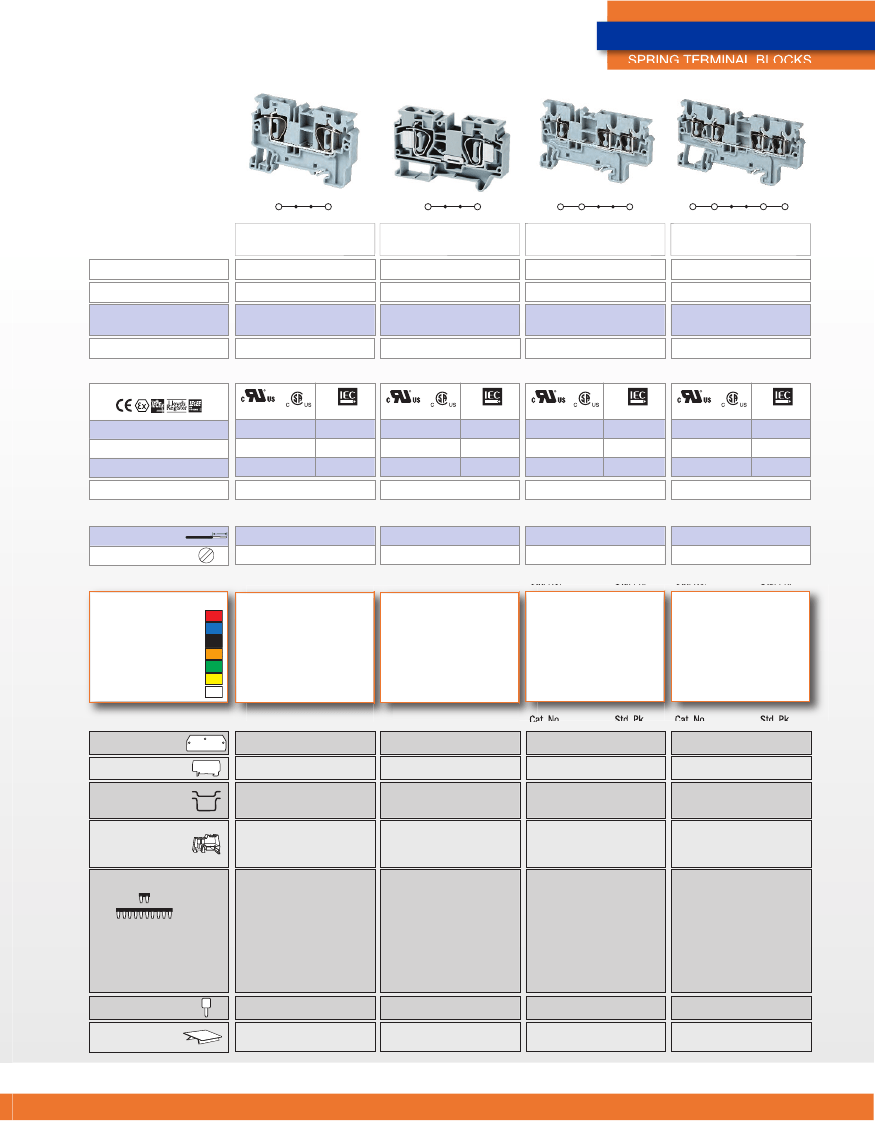

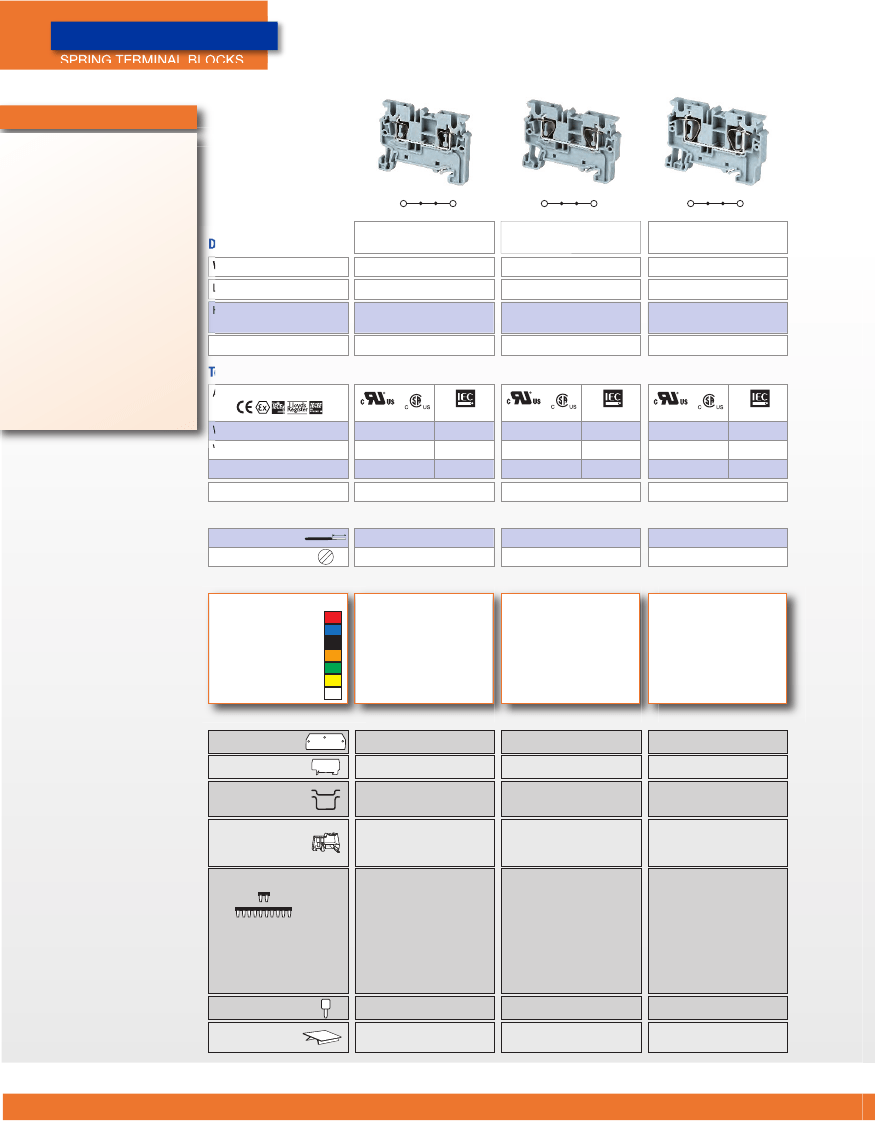

CX SERIES
SPRING TERMINAL BLOCKS
CX2.5
FEED THROUGH TERMINAL BLOCKS
CX4
CX6
HIGHLIGHTS
FEATURES
•
Most compact in Industry
•
2, 3, 4, 10 Pole Push-In
•
2 Jumper Channels for
•
•
•
multiple Jumper options
3 and 4 Connection
Terminals
3 Marking Locations
Many Colors
Jumpers
Dimensions
Width
Length
Height w DIN Rail 35 x 7.5 mm
35 x 15 mm
Weight per piece
2 Connection Feed-Through
2 Jumper Channels
5 mm
49.7 mm
38.0 mm
45.5 mm
6.2 g
2 Connection Feed-Through
2 Jumper Channels
6 mm
54.8 mm
38.0 mm
45.5 mm
9.8 g
2 Connection Feed-Through
2 Jumper Channels
8 mm
62.1 mm
43.0 mm
50.5 mm
14.0 g
APPLICATIONS
•
High Vibration
•
•
•
Environments
Machines
Elevator Cabinets
Transport
Technical Data/Ratings
Approvals
Wire Size (solid / stranded)
Voltage Rating
Current Rating
Insulation Material
E220514
60947-7-1
E220514
60947-7-1
E220514
60947-7-1
24-12 AWG
600 V
20 A
0.2-2.5 mm
2
1000V AC/DC
24 A
24-10 AWG
600 V
30 A
0.2-4 mm
2
1000V AC/DC
32 A
24-8 AWG
600 V
50 A
0.2-6 mm
2
1000V AC/DC
41 A
Polyamide 66
Polyamide 66
Polyamide 66
Installation Instructions
Wire Stripping Length
Screwdriver
10 mm
Flat Head 0.5 x 3 mm
Cat. No.
CX2.5
CX2.5/R
CX2.5/BU
CX2.5/BL
CX2.5/O
CX2.5/G
CX2.5/Y
CX2.5/W
Cat. No.
EPCX2.5
PPCX4
2511120
CA701-15/S
CA702
CA802
CA103
2 pole
3 pole
4 pole
5 pole
6 pole
7 pole
8 pole
10 pole
16 pole
JX2.5/2
JX2.5/3
JX2.5/4
JX2.5/5
JX2.5/6
JX2.5/7
JX2.5/8
JX2.5/10
–
TX2.5
MT5
WLX2.5
Std. Pk.
100
100
100
100
100
100
100
100
Std. Pk.
50
20
20
20
50
50
50
100
50
50
50
10
10
10
10
–
50
1 Pk. (100 tags)
1 Pk. (100 tags)
10 mm
Flat Head 0.6 x 3.5 mm
Cat. No.
CX4
CX4/R
CX4/BU
CX4/BL
CX4/O
CX4/G
CX4/Y
CX4/W
Cat. No.
EPCX4
PPCX4
2511120
CA701-15/S
CA702
CA802
CA103
JX4/2
JX4/3
JX4/4
–
–
–
JX4/8
JX4/10
JX4/16
TX4
MT6
WLX4
Std. Pk.
100
100
100
100
100
100
100
100
Std. Pk.
50
20
20
20
50
50
50
100
50
50
–
–
–
50
10
10
50
1 Pk. (100 tags)
1 Pk. (100 tags)
14 mm
Flat Head 0.8 x 4 mm
Cat. No.
CX6
CX6/R
CX6/BU
CX6/BL
CX6/O
CX6/G
CX6/Y
CX6/W
Cat. No.
EPCX6
PPCX10
2511120
CA701-15/S
CA702
CA802
CA103
JX6/2
JX6/3
JX6/4
–
–
–
–
JX6/10
–
TX6
MT8
WLX6
Std. Pk.
100
100
100
100
100
100
100
100
Std. Pk.
50
20
20
20
50
50
50
100
50
50
–
–
–
–
10
–
50
1 Pk. (100 tags)
1 Pk. (100 tags)
Terminal Blocks
Grey (standard)
Red
R
Blue
BU
Black
BL
Orange
O
Green
G
Yellow
Y
White
W
Accessories
End Plate
Partition Plate
DIN Rail
End Stop
Shorting Link/
Jumpers
Test Plug
Marking Tag
Warning Label
64
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490

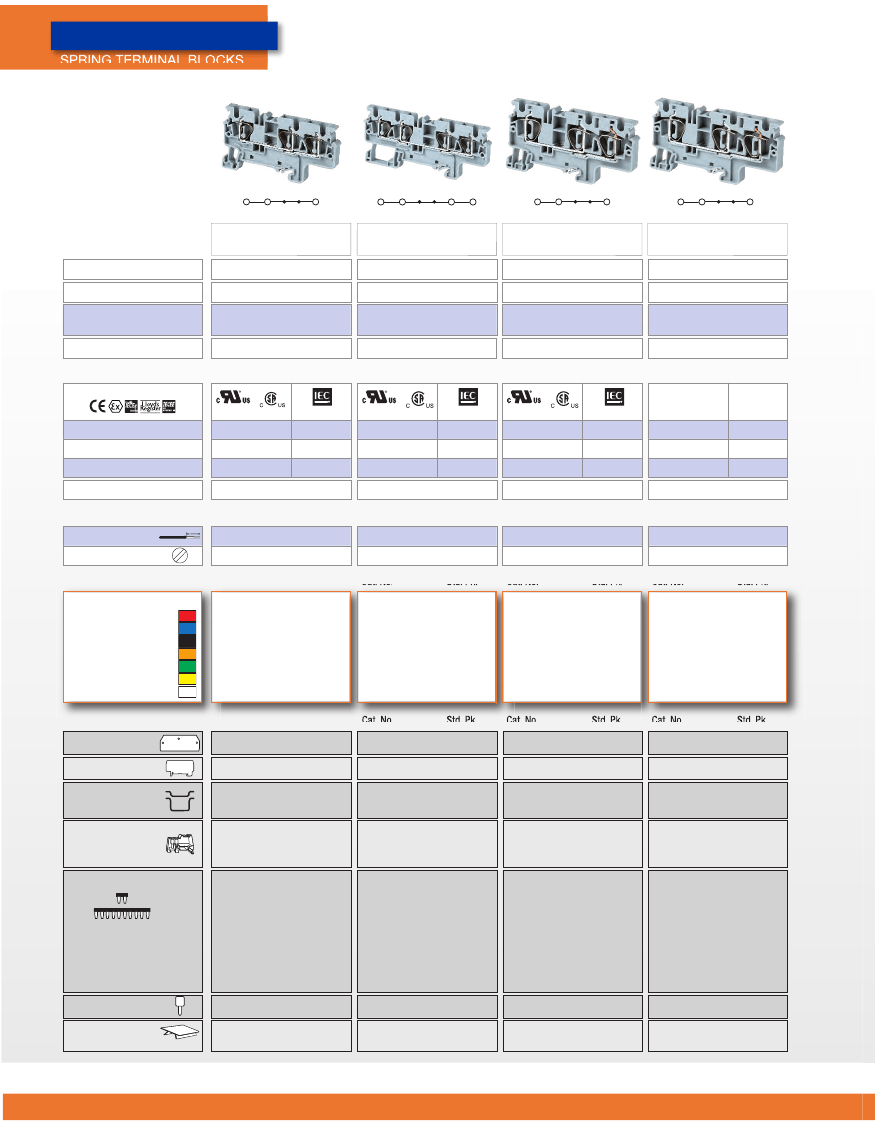

FEED-THROUGH/MULTI-CONNECTION TERMINAL BLOCKS
CX10
CSC16T
CX SERIES
SPRING TERMINAL BLOCKS
CX2.5/4
CX2.5/3
Dimensions
Width
Length
Height w DIN Rail 35 x 7.5 mm
35 x 15 mm
Weight per piece
2 Connection Feed-Through
2 Jump Channels
10 mm
71.7 mm
49.5 mm
57.0 mm
22.4 g
2 Connection Feed-Through
2 Jump Channels
12 mm
82.0 mm
51.6 mm
59.0 mm
39 g
3 Connection Feed-Through
2 Jump Channels
5 mm
62.2 mm
38.0 mm
45.5 mm
7.6 g
4 Connection Feed-Through
2 Jumper Channels
5 mm
74.7 mm
38.0 mm
45.5 mm
9.4 g
Technical Data/Ratings
Approvals
Wire Size (solid | stranded)
Voltage Rating
Current Rating
Insulation Material
E220514
60947-7-1
E220514
60947-7-1
E220514
60947-7-1
E220514
60947-7-1
24-6 AWG
600 V
65 A
0.2-10 mm
2
1000V AC/DC
57 A
16-4 AWG
600 V
85 A
1.5-16 mm
2
800V AC/DC
76 A
24-12 AWG
600 V
20 A
0.2-2.5 mm
2
1000 V AC/DC
24 A
24-12 AWG
600 V
20 A
0.2-2.5 mm
2
1000V AC/DC
24 A
Polyamide 66
Polyamide 66
Polyamide 66
Polyamide 66
Installation Instructions
Wire Stripping Length
Screwdriver
18 mm
Flat Head 0.8 x 4 mm
Cat. No.
CX10
CX10/R
CX10/BU
CX10/BL
CX10/O
CX10/G
CX10/Y
CX10/W
Cat. No.
EPCX10
PPCX10
2511120
CA701-15/S
CA702
CA802
CA103
2 pole
3 pole
4 pole
5 pole
6 pole
7 pole
8 pole
10 pole
16 pole
JX10/2
–
–
–
–
–
–
–
–
TX10
MT10
WLX10
Std. Pk.
50
50
50
50
50
50
50
50
Std. Pk.
20
20
20
20
50
50
50
20
–
–
–
–
–
–
–
–
50
1 Pk. (100 tags)
100
20 mm
Flat Head 1.0 x 5.5 mm
Cat. No.
CSC16T
CSC16T/R
CSC16T/BU
CSC16T/BL
CSC16T/O
CSC16T/G
CSC16T/Y
CSC16T/W
Cat. No.
EPCSC16T
–
2511120
CA701-15/S
CA702
CA802
CA103
CA801/5
–
–
–
–
–
–
–
–
–
–
Std. Pk.
50
50
50
50
50
50
50
50
Std. Pk.
50
–
20
20
50
50
50
100
–
–
–
–
–
–
–
–
–
–
10 mm
Flat Head 0.5 x 3 mm
Cat. No.
CX2.5/3
CX2.5/3/R
CX2.5/3/BU
CX2.53/BL
CX2.5/3/O
CX2.5/3/G
CX2.5/3/Y
CX2.53/W
Cat. No.
EPCX2.5/3
PPCX4/3
2511120
CA701-15/S
CA702
CA802
CA103
JX2.5/2
JX2.5/3
JX2.5/4
JX2.5/5
JX2.5/6
JX2.5/7
JX2.5/8
JX2.5/10
–
TX2.5
MT5
WLX2.5
Std. Pk.
100
100
100
100
100
100
100
100
Std. Pk.
50
20
20
20
50
50
50
100
50
50
50
10
10
10
10
–
50
1 Pk. (100 tags)
100
10 mm
Flat Head 0.5 x 3 mm
Cat. No.
CX2.5/4
CX2.5/4/R
CX2.5/4/BU
CX2.5/4/BL
CX2.5/4/O
CX2.5/4/G
CX2.5/4/Y
CX2.5/4/W
Cat. No.
EPCX2.5/4
PPCX4/4
2511120
CA701-15/S
CA702
CA802
CA103
JX2.5/2
JX2.5/3
JX2.5/4
JX2.5/5
JX2.5/6
JX2.5/7
JX2.5/8
JX2.5/10
–
TX2.5
MT5
WLX2.5
Std. Pk.
50
50
50
50
50
50
50
50
Std. Pk.
20
20
20
20
50
50
50
100
50
50
50
10
10
10
10
–
50
1 Pk. (100 tags)
100
65
Terminal Blocks
Grey (standard)
Red
R
Blue
BU
Black
BL
Orange
O
Green
G
Yellow
Y
White
W
Accessories
End Plate
Partition Plate
DIN Rail
End Stop
Shorting Link/
Jumpers
Test Plug
Marking Tag
Warning Label
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490
CX SERIES
SPRING TERMINAL BLOCKS
CX4/3
MULTIPLE CONNECTION TERMINAL BLOCKS
CX4/4
CX6/3
CX10/3
Dimensions
Width
Length
Height w DIN Rail 35 x 7.5 mm
35 x 15 mm
Weight per piece
3 Connection Feed-Through
2 Jumper Channels
6 mm
70.5 mm
38.0 mm
45.5 mm
10.8 g
4 Connection Feed-Through
2 Jumper Channels
6 mm
86.2 mm
38.0 mm
45.5 mm
13.6 g
3 Connection Feed-Through
2 Jumper Channels
8 mm
82.2 mm
43.0 mm
50.5 mm
19.8 g
4 Connection Feed-Through
2 Jumper Channels
10 mm
97.0 mm
49.5 mm
57.0 mm
35.0 g
Technical Data/Ratings
Approvals
Wire Size (solid | stranded)
Voltage Rating
Current Rating
Insulation Material
E220514
60947-7-1
E220514
60947-7-1
E220514
60947-7-1
24-10 AWG
600 V
30 A
0.2-4 mm
2
1000V AC/DC
32 A
24-10 AWG
600 V
30 A
0.2-4.0 mm
2
1000V AC/DC
32 A
24-8 AWG
600 V
50 A
0.2-6 mm
2
1000V AC/DC
41 A
24-6 AWG
600 V
65 A
UL
0.2-10 mm
2
1000V AC/DC
57 A
IEC
Polyamide 66
Polyamide 66
Polyamide 66
Polyamide 66
Installation Instructions
Wire Stripping Length
Screwdriver
10 mm
Flat Head 0.6 x 3.5 mm
Cat. No.
CX4/3
CX4/3/R
CX4/3/BU
CX4/3/BL
CX4/3/O
CX4/3/G
CX4/3/Y
CX4/3/W
Cat. No.
EPCX4/3
PPCX4/3
2511120
CA701-15/S
CA702
CA802
CA103
2 pole
3 pole
4 pole
5 pole
6 pole
7 pole
8 pole
10 pole
16 pole
JX4/2
JX4/3
JX4/4
–
–
–
JX4/8
JX4/10
JX4/16
TX4
MT6
WLX4
Std. Pk.
50
50
50
50
50
50
50
50
Std. Pk.
20
20
20
20
50
50
50
100
50
50
–
–
–
50
10
10
50
1 Pk. (100 tags)
1 Pk. (100 tags)
10 mm
Flat Head 0.6 x 3.5 mm
Cat. No.
CX4/4
CX4/4/R
CX4/4/BU
CX4/4BL
CX4/4/O
CX4/4/G
CX4/4/Y
CX4/4/W
Cat. No.
EPCX4/4
PPCX4/4
2511120
CA701-15/S
CA702
CA802
CA103
JX4/2
JX4/3
JX4/4
–
–
–
JX4/8
JX4/10
JX4/16
TX4
MT6
WLX4
Std. Pk.
50
50
50
50
50
50
50
50
Std. Pk.
20
20
20
20
50
50
50
100
50
50
–
–
–
50
10
10
50
1 Pk. (100 tags)
1 Pk. (100 tags)
14 mm
Flat Head 0.8 x 4 mm
Cat. No.
CX6/3
CX6/3/R
CX6/3/BU
CX6/3/BL
CX6/3/O
CX6/3/G
CX6/3/Y
CX6/3/W
Cat. No.
EPCX6/3
–
2511120
CA701-15/S
CA702
CA802
CA103
JX6/2
JX6/3
JX6/4
–
–
–
–
JX6/10
–
TX6
MT8
WLX6
Std. Pk.
50
50
50
50
50
50
50
50
Std. Pk.
20
–
20
20
50
50
50
100
50
50
–
–
–
–
10
–
50
1 Pk. (100 tags)
1 Pk. (100 tags)
18 mm
Flat Head 0.8 x 4 mm
Cat. No.
CX10/3
CX10/3/R
CX10/3/BU
CX10/3BL
CX10/3/O
CX10/3/G
CX10/3/Y
CX10/3/W
Cat. No.
EPCX10/3
–
2511120
CA701-15/S
CA702
CA802
CA103
JX10/2
–
–
–
–
–
–
–
–
TX10
MT10
WLX10
Std. Pk.
50
50
50
50
50
50
50
50
Std. Pk.
20
–
20
20
50
50
50
20
–
–
–
–
–
–
–
–
50
1 Pk. (100 tags)
1 Pk. (100 tags)
Terminal Blocks
Grey (standard)
Red
R
Blue
BU
Black
BL
Orange
O
Green
G
Yellow
Y
White
W
Accessories
End Plate
Partition Plate
DIN Rail
End Stop
Shorting Link/
Jumpers
Test Plug
Marking Tag
Warning Label
66
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490
京公网安备 11010802033920号
EEWORLD
