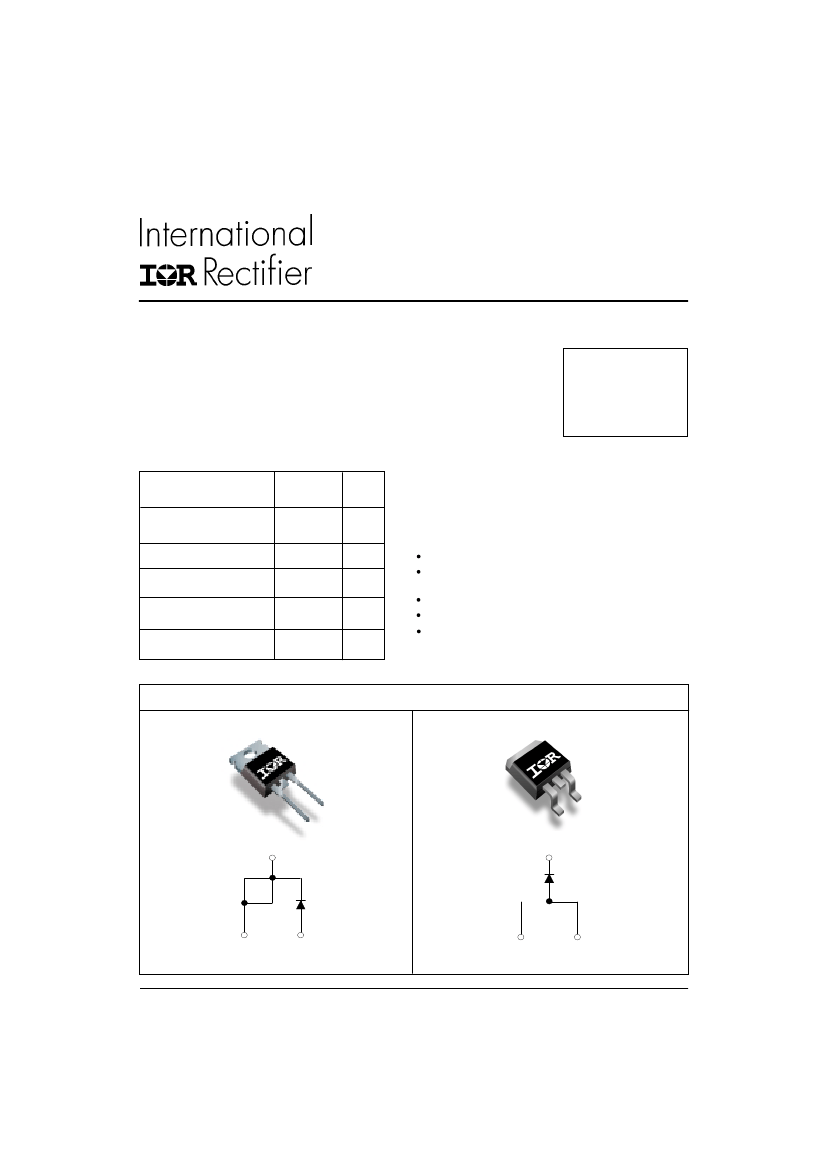

6 A, SILICON, RECTIFIER DIODE, TO-220AC

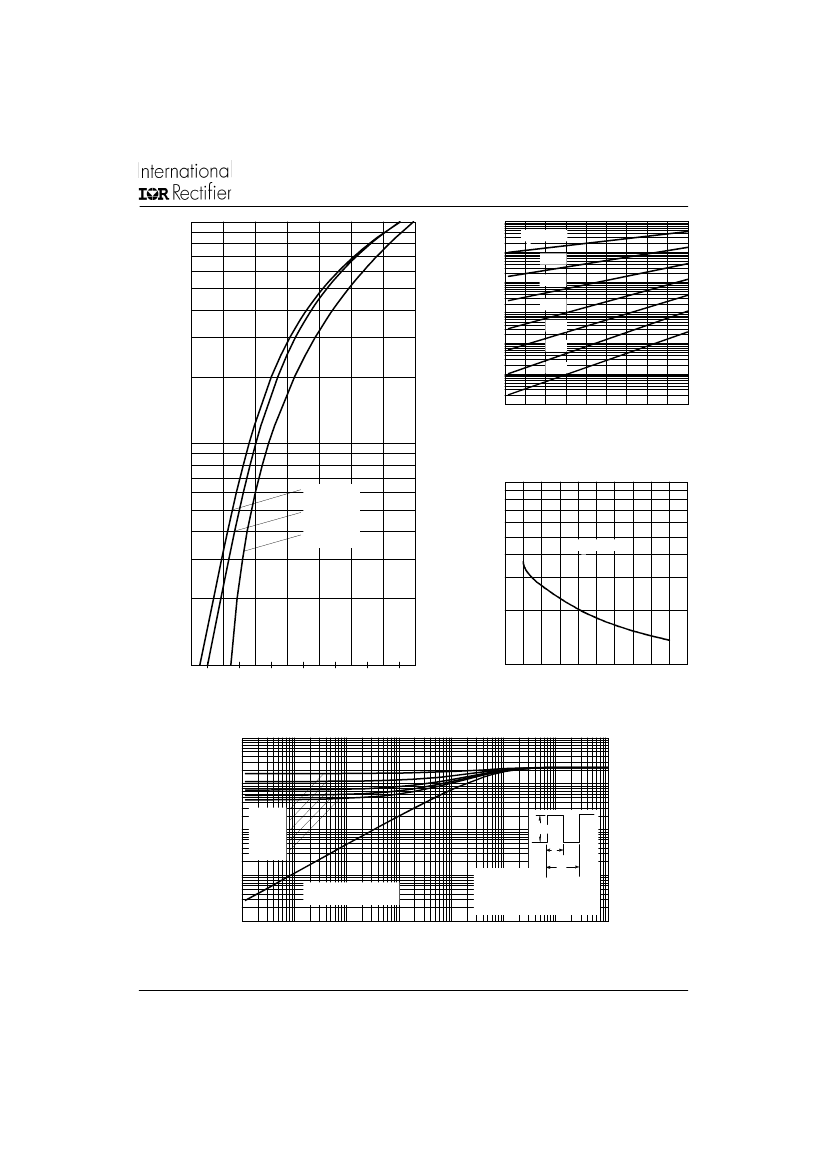

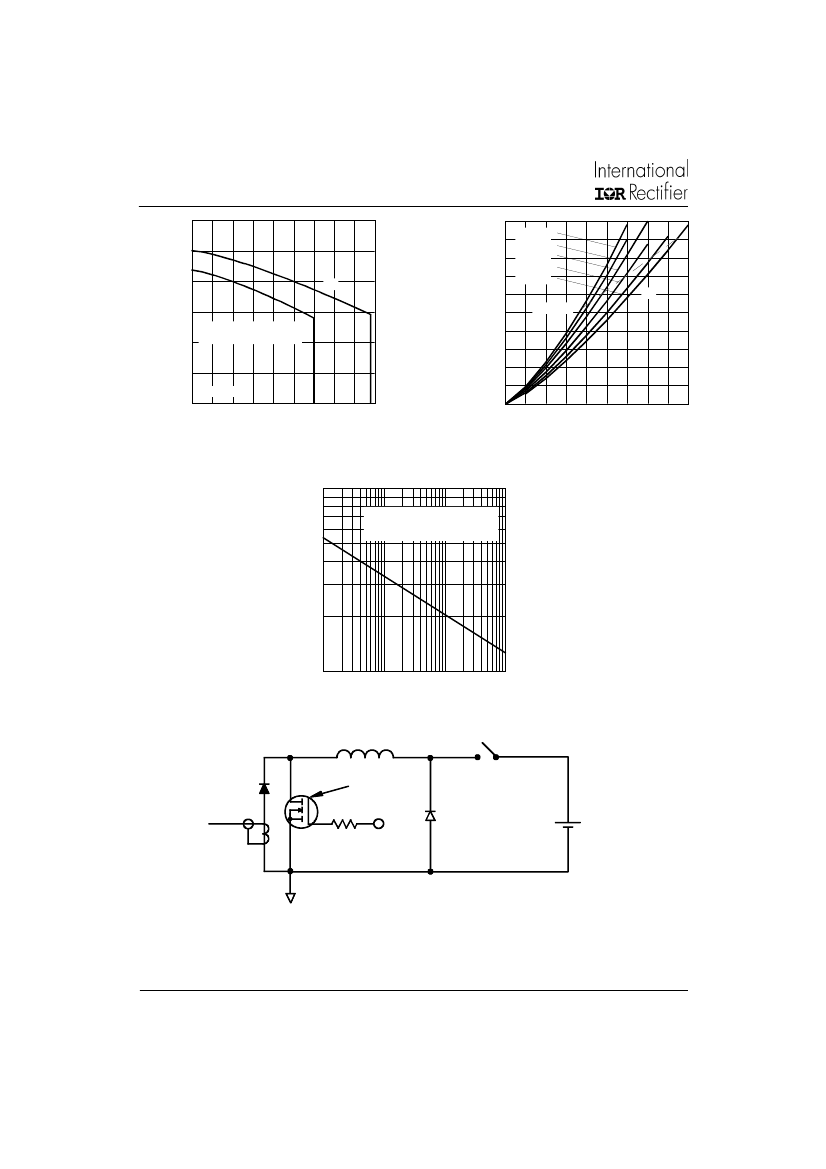

| 6TQ | 6TQ035 | 6TQ035S | 6TQ040 | 6TQ040S | 6TQ045 | 6TQ045S | |
|---|---|---|---|---|---|---|---|
| Description | 6 A, SILICON, RECTIFIER DIODE, TO-220AC | 6 A, SILICON, RECTIFIER DIODE, TO-220AC | 6 A, 35 V, SILICON, RECTIFIER DIODE, TO-263AB | 6 A, SILICON, RECTIFIER DIODE, TO-220AC | 6 A, SILICON, RECTIFIER DIODE | 6 A, 45 V, SILICON, RECTIFIER DIODE, TO-220AC | 6 A, SILICON, RECTIFIER DIODE |
| Is it Rohs certified? | - | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | - | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） |
| Parts packaging code | - | TO-220AC | D2PAK | TO-220AC | TO-263 | TO-220AC | D2PAK |
| package instruction | - | R-PSFM-T2 | R-PSSO-G2 | R-PSFM-T2 | R-PSSO-G2 | R-PSFM-T2 | R-PSSO-G2 |
| Contacts | - | 3 | 4 | 3 | 3 | 3 | 4 |
| Reach Compliance Code | - | compliant | compli | compli | compli | compli | compli |
| ECCN code | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | - | FREE WHEELING DIODE, HIGH RELIABILITY | FREE WHEELING DIODE, HIGH RELIABILITY | FREE WHEELING DIODE, HIGH RELIABILITY | FREE WHEELING DIODE, HIGH RELIABILITY | FREE WHEELING DIODE, HIGH RELIABILITY | FREE WHEELING DIODE, HIGH RELIABILITY |
| application | - | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Shell connection | - | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE |
| Configuration | - | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | - | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | - | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | - | 0.51 V | 0.73 V | 0.51 V | 0.73 V | 0.51 V | 0.73 V |
| JEDEC-95 code | - | TO-220AC | TO-263AB | TO-220AC | - | TO-220AC | TO-263AB |
| JESD-30 code | - | R-PSFM-T2 | R-PSSO-G2 | R-PSFM-T2 | R-PSSO-G2 | R-PSFM-T2 | R-PSSO-G2 |
| JESD-609 code | - | e0 | e0 | e0 | e0 | e0 | e0 |
| Maximum non-repetitive peak forward current | - | 690 A | 690 A | 690 A | 690 A | 690 A | 690 A |
| Number of components | - | 1 | 1 | 1 | 1 | 1 | 1 |
| Phase | - | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | - | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | - | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C |
| Maximum output current | - | 6 A | 6 A | 6 A | 6 A | 6 A | 6 A |
| Package body material | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | - | FLANGE MOUNT | SMALL OUTLINE | FLANGE MOUNT | SMALL OUTLINE | FLANGE MOUNT | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | - | 225 | 225 | 225 | 225 | 225 | 225 |
| Certification status | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | - | 35 V | 35 V | 40 V | 40 V | 45 V | 45 V |
| surface mount | - | NO | YES | NO | YES | NO | YES |
| technology | - | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY |
| Terminal surface | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | - | THROUGH-HOLE | GULL WING | THROUGH-HOLE | GULL WING | THROUGH-HOLE | GULL WING |
| Terminal location | - | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Maximum time at peak reflow temperature | - | 30 | 30 | 30 | 30 | 30 | 30 |
| Base Number Matches | - | - | 1 | - | 1 | 1 | 1 |
