TITLE:

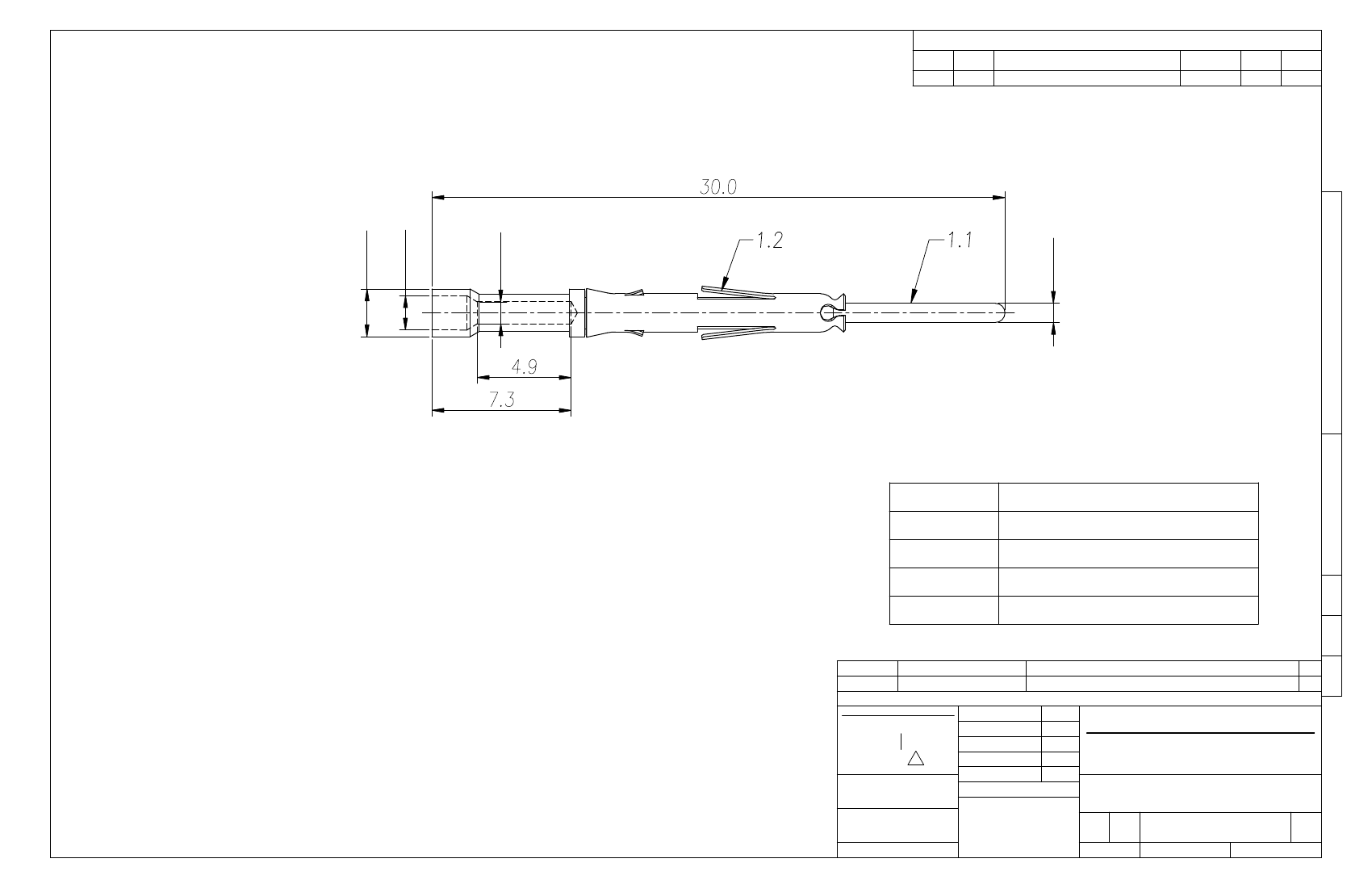

ECO-MATE,PIN CONTACT, MACHINE, 20-22AWG, SIZE 20
Ø2.5
Ø1.8
Ø1.2
Ø1.0
DWG NO:
P/N
MP20W23F
NOTES：（UNLESS OTHERWISE SPECIFIED）
1. MATERIAL：
1.1. CONTACT BODY：COPPER ALLOY.
1.2. OUTER SPRING：STAINLESS STEEL.
2. SPECIFICATIONS：
2.1 CURRENT RATING：7.5A(MAX).
2.2 TERMINATION TYPE：CRIMPING.
2.3 WIRE RANGE：20~22AWG.
3. SUITABLE SOCKET TYPE：MS20W23xx.
4. ROHS COMPLIANT.
5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
MP20W23G10
MP20W23G15
MP20W23G30
CONTACT PLATING(MATING AREA)
GOLD FLASH PLATING OVER NICKEL.
10μ"GOLD PLATING OVER NICKEL.
15μ"GOLD PLATING OVER NICKEL.
30μ"GOLD PLATING OVER NICKEL.
MP20W23xx
REV:
B1
SH:
1
OF:
QUANTITY
DESCRIPTION
PART NUMBER
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
ITEM
1
UNLESS OTHERWISE SPECIFIED
1)
2)
1
2
3
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC ±0.30
Fractions ±1/64
PL DEC ±0.15
Angles ±1°
PL DEC ±0.08
X
DATE
BEN
JUN-18-2014
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
3) Note reference =
MATERIAL SPECIFICATIONS:
CUSTOMER:
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
ECO-MATE,PIN CONTACT
MACHINE, 20-22AWG, SIZE 20
TYPE
DWG NO:
REVISION
B
C-
MP20W23xx
SHEET
B1
1
OF
NONE
1
