PART NUMBER DATA
J
CIRCUITS
2
3
4
5
6
7
8
9
10
11
12
I
PART
NUMBER
391001902
391001903
391001904
391001905
391001906
391001907
391001908
391001909
391001910
391001911
391001912
ENGINEERING
NUMBER
M800-01-02-5
M800-01-03-5
M800-01-04-5
M800-01-05-5
M800-01-06-5
M800-01-07-5
M800-01-08-5
M800-01-09-5
M800-01-10-5
M800-01-11-5
M800-01-12-5
A
A IN mm
B IN mm
.315
.630
.945
1.260
1.575
1.890
2.205
2.520
2.835
3.150
3.465
8.00
16.00
24.00
32.00
40.01
48.01
56.01
64.01
72.01
80.01
88.01
13.5
21.5
29.5
37.5
45.5
53.5
61.5
69.5
77.5
85.5
93.5
COLOR
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
.53
.85
1.16
1.48
1.79
2.11
2.42
2.74
3.05
3.37
3.68
B
.315
8.00
J
I
.72
H
H
REF. LAST 2 DIGITS OF PART NUMBER EQUAL CIRCUIT COUNT
NOTE: IF THIS PRODUCT IS STORED IN AN
ENVIRONMENT WITH A RELATIVE HUMIDITY
OF LESS THAN 50%, MOISTURE MUST BE
ADDED. REFER TO TECHNICAL ADVISORY
AS 45499-001 FOR INSTRUCTIONS.
C
G
.315
8.00
.276
.22
A
C
G
F
.54
.27
F
E
E
CONTACT FACTORY FOR OPTIONAL COLORS
D
V
D E
V
D E
V
D E
D
B
D
3910019
300V 20A
SPECIFICATIONS:
C
B
DESCRIPTION
1.Material:
(A) Screw: Steel, Zinc plated
(B) Body: PA66 UL94 V-0
(C) Cage: Brass, Nickel plated
(D) Terminal: Stainless Steel
2.Rating: 300V, 20amps
3.Wire range: 22-12 AWG
4.Max torque: 4.4 in lbs.
5.Dielectric voltage withstand:DC 3000V for 1 minute.
7.Rated Impulse Voltage:4000V, Plus and Minus 5 times each
8.Strip Length: .20 in. (5.0mm)
3910019
300V 20A
C
GENERAL TOLERANCES
(UNLESS SPECIFIED)
DIMENSION STYLE
SCALE
DESIGN UNITS
IN/MM
DRAWN BY
DATE
TITLE
CHECKED BY
DATE
---
METRIC
THIRD ANGLE
PROJECTION
B
=
0
C
mm
4 PLACES
3 PLACES
2 PLACES
1 PLACE
---
---
---
---
---
INCH
---
---
---
---
=
0
APPROVED BY
DATE
molex

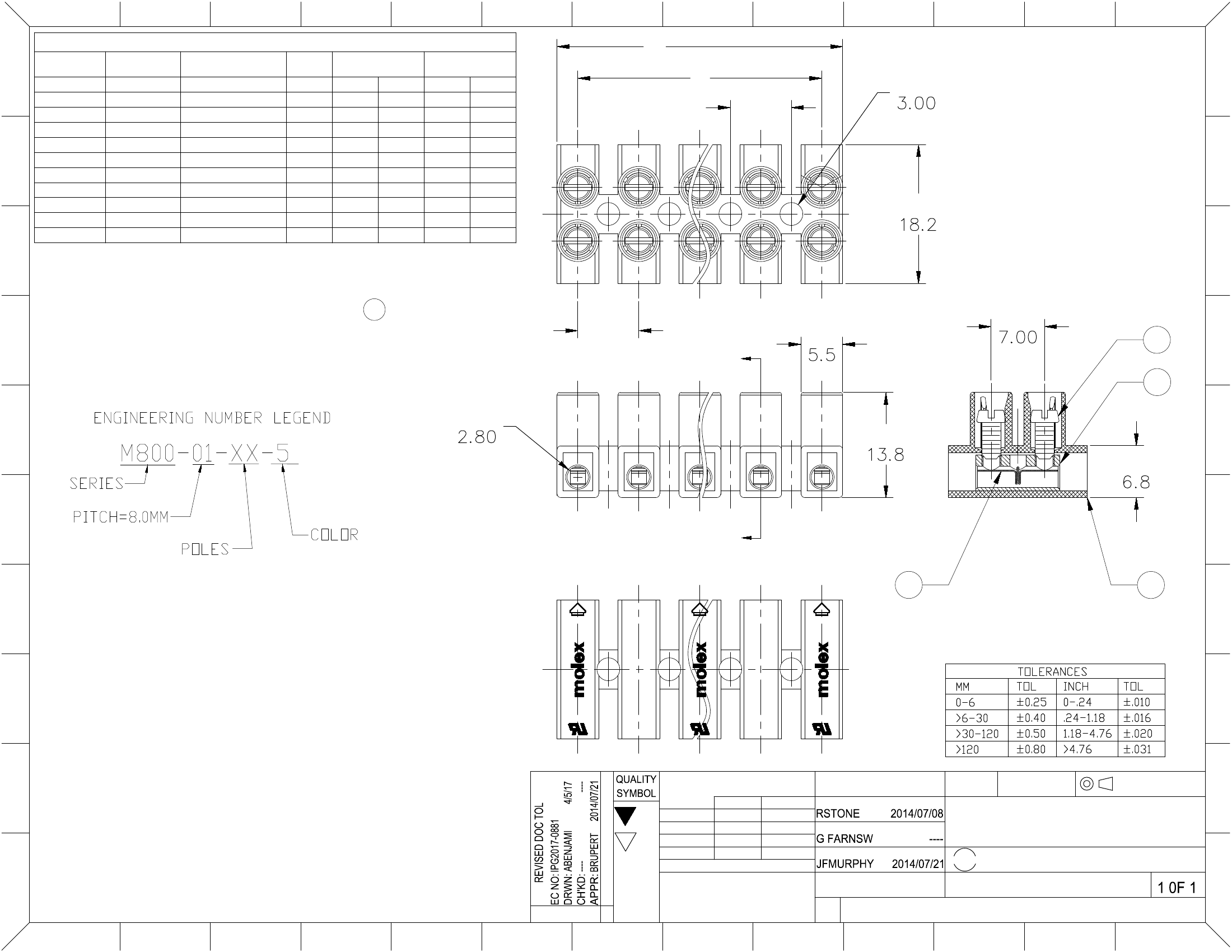

TERMINAL STRIP 8.0MM
LOW PROFILE 300V
----
MOLEX INCORPORATED
SHEET NO.
A
11.All dims. shown are for reference only
C1
13
12
11
10
9
8
REV
DRAFT WHERE
APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
7
6
5
MATERIAL NO.
DOCUMENT NO.
SEE CHART
SIZE
A
SD-39100-012
3
2
1
C
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX
INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
