PHYSICAL INFRASTRUCTURE SYSTEMS
QuickNet
™
Hydra Cable Assemblies
• Connectivity meets or exceeds TIA/EIA-568-B.3 and
ISO/IEC 11801 performance requirements
• LC and SC connector housing and boot colors follow
TIA/EIA-568-C.3 suggested color identification scheme
• Jacketed cable is compliant with NFPA 262 (OFNP)
flame rating
• MTP* (12-fiber) connectors are FOCIS-5 compliant
• Insertion loss per mated pair: 0.50dB typical, 0.75dB max.
• Panduit proprietary MTP* polishing provides low
insertion loss and high return loss, minimizing variability
for improved channel link loss performance
• Traditional connectors (Panduit LC, SC, and ST)
provide design flexibility throughout the data center
• Insertion loss per mated pair: 0.10dB typical, 0.30dB max.
(multimode); 0.25dB typical, 0.50dB max. (singlemode)
• Factory terminated and 100% tested for insertion loss
(test data supplied with each assembly); singlemode and
10Gig
™
Multimode Hydra Cable Assemblies also tested
for return loss
• TIA/EIA-568-B.1-7 standards based polarity supports 10
Gb/s, multimode, and singlemode fiber types, and allows
infrastructure backwards compatibility for component
interchangeability and a lower cost of ownership
• 10Gig
™
laser optimized fiber is tested per IEEE 802.3ae
10 GbE to support network transmission speeds up to
10 Gb/s for link lengths up to 300 meters at 850nm
• Application specific designs available to tailor
configuration, reach, and breakout construction to
application requirements; for more information contact
Panduit or visit www.panduit.com
Std.
Length Pkg.
(m)^ Qty.
A.
System
Overview
B.
Copper
Systems
C.
Fiber
Optic
Systems
D.
Power
over
Ethernet
E.
Zone
Cabling
F.
Wireless
Part Number
Part Description
G.
Outlets

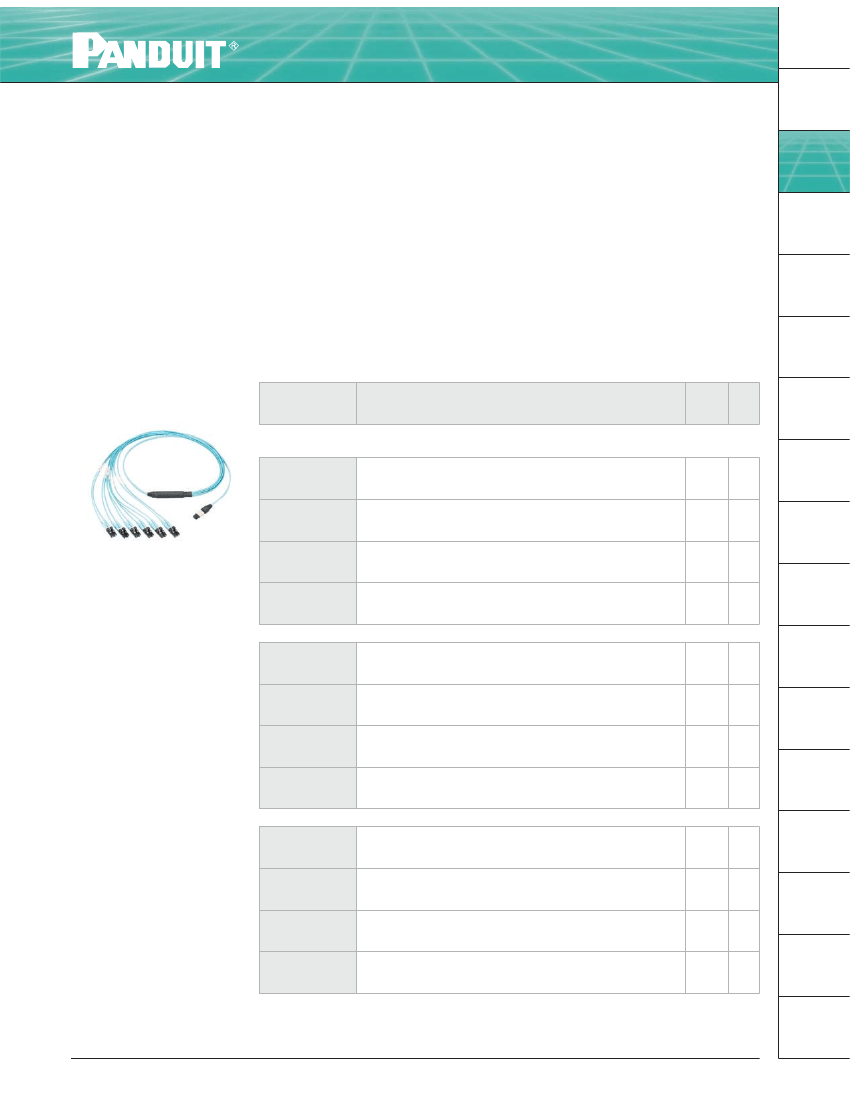

Male MTP* to LC Duplex
–
10Gig
™
OM3 Multimode Plenum Hydra
Cable Assemblies
FHPX126LM005N
Male MTP* to LC duplex 12-fiber 10Gig
™
50/125µm OM3
Multimode Plenum Rated Hydra Cable Assembly with std. 24"
(61cm) breakout length.
FHPX126LM010N
Male MTP* to LC duplex 12-fiber 10Gig
™
50/125µm OM3
Multimode Plenum Rated Hydra Cable Assembly with std. 24"
(61cm) breakout length.
FHPX126LM***N
FHPX126LM015N
Male MTP* to LC duplex 12-fiber 10Gig
™
50/125µm OM3
Multimode Plenum Rated Hydra Cable Assembly with std. 24"
(61cm) breakout length.
FHPX126LM020N
Male MTP* to LC duplex 12-fiber 10Gig
™
50/125µm OM3
Multimode Plenum Rated Hydra Cable Assembly with std. 24"
(61cm) breakout length.
FHP5126LM005N
Male MTP* to LC duplex 12-fiber 50/125µm OM2 multimode
plenum rated hydra cable assembly with std. 24" (61 cm)
breakout length.
FHP5126LM010N
Male MTP* to LC duplex 12-fiber 50/125µm OM2 multimode
plenum rated hydra cable assembly with std. 24" (61 cm)
breakout length.
FHP5126LM015N
Male MTP* to LC duplex 12-fiber 50/125µm OM2 multimode
plenum rated hydra cable assembly with std. 24" (61 cm)
breakout length.
FHP5126LM020N
Male MTP* to LC duplex 12-fiber 50/125µm OM2 multimode
plenum rated hydra cable assembly with std. 24" (61 cm)
breakout length.
FHP9126LM005N
Male MTP* to LC duplex 12-fiber 9/125µm OS1/OS2
singlemode plenum rated hydra cable assembly with std. 24"
(61cm) breakout length.
FHP9126LM010N
Male MTP* to LC duplex 12-fiber 9/125µm OS1/OS2
singlemode plenum rated hydra cable assembly with std. 24"
(61cm) breakout length.
FHP9126LM015N
Male MTP* to LC duplex 12-fiber 9/125µm OS1/OS2
singlemode plenum rated hydra cable assembly with std. 24"
(61cm) breakout length.
FHP9126LM020N
Male MTP* to LC duplex 12-fiber 9/125µm OS1/OS2
singlemode plenum rated hydra cable assembly with std. 24"
(61cm) breakout length.
5
1
H.
Media
Distribution
I.
Physical
Infrastructure
Management
J.
Overhead &
Underfloor
Routing
K.
Surface
Raceway
L.
Cabinets,
Racks &
Cable
Management
M.
Grounding &
Bonding
10
1
15
1
20
1
Male MTP* to LC Duplex
–
OM2 Multimode Plenum Hydra Cable Assemblies
5
1
10
1
15
1
20
1
Male MTP* to LC Duplex
–
OS1/OS2 Singlemode Plenum Hydra Cable Assemblies
5
1
N.
Industrial
10
1
O.
Labeling &
Identification
P.
Cable
Management
Accessories
15
1
20
1
^Additional lengths and availability: The above lengths and configurations are stock items. For other lengths or
configurations, contact Customer Service for actual lead times.
Individual Staggered Hydra Cable Assemblies are available. Please see WW-FBCB38.
MTP* Connector Cleaning Tools are available.
*MTP is a registered trademark of US Conec Ltd.
Q.
Index
www.panduit.com
For service and technical support, call 866-405-6654 (outside the U.S. and Canada, see
catalog
back cover).
C.91
A.
System
Overview
PHYSICAL INFRASTRUCTURE SYSTEMS
Cable Self-Laminating Labels for QuickNet
™
Hydra Cable Assemblies
B.
Copper
Systems
C.
Fiber
Optic
Systems
D.
Power
over
Ethernet
Suggested Label Solutions for TIA/EIA-606-A Compliance
E.
Zone
Cabling
Part Number
All FHP parts
Laser/Ink Jet Desktop TDP43ME Thermal Transfer
PanTher
™
LS8E
Printer Label
Desktop Printer Label
Hand-Held Printer Label
S100X160YAJ
and NWSLC-3Y‡
S100X150VATY
and NWSLC-3Y‡
S100X160VAC
and NWSLC-3Y‡
Cougar
™
LS9
Hand-Held Printer Label
T100X000CBC-BK and
NWSLC-3Y‡
F.
Wireless
For complete labeling solutions and product information, reference charts on pages O.1 – O.18
of SA-NCCB51.
‡For complete information on fiber optic cable identification solutions, reference page C.92
of SA-NCCB51.
G.
Outlets
H.
Media
Distribution
I.
Physical
Infrastructure
Management
J.
Overhead &
Underfloor
Routing
K.
Surface
Raceway
L.
Cabinets,
Racks &
Cable
Management
M.
Grounding &
Bonding
QuickNet
™

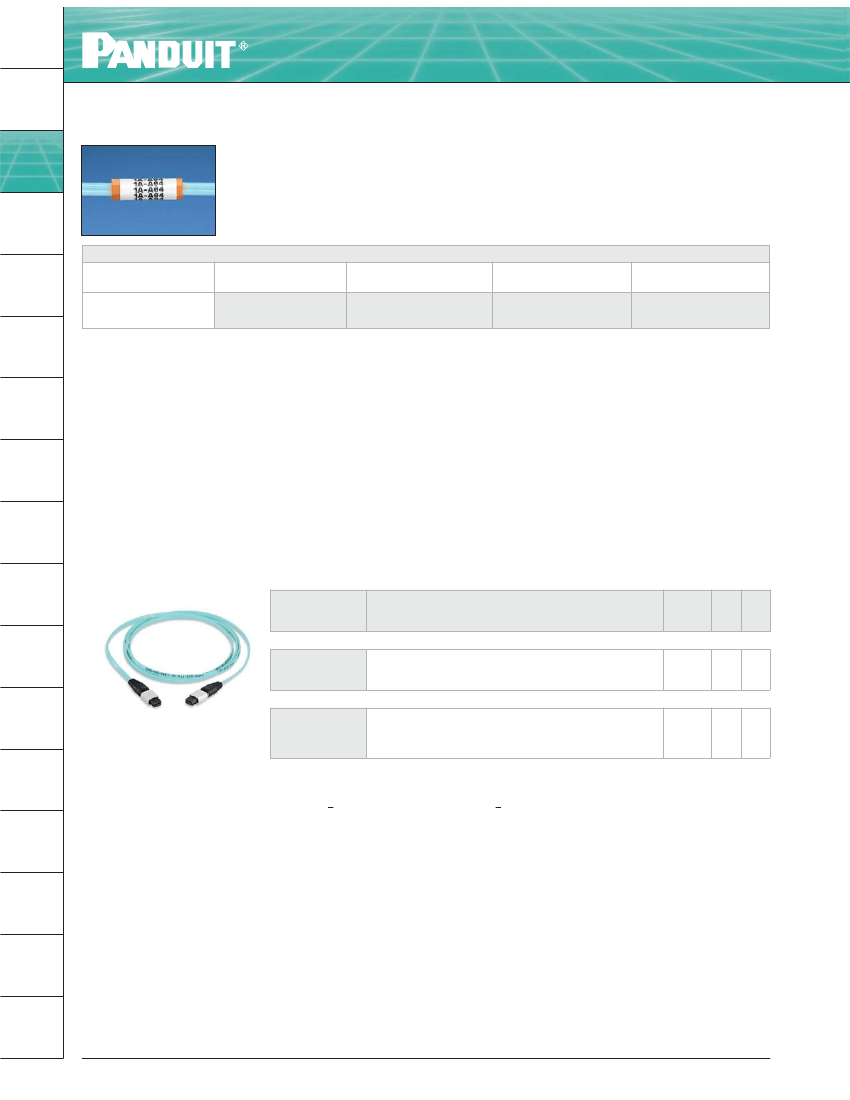

MTP* Interconnect Cable Assemblies
–
Multimode 10Gig
™
50/125µm (OM3 and OM4)
• Pass all TIA/EIA-568-B.3 performance requirements
• FOCIS-5 compliant
• Insertion loss per mated pair: 0.50dB typical; 0.75dB max.
• Tested per IEEE 802.3ae 10 GbE to support network
transmission speeds up to 10 Gb/s for link lengths up to
300 meters for OM3 and up to 550 meters for OM4 at
850nm with 50/125µm (OM3 and OM4) laser optimized
fiber
Part Number
FZ12D5-5M1Y
• Backward compatible with all 50/125µm (OM2) MPO or
MTP* system requirements
• Factory terminated and 100% tested for insertion loss
• Insertion loss and return loss data recorded for every
10Gig
™
Multimode Interconnect Cable Assembly
• Lifetime traceability of test data to a Q.C. number on each
cable assembly
Std. Std.
Length Pkg. Ctn.
(m)^
Qty. Qty.
1
1
10
Part Description
12 Fiber 10Gig
™
OM4 Optimized Flat Ribbon Plenum
Rated Female MTP - Female MTP Interconnect Cable
Assemblies with .5dB IL - 1m
Female MTP* to female MTP* 12-fiber interconnect cable
assembly (one female MTP* connector on each end on
ribbon interconnect cable) – 10Gig
™
50/125µm. Outside
diameter: 5mm x 2.5mm.
MTP* Interconnect Cable Assemblies
–
Multimode 10Gig
™
OM4 50/125µm
MTP* Interconnect Cable Assemblies
–
Multimode 10Gig
™
OM3 50/125µm
FX12D5-5M1Y
1
1
10
N.
Industrial
For OM4 interconnect assembly, replace the X ( FX12D5-5M1Y) with Z (FZ12D5-5M1Y).
^Additional lengths and availability: Interconnect cable assemblies are available in 1 – 10 meter lengths in 1 meter
increments, and 15, 20, 25 and 30 meter lengths. To order lengths other than 1 meter, replace the 1 after the M
(FZ12D5-5M1) with the desired length (FZ12D5-5M2 for 2 meter length). The above lengths are stock items. For
other lengths or male MTPs*, contact Customer Service for actual lead times.
For MTP* Connector Cleaning Tools, see page C.105.
*MTP is a registered trademark of US Conec Ltd.
O.
Labeling &
Identification
P.
Cable
Management
Accessories
Q.
Index
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in
BOLD.
