Datasheet> All Categories > The connector> The connector> FCN-298Q050-L/0-1

FCN-298Q050-L/0-1: DescriptionCONNECTOR, 50 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG; CategoryThe connector The connector; File Size114KB，4 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

FCN-298Q050-L/0-1 Overview

CONNECTOR, 50 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG

FCN-298Q050-L/0-1 Parametric

Parameter Name	Attribute value
Maker	FUJITSU
Reach Compliance Code	unknown
Other features	500 UNITS/REEL PACKAGING
body width	0.094 inch
subject depth	0.059 inch
body length	0.512 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	PALLADIUM
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	FCN-290
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.683 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.3 A
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
Base Number Matches	1

Preview

Download Datasheet

View All

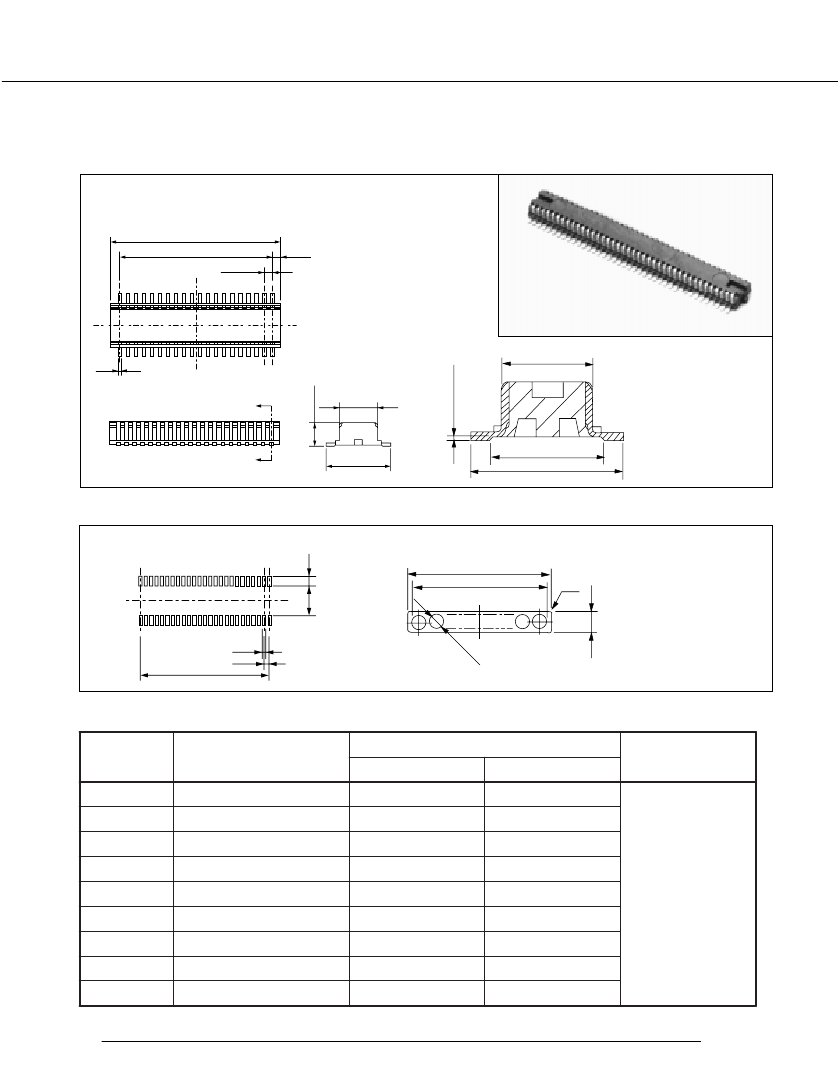

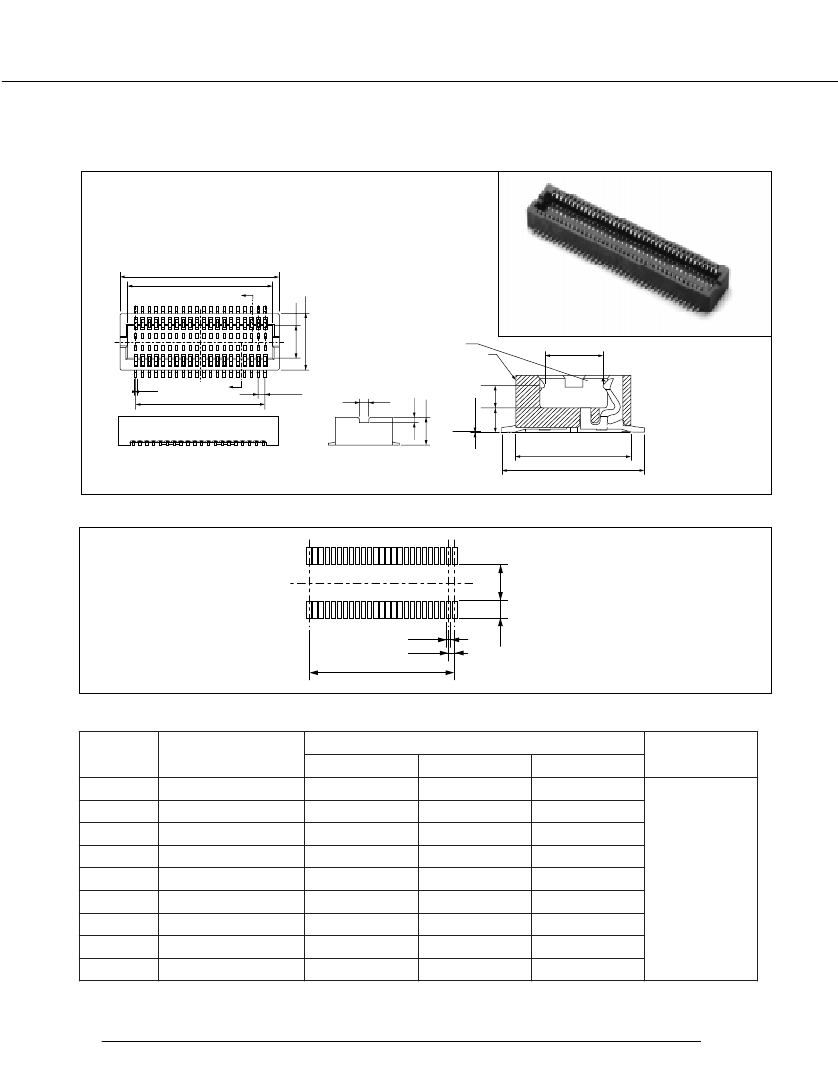

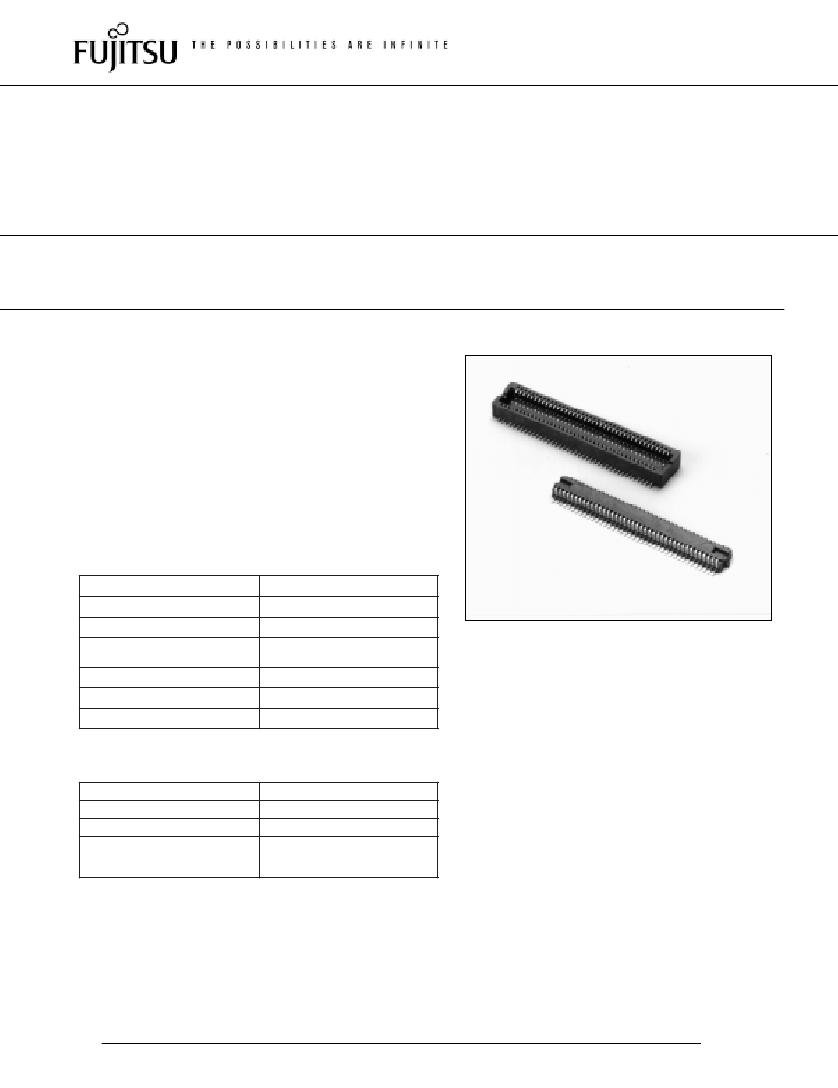

0.5 mm PITCH STACKING CONNECTORS

(2.5 mm STACKING HEIGHT)

FCN-290 SERIES

FEATURES

• Terminal pitch of 0.5 mm (0.020 in.), SMT terminals

(for both plug and socket).

• This connector can connect boards in parallel with

2.5mm (0.098 in.) stacking height .

• Bellows contacts provide reliable interconnection.

• Product is packaged in embossed carrier tape and

reel. Two package sizes are available.

• 3000 pcs per reel

• 500 pcs per reel

SPECIFICATIONS

Item

Operating temperature range

Rated current

Rated voltage

Contact resistance

Insulation resistance

Dielectric withstand voltage

Specification

-40° to +85 ° C

0.3A DC

200V AC

300V DC

40m

Ω

max

500V DC, 100M

Ω

min.

500V AC, 1 min.

MATERIALS

Item

Insulator

Conductor

Plating

LCP

Copper alloy

Surface finish of

contact: PAGOS®

Terminal: Palladium

Material

Specifications

subject to change

Dimensions are in millimeters (inches)

www.fcai.fujitsu.com

FCN-298Q050-L/0-1 Related Products

	FCN-298Q050-L/0-1	FCN-298B070-L/0	FCN-298Q070-L/0	FCN-298Q090-L/0
Description	CONNECTOR, 50 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG	Board Stacking Connector, 70 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket	Board Stacking Connector, 70 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug	HEADER CONNECTOR,PCB MNT,RECEPT,90 CONTACTS,PIN,0.02 PITCH,SURFACE MOUNT TERMINAL
Reach Compliance Code	unknown	unknown	unknown	compliant
Body/casing type	PLUG	SOCKET	PLUG	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	FEMALE	MALE	MALE
Filter function	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.508 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	50	70	70	90
Maker	FUJITSU	FUJITSU	FUJITSU	-
DIN compliance	NO	NO	NO	-
IEC compliance	NO	NO	NO	-
MIL compliance	NO	NO	NO	-
Manufacturer's serial number	FCN-290	FCN-290	FCN-290	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
