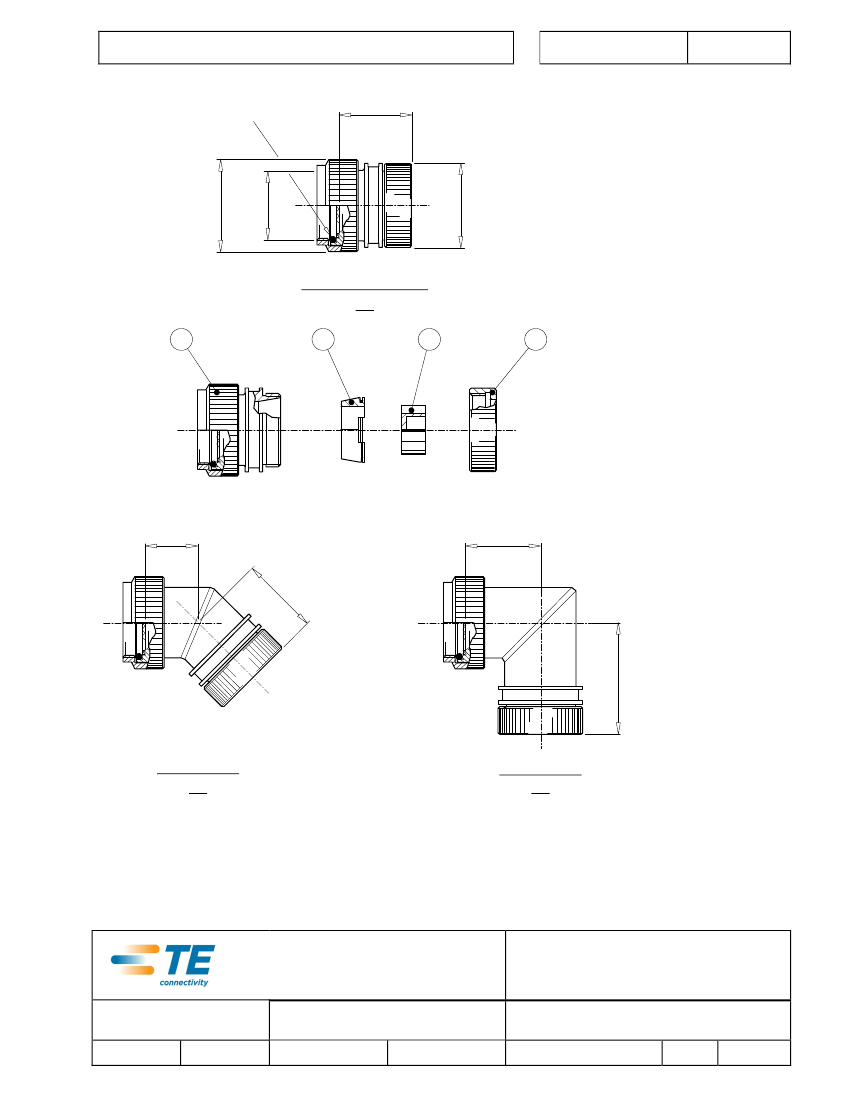

CUSTOMER DRAWING
O RING - SILICONE
TYP
25.0 [0.98"]
MAX
REV:
E
DATE:
Sep 24, 2012
øA THREAD
TYP
øB MAX
TYP
STRAIGHT ADAPTOR
-00
1
3
4
øC
MAX
2
D
MAX
F
MAX
45º ADAPTOR
-45
90º ADAPTOR
-90
©
2012 Tyco Electronics Corporation, a TE Connectivity Ltd. Company. All Rights reserved.
TITLE:
TE Connectivity
300 Constitution Drive
Menlo Park, CA 94025, USA
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN MILLIMETERS.
INCH DIMENSIONS ARE SHOWN IN
BRACKETS
TE Connectivity reserves the right to amend this drawing at
any time. Users should evaluate the suitability of the
product for their application.
HEXASHIELD ADAPTOR FOR
CODE 40 CONNECTORS,
PLAIN CLAMPING NUT
DOCUMENT NO.
HEX40-AY-YY-YY-AYY-1-Y
FILE:
hex40_ay_yy_yy_ayy_1_y.doc:
SCALE:
SHEET:
DRAWN:
DATE:
CAGE CODE:
REVISED PER
CRJ
MAR 00
06090
ECO-12-017034
G
MAX
If this document is printed it becomes uncontrolled. Check for the latest revision
E X
A
M
NONE
1 OF 3
CUSTOMER DRAWING
KIT DESCRIPTION
ITEM
1
2
3
4
DESCRIPTION
BODY ASSEMBLY
CLAMPING NUT - PLAIN
CONIC RING
STAR
MATERIAL
ALUMINIUM ALLOY
ALUMINIUM ALLOY
ALUMINIUM ALLOY
ALUMINIUM ALLOY
REV:
E
DATE:
Sep 24, 2012
TABLE OF DIMENSIONS
Order
Number
09
11
13
15
17
19
21
23
25
Shell Size
Mil.
A
B
C
D
E
F
G
H
J
Com.
09
11
13
15
17
19
21
23
25
ØA Thread
Class 6H
M12 x 1
M15 x 1
M18 x 1
M22 x 1
M25 x 1
M28 x 1
M31 x 1
M34 x 1
M37 x 1
ØB
Max
0.75”
[19.0]
0.87”
[22.0]
1.00”
[25.5]
1.20”
[30.5]
1.32”
[33.5]
1.46”
[37.0]
1.52”
[38.5]
1.65”
[42.0]
1.83”
[46.5]
ØC
Max
0.69”
[17.5]
0.85”
[21.5]
0.89”
[22.5]
1.00”
[25.5]
1.12”
[28.5]
1.24”
[31.5]
1.38”
[35.0]
1.50”
[38.0]
1.61”
[41.0]
D
Max
0.57”
[14.5]
0.59”
[15.0]
0.63”
[16.0]
0.65”
[16.5]
0.67”
[17.0]
0.69”
[17.5]
0.73”
[18.5]
0.75”
[19.1]
0.75”
[19.1]
E
Max
1.00”
[25.5]
1.02”
[26.0]
1.04”
[26.5]
1.08”
[27.5]
1.10”
[28.0]
1.12”
[28.5]
1.14”
[29.0]
1.18”
[30.0]
1.22”
[31.0]
F
Max
0.71”
[18.0]
0.77”
[19.6]
0.83”
[21.1]
0.89”
[22.6]
0.95”
[24.1]
1.01”
[25.7]
1.08”
[27.4]
1.14”
[29.0]
1.20”
[30.5]
G
Max
1.14”
[29.0]
1.20”
[30.5]
1.26”
[32.0]
1.32”
[33.5]
1.38”
[35.0]
1.44”
[36.5]
1.52”
[38.5]
1.57”
[40.0]
1.63”
[41.5]
Ferrule
Quantity
Std. Opt.
1
-
2
3
5
6
7
9
10
12
-
-
-
7
-
11
13
17
PART NUMBERING
-CONNECTOR CODE NUMBER:
HEX40 = MIL-C-38999 SERIES III AND IV
-MATERIAL CODE:
A = ALUMINIUM ALLOY
-PLATING CODE:
B = CADMIUM OLIVE DRAB TO QQ-P416
C = ELECTROLESS NICKEL TO MIL-C-26074
-BODY STYLE:
00 = STRAIGHT
45 = 45°
90 = 90°
-ORDER NUMBER
-FERRULE QUANTITY CODE
-1 = PLAIN CLAMPING NUT
-DS = DRILLED STAR - OPTIONAL - SEE NOTE 2
-U = FLUOROSILICONE O-RING - OPTIONAL
©
2012 Tyco Electronics Corporation, a TE Connectivity Ltd. Company. All Rights reserved.
TITLE:
TE Connectivity
300 Constitution Drive
Menlo Park, CA 94025, USA
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN MILLIMETERS.
INCH DIMENSIONS ARE SHOWN IN
BRACKETS
TE Connectivity reserves the right to amend this drawing at
any time. Users should evaluate the suitability of the
product for their application.
HEXASHIELD ADAPTOR FOR
CODE 40 CONNECTORS,
PLAIN CLAMPING NUT
DOCUMENT NO.
HEX40-AY-YY-YY-AYY-1-Y
FILE:
SCALE:
SHEET:
DRAWN:
DATE:
CAGE CODE:
REVISED PER
CRJ
hex40_ay_yy_yy_ayy_1_y.doc:
MAR 00
06090
ECO-12-017034
If this document is printed it becomes uncontrolled. Check for the latest revision
NONE
2 OF 3
CUSTOMER DRAWING
APPLICATION
- These adaptors are designed to be mounted on the following connectors:
MIL-C-38999 Series III and IV
REV:
E
DATE:
Sep 24, 2012
- They are qualified to the Raychem specification RB-114, when installed on metallic Mil-Specification circular
connectors only.
- They are designed primarily for open wire bundle installation but are also designed to accept Raychem heat shrink
moulded parts where strain relief is required – see illustration.
MOULDED PART
- Use in conjunction with the ferrules HET-A-0XX, which are purchased separately. Refer to HET-A-0XX S.C.D. for relevant
selection details.
INSTALLATION
- See Installation Procedure RPIP-696-04.
PACKAGING
- All components are supplied in a plastic bag.
NOTES!
1. Item 4 - Star - is
not
supplied with Hexashield Order Number 09.
2. The DS option, illustrated below, is for a Drilled Star that is available on sizes 15 to 25 only. This option is to allow
unshielded wires to pass through the assembly.
ø
F MAX
STAR SIZE
ØD MAX
15
0.12”
[3.0]
17
0.24”
[6.0”]
19
0.35”
[9.0]
21
0.47”
[12.0]
23
0.59”
[15.0]
25
0.71”
[18.0]
3. Where the ferrule quantities required are standard, the item 4 - Star - is also standard.
If the optional quantity is selected then 2 items 4 will be supplied - one “split” and the other one standard.
See below for illustration.
EXAMPLE: FERRULE QUANTITY CODE -A13
-A13 = -A10 SPLIT STAR + -A3 STANDARD STAR
4. Assembly is to be permanently marked with Code Identity Number and Part Number.
(e.g. 06090 HEX40-AB-00-21-A9-1)
©
2012 Tyco Electronics Corporation, a TE Connectivity Ltd. Company. All Rights reserved.
TITLE:
TE Connectivity
300 Constitution Drive
Menlo Park, CA 94025, USA
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN MILLIMETERS.
INCH DIMENSIONS ARE SHOWN IN
BRACKETS
TE Connectivity reserves the right to amend this drawing at
any time. Users should evaluate the suitability of the
product for their application.
HEXASHIELD ADAPTOR FOR
CODE 40 CONNECTORS,
PLAIN CLAMPING NUT
DOCUMENT NO.
HEX40-AY-YY-YY-AYY-1-Y
FILE:
hex40_ay_yy_yy_ayy_1_y.doc:
SCALE:
SHEET:
DRAWN:
DATE:
CAGE CODE:
REVISED PER
CRJ
MAR 00
06090
ECO-12-017034
NONE
3 OF 3
If this document is printed it becomes uncontrolled. Check for the latest revision
