RJLSE
Product Specification S6033C Rev 1.3
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Related Products
RJSSE

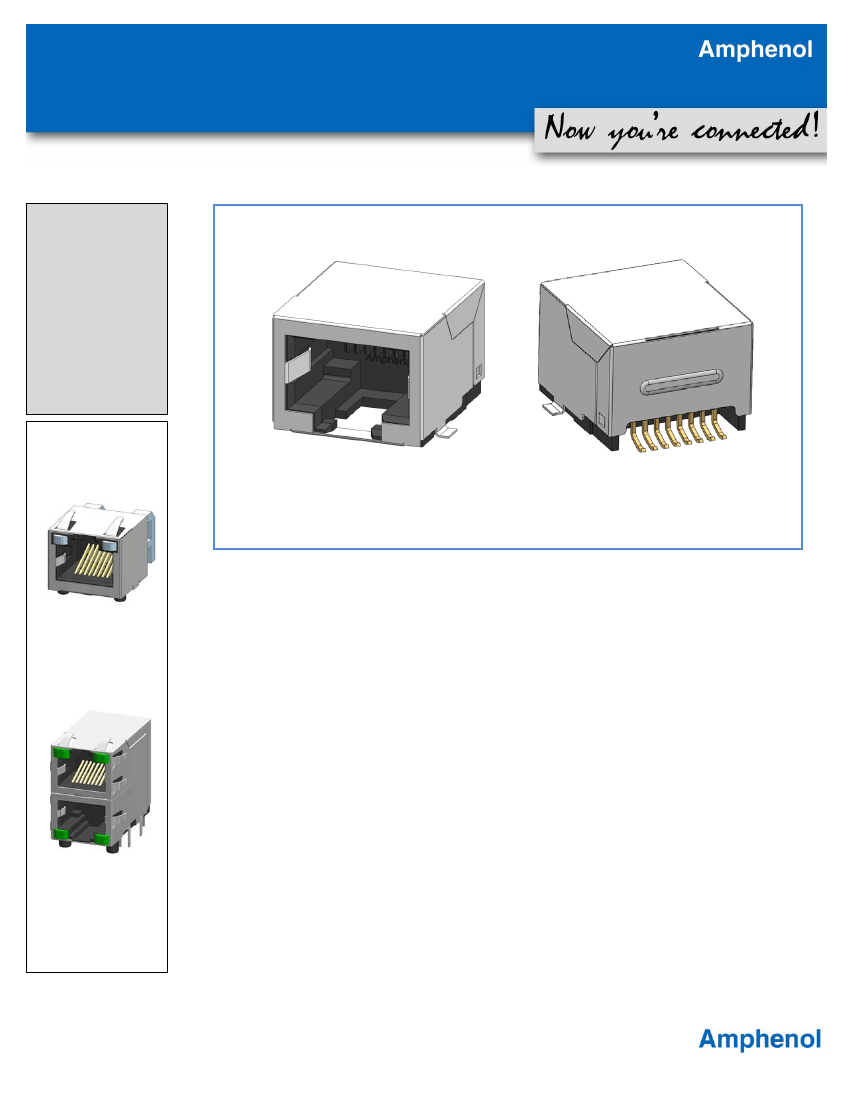

P/N RJLSE‐41181‐01 SHOWN
SINGLE PORT REGULAR MOUNT,
STANDARD SHIELD WITH SMT TAB
Overview
P/N RJSSE‐5081 SHOWN
SINGLE PORT, 8 POSITION,
WITH SHIELD AND LIGHT PIPE
This product specification defines the general use and performance parameters for Amphenol’s
RJLSE series of modular jacks.
Availability: Single, right angle connectors with a variety of shielding options.
Usage
RJSAR
The RJLSE surface mount modular jacks with superior EMI performance supports Ethernet
Protocols. Shielding available for increased EMI performance.
Applications
Intended for use in applications such as:
Networking & Telecom
Wireless (WiMAX)
Network servers
Hubs, routers, switches
Office & Home Equipment
PC’s, Laptops, Copiers/Printers
Telephones, modems
Surge Protectors
ATMs, Vending Machines
Consumer Goods
Security Systems
Set Top Boxes
Video Game Systems
Miscellaneous
Multi-Media Equipment
Industrial Equipment
POS Terminals
P/N RJSAR‐5385‐02 SHOWN
STACKED 2x1, 8 POSITION,
WITH SHIELD AND LEDs
Revision date: July 4,2014
Page 1 of 3
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Electrical Characteristics
Contact resistance:
Insulation resistance:
Current rating:
Voltage rating:
DWV:
20 mΩ max.
500 MΩ minimum at 500V DC for 2 minutes max.
1.5 Amps
125 Volts AC
1000 VAC, 60 Hz. 1 min.
Mechanical Characteristics
Mating connector insertion force: 5.0 lbs. Maximum.
Mating connector pull retention force: 20 lbs Minimum.
Durability: 750 mating & unmating cycles
Recommended soldering temperature: Lead free reflow soldering up to 260° C for 10 seconds.

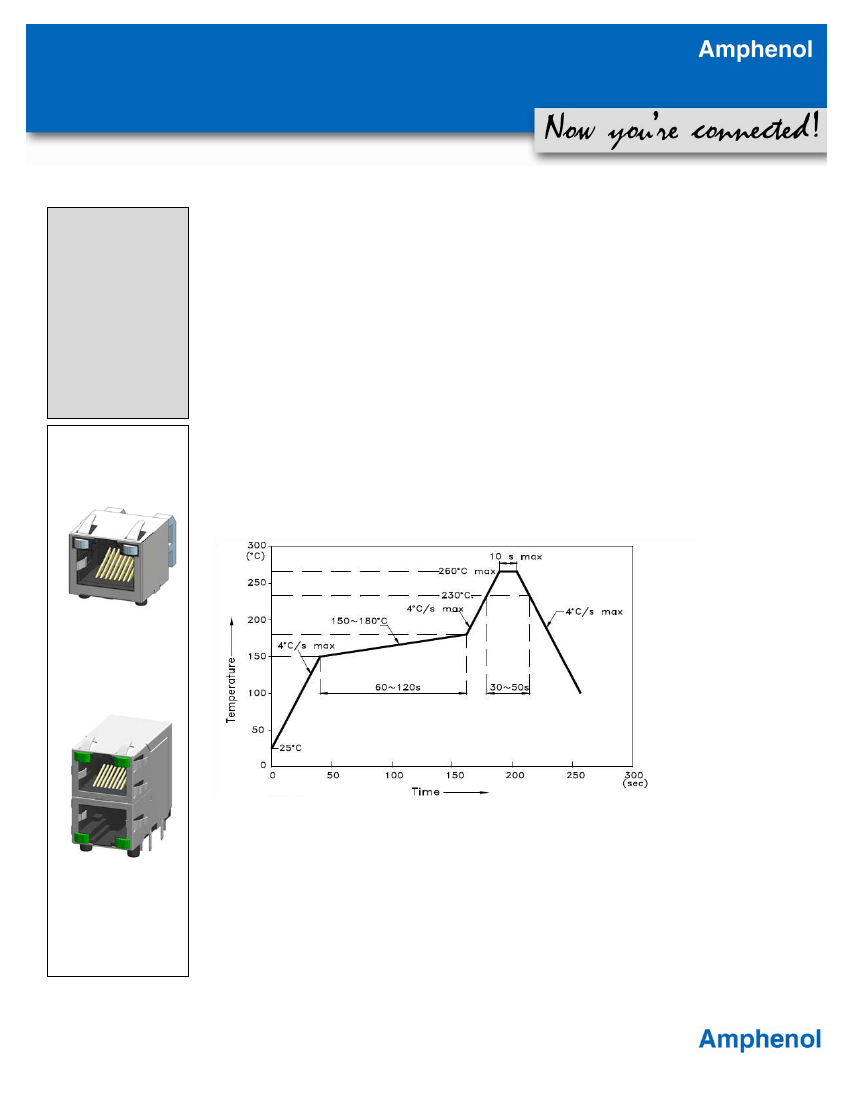

Refer to recommended reflow profile below. A maximum of three reflow passes are permitted.
Refer to J-STD-033 for safe handling procedures for SMD’s.
Related Products
RJSSE
P/N RJSSE‐5081 SHOWN
SINGLE PORT, 8 POSITION,
WITH SHIELD AND LIGHT PIPE
RJSAR
Operating temperature: -55° C to +85° C
P/N RJSAR‐5385‐02 SHOWN
STACKED 2x1, 8 POSITION,
WITH SHIELD AND LEDs
Revision date: July 4,2014
Page 2 of 3
S6033C Rev 1.3

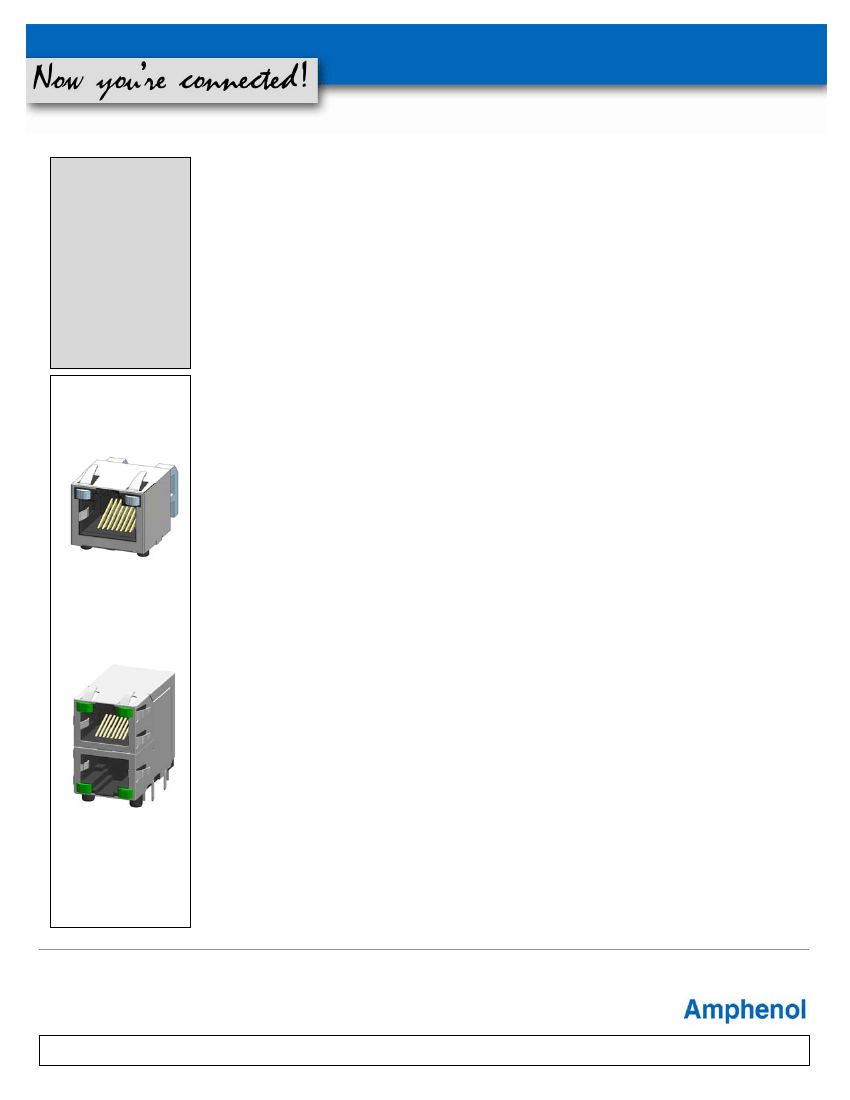

About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Material Requirements
RJLSE connectors are RoHS compliant.
Unless otherwise specified, the materials for each component shall be:
Insulator:
High Temp thermoplastic. Complies with UL 94V-0, Black is standard but other color
options are available.
Contacts:
Phosphor Bronze hard temper with gold thickness options (6µ”, 15µ”, 30µ”, 50µ”) over
50µ” minimum Nickel on contact mating area. Gold flash over palladium nickel is also
available.
100µ” minimum matte tin plating on soldering tail
Shield:
Copper alloy; Nickel or matte tin plated
Related Products
Available Documents
RJSSE
Drawing Numbers:
P-RJLSE-4X1XX-02
P-RJLSE-4X2XX-01
P-RJLSE-6X0XX-01X
8 Position, Contact options, with shield, gold plating and housing options
8 Position, Contact options, without shield, with hold down bracket and tray packaging
6 Position, Contact options, without shield, with gold plating and packaging options
Contact factory or Authorized Amphenol representative for additional configurations
P/N RJSSE‐5081 SHOWN
SINGLE PORT, 8 POSITION,
WITH SHIELD AND LIGHT PIPE
RJSAR
P/N RJSAR‐5385‐02 SHOWN
STACKED 2x1, 8 POSITION,
WITH SHIELD AND LEDs
Amphenol Canada Corp.
605 Milner Avenue
Toronto, Ontario, Canada, M1B 5X6
+1 416 291 4401
www.amphenolcanada.com
Page 3 of 3
Copyright © Amphenol Corporation 2012 • All rights reserved
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
