Thin Wire Coaxial Connector for Small Portable Devices
CONNECTOR
FI-J Series
MB-0143-3
October 2008
RoHS Compliant

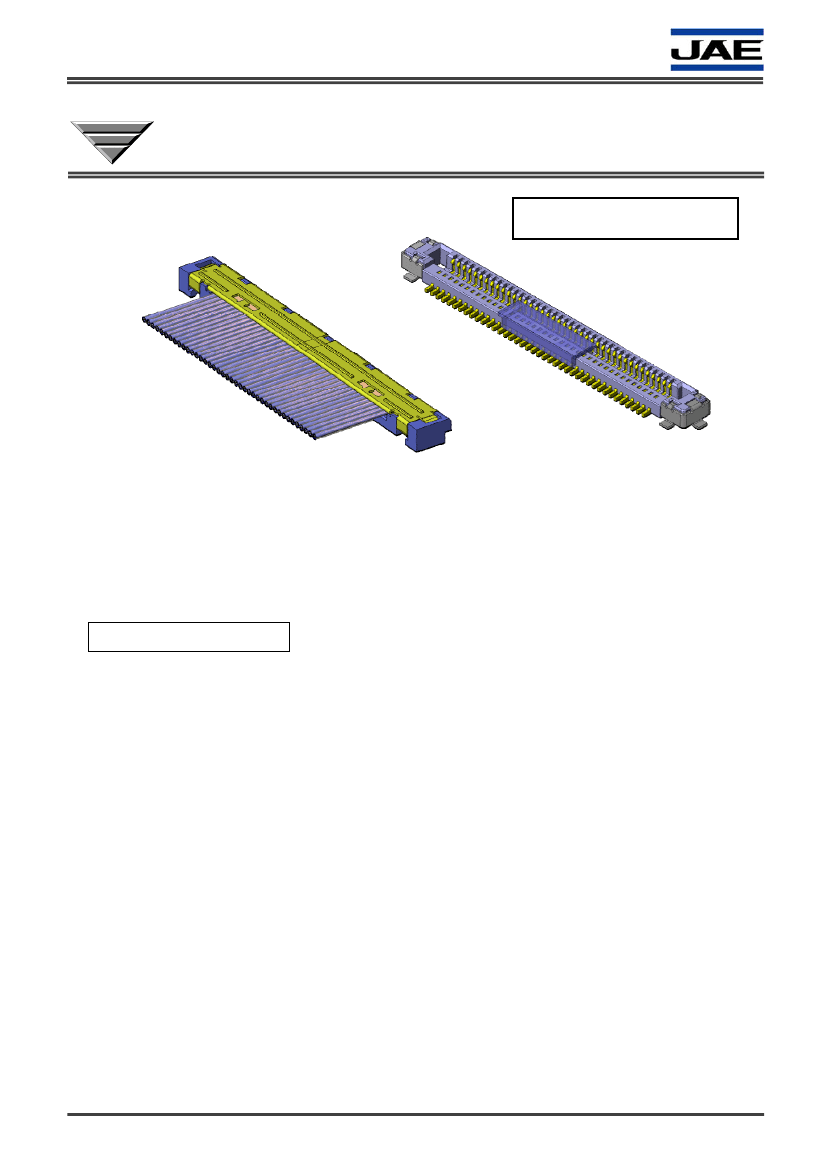

The FI-J Series is a thin-wire coaxial connector compatible with 42 and 44 AWG
wires, and it is ideally suited for compact devices. The FI-J achieves remarkable
space saving on the board and is small enough to pass through a narrow hinge
after the harness is assembled.
Features
Plug side can pass through 3.6mm dia. hinge after harness assembly. (40 position,
42 AWG)
2.5mm depth, 21.7mm width (for 40 position), with 1.58mm height when mated
Stable connection ensured by 0.4mm effective contact length
Highly reliable structure of supporting the contact points with each contact
Enhanced connection stability with gold-plated ground contact points on plug and
receptacle
Mis-mating prevention structure
Compatible with 42 and 44 AWG wires. (Proven harness assembly compliance)
Receptacle side: Available on embossed tape for automatic mounting
Receptacle side: Solder migration prevention structure with Ni barrier
1/7
JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd.
MB-0143-3
General Specifications
No. of contacts : 20, 25, 30, 35, 40 pos.
Pitch: 0.4mm
Operating Temperature:
-40 Deg. C to +85 Deg. C
Contact Resistance: 40m ohm max.
Life Time: 30 times
Rated Current: AC, DC each 0.3A per pos.
Rated Voltage: AC, DC each 50V per pos.
Insulation Resistance: 100M ohm min.
Dielectric Withstanding Voltage :
AC 250Vr. m.s per minute
Applicable Cable: 42 to 44 AWG
Materials and Finishes
Component
Contact
Hold down
Insulator
Adsorption Insulator
Contact
Insulator
Shell
Material / Finish
Receptacle(FI-J**S-VF15N)
Copper alloy / Contact portion and terminal portion:
Au flash plating over Ni
Copper alloy / Contact portion and terminal portion:
Au flash plating over Ni
Heat resistant plastic UL94V-0
Heat resistant plastic UL94V-0
Plug(FI-J**C5 / FI-J**C2-SH-D)
Copper alloy / Contact portion and terminal portion:
Au flash plating over Ni
Heat resistant plastic UL94V-0
Stainless steel / Au plating over Ni
2/7
JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd.
MB-0143-3
Ordering Information
Receptacle Side

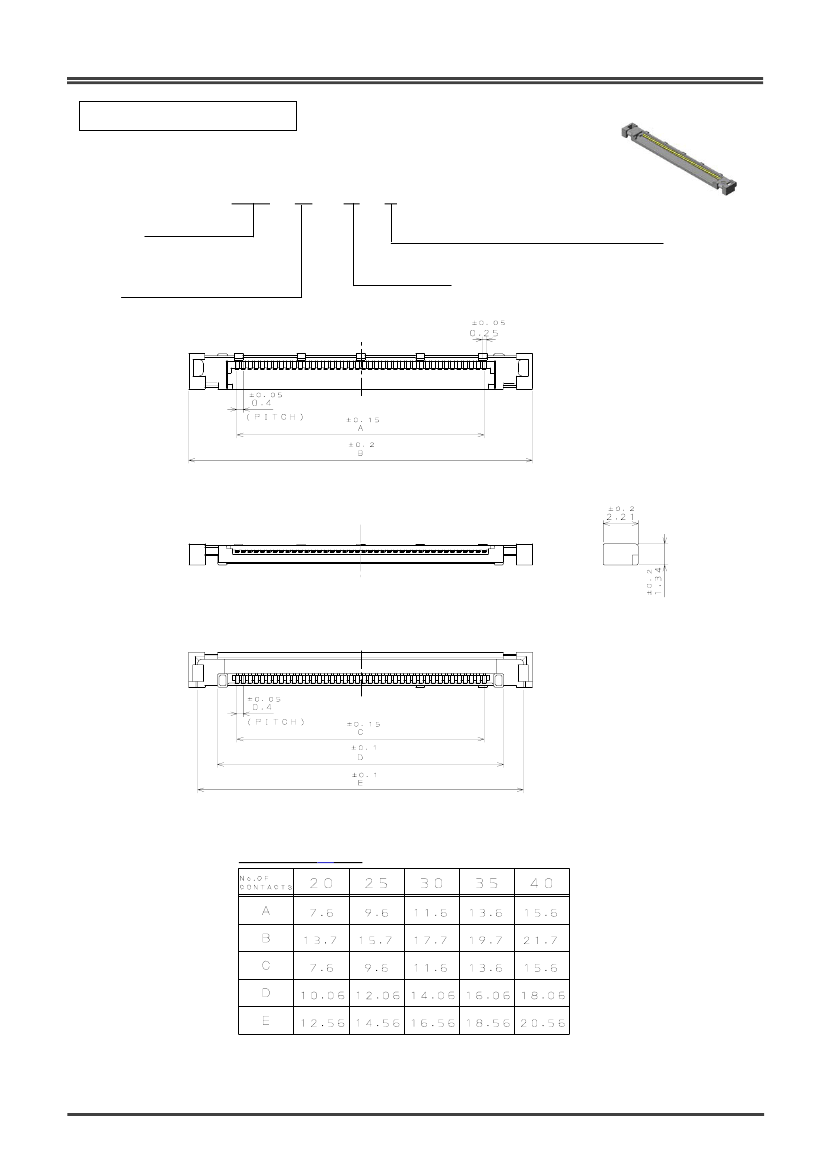

Individual Product (SJ104705)
FI-J
Series
No. of Contacts:
20,25,30,35,40
** S - VF 15N
Modification Code 15N: General
Vertical Type
Socket Side
Unit: mm
Recommended dimension of board
Dimension
Chart
Drawing when mated
(for reference)
3/7
JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd.
MB-0143-3
Ordering Information
Receptacle Side
Embossed Product (SJ104708)
FI-J ** S - VF 15N - R3000
Series
No. of Contacts:
20,25,30,35,40
Socket Side
Unit: mm
Dimension chart
Embossed Reel 3000pcs.
Modification Code 15N: General
Vertical Type
* One lane for 20 pos. type is carrier.
4/7
JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd.
MB-0143-3
Ordering Information

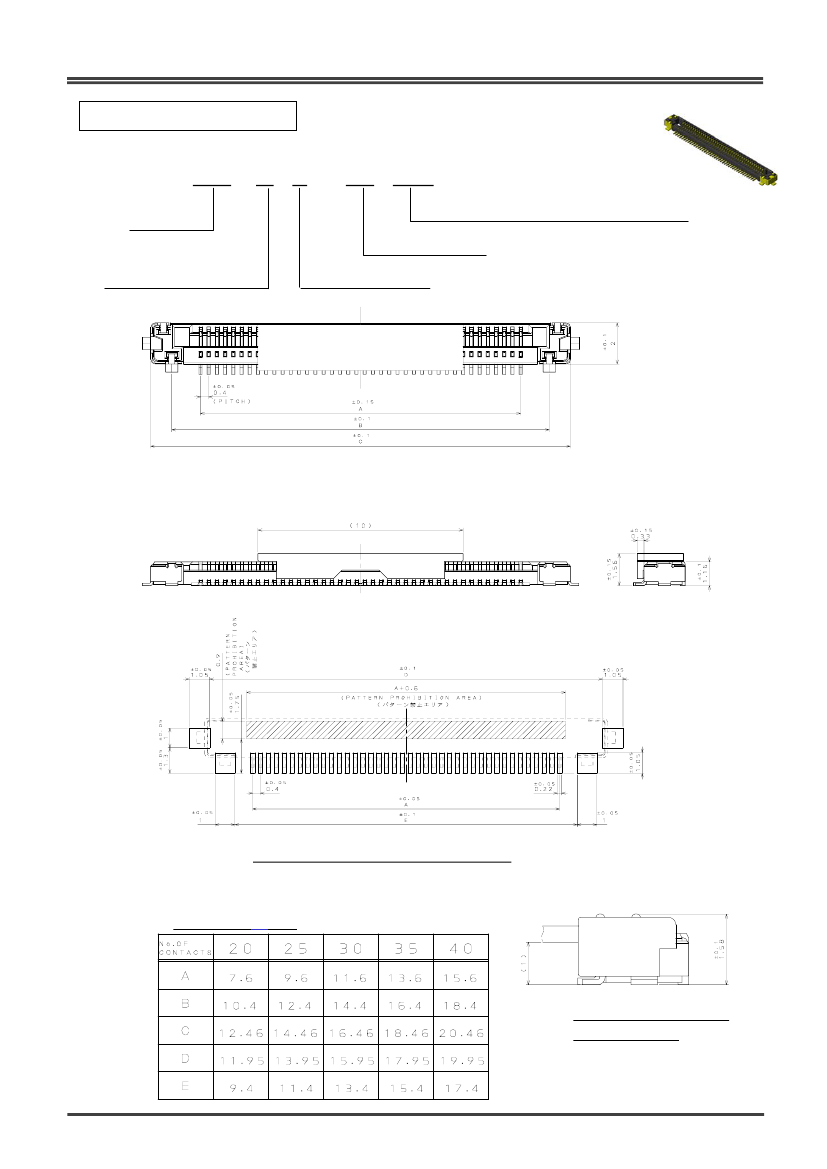

Plug Side, Insulator (SJ106631)
FI-J
Series
No. of Contacts:
20,25,30,35,40 pos.
**
C
5
Modification Code 5: General
Plug Side
Unit: mm
Dimension
Chart
5/7
JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd.
